4-50 — FRONT SUSPENSION (#72428) — 46 parça

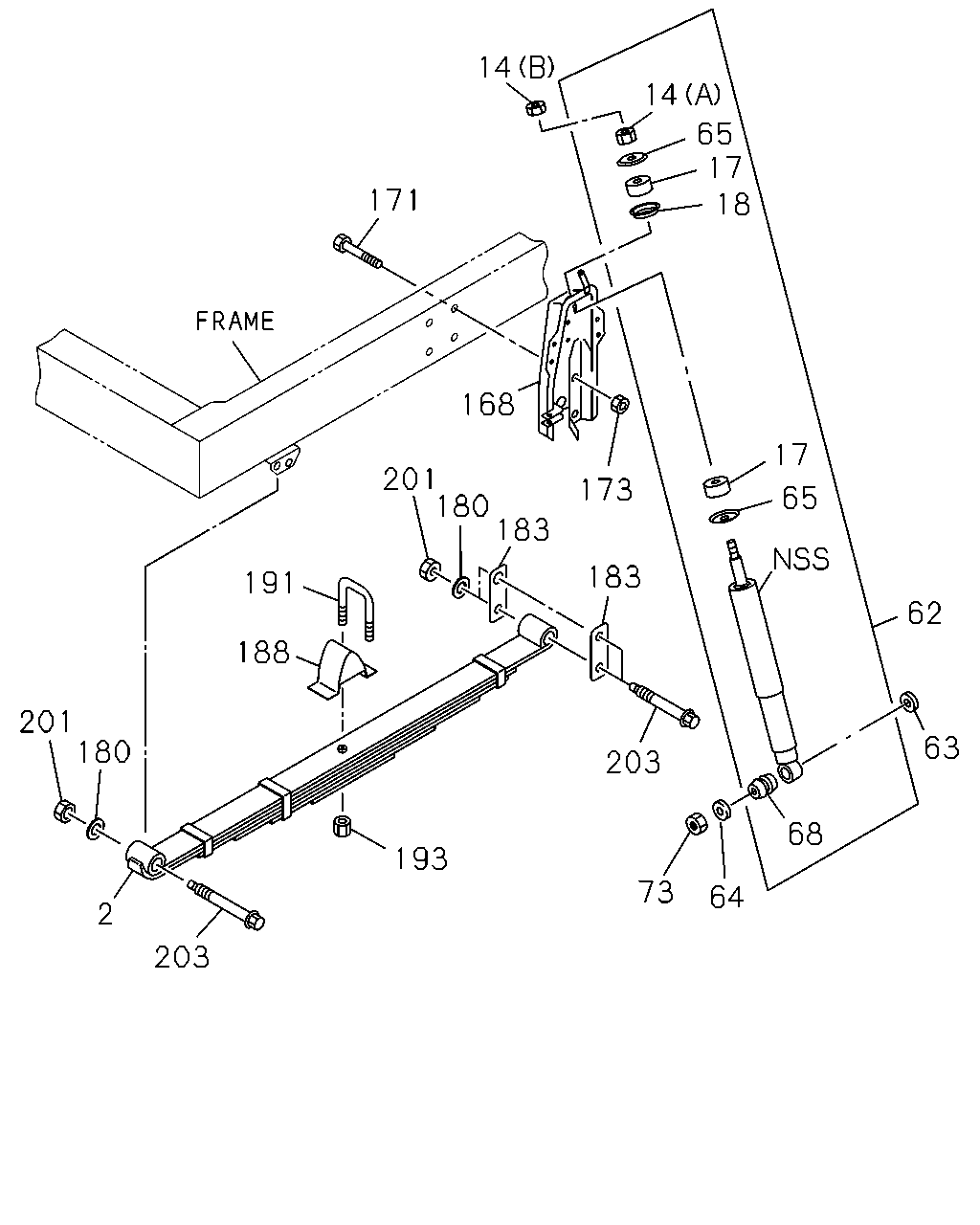

çizim 124075
14 14 65 17 18 171 168 17 201 180 183 173 65 183 191 62 188 201 180 63 203 68 193 73 64 2 203
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97092-445-1 01 1 9704- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97092-446-1 01 1 9704- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-97092-449-1 01 1 9704- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-97092-450-1 01 1 9704- ●
14 NUT; S/ABS,UPR
(A) M10 T=8 		9-09640-020-0 02 1 9704- ● ●
14 NUT; S/ABS,UPR
(B) M10 T=6 		9-09640-021-0 02 1 9704-0306 ● ●
17 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 9704- ● ●
18 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 9704- ● ●
62 ABSORBER ASM; SHOCK,FRT 8-97160-087-0 02 1 9704-0003 ● ●
62 ABSORBER ASM; SHOCK,FRT 8-97253-617-1 02 1 0004- ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-128-1 02 1 0004- ● ●
63 WASHER; PL,S/ABS,LWR
ID=21 OD=40 		9-09164-620-0 02 1 9704-0605 ● ●
63 WASHER; PL,S/ABS,LWR
ID=21 OD=40 		0-91614-620-0 02 1 0606- ● ●
64 WASHER; S/ABS,LWR
ID=15.0 		9-51679-012-0 02 1 9704-0611 ● ●
64 WASHER; S/ABS,LWR
ID=15 		8-97360-056-0 02 1 0612- ● ●
65 WASHER; S/ABS
OD=40 		9-51631-614-0 04 1 9704- ● ●
68 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 9704- ● ●
73 NUT; BRKT,SHOCK
M14 		9-99110-414-0 02 1 9704-0512 ● ●
73 NUT; BRKT,SHOCK
M14 		0-91110-514-0 02 1 0601- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-94162-751-4 01 1 9704-0106 ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97316-009-0 01 1 0107- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-94162-750-3 01 1 9704-0106 ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97316-008-0 01 1 0107- ● ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE 		0-28681-235-0 08 1 9704-0512 ● ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE 		0-28651-235-0 08 1 0601- ● ●
173 NUT; S/ABS
M12 		8-94139-015-0 08 1 9704-0610 ● ●
173 NUT; S/ABS
M12 		8-97360-126-0 08 1 0611- ● ●
180 WASHER; PL,PIN
ID=16.5 		8-97070-925-1 06 1 9704-9705 ● ●
180 WASHER; PL,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-97070-925-1 06 1 9706-0611 ● ●
180 WASHER; PL,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 06 1 0612- ● ●
183 SHACKLE; FRT SUSP 8-94110-399-3 04 1 9704- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-94101-347-4 02 1 9704- ● ●
191 U-BOLT; FRT SPR
L=105 		8-94157-676-3 04 1 9704- ● ●
193 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 9704-0610 ● ●
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 0611- ● ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 		9-99110-516-0 06 1 9704-0512 ● ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 		0-91110-516-0 06 1 0601- ● ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 		8-94107-767-0 06 1 9704-9705 ● ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 06 1 9706-0610 ● ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 0611- ● ●
203 PIN; SPR TO SHACKLE
KD PREPARATORY PACK<6HF> FRONT L=115 		8-94423-525-1 02 1 9704-0307 ● ●
203 PIN; SPR TO SHACKLE
KD PREPARATORY PACK<6HF> REAR M16X122 		9-51361-602-2 04 1 9704-0307 ● ●
203 PIN; SPR TO SHACKLE
KD PREPARATORY PACK<6HF> M16X122 		9-51361-602-2 06 1 0308-0611 ● ●
203 PIN; SPR TO SHACKLE
KD PREPARATORY PACK<6HF> M16X122 		8-98011-487-0 06 1 0612- ● ●
203 PIN; SPR TO SHACKLE
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97076-850-2 06 1 9704-0610 ● ●
203 PIN; SPR TO SHACKLE
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 0611- ● ●
