4-42 — POWER STEERING OIL PUMP (#72427) — 128 parça

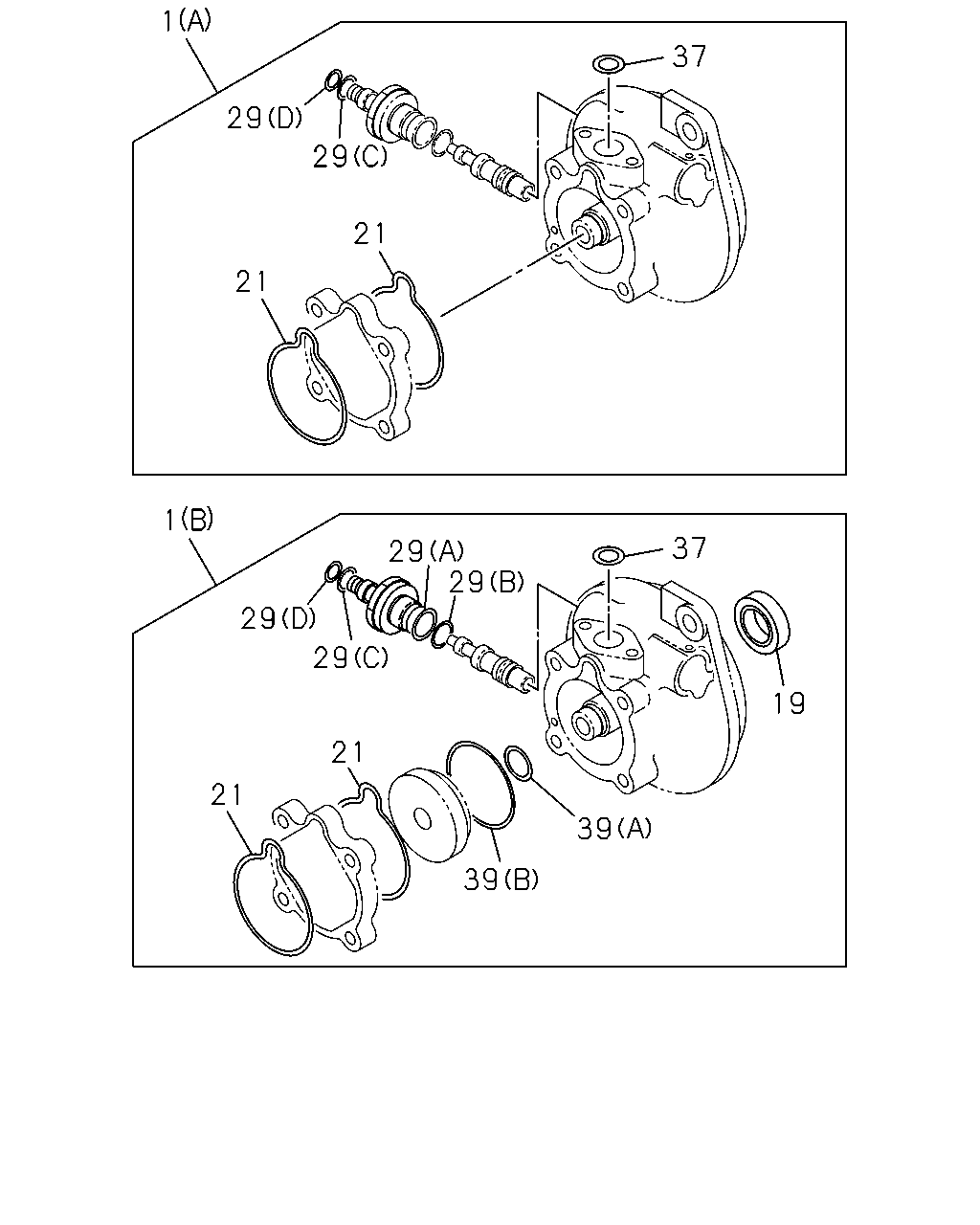

1 37 29 29 21 21 1 37 29 29 29 29 19 21 21 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0	8-97075-583-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0	8-97075-584-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: C = 8-97388-651-1	8-97388-648-0	01	1	-
1	REPAIR KIT; OIL PUMP (A) ASM PART: C = 8-97388-651-1	8-97388-649-0	01	1	-
1	REPAIR KIT; OIL PUMP (A) ASM PART: D = 8-98138-131-2	8-98058-095-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: D = 8-98138-131-2	8-98058-096-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 8-97136-574-1	8-97075-577-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: D = 8-98138-131-2	8-94380-746-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97062-329-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-97075-581-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97357-213-0	8-97029-777-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-98138-131-2	8-97184-767-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97388-651-1	8-97357-781-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-647-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-97147-441-0	01	1	-

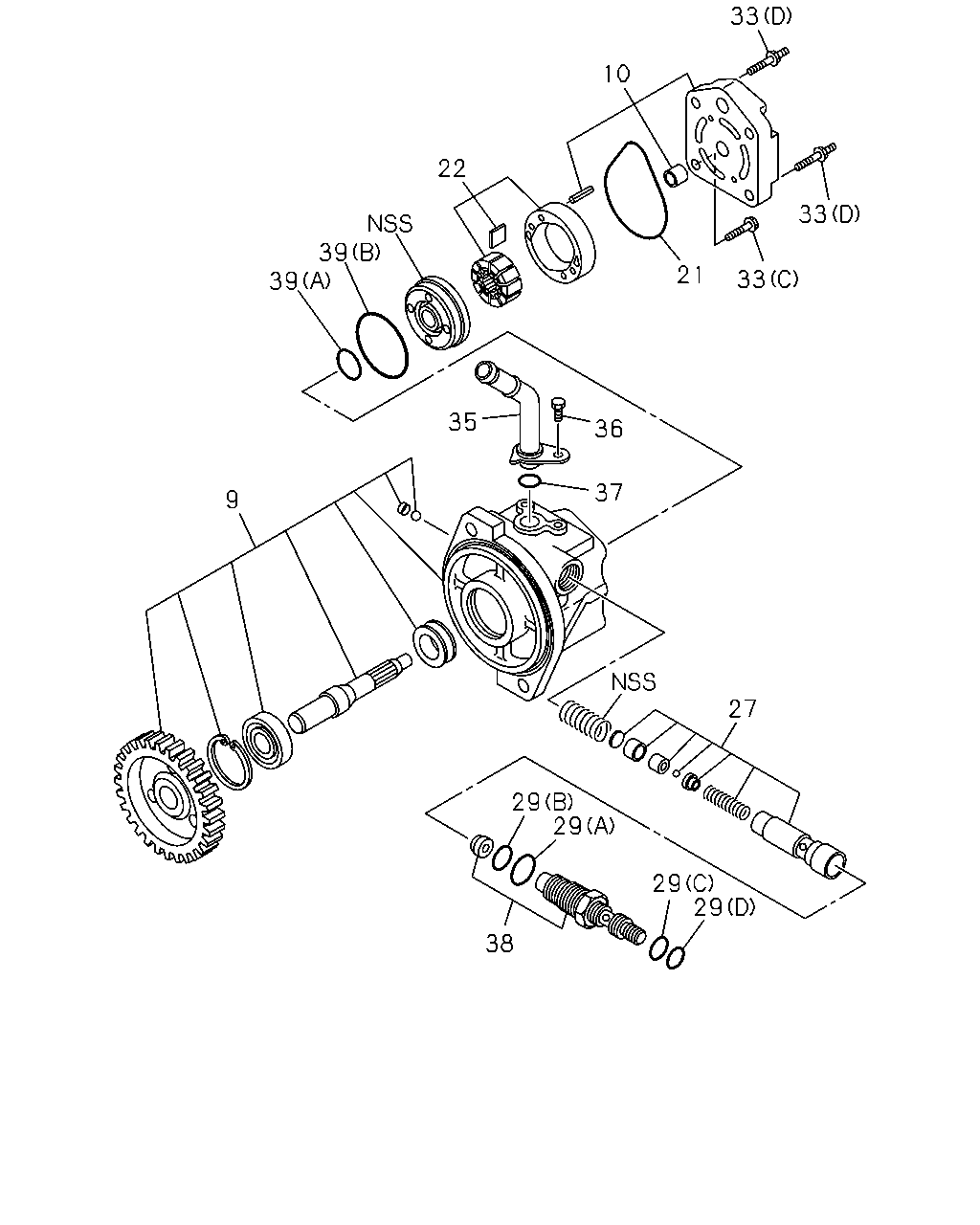

33 10 22 33 39 39 21 33 35 36 37 9 27 29 29 29 29 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97136-574-1	8-97029-764-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97357-213-0	8-97369-595-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97388-651-1	8-97388-641-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 8-98138-131-2	8-98058-097-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97029-772-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 8-98138-131-2	8-98116-059-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: D = 8-98138-131-2	8-94380-746-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97062-329-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97148-690-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-98138-131-2	8-98058-088-0	01	1	-1111
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-98138-131-2	8-98216-517-0	01	1	1112-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97075-587-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: D = 8-98138-131-2	8-98139-288-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-97075-581-0	01	1	-
33	BOLT; COVER (A) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97029-773-0	03	1	-
33	BOLT; COVER (B) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97075-585-0	01	1	-
33	BOLT; COVER (C) ASM PART: D = 8-98138-131-2	8-97184-761-0	01	1	-
33	BOLT; COVER (D) ASM PART: D = 8-98138-131-2	8-98139-286-0	03	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97357-213-0	8-97091-932-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-97388-651-1	8-97388-640-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: D = 8-98138-131-2	8-98139-290-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-94379-664-0	02	1	-
36	BOLT; CONN,PIPE ASM PART: D = 8-98138-131-2	8-97184-763-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97357-213-0	8-97029-777-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-98138-131-2	8-97184-767-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97388-651-1	8-97357-781-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-97136-574-1	8-97029-775-1	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 8-97357-213-0, C = 8-97388-651-1	8-97093-504-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: D = 8-98138-131-2	8-98139-291-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-647-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-97147-441-0	01	1	-

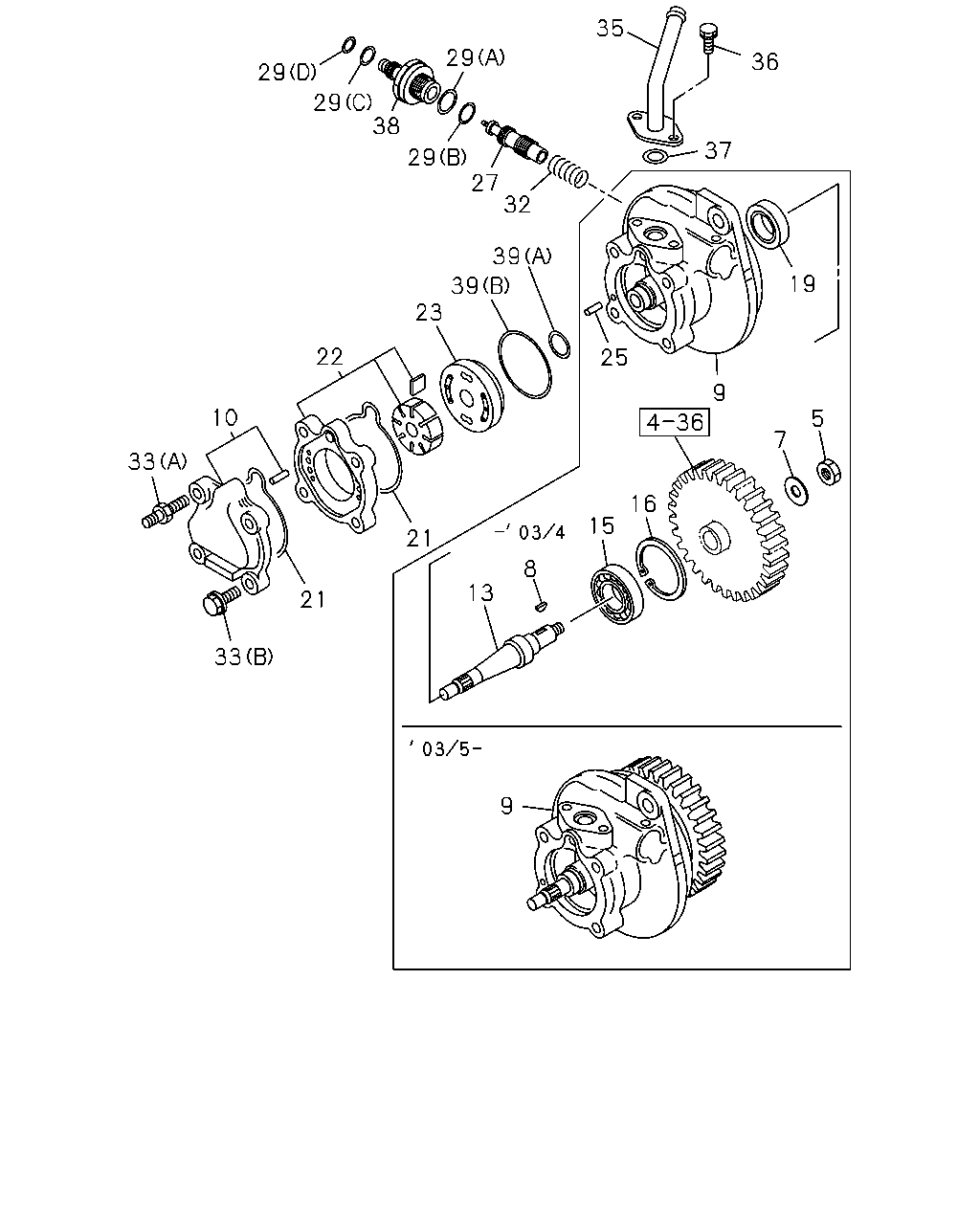

35 29 36 29 29 38 37 29 27 32 39 19 39 23 22 25 9 10 5 7 33 16 15 21 8 13 21 33 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	NUT; SHAFT,P/S PUMP ASM PART: A = 8-97136-574-1	8-97029-780-0	01	1	-
7	WASHER; SHAFT ASM PART: A = 8-97136-574-1	8-97029-779-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 8-97136-574-1	8-97029-778-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97136-574-1	8-97029-764-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97357-213-0	8-97369-595-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97388-651-1	8-97388-641-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 8-98138-131-2	8-98058-097-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97029-772-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 8-98138-131-2	8-98116-059-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97136-574-1	8-97029-766-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 8-97136-574-1	8-97075-578-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 8-97136-574-1	8-97029-768-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 8-97136-574-1	8-97075-577-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: D = 8-98138-131-2	8-94380-746-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97062-329-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97148-690-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-98138-131-2	8-98058-088-0	01	1	-1111
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-98138-131-2	8-98216-517-0	01	1	1112-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97147-453-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 8-97136-574-1	8-94379-646-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97075-587-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: D = 8-98138-131-2	8-98139-288-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-97075-581-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-94379-654-0	01	1	-
33	BOLT; COVER (A) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97029-773-0	03	1	-
33	BOLT; COVER (B) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97075-585-0	01	1	-
33	BOLT; COVER (C) ASM PART: D = 8-98138-131-2	8-97184-761-0	01	1	-
33	BOLT; COVER (D) ASM PART: D = 8-98138-131-2	8-98139-286-0	03	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97357-213-0	8-97091-932-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-97388-651-1	8-97388-640-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: D = 8-98138-131-2	8-98139-290-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-94379-664-0	02	1	-
36	BOLT; CONN,PIPE ASM PART: D = 8-98138-131-2	8-97184-763-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97357-213-0	8-97029-777-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-98138-131-2	8-97184-767-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97388-651-1	8-97357-781-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-97136-574-1	8-97029-775-1	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 8-97357-213-0, C = 8-97388-651-1	8-97093-504-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: D = 8-98138-131-2	8-98139-291-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-647-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-97147-441-0	01	1	-

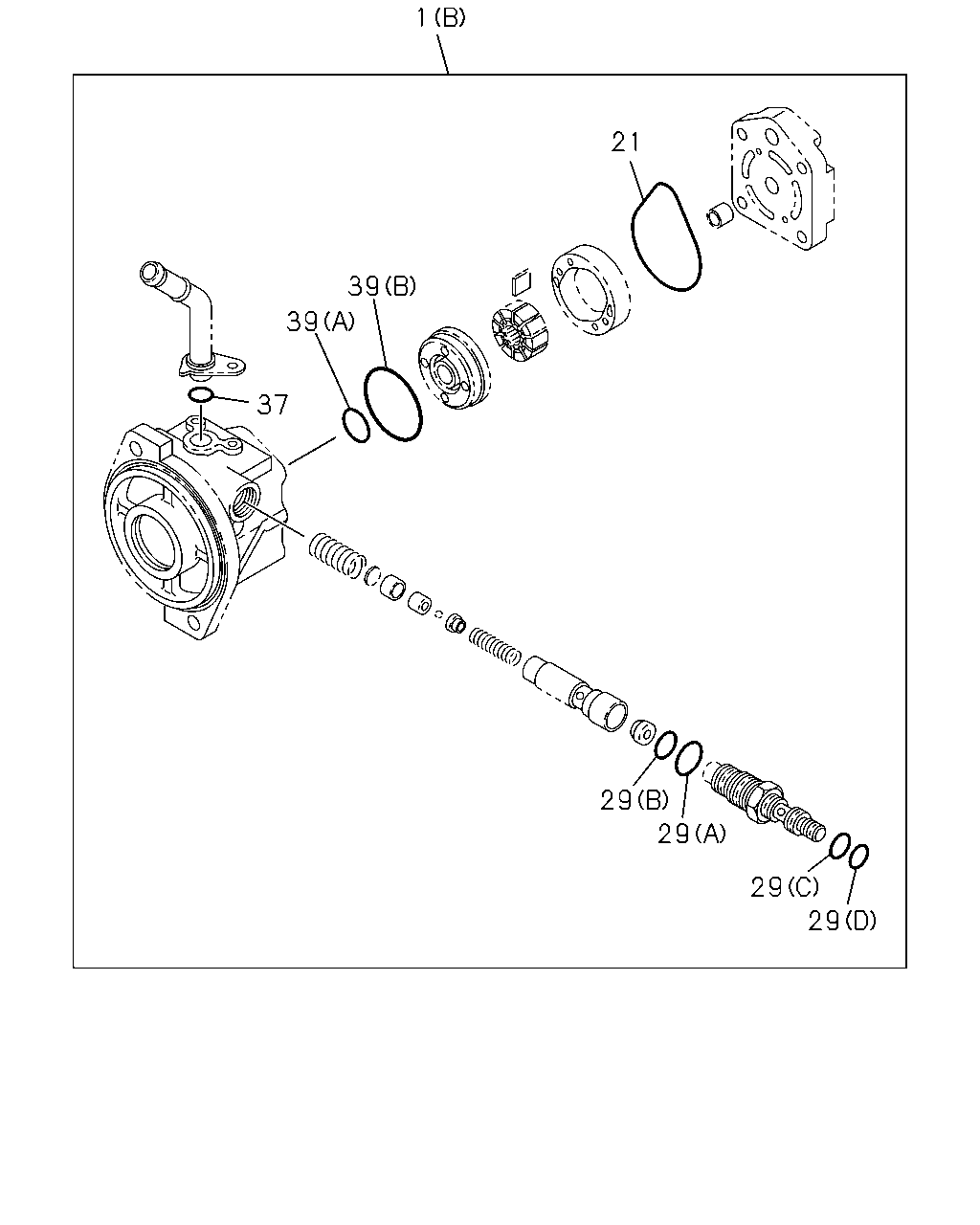

1 21 39 39 37 29 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0	8-97075-583-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0	8-97075-584-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: C = 8-97388-651-1	8-97388-648-0	01	1	-
1	REPAIR KIT; OIL PUMP (A) ASM PART: C = 8-97388-651-1	8-97388-649-0	01	1	-
1	REPAIR KIT; OIL PUMP (A) ASM PART: D = 8-98138-131-2	8-98058-095-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: D = 8-98138-131-2	8-98058-096-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: D = 8-98138-131-2	8-94380-746-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97062-329-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-97075-581-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97357-213-0	8-97029-777-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-98138-131-2	8-97184-767-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97388-651-1	8-97357-781-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-647-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-97147-441-0	01	1	-

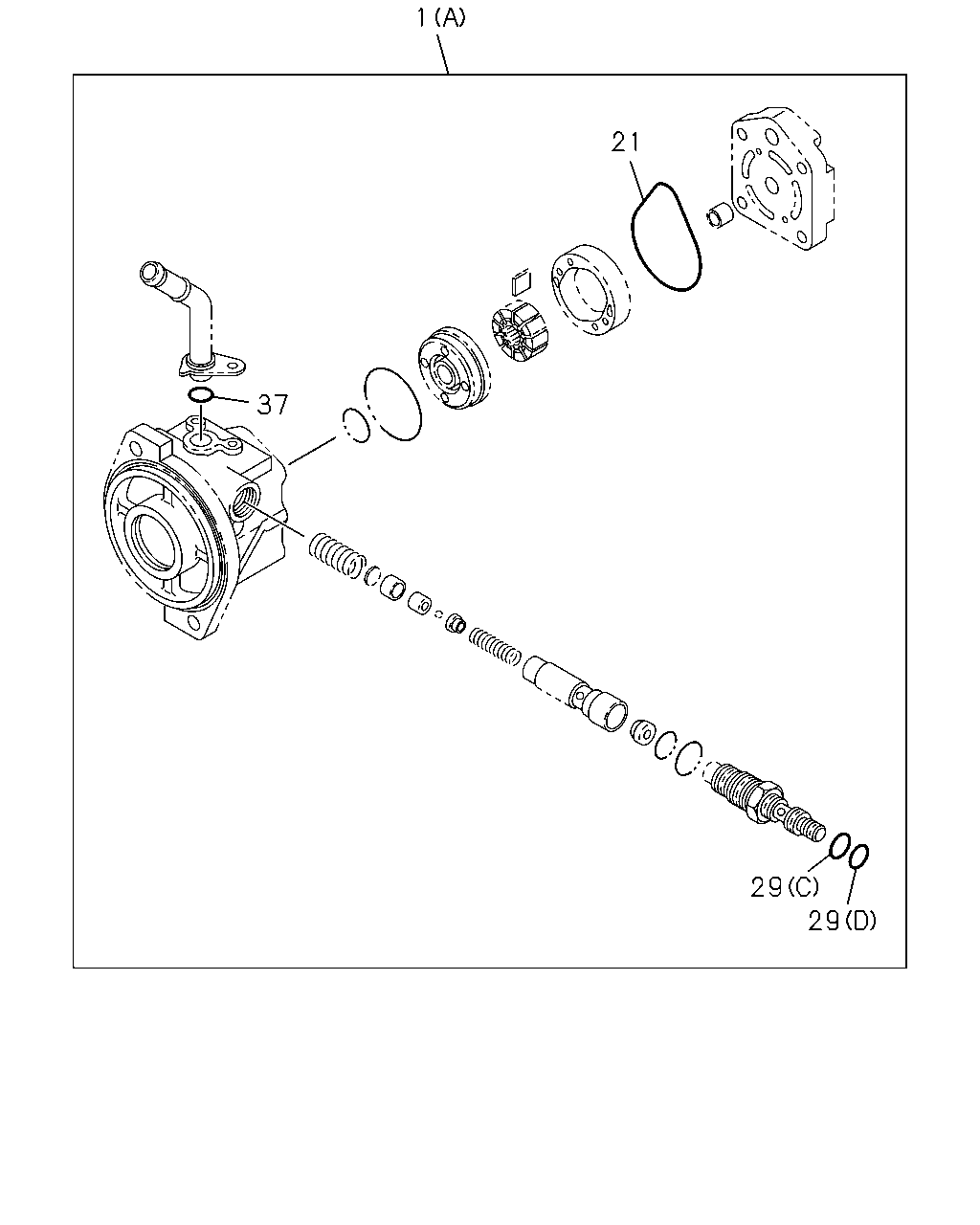

1 21 37 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0	8-97075-583-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0	8-97075-584-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: C = 8-97388-651-1	8-97388-648-0	01	1	-
1	REPAIR KIT; OIL PUMP (A) ASM PART: C = 8-97388-651-1	8-97388-649-0	01	1	-
1	REPAIR KIT; OIL PUMP (A) ASM PART: D = 8-98138-131-2	8-98058-095-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: D = 8-98138-131-2	8-98058-096-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: D = 8-98138-131-2	8-94380-746-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1	8-97062-329-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, B = 8-97357-213-0, C = 8-97388-651-1, D = 8-98138-131-2	8-97075-581-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97357-213-0	8-97029-777-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-98138-131-2	8-97184-767-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97388-651-1	8-97357-781-0	01	1	-
