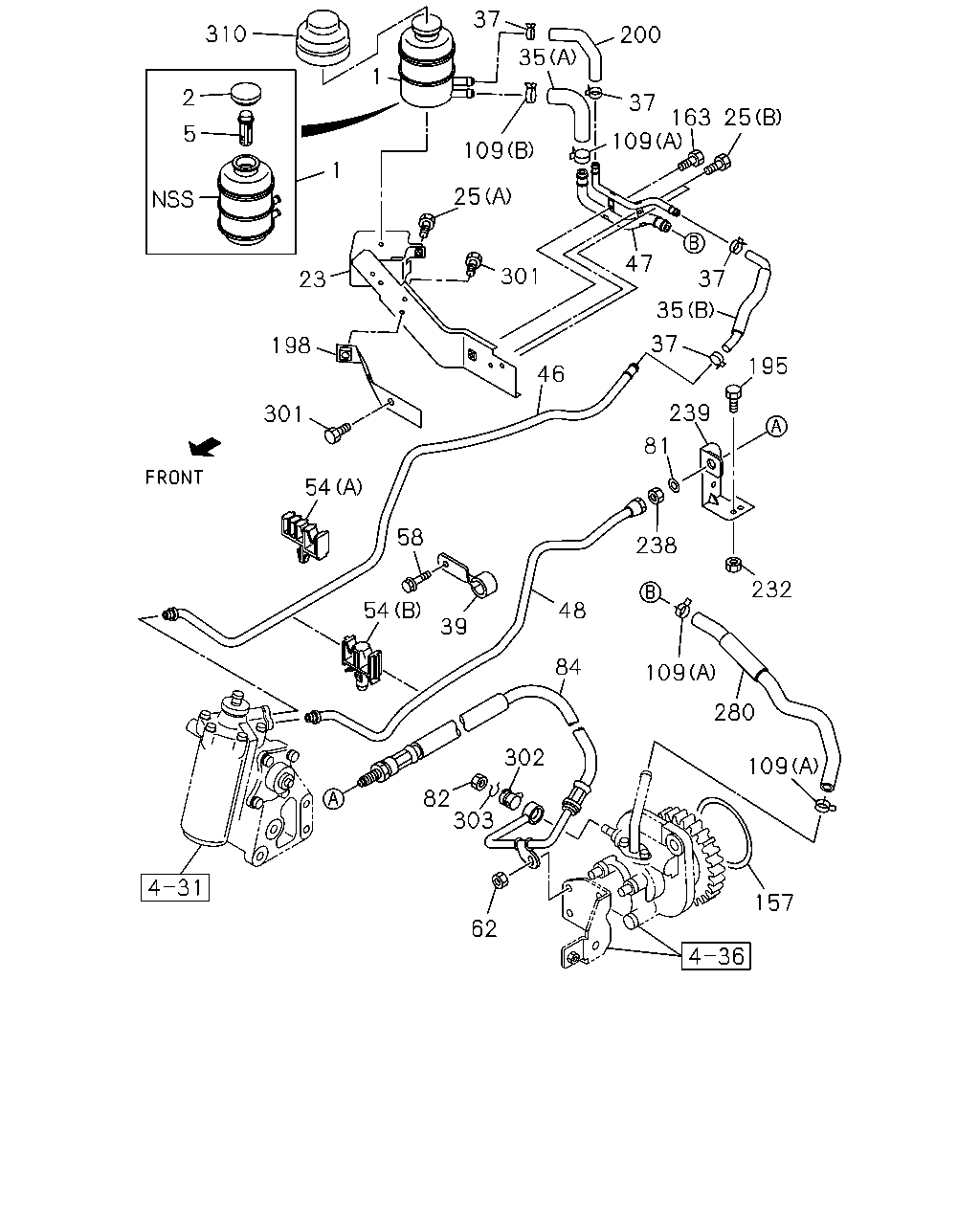

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#72424) — 103 parça

37 310 200 35 1 2 37 163 25 5 109 109 1 25 47 301 37 23 35 37 198 195 46 239 301 81 54 58 238 232 54 48 39 84 109 280 302 109 82 303 157 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	9704-	●
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	9704-		●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94146-153-2	01	1	9704-	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	9704-		●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	9704-	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	9704-		●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97101-040-1	01	1	9704-	●
23	BRACKET; OIL TANK,P/S	8-97101-040-1	01	1	9704-		●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28480-620-0	01	1	9704-0512	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28480-620-0	01	1	9704-0512		●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-		●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9704-0512	●
25	BOLT; OIL TANK BRKT (B) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9704-0512		●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 W/LK&PL WASHER	0-50640-825-0	02	1	0601-	●
25	BOLT; OIL TANK BRKT (B) M8X25 W/LK&PL WASHER	0-50640-825-0	02	1	0601-		●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40> (A)	8-97080-108-1	01	1	9704-	●
35	HOSE; RETURN,P/S TANK (A)	8-97080-108-1	01	1	9704-		●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40> (B)	8-97096-949-1	01	1	9704-	●
35	HOSE; RETURN,P/S TANK (B)	8-97096-949-1	01	1	9704-		●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-94238-568-0	04	1	9704-0911	●
37	CLIP; HOSE,P/S ID=16	8-94238-568-0	04	1	9704-0911		●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-98008-098-0	04	1	0912-	●
37	CLIP; HOSE,P/S ID=16	8-98008-098-0	04	1	0912-		●
39	CLIP; FLEX HOSE 4HG1-T ENG(RDP) ID=28 L=60	1-09700-585-1	01	1	1112-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97064-720-2	01	1	9704-0008	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-97064-720-2	01	1	9704-0008		●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97257-365-0	01	1	0009-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-97257-365-0	01	1	0009-		●
47	PIPE; RETURN POWER STEERING<N40>	8-97040-001-2	01	1	9704-0402	●
47	PIPE; RETURN	8-97040-001-2	01	1	9704-0402		●
47	PIPE; RETURN POWER STEERING<N40>	8-97378-860-0	01	1	0403-	●
47	PIPE; RETURN	8-97378-860-0	01	1	0403-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97064-722-2	01	1	9704-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97064-722-2	01	1	9704-		●
54	CLIP; OIL PIPE POWER STEERING<N40> (B) ID=10X2 H=37.5	8-97018-546-0	02	1	9704-	●
54	CLIP; OIL PIPE (B) ID=10X2 H=37.5	8-97018-546-0	02	1	9704-		●
54	CLIP; OIL PIPE POWER STEERING<N40> (A) ID=10 & 4.8X3	8-97038-938-0	01	1	9704-	●
54	CLIP; OIL PIPE (A) ID=10 & 4.8X3	8-97038-938-0	01	1	9704-		●
58	BOLT; CLIP 4HG1-T ENG(RDP) M8X25 FLANGE	0-28650-825-0	01	1	1112-	●	●
62	NUT; CLIP FIX POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	9704-0602	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	9704-0602		●
62	NUT; CLIP FIX POWER STEERING<N40> M8 FLANGE	0-91180-108-0	01	1	0603-	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-		●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9704-0603	●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9704-0603		●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-	●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-		●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M12 SELF LOCK	8-97028-390-1	01	1	9704-	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	9704-		●
84	HOSE; FLEX,P/S 4HG1-T ENG(RDP)	8-97358-345-2	01	1	1112-	●	●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97130-894-0	01	1	9704-0301	●
84	HOSE; FLEX,P/S	8-97130-894-0	01	1	9704-0301		●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97358-254-2	01	1	0302-1111	●
84	HOSE; FLEX,P/S	8-97358-254-2	01	1	0302-1111		●
84	HOSE; FLEX,P/S 4HF1 ENG(RLS) POWER STEERING<N40>	8-97358-254-2	01	1	1112-	●
84	HOSE; FLEX,P/S 4HF1 ENG(RLS)	8-97358-254-2	01	1	1112-		●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	03	1	9704-0911	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	03	1	9704-0911		●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-98150-355-0	03	1	0912-	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	03	1	0912-		●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-94382-401-0	01	1	9704-1003	●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	9704-1003		●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-97359-141-0	01	1	1004-	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING<N40>.	8-97101-875-2	01	1	9704-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	9704-		●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9704-0307	●
163	BOLT; OIL PIPE M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9704-0307		●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0308-0512	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0308-0512		●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28080-825-0	01	1	9704-0307	●
195	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9704-0307		●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0308-0512	●
195	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0308-0512		●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
195	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
198	STAY; OIL TANK,POWER STEERING POWER STEERING<N40>	8-97081-778-2	01	1	9704-	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	9704-		●
200	HOSE; RUBBER,RETURN POWER STEERING<N40>	8-97080-109-0	01	1	9704-	●
200	HOSE; RUBBER,RETURN	8-97080-109-0	01	1	9704-		●
232	NUT; BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	9704-0602	●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9704-0602		●
232	NUT; BRKT POWER STEERING<N40> M8 FLANGE	0-91180-108-0	01	1	0603-	●
232	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●
238	NUT; FLEX HOSE POWER STEERING<N40> M16	8-94370-339-0	01	1	9704-	●
238	NUT; FLEX HOSE M16	8-94370-339-0	01	1	9704-		●
239	BRACKET; FLEX HOSE POWER STEERING<N40>	8-97033-926-2	01	1	9704-	●
239	BRACKET; FLEX HOSE	8-97033-926-2	01	1	9704-		●
280	HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97107-524-1	01	1	9704-	●
280	HOSE; P/S OIL PUMP,INL	8-97107-524-1	01	1	9704-		●
301	BOLT; STAY,OIL TANK POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	9704-0512	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28680-825-0	02	1	9704-0512		●
301	BOLT; STAY,OIL TANK POWER STEERING<N40> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
302	CAP; EYE JOINT POWER STEERING<N40>	8-97028-715-0	01	1	9704-9904	●
302	CAP; EYE JOINT	8-97028-715-0	01	1	9704-9904		●
303	HOLDER; P/S PUMP POWER STEERING<N40>	8-97029-905-0	01	1	9704-9904	●
303	HOLDER; P/S PUMP	8-97029-905-0	01	1	9704-9904		●
310	COVER; OIL TANK POWER STEERING<N40>	8-97103-394-0	01	1	9704-	●
310	COVER; OIL TANK	8-97103-394-0	01	1	9704-		●
