Sayfa 4-31 - Isuzu EPC

4-31 — STEERING COLUMN AND SHAFT (#72422) — 377 parça

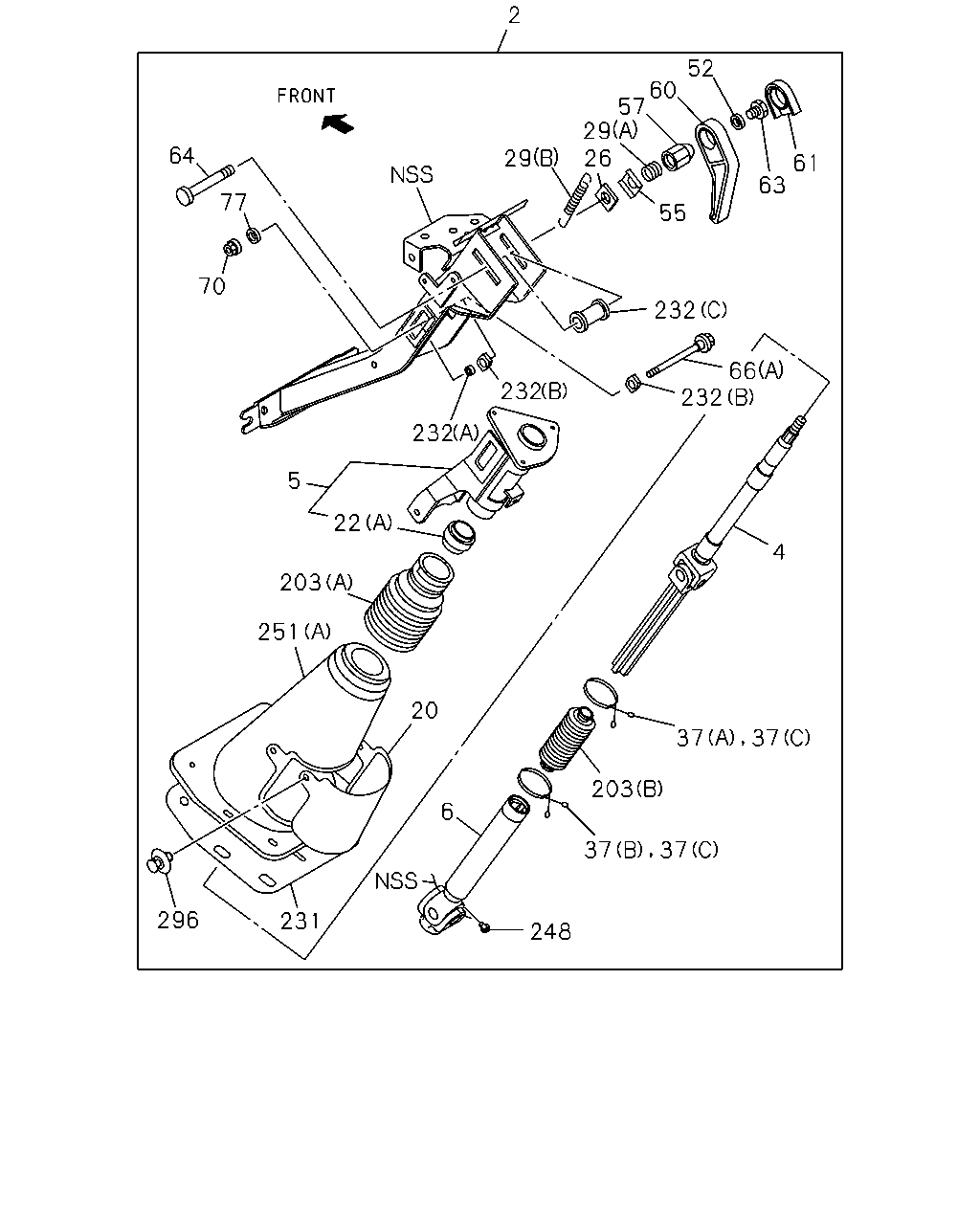

2 52 60 57 29 26 64 29 61 63 77 55 70 232 66 232 232 232 5 22 4 203 251 20 37 37 203 6 296 231 248 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-806-1	01	1	9704-9812	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-632-0	01	1	9901-0110	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	0111-0404	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0405-	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-804-1	01	1	9704-9812	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-628-0	01	1	9901-0110	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-629-0	01	1	0111-0404	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0405-	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97158-974-0	01	1	9704-0207	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97394-787-1	01	1	0208-0307	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-1	01	1	0308-0311	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97398-853-0	01	1	0312-0404	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0405-	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97096-763-0	01	1	9704-9712	●	●
4	SHAFT; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-106-0	01	1	9801-9812	●	●
4	SHAFT; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-110-0	01	1	9801-9812	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97201-110-1	01	1	9901-0311	●	●
4	SHAFT; STRG	8-97201-110-1	01	1	0312-0404	●	●
4	SHAFT; STRG	8-97378-634-0	01	1	0405-	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97173-634-0	01	1	9704-0207	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97351-830-0	01	1	0208-0311	●	●
5	COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	9704-	●	●
5	COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	9704-	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97173-626-0	01	1	9704-0311	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0312-	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97094-625-1	01	1	9704-9712	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	9801-0311	●	●
6	SHAFT; STRG LWR	8-97201-107-0	01	1	0312-0404	●	●
6	SHAFT; STRG LWR	8-97378-632-0	01	1	0405-	●	●
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	9704-0207	●	●
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97351-831-0	01	1	0208-0311	●	●
20	COVER; STRG SHAFT TILT STEERING<N33> DARK BEIGE	8-97158-892-0	01	1	9704-9812	●	●
20	COVER; STRG SHAFT TILT STEERING<N33> DARK BEIGE	8-97097-005-1	01	1	9901-0110	●	●
20	COVER; STRG SHAFT TILT STEERING<N33> BLACK	8-97291-634-1	01	1	0111-0307	●	●
20	COVER; STRG SHAFT BLACK	8-97291-634-1	01	1	0308-	●	●
20	COVER; STRG SHAFT EXC. TILT STEERING<N33> DARK BEIGE	8-97097-005-1	01	1	9704-9704	●	●
20	COVER; STRG SHAFT EXC. TILT STEERING<N33> DARK BEIGE	8-97158-892-0	01	1	9705-9908	●	●
20	COVER; STRG SHAFT EXC. TILT STEERING<N33> DARK BEIGE	8-97097-005-1	01	1	9909-0307	●	●
22	BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-	●	●
22	BUSHING; STRG COLUMN TILT STEERING<N33> (A)	8-97076-821-0	01	1	9704-0311	●	●
22	BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0312-	●	●
22	BUSHING; STRG COLUMN EXC. TILT STEERING<N33> (A)	8-97201-085-0	01	1	9704-0207	●	●
26	PLATE; ADJ TILT STEERING<N33>	8-97076-827-0	01	1	9704-9812	●	●
26	PLATE; ADJ TILT STEERING<N33>	8-97222-989-0	01	1	9901-	●	●
29	SPRING; COLUMN TILT STEERING<N33> (B)	8-97076-811-0	01	1	9704-	●	●
29	SPRING; COLUMN TILT STEERING<N33> (A)	8-97076-829-0	01	1	9704-9812	●	●
37	CLAMP; BOOT TO SHAFT TILT STEERING<N33> (B)	8-94165-569-0	01	1	9704-9812	●	●
37	CLAMP; BOOT TO SHAFT TILT STEERING<N33> (A)	8-94165-570-0	01	1	9704-9812	●	●
37	CLAMP; BOOT TO SHAFT EXC. TILT STEERING<N33> (C)	8-97173-630-0	02	1	9704-9812	●	●
37	CLAMP; BOOT TO SHAFT (C)	8-97173-630-0	02	1	9901-0404	●	●
52	WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	9704-	●	●
55	PLATE; GUIDE TILT STEERING<N33>	8-97076-828-0	01	1	9704-9812	●	●
57	NUT; ADJ BOLT TILT STEERING<N33>	8-97076-826-0	01	1	9704-9812	●	●
57	NUT; ADJ BOLT TILT STEERING<N33>	8-97222-988-0	01	1	9901-	●	●
60	LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	9704-	●	●
61	CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	9704-	●	●
63	BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-824-0	01	1	9704-9812	●	●
63	BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97222-986-0	01	1	9901-	●	●
64	BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97076-825-0	01	1	9704-9812	●	●
64	BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97222-987-0	01	1	9901-	●	●
66	BOLT; STRG COLUMN (B) M8X20 FLANGE	0-28650-820-0	02	1	1201-	●	●
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9704-0611	●	●
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-1112	●	●
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1201-	●	●
66	BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	9704-	●	●
70	NUT; STRG COLUMN TILT STEERING<N33>	8-97076-807-0	01	1	9704-	●	●
77	WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	9704-	●	●
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-94159-074-0	01	1	9704-9712	●	●
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-97201-115-0	01	1	9801-0311	●	●
203	BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	0312-0404	●	●
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (A)	8-97076-822-0	01	1	9704-0311	●	●
203	BOOT; STRG COLUMN LWR (A)	8-97076-822-0	01	1	0312-	●	●
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (D)	8-97173-631-0	01	1	9704-0207	●	●
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (D)	8-97351-851-0	01	1	0208-0311	●	●
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (C)	8-97173-632-0	01	1	9704-0311	●	●
231	SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	9704-0311	●	●
231	SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0312-	●	●
231	SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33>	8-97173-628-0	01	1	9704-0311	●	●
232	SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	9704-	●	●
232	SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	9704-	●	●
232	SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	9704-	●	●
248	SCREW; YOKE TILT STEERING<N33>	8-97076-819-0	01	1	9704-9712	●	●
248	SCREW; YOKE TILT STEERING<N33>	8-97222-984-0	01	1	9901-0311	●	●
248	SCREW; YOKE	8-97222-984-0	01	1	0312-	●	●
251	COVER; LWR TILT STEERING<N33> (A) DARK BEIGE	8-97157-808-1	01	1	9704-0110	●	●
251	COVER; LWR TILT STEERING<N33> (A) BLACK	8-97159-168-1	01	1	0111-0311	●	●
251	COVER; LWR (A) BLACK	8-97159-168-2	01	1	0312-	●	●
251	COVER; LWR EXC. TILT STEERING<N33> (B) DARK BEIGE	8-97158-976-0	01	1	9704-0307	●	●
251	COVER; LWR EXC. TILT STEERING<N33> (B) BLACK	8-97159-175-0	01	1	0308-0311	●	●
296	CLIP; COVER DARK BEIGE	8-97856-011-0	01	1	9704-0110	●	●
296	CLIP; COVER BLACK	8-97868-409-0	01	1	0308-	●	●
296	CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	0111-0307	●	●
296	CLIP; COVER BLACK	8-97868-409-0	01	1	1006-	●	●
296	CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	1006-	●	●
296	CLIP; COVER EXC. TILT STEERING<N33> DARK BEIGE	8-97856-011-0	01	1	0111-0307	●	●

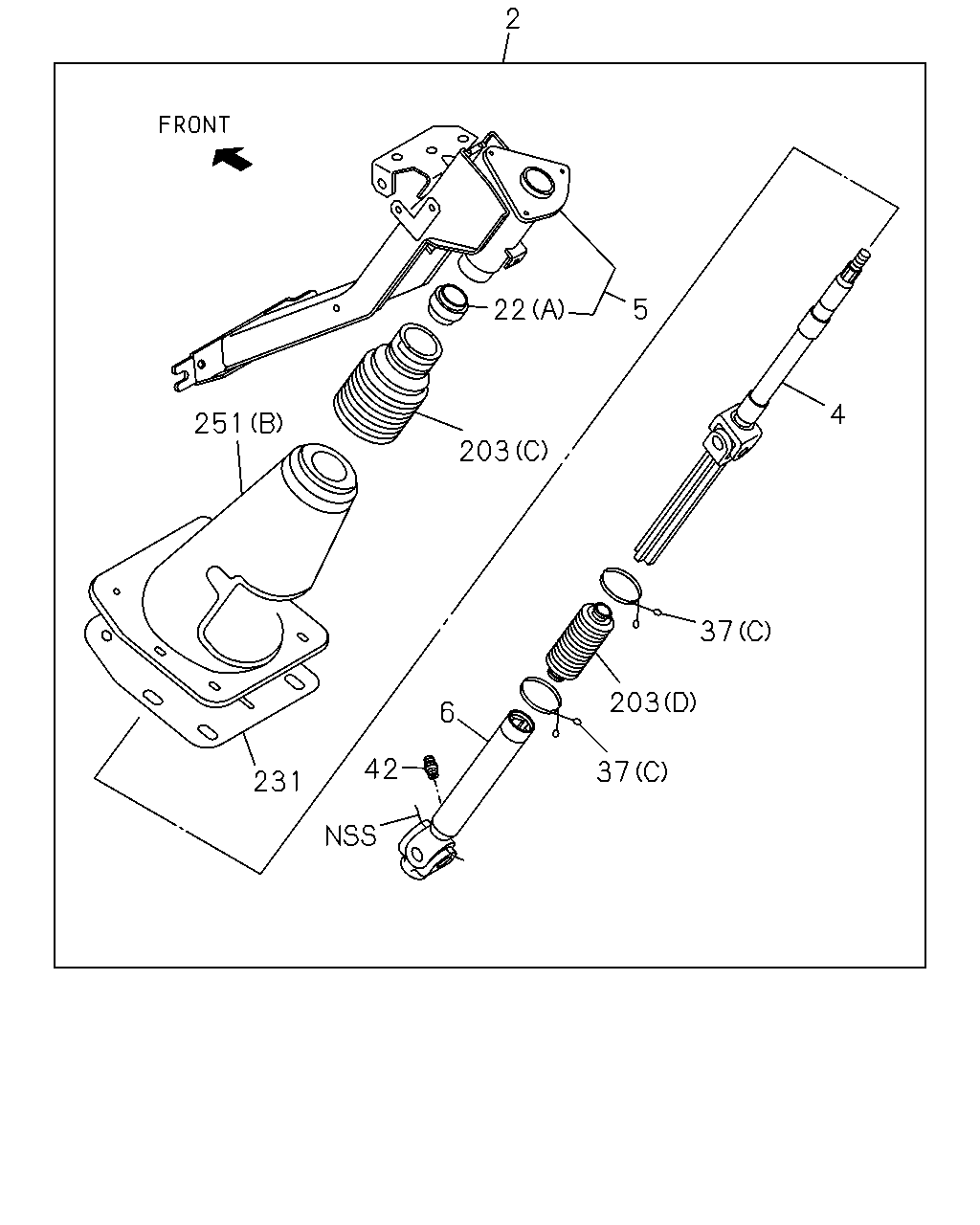

2 5 22 4 251 203 37 203 6 42 37 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-806-1	01	1	9704-9812	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-632-0	01	1	9901-0110	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	0111-0404	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0405-	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-804-1	01	1	9704-9812	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-628-0	01	1	9901-0110	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-629-0	01	1	0111-0404	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0405-	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97158-974-0	01	1	9704-0207	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97394-787-1	01	1	0208-0307	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-1	01	1	0308-0311	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97398-853-0	01	1	0312-0404	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0405-	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97096-763-0	01	1	9704-9712	●	●
4	SHAFT; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-106-0	01	1	9801-9812	●	●
4	SHAFT; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-110-0	01	1	9801-9812	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97201-110-1	01	1	9901-0311	●	●
4	SHAFT; STRG	8-97201-110-1	01	1	0312-0404	●	●
4	SHAFT; STRG	8-97378-634-0	01	1	0405-	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97173-634-0	01	1	9704-0207	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97351-830-0	01	1	0208-0311	●	●
5	COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	9704-	●	●
5	COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	9704-	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97173-626-0	01	1	9704-0311	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0312-	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97094-625-1	01	1	9704-9712	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	9801-0311	●	●
6	SHAFT; STRG LWR	8-97201-107-0	01	1	0312-0404	●	●
6	SHAFT; STRG LWR	8-97378-632-0	01	1	0405-	●	●
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	9704-0207	●	●
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97351-831-0	01	1	0208-0311	●	●
22	BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-	●	●
22	BUSHING; STRG COLUMN TILT STEERING<N33> (A)	8-97076-821-0	01	1	9704-0311	●	●
22	BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0312-	●	●
22	BUSHING; STRG COLUMN EXC. TILT STEERING<N33> (A)	8-97201-085-0	01	1	9704-0207	●	●
37	CLAMP; BOOT TO SHAFT TILT STEERING<N33> (B)	8-94165-569-0	01	1	9704-9812	●	●
37	CLAMP; BOOT TO SHAFT TILT STEERING<N33> (A)	8-94165-570-0	01	1	9704-9812	●	●
37	CLAMP; BOOT TO SHAFT EXC. TILT STEERING<N33> (C)	8-97173-630-0	02	1	9704-9812	●	●
37	CLAMP; BOOT TO SHAFT (C)	8-97173-630-0	02	1	9901-0404	●	●
42	NIPPLE; GREASE,SLEEVE YOKE EXC. TILT STEERING<N33>	8-97178-201-0	01	1	0208-0311	●	●
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-94159-074-0	01	1	9704-9712	●	●
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-97201-115-0	01	1	9801-0311	●	●
203	BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	0312-0404	●	●
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (A)	8-97076-822-0	01	1	9704-0311	●	●
203	BOOT; STRG COLUMN LWR (A)	8-97076-822-0	01	1	0312-	●	●
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (D)	8-97173-631-0	01	1	9704-0207	●	●
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (D)	8-97351-851-0	01	1	0208-0311	●	●
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (C)	8-97173-632-0	01	1	9704-0311	●	●
231	SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	9704-0311	●	●
231	SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0312-	●	●
231	SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33>	8-97173-628-0	01	1	9704-0311	●	●
251	COVER; LWR TILT STEERING<N33> (A) DARK BEIGE	8-97157-808-1	01	1	9704-0110	●	●
251	COVER; LWR TILT STEERING<N33> (A) BLACK	8-97159-168-1	01	1	0111-0311	●	●
251	COVER; LWR (A) BLACK	8-97159-168-2	01	1	0312-	●	●
251	COVER; LWR EXC. TILT STEERING<N33> (B) DARK BEIGE	8-97158-976-0	01	1	9704-0307	●	●
251	COVER; LWR EXC. TILT STEERING<N33> (B) BLACK	8-97159-175-0	01	1	0308-0311	●	●

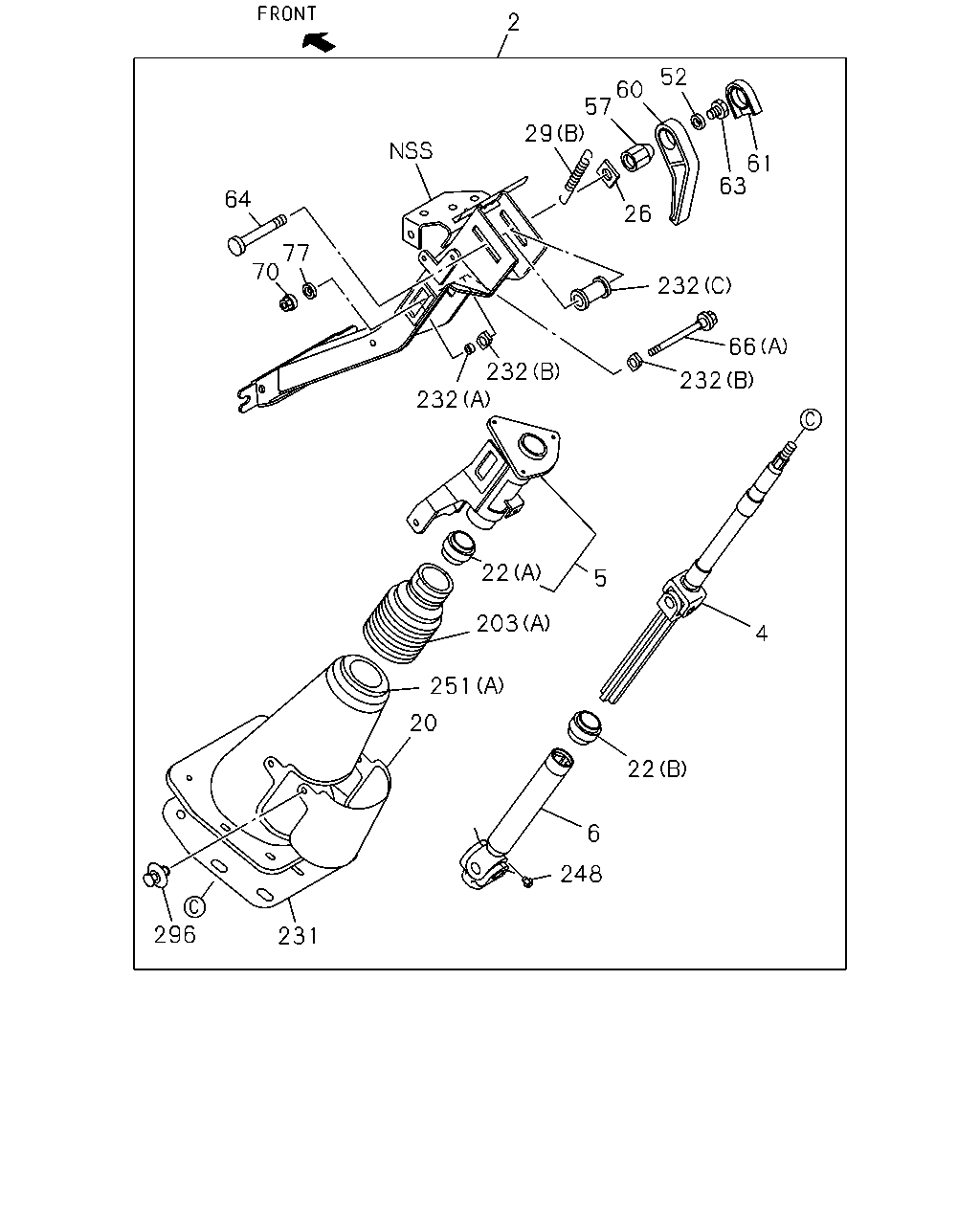

2 52 60 57 29 61 63 64 26 77 70 232 66 232 232 232 22 5 203 4 251 20 22 6 248 296 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-806-1	01	1	9704-9812	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-632-0	01	1	9901-0110	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	0111-0404	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0405-	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-804-1	01	1	9704-9812	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-628-0	01	1	9901-0110	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-629-0	01	1	0111-0404	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0405-	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97158-974-0	01	1	9704-0207	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97394-787-1	01	1	0208-0307	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-1	01	1	0308-0311	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97398-853-0	01	1	0312-0404	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0405-	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97096-763-0	01	1	9704-9712	●	●
4	SHAFT; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-106-0	01	1	9801-9812	●	●
4	SHAFT; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-110-0	01	1	9801-9812	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97201-110-1	01	1	9901-0311	●	●
4	SHAFT; STRG	8-97201-110-1	01	1	0312-0404	●	●
4	SHAFT; STRG	8-97378-634-0	01	1	0405-	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97173-634-0	01	1	9704-0207	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97351-830-0	01	1	0208-0311	●	●
5	COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	9704-	●	●
5	COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	9704-	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97173-626-0	01	1	9704-0311	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0312-	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97094-625-1	01	1	9704-9712	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	9801-0311	●	●
6	SHAFT; STRG LWR	8-97201-107-0	01	1	0312-0404	●	●
6	SHAFT; STRG LWR	8-97378-632-0	01	1	0405-	●	●
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	9704-0207	●	●
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97351-831-0	01	1	0208-0311	●	●
20	COVER; STRG SHAFT TILT STEERING<N33> DARK BEIGE	8-97158-892-0	01	1	9704-9812	●	●
20	COVER; STRG SHAFT TILT STEERING<N33> DARK BEIGE	8-97097-005-1	01	1	9901-0110	●	●
20	COVER; STRG SHAFT TILT STEERING<N33> BLACK	8-97291-634-1	01	1	0111-0307	●	●
20	COVER; STRG SHAFT BLACK	8-97291-634-1	01	1	0308-	●	●
20	COVER; STRG SHAFT EXC. TILT STEERING<N33> DARK BEIGE	8-97097-005-1	01	1	9704-9704	●	●
20	COVER; STRG SHAFT EXC. TILT STEERING<N33> DARK BEIGE	8-97158-892-0	01	1	9705-9908	●	●
20	COVER; STRG SHAFT EXC. TILT STEERING<N33> DARK BEIGE	8-97097-005-1	01	1	9909-0307	●	●
22	BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-	●	●
22	BUSHING; STRG COLUMN TILT STEERING<N33> (A)	8-97076-821-0	01	1	9704-0311	●	●
22	BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0312-	●	●
22	BUSHING; STRG COLUMN EXC. TILT STEERING<N33> (A)	8-97201-085-0	01	1	9704-0207	●	●
26	PLATE; ADJ TILT STEERING<N33>	8-97076-827-0	01	1	9704-9812	●	●
26	PLATE; ADJ TILT STEERING<N33>	8-97222-989-0	01	1	9901-	●	●
29	SPRING; COLUMN TILT STEERING<N33> (B)	8-97076-811-0	01	1	9704-	●	●
29	SPRING; COLUMN TILT STEERING<N33> (A)	8-97076-829-0	01	1	9704-9812	●	●
52	WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	9704-	●	●
57	NUT; ADJ BOLT TILT STEERING<N33>	8-97076-826-0	01	1	9704-9812	●	●
57	NUT; ADJ BOLT TILT STEERING<N33>	8-97222-988-0	01	1	9901-	●	●
60	LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	9704-	●	●
61	CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	9704-	●	●
63	BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-824-0	01	1	9704-9812	●	●
63	BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97222-986-0	01	1	9901-	●	●
64	BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97076-825-0	01	1	9704-9812	●	●
64	BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97222-987-0	01	1	9901-	●	●
66	BOLT; STRG COLUMN (B) M8X20 FLANGE	0-28650-820-0	02	1	1201-	●	●
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9704-0611	●	●
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-1112	●	●
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1201-	●	●
66	BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	9704-	●	●
70	NUT; STRG COLUMN TILT STEERING<N33>	8-97076-807-0	01	1	9704-	●	●
77	WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	9704-	●	●
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-94159-074-0	01	1	9704-9712	●	●
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-97201-115-0	01	1	9801-0311	●	●
203	BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	0312-0404	●	●
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (A)	8-97076-822-0	01	1	9704-0311	●	●
203	BOOT; STRG COLUMN LWR (A)	8-97076-822-0	01	1	0312-	●	●
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (D)	8-97173-631-0	01	1	9704-0207	●	●
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (D)	8-97351-851-0	01	1	0208-0311	●	●
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (C)	8-97173-632-0	01	1	9704-0311	●	●
231	SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	9704-0311	●	●
231	SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0312-	●	●
231	SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33>	8-97173-628-0	01	1	9704-0311	●	●
232	SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	9704-	●	●
232	SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	9704-	●	●
232	SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	9704-	●	●
248	SCREW; YOKE TILT STEERING<N33>	8-97076-819-0	01	1	9704-9712	●	●
248	SCREW; YOKE TILT STEERING<N33>	8-97222-984-0	01	1	9901-0311	●	●
248	SCREW; YOKE	8-97222-984-0	01	1	0312-	●	●
251	COVER; LWR TILT STEERING<N33> (A) DARK BEIGE	8-97157-808-1	01	1	9704-0110	●	●
251	COVER; LWR TILT STEERING<N33> (A) BLACK	8-97159-168-1	01	1	0111-0311	●	●
251	COVER; LWR (A) BLACK	8-97159-168-2	01	1	0312-	●	●
251	COVER; LWR EXC. TILT STEERING<N33> (B) DARK BEIGE	8-97158-976-0	01	1	9704-0307	●	●
251	COVER; LWR EXC. TILT STEERING<N33> (B) BLACK	8-97159-175-0	01	1	0308-0311	●	●
296	CLIP; COVER DARK BEIGE	8-97856-011-0	01	1	9704-0110	●	●
296	CLIP; COVER BLACK	8-97868-409-0	01	1	0308-	●	●
296	CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	0111-0307	●	●
296	CLIP; COVER BLACK	8-97868-409-0	01	1	1006-	●	●
296	CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	1006-	●	●
296	CLIP; COVER EXC. TILT STEERING<N33> DARK BEIGE	8-97856-011-0	01	1	0111-0307	●	●

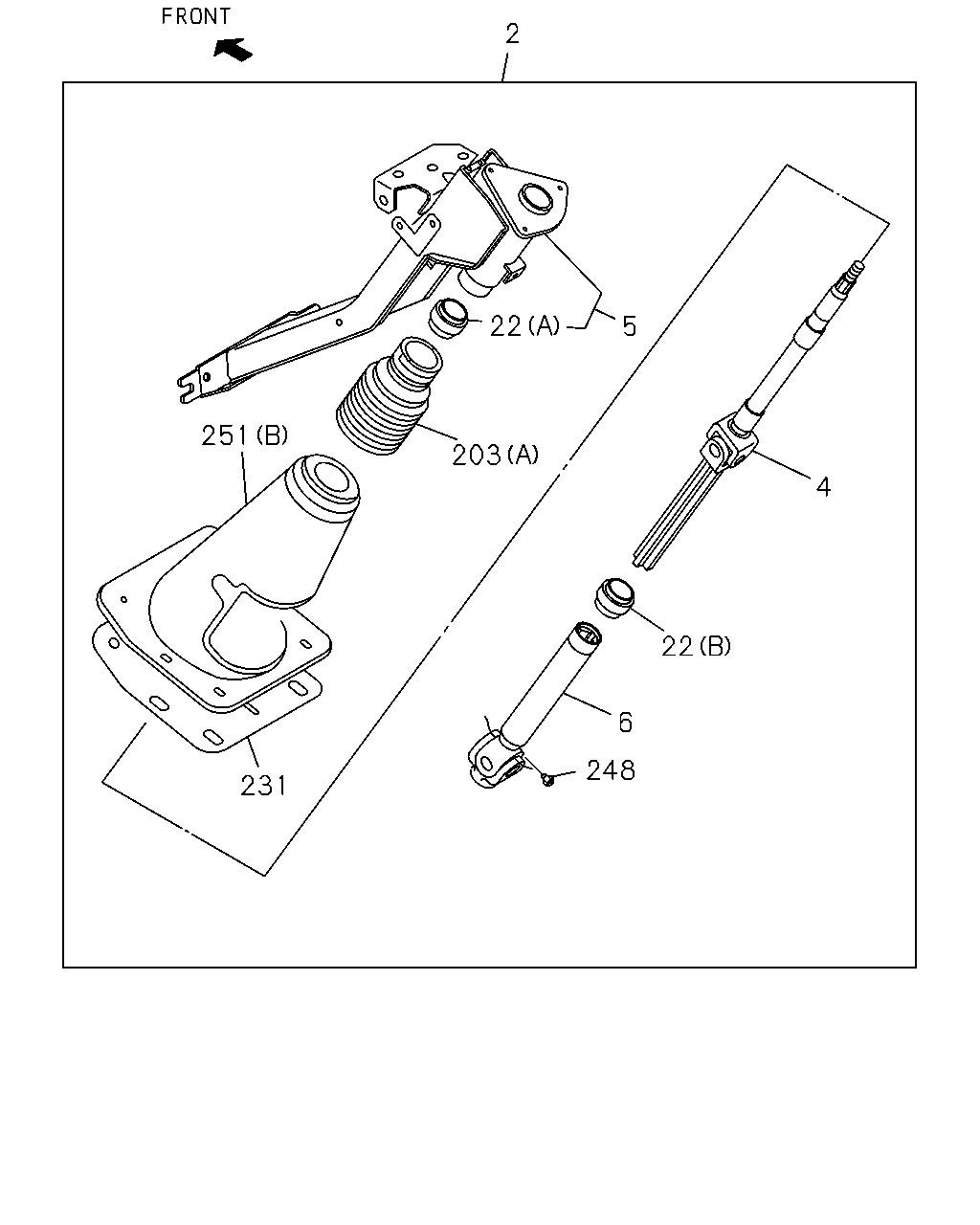

2 22 5 251 203 4 22 6 248 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-806-1	01	1	9704-9812	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-632-0	01	1	9901-0110	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	0111-0404	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0405-	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-804-1	01	1	9704-9812	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-628-0	01	1	9901-0110	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-629-0	01	1	0111-0404	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0405-	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97158-974-0	01	1	9704-0207	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97394-787-1	01	1	0208-0307	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-1	01	1	0308-0311	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97398-853-0	01	1	0312-0404	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0405-	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97096-763-0	01	1	9704-9712	●	●
4	SHAFT; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-106-0	01	1	9801-9812	●	●
4	SHAFT; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-110-0	01	1	9801-9812	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97201-110-1	01	1	9901-0311	●	●
4	SHAFT; STRG	8-97201-110-1	01	1	0312-0404	●	●
4	SHAFT; STRG	8-97378-634-0	01	1	0405-	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97173-634-0	01	1	9704-0207	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97351-830-0	01	1	0208-0311	●	●
5	COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	9704-	●	●
5	COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	9704-	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97173-626-0	01	1	9704-0311	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0312-	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97094-625-1	01	1	9704-9712	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	9801-0311	●	●
6	SHAFT; STRG LWR	8-97201-107-0	01	1	0312-0404	●	●
6	SHAFT; STRG LWR	8-97378-632-0	01	1	0405-	●	●
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	9704-0207	●	●
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97351-831-0	01	1	0208-0311	●	●
22	BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-	●	●
22	BUSHING; STRG COLUMN TILT STEERING<N33> (A)	8-97076-821-0	01	1	9704-0311	●	●
22	BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0312-	●	●
22	BUSHING; STRG COLUMN EXC. TILT STEERING<N33> (A)	8-97201-085-0	01	1	9704-0207	●	●
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-94159-074-0	01	1	9704-9712	●	●
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-97201-115-0	01	1	9801-0311	●	●
203	BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	0312-0404	●	●
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (A)	8-97076-822-0	01	1	9704-0311	●	●
203	BOOT; STRG COLUMN LWR (A)	8-97076-822-0	01	1	0312-	●	●
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (D)	8-97173-631-0	01	1	9704-0207	●	●
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (D)	8-97351-851-0	01	1	0208-0311	●	●
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (C)	8-97173-632-0	01	1	9704-0311	●	●
231	SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	9704-0311	●	●
231	SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0312-	●	●
231	SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33>	8-97173-628-0	01	1	9704-0311	●	●
248	SCREW; YOKE TILT STEERING<N33>	8-97076-819-0	01	1	9704-9712	●	●
248	SCREW; YOKE TILT STEERING<N33>	8-97222-984-0	01	1	9901-0311	●	●
248	SCREW; YOKE	8-97222-984-0	01	1	0312-	●	●
251	COVER; LWR TILT STEERING<N33> (A) DARK BEIGE	8-97157-808-1	01	1	9704-0110	●	●
251	COVER; LWR TILT STEERING<N33> (A) BLACK	8-97159-168-1	01	1	0111-0311	●	●
251	COVER; LWR (A) BLACK	8-97159-168-2	01	1	0312-	●	●
251	COVER; LWR EXC. TILT STEERING<N33> (B) DARK BEIGE	8-97158-976-0	01	1	9704-0307	●	●
251	COVER; LWR EXC. TILT STEERING<N33> (B) BLACK	8-97159-175-0	01	1	0308-0311	●	●

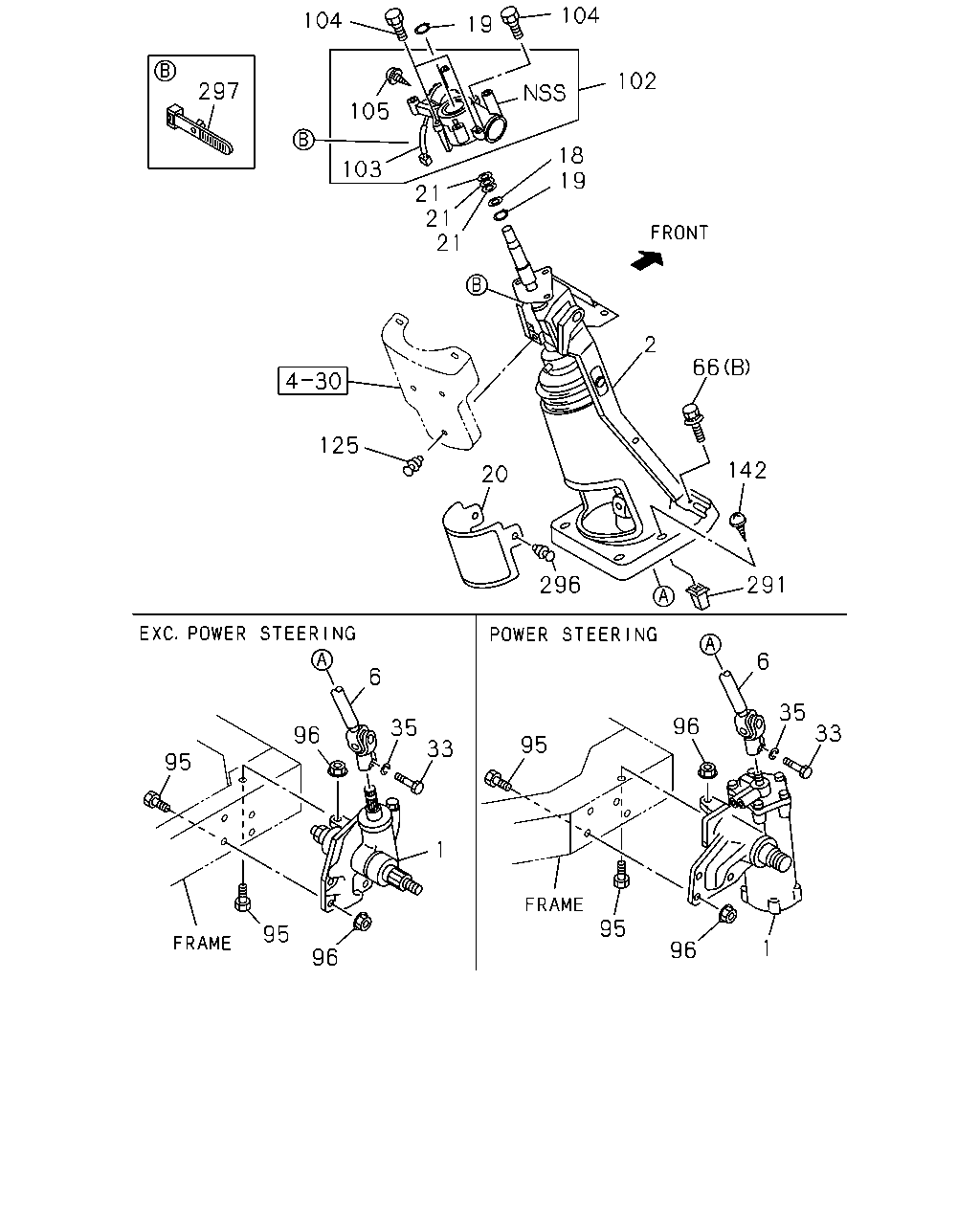

104 104 19 102 297 105 18 19 103 21 21 21 2 66 125 142 20 296 291 6 6 35 33 96 35 33 96 95 95 1 95 95 1 96 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97145-741-0	01	1	9704-9807	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97145-741-0	01	1	9704-9807		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97117-491-1	01	1	9808-9811	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97117-491-1	01	1	9808-9811		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97218-594-3	01	1	9812-0008	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97218-594-3	01	1	9812-0008		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97251-840-0	01	1	0009-0104	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97251-840-0	01	1	0009-0104		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97287-197-8	01	1	0105-1308	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97287-197-8	01	1	0105-1308		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-98251-949-0	01	1	1309-	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98251-949-0	01	1	1309-		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>	8-97073-275-0	01	1	9704-0011	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>	8-97224-871-0	01	1	0012-	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-806-1	01	1	9704-9812	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-632-0	01	1	9901-0110	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	0111-0404	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0405-	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-804-1	01	1	9704-9812	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-628-0	01	1	9901-0110	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-629-0	01	1	0111-0404	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0405-	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97158-974-0	01	1	9704-0207	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97394-787-1	01	1	0208-0307	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-1	01	1	0308-0311	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97398-853-0	01	1	0312-0404	●	●
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0405-	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97094-625-1	01	1	9704-9712	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	9801-0311	●	●
6	SHAFT; STRG LWR	8-97201-107-0	01	1	0312-0404	●	●
6	SHAFT; STRG LWR	8-97378-632-0	01	1	0405-	●	●
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	9704-0207	●	●
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97351-831-0	01	1	0208-0311	●	●
18	WASHER; STEERING SHAFT ID=19	8-94146-919-0	01	1	9704-	●	●
19	RING; SNAP,STRG SHAFT ID=17.5	9-09180-019-0	02	1	9704-	●	●
20	COVER; STRG SHAFT TILT STEERING<N33> DARK BEIGE	8-97158-892-0	01	1	9704-9812	●	●
20	COVER; STRG SHAFT TILT STEERING<N33> DARK BEIGE	8-97097-005-1	01	1	9901-0110	●	●
20	COVER; STRG SHAFT TILT STEERING<N33> BLACK	8-97291-634-1	01	1	0111-0307	●	●
20	COVER; STRG SHAFT BLACK	8-97291-634-1	01	1	0308-	●	●
20	COVER; STRG SHAFT EXC. TILT STEERING<N33> DARK BEIGE	8-97097-005-1	01	1	9704-9704	●	●
20	COVER; STRG SHAFT EXC. TILT STEERING<N33> DARK BEIGE	8-97158-892-0	01	1	9705-9908	●	●
20	COVER; STRG SHAFT EXC. TILT STEERING<N33> DARK BEIGE	8-97097-005-1	01	1	9909-0307	●	●
21	WASHER; WAVE,STRG LOCK TO SHAFT	8-94174-865-0	03	1	9704-	●	●
33	BOLT; STRG SHAFT TO UNIT M10X33	8-94249-011-1	01	1	9704-9801	●	●
33	BOLT; STRG SHAFT TO UNIT EXC. TILT STEERING<N33> M10X33	8-94249-011-1	01	1	9802-0311	●	●
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> M8X30	8-94247-692-0	01	1	9802-0311	●	●
33	BOLT; STRG SHAFT TO UNIT M8X30	8-94247-692-0	01	1	0312-0805	●	●
33	BOLT; STRG SHAFT TO UNIT M8X30	8-97359-615-0	01	1	0806-	●	●
35	WASHER; LK,STRG SHAFT ID=10.2	9-09150-810-0	01	1	9704-9801	●	●
35	WASHER; LK,STRG SHAFT EXC. TILT STEERING<N33> ID=10.2	9-09150-810-0	01	1	9802-0311	●	●
35	WASHER; LK,STRG SHAFT TILT STEERING<N33> ID=8.2	9-09150-508-0	01	1	9802-0311	●	●
35	WASHER; LK,STRG SHAFT ID=8.2	9-09150-508-0	01	1	0312-0603	●	●
35	WASHER; LK,STRG SHAFT ID=8.2	0-91510-508-0	01	1	0604-	●	●
66	BOLT; STRG COLUMN (B) M8X20 FLANGE	0-28650-820-0	02	1	1201-	●	●
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9704-0611	●	●
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-1112	●	●
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1201-	●	●
66	BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	9704-	●	●
95	BOLT; STRG UNIT M12X39	8-97029-320-0	03	1	9704-9809	●	●
95	BOLT; STRG UNIT M12X45	8-97212-810-1	03	1	9810-	●	●
96	NUT; STRG UNIT M12 FLANGE	8-94436-194-0	04	1	9704-0610	●	●
96	NUT; STRG UNIT M12 FLANGE	8-97359-618-0	04	1	0611-	●	●
102	LOCK ASM; STRG	8-97170-364-0	01	1	9704-	●	●
103	SWITCH; IGNITION	8-97088-268-0	01	1	9704-	●	●
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK&PL WASHER	8-97122-790-0	01	1	9704-0307	●	●
104	BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	01	1	0308-	●	●
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9704-0307	●	●
104	BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	02	1	0308-	●	●
105	SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9704-	●	●
125	CLIP; STRG SHAFT DARK BEIGE	8-97856-011-0	01	1	9704-0307	●	●
125	CLIP; STRG SHAFT BLACK	8-97868-409-0	01	1	0308-	●	●
142	SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER	0-74305-520-0	06	1	9704-0604	●	●
142	SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER	0-74365-520-0	06	1	0605-0612	●	●
142	SCREW; BRKT COWL M5X18 TAPPING	0-72180-518-0	06	1	0701-	●	●
291	GROMMET; STRG SHAFT COVER H=15	8-94463-268-1	06	1	9704-	●	●
296	CLIP; COVER DARK BEIGE	8-97856-011-0	01	1	9704-0110	●	●
296	CLIP; COVER BLACK	8-97868-409-0	01	1	0308-	●	●
296	CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	0111-0307	●	●
296	CLIP; COVER BLACK	8-97868-409-0	01	1	1006-	●	●
296	CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	1006-	●	●
296	CLIP; COVER EXC. TILT STEERING<N33> DARK BEIGE	8-97856-011-0	01	1	0111-0307	●	●
297	CLIP; BAND L=145	8-94257-575-1	03	1	9704-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
