◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#72421) — 64 parça

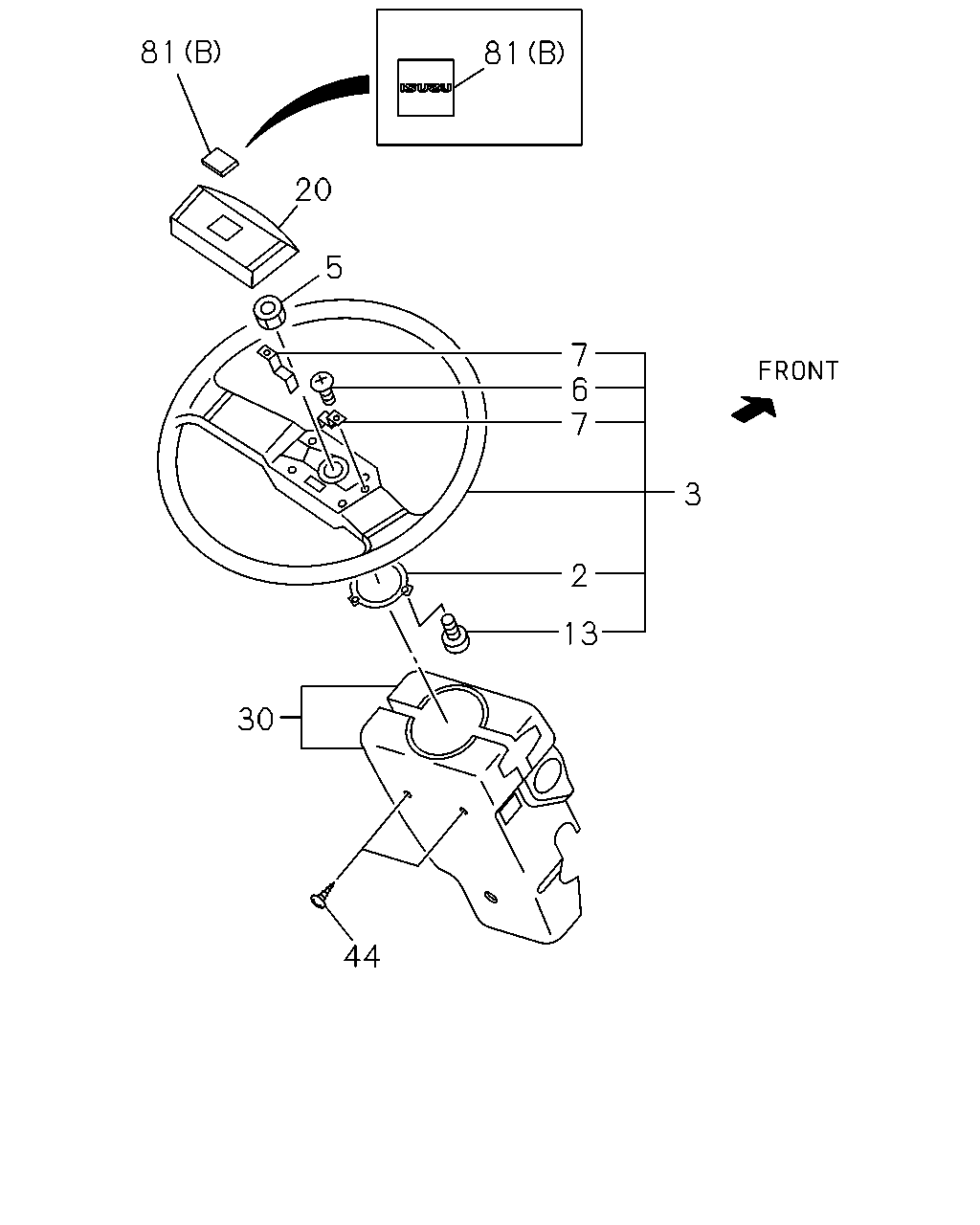

çizim 123159
81 81 20 5 7 6 7 3 2 13 30 44
BalonParca AdiParca NoAdetTipApplied Date A B
2 RING; HORN CONTACT
EXC. POWER STEERING<N40> 		8-94150-223-0 01 1 9704- ●
3 WHEEL; STRG
POWER STEERING<N40> DARK BEIGE 		8-97009-451-1 01 1 9704-0307 ●
3 WHEEL; STRG
DARK BEIGE 		8-97009-451-1 01 1 9704-0307 ●
3 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97098-531-2 01 1 0308- ●
3 WHEEL; STRG
DARK GRAY 		8-97098-531-2 01 1 0308- ●
3 WHEEL; STRG
EXC. POWER STEERING<N40> DARK BEIGE 		8-97097-020-0 01 1 9704-0307 ●
3 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97158-727-0 01 1 0308- ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 9704-0512 ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0601- ● ●
6 SCREW; HORN SPR CONTACT
EXC. POWER STEERING<N40> 		8-94458-316-0 02 1 9704- ●
7 SPRING; HORN CONTACT
EXC. POWER STEERING<N40> 		8-94150-222-0 02 1 9704- ●
13 SCREW; CONTACT RING
EXC. POWER STEERING<N40> M3X10 TAPPING 		9-07076-310-0 03 1 9704- ●
20 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK BEIGE 		8-97009-450-0 01 1 9704-0307 ●
20 SHROUD; PAD,STRG WHEEL
DARK BEIGE 		8-97009-450-0 01 1 9704-0307 ●
20 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97098-526-0 01 1 0308- ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97098-526-0 01 1 0308- ●
20 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK BEIGE 		8-97097-254-0 01 1 9704-0307 ●
20 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97158-724-0 01 1 0308- ●
30 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK BEIGE 		8-97856-004-7 01 1 9704-0307 ● ●
30 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> BLACK 		8-97997-904-7 01 1 0308- ● ●
30 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-003-8 01 1 9704-0307 ● ●
30 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) BLACK 		8-97197-937-8 01 1 0308- ● ●
30 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-001-8 01 1 9704-0307 ● ●
30 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97197-936-8 01 1 0308- ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-002-7 01 1 9704-0307 ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) BLACK 		8-97997-903-7 01 1 0308- ● ●
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9704- ● ●
81 EMBLEM; STRG WHEEL
POWER STEERING<N40> ISUZU BRAND<7WL> (A) DARK GRAY 		8-97098-527-0 01 1 1006- ●
81 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> (A) DARK GRAY 		8-97098-527-0 01 1 1006- ●
81 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97158-725-0 01 1 1006- ●

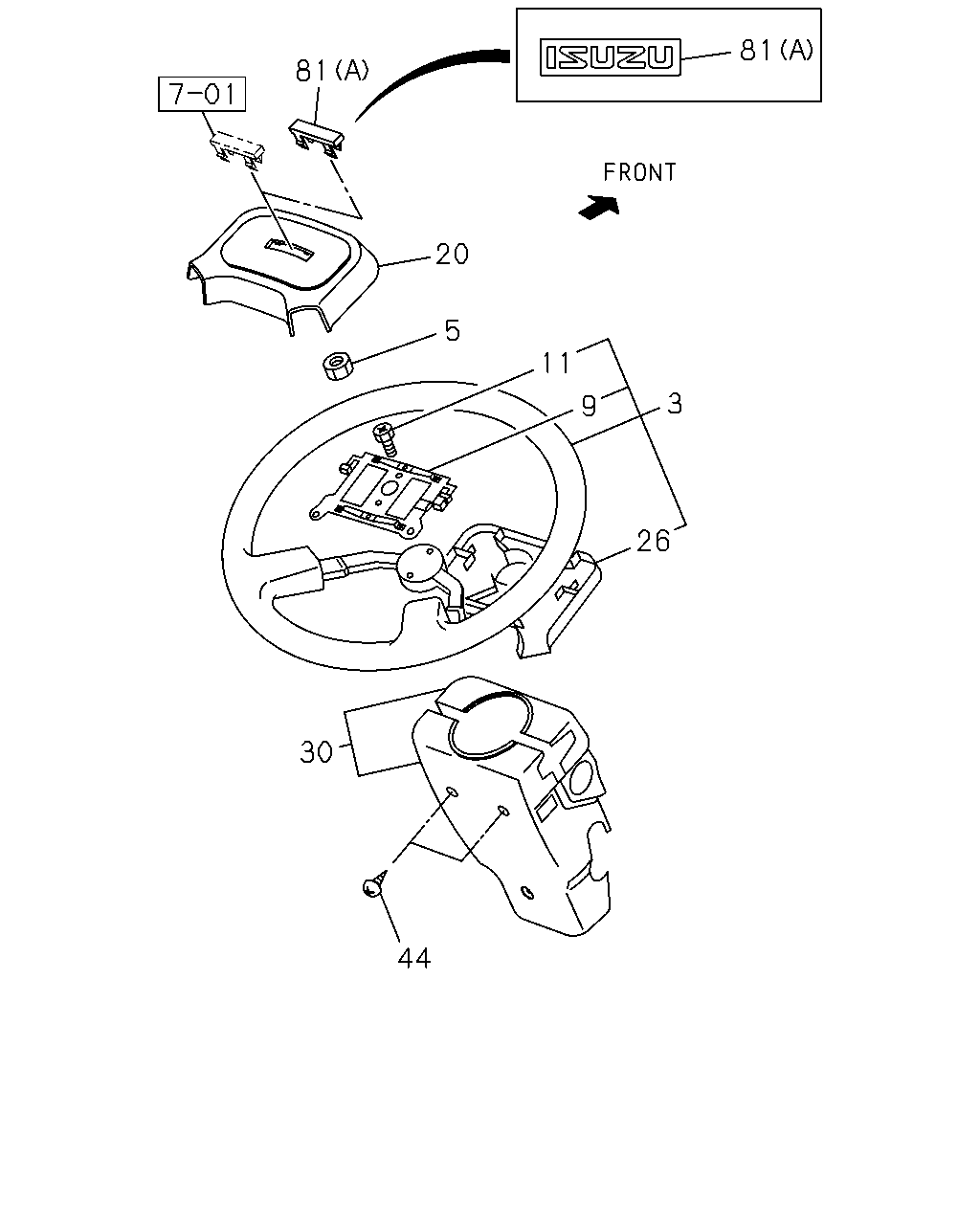

çizim 190508
81 81 20 5 11 3 9 26 30 44
BalonParca AdiParca NoAdetTipApplied Date A B
3 WHEEL; STRG
POWER STEERING<N40> DARK BEIGE 		8-97009-451-1 01 1 9704-0307 ●
3 WHEEL; STRG
DARK BEIGE 		8-97009-451-1 01 1 9704-0307 ●
3 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97098-531-2 01 1 0308- ●
3 WHEEL; STRG
DARK GRAY 		8-97098-531-2 01 1 0308- ●
3 WHEEL; STRG
EXC. POWER STEERING<N40> DARK BEIGE 		8-97097-020-0 01 1 9704-0307 ●
3 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97158-727-0 01 1 0308- ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 9704-0512 ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0601- ● ●
9 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 9704- ●
9 PLATE; HORN CONTACT 8-97076-688-1 01 1 9704- ●
11 SCREW; PLATE TO BUTTON
POWER STEERING<N40> 		8-97076-690-1 01 1 9704- ●
11 SCREW; PLATE TO BUTTON 8-97076-690-1 01 1 9704- ●
20 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK BEIGE 		8-97009-450-0 01 1 9704-0307 ●
20 SHROUD; PAD,STRG WHEEL
DARK BEIGE 		8-97009-450-0 01 1 9704-0307 ●
20 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97098-526-0 01 1 0308- ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97098-526-0 01 1 0308- ●
20 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK BEIGE 		8-97097-254-0 01 1 9704-0307 ●
20 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97158-724-0 01 1 0308- ●
26 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK BEIGE 		8-97097-432-1 01 1 9704-0307 ●
26 COVER; STRG WHEEL,LWR
DARK BEIGE 		8-97097-432-1 01 1 9704-0307 ●
26 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97098-534-1 01 1 0308- ●
26 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97098-534-1 01 1 0308- ●
30 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK BEIGE 		8-97856-004-7 01 1 9704-0307 ● ●
30 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> BLACK 		8-97997-904-7 01 1 0308- ● ●
30 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-003-8 01 1 9704-0307 ● ●
30 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) BLACK 		8-97197-937-8 01 1 0308- ● ●
30 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-001-8 01 1 9704-0307 ● ●
30 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97197-936-8 01 1 0308- ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-002-7 01 1 9704-0307 ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) BLACK 		8-97997-903-7 01 1 0308- ● ●
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9704- ● ●
81 EMBLEM; STRG WHEEL
POWER STEERING<N40> ISUZU BRAND<7WL> (A) DARK GRAY 		8-97098-527-0 01 1 1006- ●
81 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> (A) DARK GRAY 		8-97098-527-0 01 1 1006- ●
81 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97158-725-0 01 1 1006- ●
