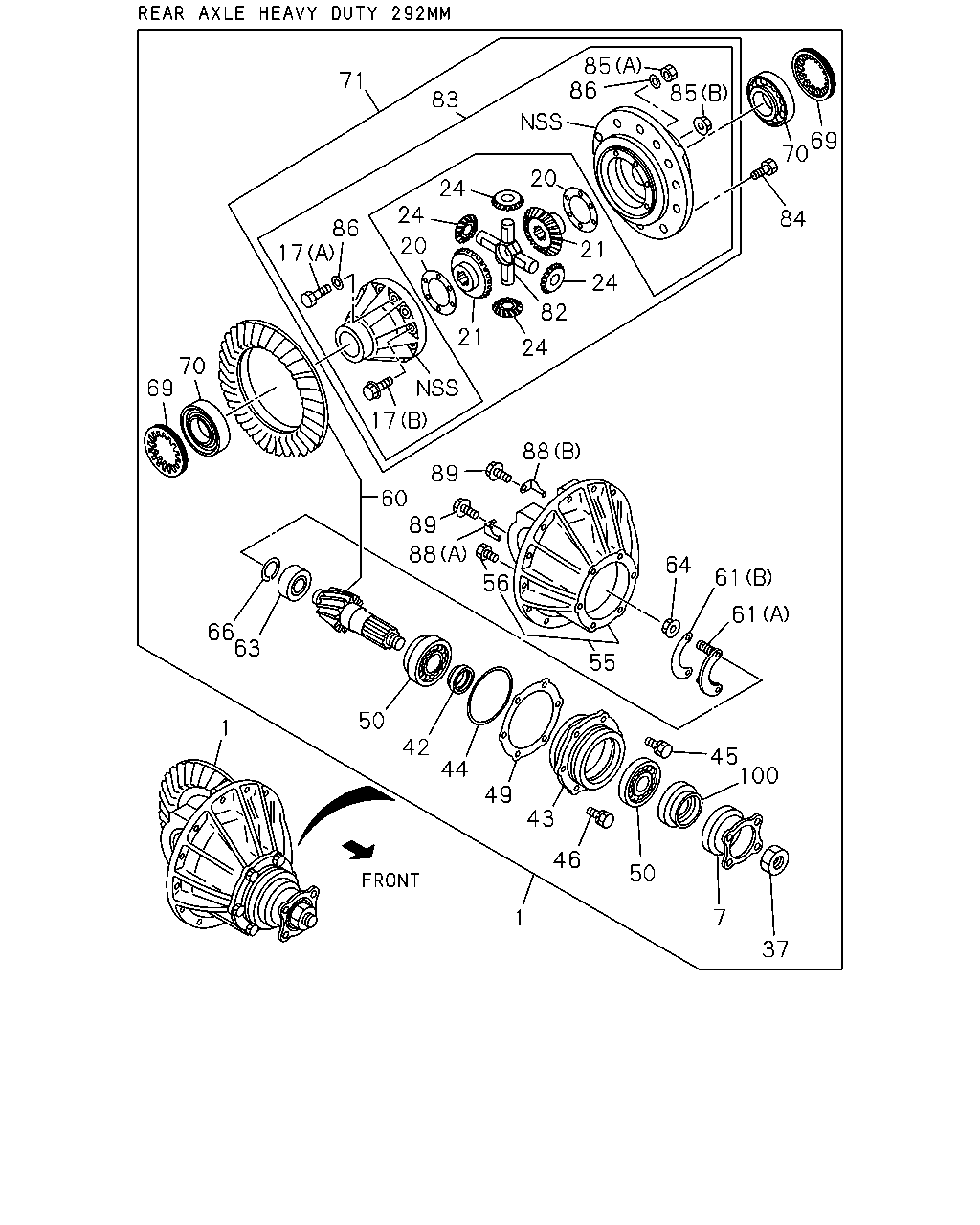

4-25 — REAR FINAL DRIVE (#72420) — 493 parça

85 86 85 71 83 69 70 20 24 24 84 86 20 21 17 24 82 21 24 70 69 17 88 89 60 89 88 64 61 56 61 66 63 55 50 1 42 45 100 44 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-98015-127-0	01	1	1112-	●
1	DRIVE ASM; FINAL,RR 4HG1-T ENG(RDP) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-902-0	01	1	1112-1310		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-902-0	01	1	1311-		●
1	DRIVE ASM; FINAL,RR 4HG1-T ENG(RDP) FINAL GEAR RATIO 43/8(R40) 43/8	8-98065-942-0	01	1	1112-1310		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/8(R40) 43/8	8-98065-942-0	01	1	1311-		●
1	DRIVE ASM; FINAL,RR 4HG1-T ENG(RDP) FINAL GEAR RATIO 41/7(R41) 41/7	8-97094-682-0	01	1	1112-1310		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) 41/7	8-97094-682-0	01	1	1311-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98024-933-0	01	1	0601-0604	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97035-415-0	01	1	9704-0203	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-244-0	01	1	0204-0303	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97356-426-0	01	1	0304-0304	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97363-099-0	01	1	0304-0304	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97367-503-0	01	1	0305-0510	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-98015-128-0	01	1	0511-1111	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-98015-128-0	01	1	1112-1310	●
1	DRIVE ASM; FINAL,RR 4HF1 ENG(RLS) FINAL GEAR RATIO 39/7(GV1) 39/7	8-98015-128-0	01	1	1112-1310		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-98015-128-0	01	1	1311-	●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-98015-128-0	01	1	1311-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97035-416-0	01	1	9704-0203	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-245-0	01	1	0204-0303	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97356-427-0	01	1	0304-0304	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97363-100-0	01	1	0304-0510	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98015-129-0	01	1	0511-1111	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98015-129-0	01	1	1112-1310	●
1	DRIVE ASM; FINAL,RR 4HF1 ENG(RLS) FINAL GEAR RATIO 41/7(R41) 41/7	8-98015-129-0	01	1	1112-1310		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98015-129-0	01	1	1311-	●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-98015-129-0	01	1	1311-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97035-417-0	01	1	9704-0203	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97319-246-0	01	1	0204-0303	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97356-428-0	01	1	0304-0304	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97363-101-0	01	1	0304-0304	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97367-504-0	01	1	0305-0510	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-98015-130-0	01	1	0511-1111	●	●
1	DRIVE ASM; FINAL,RR 4HF1 ENG(RLS) FINAL GEAR RATIO 43/7(R42) 43/7	8-98015-130-0	01	1	1112-1310	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-98015-130-0	01	1	1311-	●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) 43/7	8-98015-130-0	01	1	1311-		●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97073-802-2	01	1	1112-		●
7	FLANGE; FINAL	8-94477-723-4	01	1	9704-1111	●	●
7	FLANGE; FINAL	8-94477-723-4	01	1	1112-	●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	1112-		●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (C) M12X90	8-97047-295-0	12	1	1112-1208		●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (D) M12X90	8-98219-448-0	12	1	1209-		●
17	BOLT; DIFF CAGE SETTING (A) M10X75	5-09000-213-0	12	1	9704-0203	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X75 FLANGE	8-97232-161-0	12	1	0204-1111	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X75 FLANGE	8-97232-161-0	12	1	1112-	●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (B) M10X75 FLANGE	8-97232-161-0	12	1	1112-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	1112-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	1112-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	1112-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	1112-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	1112-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	1112-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	1112-		●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	9704-1111	●	●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1112-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	1112-		●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1112-		●
21	GEAR; SIDE,DIFF Z=20	8-94461-233-0	02	1	9704-0009	●	●
21	GEAR; SIDE,DIFF Z=20	8-97300-266-0	02	1	0010-0303	●	●
21	GEAR; SIDE,DIFF Z=20	8-97362-598-0	02	1	0304-1111	●	●
21	GEAR; SIDE,DIFF Z=20	8-97362-598-1	02	1	1112-	●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=20	8-97362-598-1	02	1	1112-		●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1112-		●
24	GEAR; PINION,DIFF Z=10	8-97041-972-0	04	1	9704-0009	●	●
24	GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0010-0303	●	●
24	GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0510	●	●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0511-1111	●	●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1112-	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	1112-		●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	1112-		●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	9704-1111	●	●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1112-	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	1112-		●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	1112-		●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	9704-1111	●	●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1112-	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	1112-		●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	1112-		●
43	CAGE; FINAL PINION	8-94400-890-0	01	1	9704-1111	●	●
43	CAGE; FINAL PINION	8-94400-890-0	01	1	1112-	●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	1112-		●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	1112-		●
44	GASKET; PINION CAGE	9-09720-505-0	01	1	9704-1111	●	●
44	GASKET; PINION CAGE	9-09720-505-0	01	1	1112-	●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73)	9-09720-505-0	01	1	1112-		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50571-240-0	06	1	1112-1209		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	9704-0909	●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1111	●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	1112-1311	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50551-238-0	05	1	1112-1311		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-		●
46	BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	9704-0909	●	●
46	BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-1111	●	●
46	BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	1112-	●
46	BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50551-435-0	01	1	1112-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.50	8-97048-419-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	9704-1111	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1112-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	9704-1111	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1112-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	9704-1111	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1112-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	9704-1111	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1112-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	9704-1111	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1112-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	9704-1111	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1112-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	1112-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	1-09812-041-2	01	1	1112-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	1112-		●
50	BEARING; FINAL PINION JTEKT	5-09812-062-1	02	1	9704-1111	●	●
50	BEARING; FINAL PINION JTEKT	5-09812-062-1	02	1	1112-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	5-09812-062-1	02	1	1112-		●
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	9704-1111	●	●
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	1112-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09812-063-0	02	1	1112-		●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	1112-		●
55	CARRIER; DIFF	8-94365-264-0	01	1	9704-0202	●	●
55	CARRIER; DIFF	8-97307-760-0	01	1	0203-1111	●	●
55	CARRIER; DIFF	8-97307-760-0	01	1	1112-	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	1112-		●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	1112-		●
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	9704-1111	●	●
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	1112-	●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) M14X80	8-94365-377-3	04	1	1112-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1312-	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1312-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97319-159-0	01	1	1112-	●
60	GEAR SET; FINAL DRIVE,RR 4HG1-T ENG(RDP) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	1112-1310		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	1311-		●
60	GEAR SET; FINAL DRIVE,RR 4HG1-T ENG(RDP) FINAL GEAR RATIO 43/8(R40) 43/8	8-98043-095-0	01	1	1112-1310		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/8(R40) 43/8	8-98043-095-0	01	1	1311-		●
60	GEAR SET; FINAL DRIVE,RR 4HG1-T ENG(RDP) FINAL GEAR RATIO 41/7(R41) 41/7	8-97083-126-0	01	1	1112-1310		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) 41/7	8-97083-126-0	01	1	1311-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97035-453-0	01	1	9704-0203	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0204-1111	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1112-1310	●
60	GEAR SET; FINAL DRIVE,RR 4HF1 ENG(RLS) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1112-1310		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1311-	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1311-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97035-454-0	01	1	9704-0203	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	0204-1111	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1112-1201	●
60	GEAR SET; FINAL DRIVE,RR 4HF1 ENG(RLS) FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1112-1201		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-0	01	1	1202-1310	●
60	GEAR SET; FINAL DRIVE,RR 4HF1 ENG(RLS) FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-0	01	1	1202-1310		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1311-	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1311-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97035-455-0	01	1	9704-0203	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0204-1111	●	●
60	GEAR SET; FINAL DRIVE,RR 4HF1 ENG(RLS) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	1112-1310	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	1311-	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	1311-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	1112-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	1112-		●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	9704-1111	●	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1112-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	1112-		●
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	9704-1111	●	●
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1112-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	1112-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	1112-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	1112-		●
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	9704-1111	●	●
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	1112-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	1112-		●
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	9704-1111	●	●
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	1112-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	1112-		●
64	NUT; RET M6 FLANGE	0-91150-106-0	02	1	9704-0602	●	●
64	NUT; RET M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	1112-		●
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	9704-1111	●	●
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1112-	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	1112-		●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	1112-		●
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	9704-1111	●	●
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1112-	●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	1112-		●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1112-		●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	9704-1111	●	●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1112-	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	1112-		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-100-4	01	1	1112-		●
71	CAGE ASM; DIFF,FINAL DRIVE	8-94461-234-1	01	1	9704-0203	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97319-039-0	01	1	0204-0303	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97356-483-0	01	1	0304-0304	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97363-156-0	01	1	0304-0510	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-179-0	01	1	0511-1111	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-179-1	01	1	1112-	●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	8-98015-179-1	01	1	1112-		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-062-0	01	1	1112-1309		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-035-2	01	1	1310-		●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	9704-1111	●	●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	1112-	●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73)	5-41521-008-0	01	1	1112-		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-117-2	01	1	1112-1208		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-98219-707-0	01	1	1209-		●
83	CAGE ASM; DIFF	8-94159-027-0	01	1	9704-0203	●	●
83	CAGE ASM; DIFF	8-97319-396-1	01	1	0204-1111	●	●
83	CAGE ASM; DIFF	8-97319-396-1	01	1	1112-	●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97319-396-1	01	1	1112-		●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	1112-		●
84	BOLT; FINAL DRIVE GEAR M12X25	9-09606-505-2	12	1	9704-0203	●	●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0204-1111	●	●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1112-	●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	1112-		●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (C) M12	8-97065-214-0	12	1	1112-		●
85	NUT; DIFF CAGE SETTING (A) M10	8-94159-009-1	12	1	9704-0203	●	●
85	NUT; DIFF CAGE SETTING (B) M10 FLANGE	0-91150-210-0	12	1	0204-0602	●	●
85	NUT; DIFF CAGE SETTING (B) M10 FLANGE	0-91180-210-0	12	1	0603-1111	●	●
85	NUT; DIFF CAGE SETTING (B) M10 FLANGE	0-91180-210-0	12	1	1112-	●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (B) M10 FLANGE	0-91180-210-0	12	1	1112-		●
86	WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) ID=12.5 OD=22 T=2	8-97047-294-0	24	1	1112-1208		●
86	WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-		●
86	WASHER; PL,DIFF CAGE SETTING ID=10 OD=18 T=2	9-09651-116-0	24	1	9704-0203	●	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D) T=2.3	8-97087-821-0	AR	1	1112-		●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	1112-		●
88	PLATE; LK,ADJ NUT (B)	8-97027-281-0	AR	1	9704-1111	●	●
88	PLATE; LK,ADJ NUT (B)	8-97027-281-0	AR	1	1112-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-281-0	AR	1	1112-		●
88	PLATE; LK,ADJ NUT (A)	8-97027-282-0	AR	1	9704-1111	●	●
88	PLATE; LK,ADJ NUT (A)	8-97027-282-0	AR	1	1112-1310	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-282-0	AR	1	1112-1310		●
88	PLATE; LK,ADJ NUT (A)	8-97027-282-0	AR	1	1311-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-282-0	AR	1	1311-		●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) M8X16 FLANGE	0-28050-816-0	04	1	1112-		●
89	BOLT; LK PLATE M8X16 FLANGE	0-28080-816-0	02	1	9704-0512	●	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28050-816-0	02	1	0601-1111	●	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28050-816-0	02	1	1112-	●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) M8X16 FLANGE	0-28050-816-0	02	1	1112-		●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	1112-		●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	9704-1111	●	●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1112-	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	1112-		●

85 86 71 83 25 69 70 20 24 25 86 17 84 24 21 24 17 82 25 24 25 21 20 88 88 89 70 69 60 64 61 56 61 66 63 55 1 50 42 45 44 49 43 39 100 1 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-98015-127-0	01	1	1112-	●
1	DRIVE ASM; FINAL,RR 4HG1-T ENG(RDP) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-902-0	01	1	1112-1310		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-902-0	01	1	1311-		●
1	DRIVE ASM; FINAL,RR 4HG1-T ENG(RDP) FINAL GEAR RATIO 43/8(R40) 43/8	8-98065-942-0	01	1	1112-1310		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/8(R40) 43/8	8-98065-942-0	01	1	1311-		●
1	DRIVE ASM; FINAL,RR 4HG1-T ENG(RDP) FINAL GEAR RATIO 41/7(R41) 41/7	8-97094-682-0	01	1	1112-1310		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) 41/7	8-97094-682-0	01	1	1311-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98024-933-0	01	1	0601-0604	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97035-415-0	01	1	9704-0203	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-244-0	01	1	0204-0303	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97356-426-0	01	1	0304-0304	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97363-099-0	01	1	0304-0304	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97367-503-0	01	1	0305-0510	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-98015-128-0	01	1	0511-1111	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-98015-128-0	01	1	1112-1310	●
1	DRIVE ASM; FINAL,RR 4HF1 ENG(RLS) FINAL GEAR RATIO 39/7(GV1) 39/7	8-98015-128-0	01	1	1112-1310		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-98015-128-0	01	1	1311-	●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-98015-128-0	01	1	1311-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97035-416-0	01	1	9704-0203	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-245-0	01	1	0204-0303	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97356-427-0	01	1	0304-0304	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97363-100-0	01	1	0304-0510	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98015-129-0	01	1	0511-1111	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98015-129-0	01	1	1112-1310	●
1	DRIVE ASM; FINAL,RR 4HF1 ENG(RLS) FINAL GEAR RATIO 41/7(R41) 41/7	8-98015-129-0	01	1	1112-1310		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98015-129-0	01	1	1311-	●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-98015-129-0	01	1	1311-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97035-417-0	01	1	9704-0203	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97319-246-0	01	1	0204-0303	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97356-428-0	01	1	0304-0304	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97363-101-0	01	1	0304-0304	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97367-504-0	01	1	0305-0510	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-98015-130-0	01	1	0511-1111	●	●
1	DRIVE ASM; FINAL,RR 4HF1 ENG(RLS) FINAL GEAR RATIO 43/7(R42) 43/7	8-98015-130-0	01	1	1112-1310	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-98015-130-0	01	1	1311-	●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) 43/7	8-98015-130-0	01	1	1311-		●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97073-802-2	01	1	1112-		●
7	FLANGE; FINAL	8-94477-723-4	01	1	9704-1111	●	●
7	FLANGE; FINAL	8-94477-723-4	01	1	1112-	●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	1112-		●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (C) M12X90	8-97047-295-0	12	1	1112-1208		●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (D) M12X90	8-98219-448-0	12	1	1209-		●
17	BOLT; DIFF CAGE SETTING (A) M10X75	5-09000-213-0	12	1	9704-0203	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X75 FLANGE	8-97232-161-0	12	1	0204-1111	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X75 FLANGE	8-97232-161-0	12	1	1112-	●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (B) M10X75 FLANGE	8-97232-161-0	12	1	1112-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	1112-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	1112-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	1112-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	1112-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	1112-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	1112-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	1112-		●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	9704-1111	●	●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1112-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	1112-		●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1112-		●
21	GEAR; SIDE,DIFF Z=20	8-94461-233-0	02	1	9704-0009	●	●
21	GEAR; SIDE,DIFF Z=20	8-97300-266-0	02	1	0010-0303	●	●
21	GEAR; SIDE,DIFF Z=20	8-97362-598-0	02	1	0304-1111	●	●
21	GEAR; SIDE,DIFF Z=20	8-97362-598-1	02	1	1112-	●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=20	8-97362-598-1	02	1	1112-		●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1112-		●
24	GEAR; PINION,DIFF Z=10	8-97041-972-0	04	1	9704-0009	●	●
24	GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0010-0303	●	●
24	GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0510	●	●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0511-1111	●	●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1112-	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	1112-		●
25	WASHER; THRUST,PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41552-020-0	04	1	1112-		●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	1112-		●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	9704-1111	●	●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1112-	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	1112-		●
39	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	5-09812-062-1	01	1	1112-		●
39	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	5-09812-063-0	01	1	1112-		●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	1112-		●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	9704-1111	●	●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1112-	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	1112-		●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	1112-		●
43	CAGE; FINAL PINION	8-94400-890-0	01	1	9704-1111	●	●
43	CAGE; FINAL PINION	8-94400-890-0	01	1	1112-	●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	1112-		●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	1112-		●
44	GASKET; PINION CAGE	9-09720-505-0	01	1	9704-1111	●	●
44	GASKET; PINION CAGE	9-09720-505-0	01	1	1112-	●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73)	9-09720-505-0	01	1	1112-		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50571-240-0	06	1	1112-1209		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	9704-0909	●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1111	●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	1112-1311	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50551-238-0	05	1	1112-1311		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.50	8-97048-419-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	9704-1111	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1112-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	9704-1111	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1112-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	9704-1111	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1112-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	9704-1111	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1112-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	9704-1111	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1112-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	1112-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	9704-1111	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1112-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	1112-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	1-09812-041-2	01	1	1112-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	1112-		●
50	BEARING; FINAL PINION JTEKT	5-09812-062-1	02	1	9704-1111	●	●
50	BEARING; FINAL PINION JTEKT	5-09812-062-1	02	1	1112-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	5-09812-062-1	02	1	1112-		●
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	9704-1111	●	●
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	1112-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09812-063-0	02	1	1112-		●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	1112-		●
55	CARRIER; DIFF	8-94365-264-0	01	1	9704-0202	●	●
55	CARRIER; DIFF	8-97307-760-0	01	1	0203-1111	●	●
55	CARRIER; DIFF	8-97307-760-0	01	1	1112-	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	1112-		●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	1112-		●
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	9704-1111	●	●
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	1112-	●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) M14X80	8-94365-377-3	04	1	1112-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1312-	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1312-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97319-159-0	01	1	1112-	●
60	GEAR SET; FINAL DRIVE,RR 4HG1-T ENG(RDP) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	1112-1310		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	1311-		●
60	GEAR SET; FINAL DRIVE,RR 4HG1-T ENG(RDP) FINAL GEAR RATIO 43/8(R40) 43/8	8-98043-095-0	01	1	1112-1310		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/8(R40) 43/8	8-98043-095-0	01	1	1311-		●
60	GEAR SET; FINAL DRIVE,RR 4HG1-T ENG(RDP) FINAL GEAR RATIO 41/7(R41) 41/7	8-97083-126-0	01	1	1112-1310		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) 41/7	8-97083-126-0	01	1	1311-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97035-453-0	01	1	9704-0203	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0204-1111	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1112-1310	●
60	GEAR SET; FINAL DRIVE,RR 4HF1 ENG(RLS) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1112-1310		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1311-	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1311-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97035-454-0	01	1	9704-0203	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	0204-1111	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1112-1201	●
60	GEAR SET; FINAL DRIVE,RR 4HF1 ENG(RLS) FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1112-1201		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-0	01	1	1202-1310	●
60	GEAR SET; FINAL DRIVE,RR 4HF1 ENG(RLS) FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-0	01	1	1202-1310		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1311-	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1311-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97035-455-0	01	1	9704-0203	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0204-1111	●	●
60	GEAR SET; FINAL DRIVE,RR 4HF1 ENG(RLS) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	1112-1310	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	1311-	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	1311-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	1112-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	1112-		●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	9704-1111	●	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1112-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	1112-		●
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	9704-1111	●	●
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1112-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	1112-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	1112-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	1112-		●
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	9704-1111	●	●
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	1112-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	1112-		●
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	9704-1111	●	●
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	1112-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	1112-		●
64	NUT; RET M6 FLANGE	0-91150-106-0	02	1	9704-0602	●	●
64	NUT; RET M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	1112-		●
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	9704-1111	●	●
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1112-	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	1112-		●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	1112-		●
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	9704-1111	●	●
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1112-	●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	1112-		●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1112-		●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	9704-1111	●	●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1112-	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	1112-		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-100-4	01	1	1112-		●
71	CAGE ASM; DIFF,FINAL DRIVE	8-94461-234-1	01	1	9704-0203	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97319-039-0	01	1	0204-0303	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97356-483-0	01	1	0304-0304	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97363-156-0	01	1	0304-0510	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-179-0	01	1	0511-1111	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-179-1	01	1	1112-	●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	8-98015-179-1	01	1	1112-		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-062-0	01	1	1112-1309		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-035-2	01	1	1310-		●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	9704-1111	●	●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	1112-	●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73)	5-41521-008-0	01	1	1112-		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-117-2	01	1	1112-1208		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-98219-707-0	01	1	1209-		●
83	CAGE ASM; DIFF	8-94159-027-0	01	1	9704-0203	●	●
83	CAGE ASM; DIFF	8-97319-396-1	01	1	0204-1111	●	●
83	CAGE ASM; DIFF	8-97319-396-1	01	1	1112-	●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97319-396-1	01	1	1112-		●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	1112-		●
84	BOLT; FINAL DRIVE GEAR M12X25	9-09606-505-2	12	1	9704-0203	●	●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0204-1111	●	●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1112-	●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	1112-		●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (C) M12	8-97065-214-0	12	1	1112-		●
85	NUT; DIFF CAGE SETTING (A) M10	8-94159-009-1	12	1	9704-0203	●	●
85	NUT; DIFF CAGE SETTING (B) M10 FLANGE	0-91150-210-0	12	1	0204-0602	●	●
85	NUT; DIFF CAGE SETTING (B) M10 FLANGE	0-91180-210-0	12	1	0603-1111	●	●
85	NUT; DIFF CAGE SETTING (B) M10 FLANGE	0-91180-210-0	12	1	1112-	●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (B) M10 FLANGE	0-91180-210-0	12	1	1112-		●
86	WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) ID=12.5 OD=22 T=2	8-97047-294-0	24	1	1112-1208		●
86	WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-		●
86	WASHER; PL,DIFF CAGE SETTING ID=10 OD=18 T=2	9-09651-116-0	24	1	9704-0203	●	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D) T=2.3	8-97087-821-0	AR	1	1112-		●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	1112-		●
88	PLATE; LK,ADJ NUT (B)	8-97027-281-0	AR	1	9704-1111	●	●
88	PLATE; LK,ADJ NUT (B)	8-97027-281-0	AR	1	1112-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-281-0	AR	1	1112-		●
88	PLATE; LK,ADJ NUT (A)	8-97027-282-0	AR	1	9704-1111	●	●
88	PLATE; LK,ADJ NUT (A)	8-97027-282-0	AR	1	1112-1310	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-282-0	AR	1	1112-1310		●
88	PLATE; LK,ADJ NUT (A)	8-97027-282-0	AR	1	1311-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-282-0	AR	1	1311-		●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) M8X16 FLANGE	0-28050-816-0	04	1	1112-		●
89	BOLT; LK PLATE M8X16 FLANGE	0-28080-816-0	02	1	9704-0512	●	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28050-816-0	02	1	0601-1111	●	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28050-816-0	02	1	1112-	●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) M8X16 FLANGE	0-28050-816-0	02	1	1112-		●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	1112-		●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	9704-1111	●	●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1112-	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	1112-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
