◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-08C - PARKING BRAKE ▶
3-08C — PARKING BRAKE (#7242) — 47 parça
çizim 42419
113 159 92 92
BalonParca AdiParca NoAdetTipApplied Date A B C
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-09363-650-0 02 1 9906- ● ● ●
113 CLIP; HOSE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=140 		5-09707-031-1 01 1 9906- ● ● ●
159 SLEEVE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50 		1-09337-023-0 01 1 9906- ● ● ●

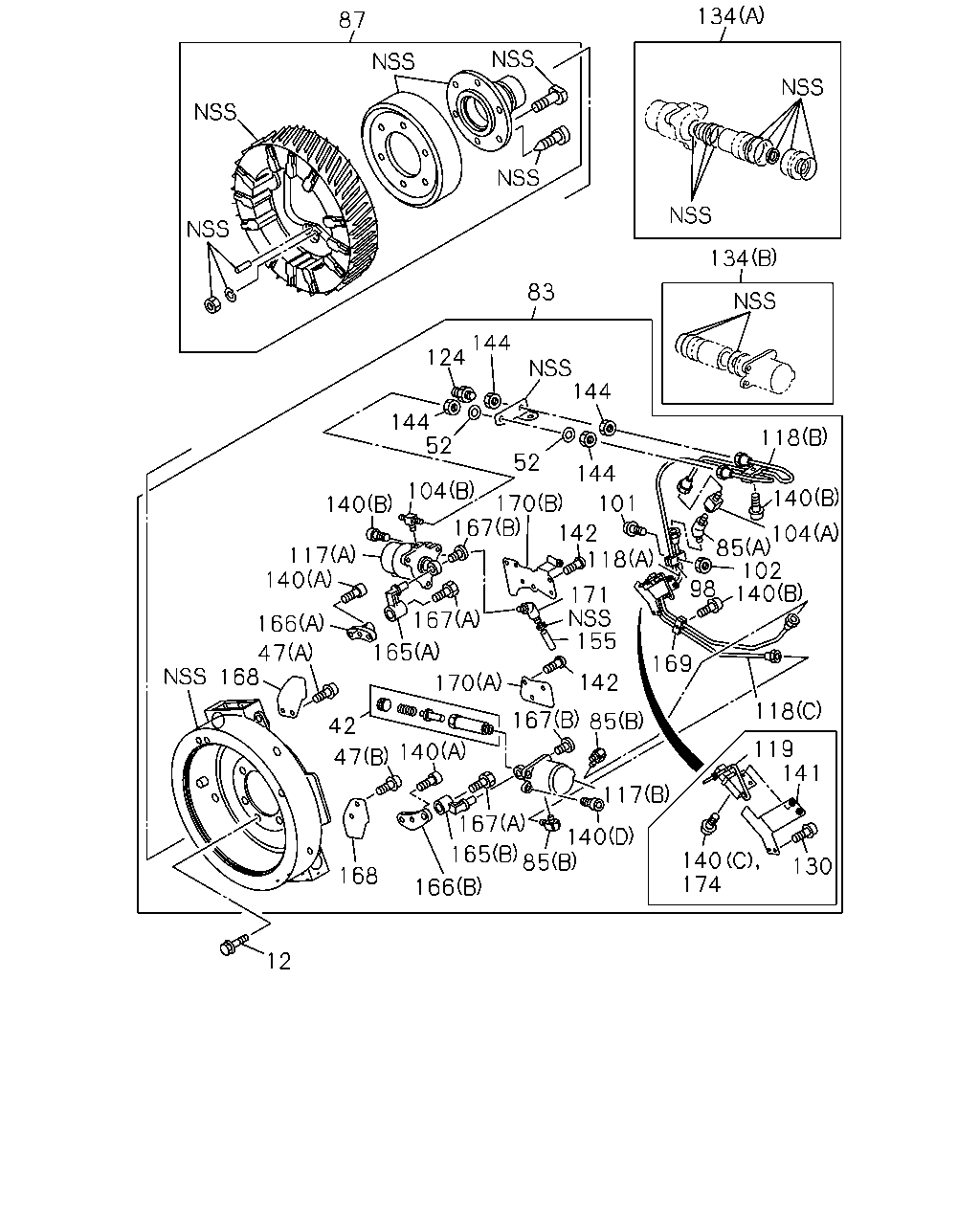

çizim 45963
134 87 134 83 144 124 144 144 52 118 52 144 104 140 170 167 101 140 142 118 104 85 102 98 140 117 140 171 155 167 166 165 47 168 169 167 142 170 118 85 42 119 141 140 47 117 167 140 85 130 165 140 174 168 166 12
BalonParca AdiParca NoAdetTipApplied Date A B C
12 BOLT; FIX
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X35 FLANGE 		0-28791-235-0 08 1 9906- ● ● ●
42 SPRING; RETURN,LEVER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-071-1 01 1 9906- ● ● ●
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X10 HEX SOCKET 		1-48629-133-0 01 1 9906- ● ● ●
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X14 HEX SOCKET 		1-48629-145-0 01 1 9906- ● ● ●
52 WASHER; PL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26 		9-09160-612-0 02 1 9906- ● ● ●
83 RETARDER ASM; PARKING BRK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-46200-245-3 01 1 9906- ● ● ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-150-0 01 1 9906- ● ● ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8 		9-09224-306-2 02 1 9906- ● ● ●
87 DRUM; RETARDER,PARKING BRK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-46210-269-3 01 1 9906- ● ● ●
98 CLIP; AIR PIPE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-131-0 06 1 9906- ● ● ●
101 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X18 		1-48629-134-0 03 1 9906- ● ● ●
102 NUT; CLIP,AIR PIPE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		5-09440-004-0 01 1 9906- ● ● ●
104 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-149-0 01 1 9906- ● ● ●
104 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-187-0 01 1 9906- ● ● ●
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-142-0 01 1 9906- ● ● ●
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-146-0 01 1 9906- ● ● ●
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-49115-875-0 01 1 9906- ● ● ●
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) 		1-49115-877-0 01 1 9906- ● ● ●
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-49118-551-0 01 1 9906- ● ● ●
119 SWITCH; THERMO
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82450-054-0 01 1 9906- ● ● ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-188-0 01 1 9906- ● ● ●
130 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET 		1-48629-145-0 01 1 9906- ● ● ●
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-137-0 01 1 9906- ● ● ●
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-138-0 01 1 9906- ● ● ●
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20 		1-48629-070-0 04 1 9906- ● ● ●
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-104-0 03 1 9906- ● ● ●
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET 		1-48629-133-0 01 1 9906- ● ● ●
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) 		1-48629-148-0 04 1 9906- ● ● ●
141 BRACKET
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-111-2 01 1 9906- ● ● ●
142 SCREW
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD 		9-93490-510-0 11 1 9906- ● ● ●
144 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12 		9-09840-280-0 04 1 9906- ● ● ●
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-092-0 01 1 9906- ● ● ●
165 LINK; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-140-0 01 1 9906- ● ● ●
165 LINK; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-141-0 01 1 9906- ● ● ●
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-066-0 01 1 9906- ● ● ●
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-067-0 01 1 9906- ● ● ●
167 STOPPER; LINKAGE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-069-0 02 1 9906- ● ● ●
167 STOPPER; LINKAGE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-127-0 02 1 9906- ● ● ●
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-190-0 02 1 9906- ● ● ●
169 CLAMP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-126-0 01 1 9906- ● ● ●
170 COVER; CASE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-063-0 01 1 9906- ● ● ●
170 COVER; CASE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-240-0 01 1 9906- ● ● ●
171 BREATHER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-144-0 01 1 9906- ● ● ●
174 BOLT; SWITCH
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET 		1-48629-133-0 02 1 9906- ● ● ●
