4-20 — REAR AXLE CASE AND SHAFT (#72419) — 76 parça

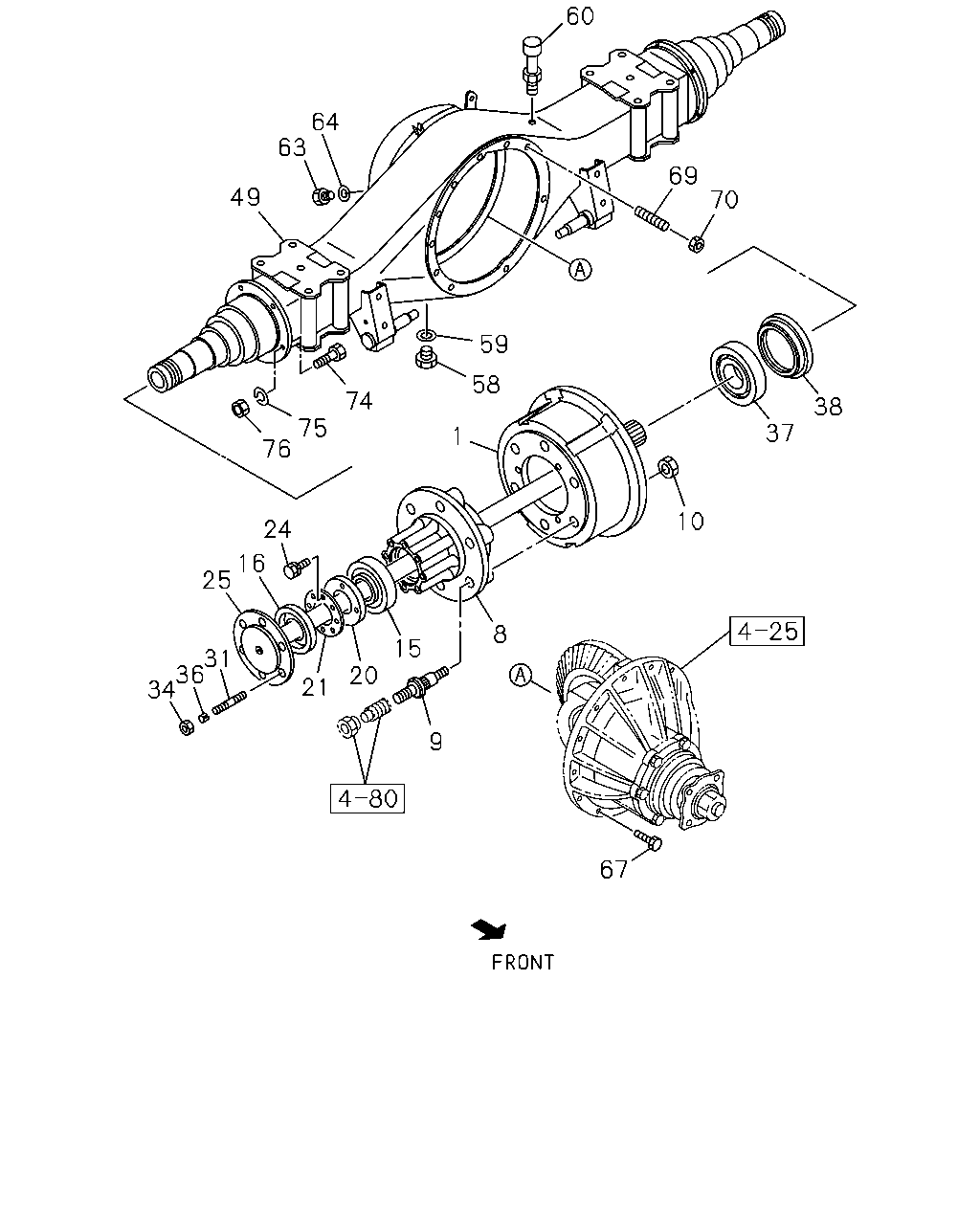

çizim 122968
60 64 63 69 49 70 59 58 74 38 75 76 37 1 10 24 16 25 8 15 31 36 34 20 21 9 67
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR 8-97034-770-3 02 1 9704-1310 ●
1 DRUM; BRK,RR 8-98248-900-0 02 1 1311- ●
1 DRUM; BRK,RR 8-97081-219-2 02 1 9704- ●
8 HUB; RR AXLE 8-94382-893-4 02 1 9704- ●
8 HUB; RR AXLE 8-97081-323-2 02 1 9704- ●
9 PIN; WHEEL,RR AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 9704- ●
9 PIN; WHEEL,RR AXLE
M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 9704- ●
9 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 9704- ●
9 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 9704- ●
10 NUT; WHEEL PIN,RR AXLE
M20 		9-99110-520-0 10 1 9704-0512 ●
10 NUT; WHEEL PIN,RR AXLE
M20 		0-91110-520-0 10 1 0601- ●
10 NUT; WHEEL PIN,RR AXLE
M22 		9-09110-522-0 12 1 9704-0512 ●
10 NUT; WHEEL PIN,RR AXLE
M22 		0-91110-522-0 12 1 0601- ●
15 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-607-0 02 1 9704- ● ●
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		5-87610-139-0 02 1 9704- ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-317-2 02 1 9704-1207 ● ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-912-0 02 1 1208- ● ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-960-1 02 1 9704-1106 ● ●
20 NUT; BRG,RR HUB
M55 		8-97137-094-0 02 1 9704- ● ●
21 WASHER; LK,BRG NUT
ID=55 		9-09653-002-1 02 1 9704- ● ●
24 BOLT; LK WASHER
M6X12 W/LK WASHER 		0-50040-612-0 04 1 9704-0512 ● ●
24 BOLT; LK WASHER
M6X12 W/LK WASHER 		0-50540-612-0 04 1 0601-0611 ● ●
24 BOLT; LK WASHER
M6X10 FLANGE 		0-28050-610-0 04 1 0612-1509 ● ●
24 BOLT; LK WASHER
M6X12 FLANGE 		0-28050-612-0 04 1 1510- ● ●
25 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP) L=822 		8-98098-426-0 02 1 1112- ●
25 SHAFT; AXLE,RR
L=830 		8-94341-974-1 02 1 9704-1111 ● ●
25 SHAFT; AXLE,RR
L=830 		8-94341-974-1 02 1 1112- ●
25 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73) L=830 		8-94341-974-1 02 1 1112- ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 16 1 9704-0709 ● ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 0710- ● ●
34 NUT; AXLE SHAFT
M10 FLANGE 		0-91150-210-0 16 1 9704-0602 ● ●
34 NUT; AXLE SHAFT
M10 FLANGE 		0-91180-210-0 16 1 0603- ● ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 16 1 9704-0709 ● ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 0710- ● ●
37 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-624-0 02 1 9704- ● ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		5-87610-141-0 02 1 9704- ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-316-1 02 1 9704- ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-958-0 02 1 9704- ● ●
49 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97048-635-8 01 1 1112- ●
49 CASE; RR AXLE 8-97036-560-6 01 1 9704-1111 ● ●
49 CASE; RR AXLE 8-97036-560-6 01 1 1112- ●
49 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97036-560-6 01 1 1112- ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 9704-0611 ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 0612- ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 9704- ● ●
60 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 9704-0409 ● ●
60 BREATHER; RR AXLE CASE
L=29 		8-97383-656-0 01 1 0410-0606 ● ●
60 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 0607- ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		9-09662-005-0 01 1 9704-0611 ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0612- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 9704- ● ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) M10X40 W/LK WASHER 		0-50561-040-0 07 1 1112- ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER 		0-50561-050-0 04 1 1112- ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 11 1 9704-0909 ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910-1111 ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50561-040-0 11 1 1112- ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73) M10X40 W/LK WASHER 		0-50561-040-0 11 1 1112- ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 9704-0610 ● ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 0611- ● ●
70 NUT; CARRIER
M10 FLANGE 		0-91150-210-0 02 1 9704-0602 ● ●
70 NUT; CARRIER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
74 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 12 1 9704-0611 ● ●
74 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 12 1 0612- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 		9-09150-612-0 12 1 9704-0603 ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 		0-91510-612-0 12 1 0604-0611 ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 		0-91510-812-0 12 1 0612- ● ●
76 NUT; RR BRK ASM SETTING
M12 		9-99110-512-0 12 1 9704-0512 ● ●
76 NUT; RR BRK ASM SETTING
M12 		0-91110-512-0 12 1 0601- ● ●
çizim 401925
67 96 96 67
BalonParca AdiParca NoAdetTipApplied Date A B
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) M10X40 W/LK WASHER 		0-50561-040-0 07 1 1112- ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER 		0-50561-050-0 04 1 1112- ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 11 1 9704-0909 ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910-1111 ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50561-040-0 11 1 1112- ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73) M10X40 W/LK WASHER 		0-50561-040-0 11 1 1112- ●
96 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> (A) 		8-98030-956-0 01 1 1311- ● ●
96 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 320MM(6CP) BRK WHL LK CONT LSPV<6PH> (B) 		8-98037-102-0 01 1 1311- ●
