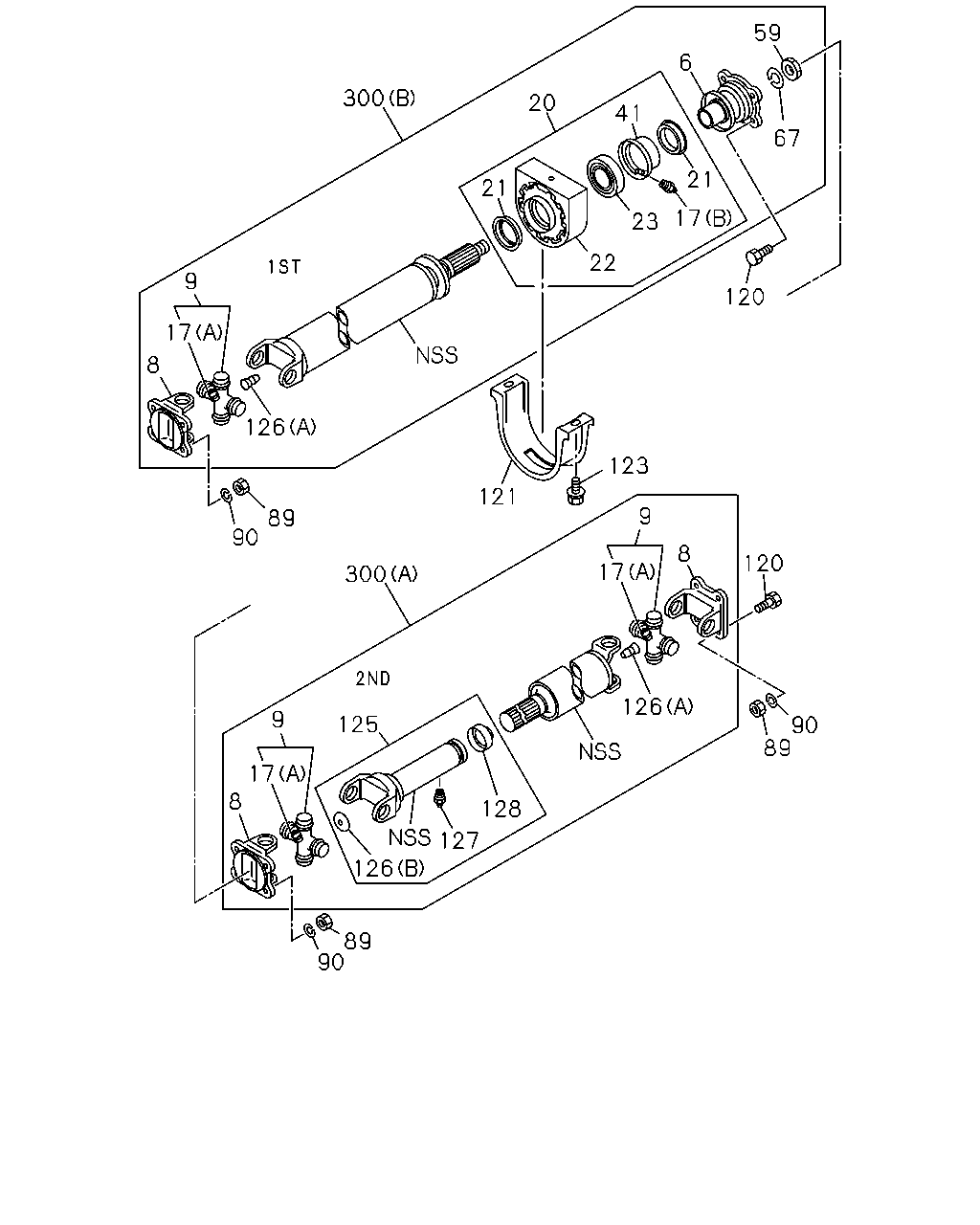

4-01 — PROPELLER SHAFT (#72416) — 65 parça

59 6 300 20 41 67 21 21 17 23 22 9 120 17 8 126 123 121 9 89 90 8 120 17 300 126 9 125 90 89 17 8 128 127 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	COUPLING ASM; DRIVER,PROP SHAFT M/T MXA5R(RMT)	8-97036-123-0	01	1	9704-0307	●	●
6	COUPLING ASM; DRIVER,PROP SHAFT M/T MYY5T(RSM)	8-97036-123-0	01	1	0308-	●	●
8	YOKE; FLANGE,PROP SHAFT 2ND	8-97035-619-1	02	1	9704-9904	●	●
8	YOKE; FLANGE,PROP SHAFT 2ND	8-97225-254-0	02	1	9905-0307	●	●
8	YOKE; FLANGE,PROP SHAFT 2ND D=80	8-97322-663-0	02	1	0308-	●	●
8	YOKE; FLANGE,PROP SHAFT M/T MXA5R(RMT) 1ST	8-97035-619-1	01	1	9704-9904	●	●
8	YOKE; FLANGE,PROP SHAFT M/T MXA5R(RMT) 1ST	8-97225-254-0	01	1	9905-0307	●	●
8	YOKE; FLANGE,PROP SHAFT M/T MYY5T(RSM) 1ST D=80	8-97322-663-0	01	1	0308-	●	●
9	JOURNAL ASM; PROP SHAFT 2ND	8-97080-505-0	02	1	9704-0307	●	●
9	JOURNAL ASM; PROP SHAFT 2ND	8-97322-749-0	02	1	0308-0612	●	●
9	JOURNAL ASM; PROP SHAFT 2ND	8-98033-605-1	02	1	0701-	●	●
9	JOURNAL ASM; PROP SHAFT M/T MXA5R(RMT) 1ST	8-97080-505-0	01	1	9704-0307	●	●
9	JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM) 1ST	8-97322-749-0	01	1	0308-0612	●	●
9	JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM) 1ST	8-98033-605-1	01	1	0701-	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) 2ND PT1/8 ELBOW	9-09031-210-0	02	1	9704-0512	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) 2ND PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●
17	NIPPLE; GREASE,PROP SHAFT M/T MXA5R(RMT) (B) M6 STRAIGHT	9-09031-006-0	01	1	9704-0307	●	●
17	NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) (B) M6 STRAIGHT	9-09031-006-0	01	1	0308-0607	●	●
17	NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) (B) M6 STRAIGHT	0-90301-406-0	01	1	0608-	●	●
17	NIPPLE; GREASE,PROP SHAFT M/T MXA5R(RMT) (A) 1ST PT1/8 ELBOW	9-09031-210-0	01	1	9704-0307	●	●
17	NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) (A) 1ST PT1/8 ELBOW	9-09031-210-0	01	1	0308-0512	●	●
17	NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) (A) 1ST PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●	●
20	BEARING ASM; CTR,PROP SHAFT M/T MXA5R(RMT) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-0	01	1	9704-0307	●	●
20	BEARING ASM; CTR,PROP SHAFT M/T MYY5T(RSM) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0308-0702	●	●
20	BEARING ASM; CTR,PROP SHAFT M/T MYY5T(RSM)	8-98020-880-0	01	1	0703-	●	●
21	SEAL; OIL,CENTER BRG M/T MXA5R(RMT) ID=49	5-09625-067-1	02	1	9704-0307	●	●
21	SEAL; OIL,CENTER BRG M/T MYY5T(RSM) ID=49	5-09625-067-1	02	1	0308-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST M/T MXA5R(RMT)	5-37516-005-1	01	1	9704-0307	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST M/T MYY5T(RSM)	5-37516-005-2	01	1	0308-0612	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST M/T MYY5T(RSM)	8-98020-875-0	01	1	0701-	●	●
23	BEARING; CENTER,PROP SHAFT M/T MXA5R(RMT) OD=80	5-09800-068-0	01	1	9704-0307	●	●
23	BEARING; CENTER,PROP SHAFT M/T MYY5T(RSM) OD=80	5-09800-068-0	01	1	0308-	●	●
41	COVER; CENTER BRG,PROP SHAFT M/T MXA5R(RMT)	5-37512-004-0	01	1	9704-0307	●	●
41	COVER; CENTER BRG,PROP SHAFT M/T MYY5T(RSM)	5-37512-004-0	01	1	0308-0612	●	●
41	COVER; CENTER BRG,PROP SHAFT M/T MYY5T(RSM)	8-98020-795-0	01	1	0701-	●	●
59	NUT; RET TO SUPPORT M/T MXA5R(RMT) M30 H=23	1-09449-068-0	01	1	9704-0306	●	●
59	NUT; RET TO SUPPORT M/T MXA5R(RMT) M27 H=25	8-97253-126-0	01	1	0307-0307	●	●
59	NUT; RET TO SUPPORT M/T MYY5T(RSM) M27 H=25	8-97253-126-0	01	1	0308-0612	●	●
59	NUT; RET TO SUPPORT M/T MYY5T(RSM) M27 H=25	8-97360-410-0	01	1	0701-	●	●
67	WASHER; PROP SHAFT TO COUPLING DRIVER M/T MXA5R(RMT) ID=30.5	1-09503-025-0	01	1	9704-0306	●	●
89	NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	9704-0610	●	●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-1	12	1	0611-	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	9-09150-812-0	12	1	9704-0603	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	12	1	0604-	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	9704-0610	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	08	1	0611-	●	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	9704-	●	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9704-0512	●	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0601-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=191	8-97036-126-1	01	1	9704-0307	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=183	8-97327-979-1	01	1	0308-	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	9704-	●	●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	9704-	●	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	9-09031-006-0	01	1	9704-0607	●	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	0-90301-406-0	01	1	0608-	●	●
128	SEAL; SLEEVE	8-97145-746-0	01	1	9704-	●	●
300	SHAFT ASM; PROP,RR REAR AXLE HEAVY DUTY 320MM(6CP) (A) L=1062	8-97350-388-3	01	1	1112-		●
300	SHAFT ASM; PROP,RR M/T MXA5R(RMT) (B) L=830	8-97091-812-3	01	1	9704-0307	●
300	SHAFT ASM; PROP,RR M/T MYY5T(RSM) (B) L=774	8-97350-385-4	01	1	0308-	●	●
300	SHAFT ASM; PROP,RR (A) L=1037	8-97035-584-2	01	1	9704-0307	●	●
300	SHAFT ASM; PROP,RR (A) L=1075	8-97350-389-3	01	1	0308-1111	●	●
300	SHAFT ASM; PROP,RR (A) L=1075	8-97350-389-3	01	1	1112-	●
300	SHAFT ASM; PROP,RR REAR AXLE HEAVY DUTY 292MM(G73) (A) L=1075	8-97350-389-3	01	1	1112-		●
300	SHAFT ASM; PROP,RR M/T MXA5R(RMT) (B) L=1280	8-97091-813-3	01	1	9704-0307		●
300	SHAFT ASM; PROP,RR M/T MYY5T(RSM) (B) L=1222	8-97350-387-4	01	1	0308-	●	●
