3-60 — BRAKE PIPING; VACUUM (#72415) — 104 parça

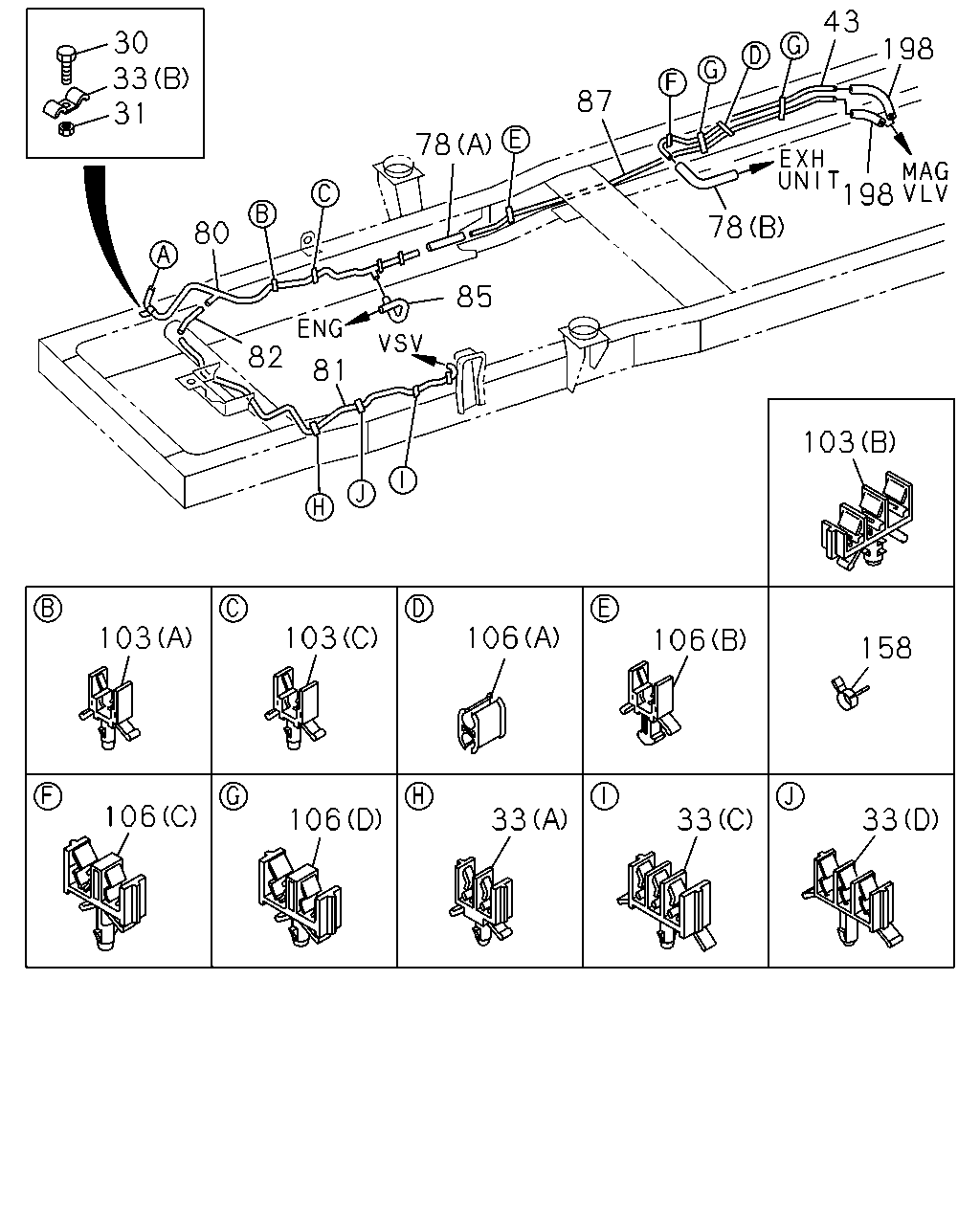

43 30 33 31 198 87 78 198 78 80 85 82 81 103 103 103 106 106 158 106 33 33 33 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28680-620-0	01	1	9704-0512	●	●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	9704-0602	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
33	CLIP; VAC PIPE (F) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	04	1	1005-		●
33	CLIP; VAC PIPE (B) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9704-0307	●	●
33	CLIP; VAC PIPE (E) ID=10X2 H=47.5	8-97018-605-0	01	1	0308-	●	●
33	CLIP; VAC PIPE (A) ID=4.8X2	8-94316-410-0	01	1	9704-0307	●	●
33	CLIP; VAC PIPE (F) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	04	1	0308-1004	●	●
33	CLIP; VAC PIPE (F) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1005-	●
33	CLIP; VAC PIPE (C) ID=6.5 & 4.8X2	8-94424-234-0	01	1	9704-0307	●	●
33	CLIP; VAC PIPE (D) ID=4.8X2	8-94455-816-0	01	1	9704-0307	●	●
43	PIPE; VAC,MAG VLV TO UNION	8-97106-949-2	01	1	9704-0307	●
43	PIPE; VAC,MAG VLV TO UNION	8-97325-807-0	01	1	0308-0507	●
43	PIPE; VAC,MAG VLV TO UNION	8-98021-598-0	01	1	0508-1009	●
43	PIPE; VAC,MAG VLV TO UNION L=798	8-98178-158-0	01	1	1010-	●
43	PIPE; VAC,MAG VLV TO UNION	8-97066-126-4	01	1	9704-0307		●
43	PIPE; VAC,MAG VLV TO UNION	8-97325-808-1	01	1	0308-1009		●
43	PIPE; VAC,MAG VLV TO UNION L=1345	8-98178-159-0	01	1	1010-		●
78	HOSE; VAC,PIPE TO PIPE (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	9704-0307	●	●
78	HOSE; VAC,PIPE TO PIPE (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0308-	●	●
78	HOSE; VAC,PIPE TO PIPE (B) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	9704-0307	●	●
78	HOSE; VAC,PIPE TO PIPE (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0308-	●	●
80	PIPE; VAC,ENG SIDE	8-97042-324-3	01	1	9704-0302	●	●
80	PIPE; VAC,ENG SIDE	8-97360-788-0	01	1	0303-0307	●	●
80	PIPE; VAC,ENG SIDE	8-97325-793-0	01	1	0308-	●	●
81	PIPE; VAC,VSV	8-97042-256-5	01	1	9704-0307	●	●
81	PIPE; VAC,VSV	8-97365-462-0	01	1	0308-	●	●
82	HOSE; VAC,VSV L=120 SERVICED BY L=3000	0-04740-300-0	01	1	9704-	●	●
85	HOSE; VAC,ENG SIDE	8-97091-966-0	01	1	9704-1110	●	●
85	HOSE; VAC,ENG SIDE	8-97109-066-1	01	1	1112-	●	●
87	PIPE; VAC,ENG TO MAG VLV	8-97106-948-1	01	1	9704-0307	●
87	PIPE; VAC,ENG TO MAG VLV	8-97325-803-3	01	1	0308-	●
87	PIPE; VAC,ENG TO MAG VLV	8-97164-750-0	01	1	9704-0307		●
87	PIPE; VAC,ENG TO MAG VLV	8-97325-804-3	01	1	0308-		●
103	CLIP; VAC PIPE (C) ID=10 H=42.5	8-94405-140-0	01	1	9704-0307	●	●
103	CLIP; VAC PIPE (A) ID=10 H=40	8-94462-219-0	01	1	9704-0307	●	●
103	CLIP; VAC PIPE (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9704-0307	●	●
103	CLIP; VAC PIPE (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9704-0307	●	●
106	CLIP; PIPE (A) ID=10X2 H=22	8-94252-455-2	01	1	9704-0307	●
106	CLIP; PIPE (C) ID=10X2 H=47.5	8-97018-605-0	01	1	9704-0307	●
106	CLIP; PIPE (B) ID=10 H=45.5	8-97017-902-0	01	1	9704-0307	●	●
106	CLIP; PIPE (D) ID=10X2 H=37.5	8-97018-546-0	02	1	9704-0307	●	●
106	CLIP; PIPE (A) ID=10X2 H=22	8-94252-455-2	02	1	9704-0307		●
106	CLIP; PIPE (C) ID=10X2 H=47.5	8-97018-605-0	02	1	9704-0307		●
158	CLIP; HOSE ID=16	8-94238-568-0	11	1	9704-0307	●	●
198	HOSE; VAC,PIPE TO MAG VLV L=160 SERVICED BY L=3000	0-08258-300-0	02	1	0308-	●
198	HOSE; VAC,PIPE TO MAG VLV L=180 SERVICED BY L=3000	0-08258-300-0	02	1	9704-0307	●	●
198	HOSE; VAC,PIPE TO MAG VLV L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0308-		●

12 116 203 12 13 12 39 39 39 184 39 165 39 173 162 39 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE ID=14.5	8-94167-480-0	03	1	9704-	●	●
13	JOINT; HOSE,VAC 3WAY	8-94441-184-0	01	1	9704-	●	●
39	CLIP; HOSE,VAC (C) ID=16	5-09707-023-2	02	1	9704-	●	●
39	CLIP; HOSE,VAC (B) ID=16	8-94238-568-0	03	1	9704-	●	●
39	CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	9704-	●	●
116	HOSE; VAC,M/VAC	8-97048-909-0	01	1	9704-0109	●	●
116	HOSE; VAC,M/VAC	8-97314-597-1	01	1	0110-	●	●
162	HOSE; VAC	8-97040-991-2	01	1	9704-	●	●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	9704-0512	●	●
165	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●
173	HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	9704-	●	●
184	BRACKET; UNION FIX	8-97035-967-3	01	1	9704-	●	●
202	SEAL OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0308-	●	●
203	VALVE; CHECK	8-94386-540-0	01	1	0501-	●	●

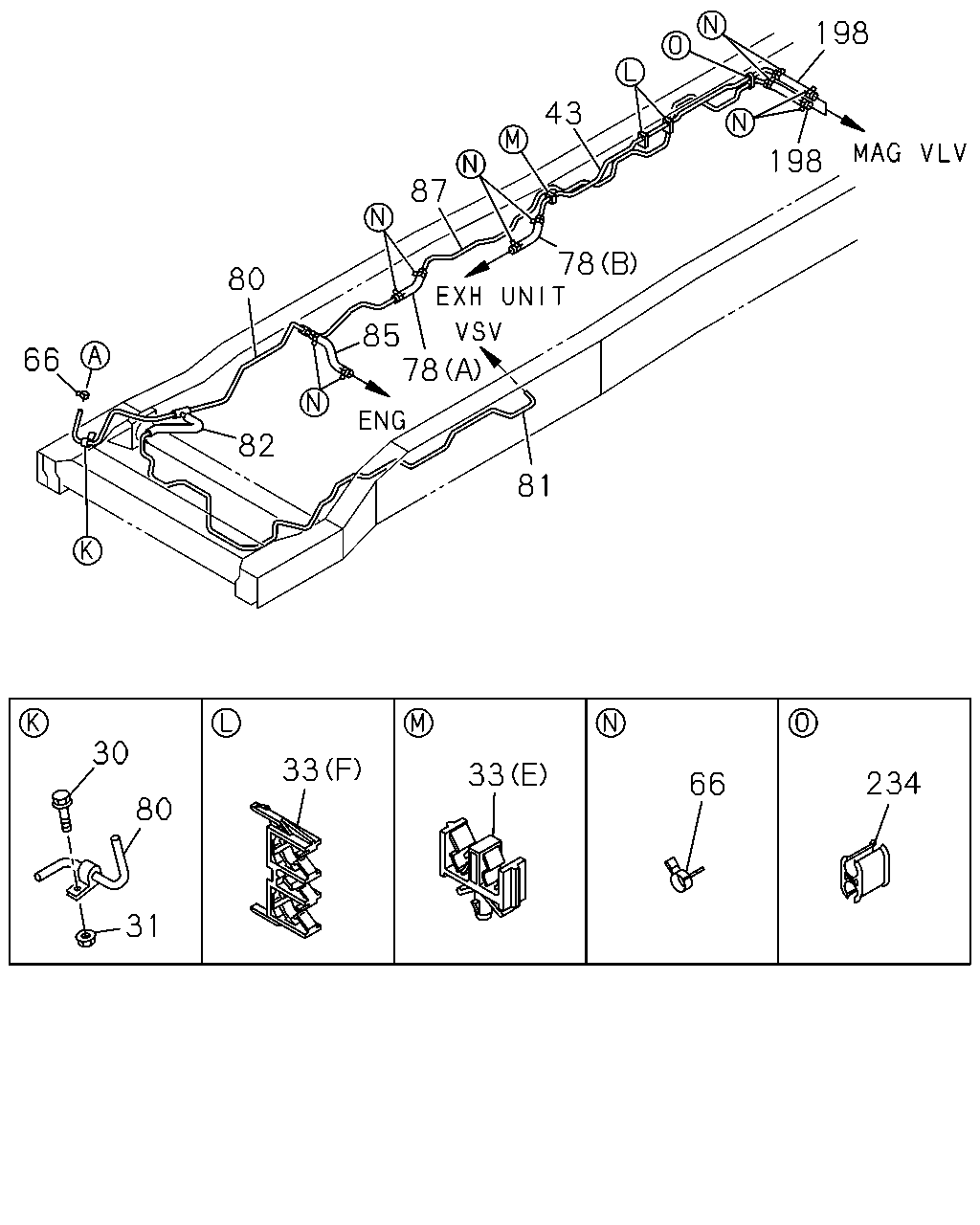

198 43 198 87 78 80 85 78 66 82 81 30 33 33 234 66 80 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28680-620-0	01	1	9704-0512	●	●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	9704-0602	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
33	CLIP; VAC PIPE (F) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	04	1	1005-		●
33	CLIP; VAC PIPE (B) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9704-0307	●	●
33	CLIP; VAC PIPE (E) ID=10X2 H=47.5	8-97018-605-0	01	1	0308-	●	●
33	CLIP; VAC PIPE (A) ID=4.8X2	8-94316-410-0	01	1	9704-0307	●	●
33	CLIP; VAC PIPE (F) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	04	1	0308-1004	●	●
33	CLIP; VAC PIPE (F) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1005-	●
33	CLIP; VAC PIPE (C) ID=6.5 & 4.8X2	8-94424-234-0	01	1	9704-0307	●	●
33	CLIP; VAC PIPE (D) ID=4.8X2	8-94455-816-0	01	1	9704-0307	●	●
43	PIPE; VAC,MAG VLV TO UNION	8-97106-949-2	01	1	9704-0307	●
43	PIPE; VAC,MAG VLV TO UNION	8-97325-807-0	01	1	0308-0507	●
43	PIPE; VAC,MAG VLV TO UNION	8-98021-598-0	01	1	0508-1009	●
43	PIPE; VAC,MAG VLV TO UNION L=798	8-98178-158-0	01	1	1010-	●
43	PIPE; VAC,MAG VLV TO UNION	8-97066-126-4	01	1	9704-0307		●
43	PIPE; VAC,MAG VLV TO UNION	8-97325-808-1	01	1	0308-1009		●
43	PIPE; VAC,MAG VLV TO UNION L=1345	8-98178-159-0	01	1	1010-		●
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	11	1	0308-0911	●	●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	11	1	0912-	●	●
78	HOSE; VAC,PIPE TO PIPE (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	9704-0307	●	●
78	HOSE; VAC,PIPE TO PIPE (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0308-	●	●
78	HOSE; VAC,PIPE TO PIPE (B) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	9704-0307	●	●
78	HOSE; VAC,PIPE TO PIPE (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0308-	●	●
80	PIPE; VAC,ENG SIDE	8-97042-324-3	01	1	9704-0302	●	●
80	PIPE; VAC,ENG SIDE	8-97360-788-0	01	1	0303-0307	●	●
80	PIPE; VAC,ENG SIDE	8-97325-793-0	01	1	0308-	●	●
81	PIPE; VAC,VSV	8-97042-256-5	01	1	9704-0307	●	●
81	PIPE; VAC,VSV	8-97365-462-0	01	1	0308-	●	●
82	HOSE; VAC,VSV L=120 SERVICED BY L=3000	0-04740-300-0	01	1	9704-	●	●
85	HOSE; VAC,ENG SIDE	8-97091-966-0	01	1	9704-1110	●	●
85	HOSE; VAC,ENG SIDE	8-97109-066-1	01	1	1112-	●	●
87	PIPE; VAC,ENG TO MAG VLV	8-97106-948-1	01	1	9704-0307	●
87	PIPE; VAC,ENG TO MAG VLV	8-97325-803-3	01	1	0308-	●
87	PIPE; VAC,ENG TO MAG VLV	8-97164-750-0	01	1	9704-0307		●
87	PIPE; VAC,ENG TO MAG VLV	8-97325-804-3	01	1	0308-		●
198	HOSE; VAC,PIPE TO MAG VLV L=160 SERVICED BY L=3000	0-08258-300-0	02	1	0308-	●
198	HOSE; VAC,PIPE TO MAG VLV L=180 SERVICED BY L=3000	0-08258-300-0	02	1	9704-0307	●	●
198	HOSE; VAC,PIPE TO MAG VLV L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0308-		●
234	CLAMP; PIPE ID=10X2 H=22	8-94252-455-2	01	1	0308-	●	●
