3-58 — FIXING PARTS; OIL PIPING (#72414) — 51 parça

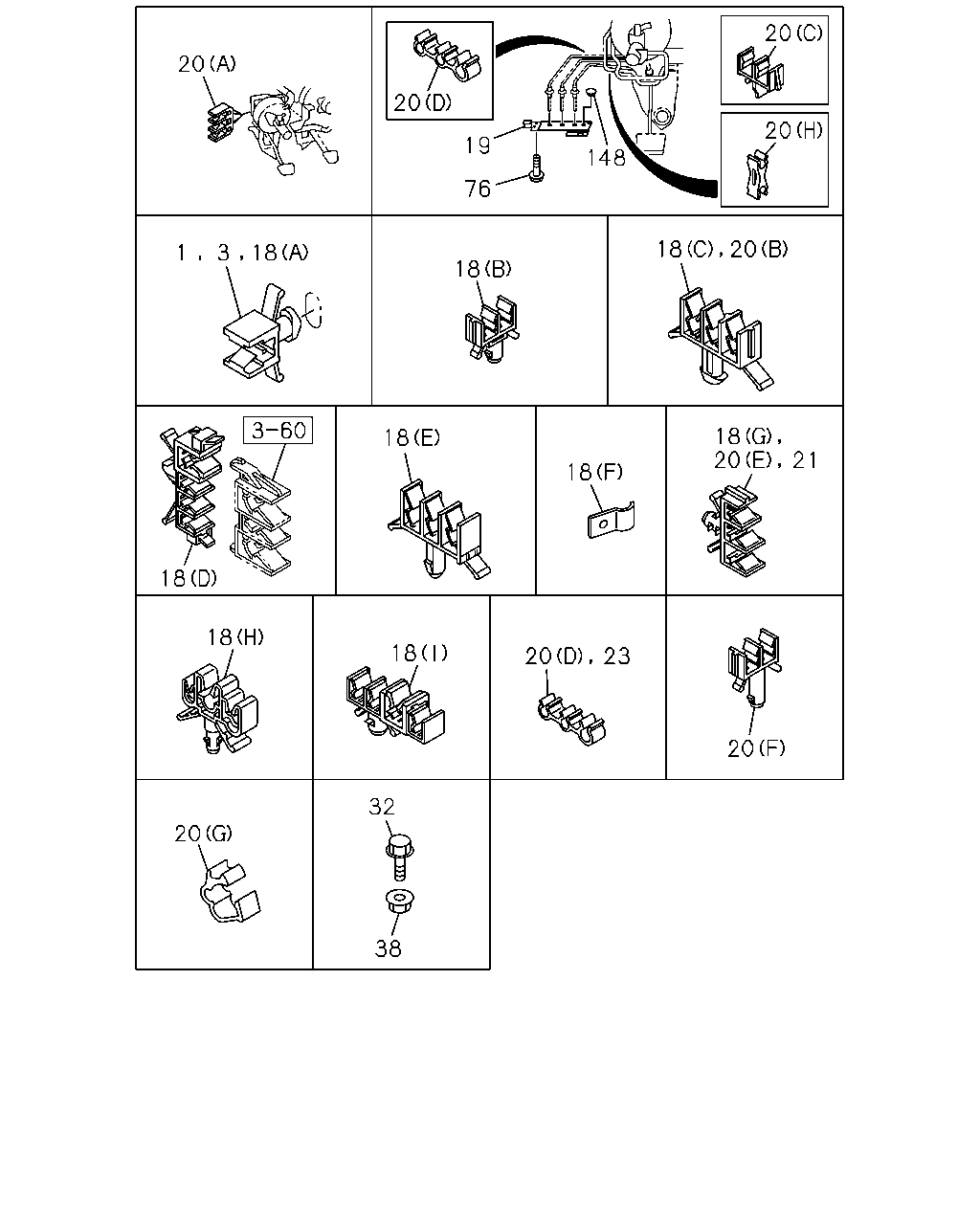

çizim 121364
20 20 20 20 148 19 76 3 18 1 18 18 20 18 21 18 18 18 18 20 23 20 32 20 38 18 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLIP; OIL PIPE TO BODY
ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9704-0307 ● ●
1 CLIP; OIL PIPE TO BODY
ID=4.8 H=32.5 		8-94405-141-0 01 1 9704-0307 ● ●
3 CLIP; BRK PIPE
ID=4.8 H=26 		8-94249-685-0 02 1 9704-0307 ● ●
18 CLIP; BRK PIPE
(A) ID=4.8 H=26 		8-94249-685-0 03 1 9704-0307 ●
18 CLIP; BRK PIPE
(C) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0308-1308 ●
18 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (C) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 1309- ● ●
18 CLIP; BRK PIPE
(C) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 1309- ●
18 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 02 1 0308- ●
18 CLIP; BRK PIPE
(B) ID=4.8X2 		8-94316-410-0 01 1 9704-0307 ● ●
18 CLIP; BRK PIPE
(B) ID=4.8X2 		8-94316-410-0 01 1 9704-0307 ●
18 CLIP; BRK PIPE
(E) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0308- ● ●
18 CLIP; BRK PIPE
(A) ID=4.8 H=32.5 		8-94405-141-0 01 1 9704-0307 ● ●
18 CLIP; BRK PIPE
(A) ID=4.8 H=32.5 		8-94405-141-0 01 1 9704-0307 ● ●
18 CLIP; BRK PIPE
(A) ID=4.8 H=32.5 		8-94405-141-0 01 1 9704-0307 ●
18 CLIP; BRK PIPE
(A) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0308-1308 ● ●
18 CLIP; BRK PIPE
(A) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 02 1 1309- ● ●
18 CLIP; BRK PIPE
(F) B=18 L=20 		1-09700-372-0 02 1 0308- ● ●
18 CLIP; BRK PIPE
(C) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 03 1 0308-1308 ● ●
18 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> (C) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 03 1 1309- ● ●
18 CLIP; BRK PIPE
(G) ID=6.5 & 4.8X2 		8-94424-234-0 03 1 0308- ● ●
18 CLIP; BRK PIPE
(H) ID=12 & 6.35 & 4.76 		8-97202-954-1 02 1 0308- ● ●
18 CLIP; BRK PIPE
(I) ID=10 OR 12 & 6.35X2 & 4.76 		8-97326-156-2 01 1 0308- ● ●
18 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 08 1 0308- ● ●
18 CLIP; BRK PIPE
(A) ID=4.8 H=26 		8-94249-685-0 02 1 9704-0307 ●
18 CLIP; BRK PIPE
(C) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0308- ●
18 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 04 1 0308- ●
19 BRACKET; OIL PIPE 8-97042-258-4 01 1 9704-9709 ● ●
19 BRACKET; OIL PIPE 8-97177-302-0 01 1 9710-0307 ● ●
19 BRACKET; OIL PIPE 8-97149-718-2 01 1 0308- ● ●
20 CLIP; BRK PIPE
(G) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 9704-1303 ● ●
20 CLIP; BRK PIPE
(C) ID=4.8X2 		8-94113-470-0 01 1 9704- ● ●
20 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9704-0307 ● ●
20 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9704-0307 ● ●
20 CLIP; BRK PIPE
(H) ID=4.6X2 		8-94241-454-0 01 1 9704- ● ●
20 CLIP; BRK PIPE
(B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9704-0307 ● ●
20 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0308- ● ●
20 CLIP; BRK PIPE
(A) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 9704- ● ●
20 CLIP; BRK PIPE
(B) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9704-0307 ● ●
20 CLIP; BRK PIPE
(E) ID=6.5 & 4.8X2 		8-94424-234-0 02 1 9704-0307 ● ●
20 CLIP; BRK PIPE
(F) ID=4.8X2 		8-94455-816-0 01 1 9704-0307 ● ●
21 CLIP; BRK PIPE
ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9704-9804 ● ●
21 CLIP; BRK PIPE
ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9805-9805 ● ●
21 CLIP; BRK PIPE
ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9806-0307 ● ●
23 CLAMP; PIPE
ID=6.4 & 4.8X2 		8-94146-043-0 02 1 0308- ● ●
32 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0308-0512 ● ●
32 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
38 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
38 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
76 BOLT; BRKT,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9704-0512 ● ●
76 BOLT; BRKT,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
148 GROMMET 8-94294-358-0 01 1 0308- ● ●
