◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#72413) — 15 parça

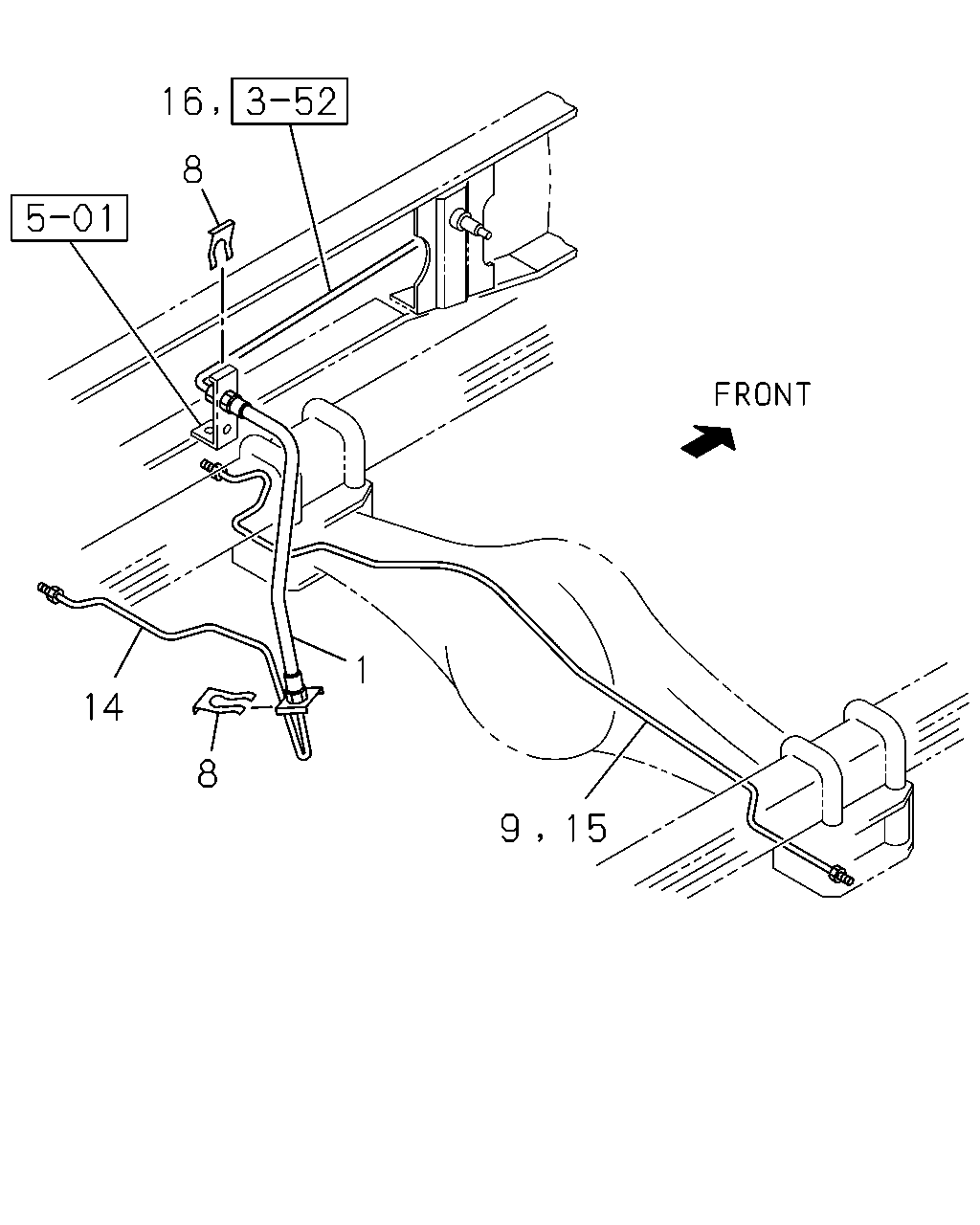

çizim 119680
8 1 8 9 15 14 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 9704- ● ●
8 CLIP; RR BRK 8-94137-662-0 02 1 9704-0610 ● ●
8 CLIP; RR BRK 8-97360-054-0 02 1 0611- ● ●
9 PIPE; BRK,RR AXLE 8-97079-904-0 01 1 1311- ●
9 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97079-905-1 01 1 1311- ●
9 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-98026-052-0 01 1 1311- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97088-703-0 01 1 9704-1111 ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97088-703-0 01 1 1112- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97088-703-0 01 1 1112- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-98026-051-0 01 1 1112- ●
15 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97079-904-0 01 1 9704-1310 ●
15 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97079-905-1 01 1 9704-1111 ●
15 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97079-905-1 01 1 1112-1310 ●
15 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-98026-052-0 01 1 1112-1310 ●
16 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> 		8-97073-490-4 01 1 1309- ● ●
