3-52 — BRAKE PIPING; OIL,FRONT (#72412) — 54 parça

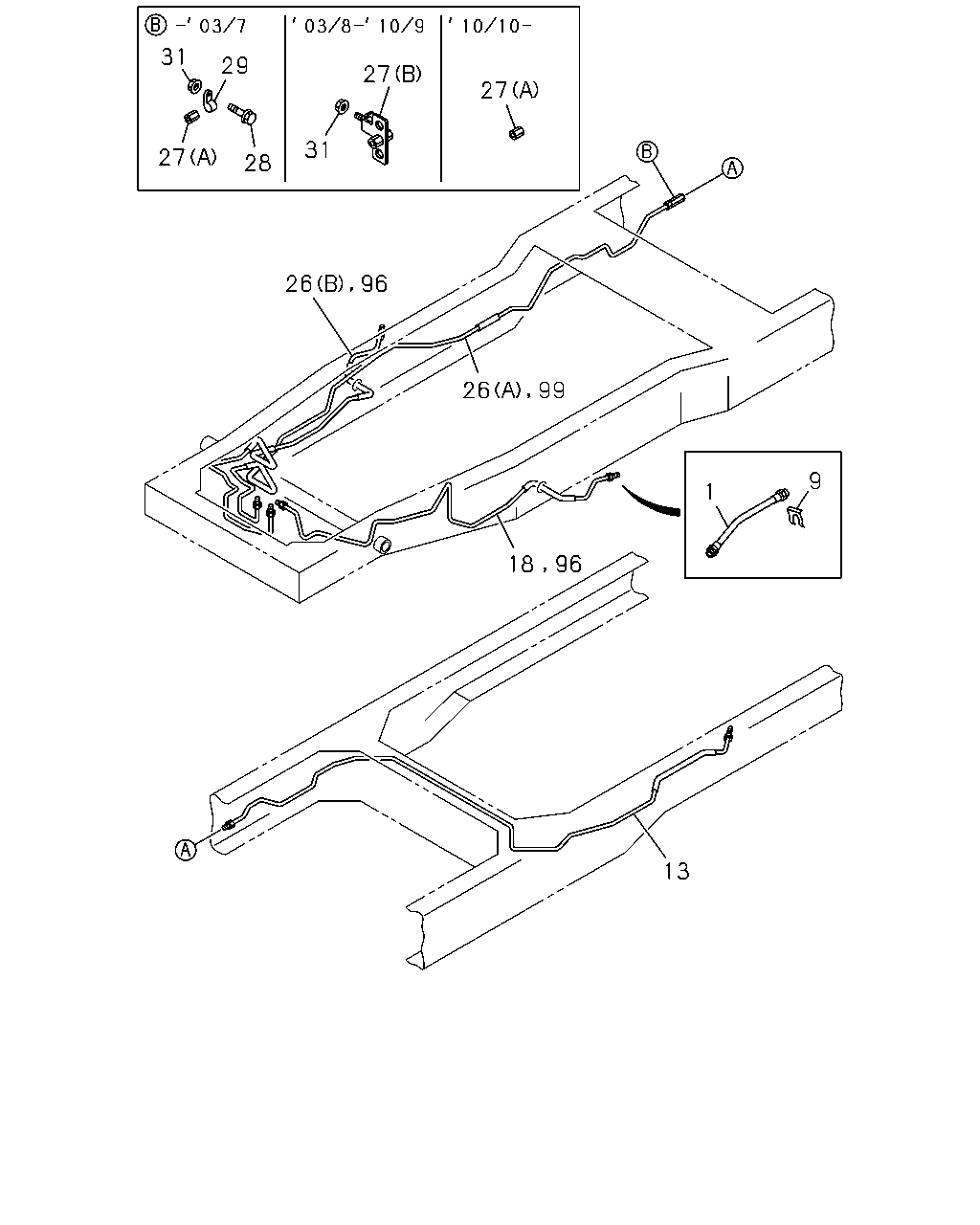

27 27 31 28 29 31 27 26 26 99 96 96 18 1 9 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	9704-	●	●
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	9704-0610	●	●
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	9704-0610	●	●
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-	●	●
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-	●	●
13	PIPE; OIL,UNION TO UNION	8-97081-691-5	01	1	9704-0307	●
13	PIPE; OIL,UNION TO UNION	8-97325-778-1	01	1	0308-1308	●
13	PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT LSPV<6PH>	8-97325-778-1	01	1	1309-	●
13	PIPE; OIL,UNION TO UNION	8-97081-692-4	01	1	9704-0307		●
13	PIPE; OIL,UNION TO UNION	8-97325-779-1	01	1	0308-1308		●
13	PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT LSPV<6PH>	8-97325-779-1	01	1	1309-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE	8-97079-952-4	01	1	9704-0307	●	●
26	PIPE; BRK,JOINT TO 2 WAY (A)	8-97126-880-3	01	1	9704-0307	●	●
26	PIPE; BRK,JOINT TO 2 WAY (B)	8-97141-754-0	01	1	9704-0307	●	●
27	UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> (C)	8-97259-943-1	01	1	1309-	●	●
27	UNION; BRK PIPE (A) M10 STRAIGHT	9-09227-005-0	01	1	9704-0307	●	●
27	UNION; BRK PIPE (B)	8-97287-444-1	01	1	0308-1009	●	●
27	UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-1308	●	●
27	UNION; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT	0-92107-005-0	01	1	1309-	●	●
28	BOLT; UNION CLIP M6X25 FLANGE	0-28680-625-0	01	1	9704-0307	●	●
29	CLIP; UNION ID=16 L=20	9-09525-532-0	01	1	9704-0307	●	●
31	NUT; UNION CLIP BRK WHL LK CONT LSPV<6PH> M6 FLANGE	0-91180-106-0	01	1	1309-	●	●
31	NUT; UNION CLIP M6 FLANGE	0-91150-106-0	01	1	9704-0602	●	●
31	NUT; UNION CLIP M6 FLANGE	0-91180-106-0	01	1	0603-1009	●	●
96	PIPE ASM; 6 WAY	8-97325-767-2	01	1	0308-	●	●
96	PIPE ASM; 6 WAY	8-97325-762-2	01	1	0308-	●	●
99	PIPE ASM; 4/5/6 WAY	8-97325-773-1	01	1	0308-	●	●

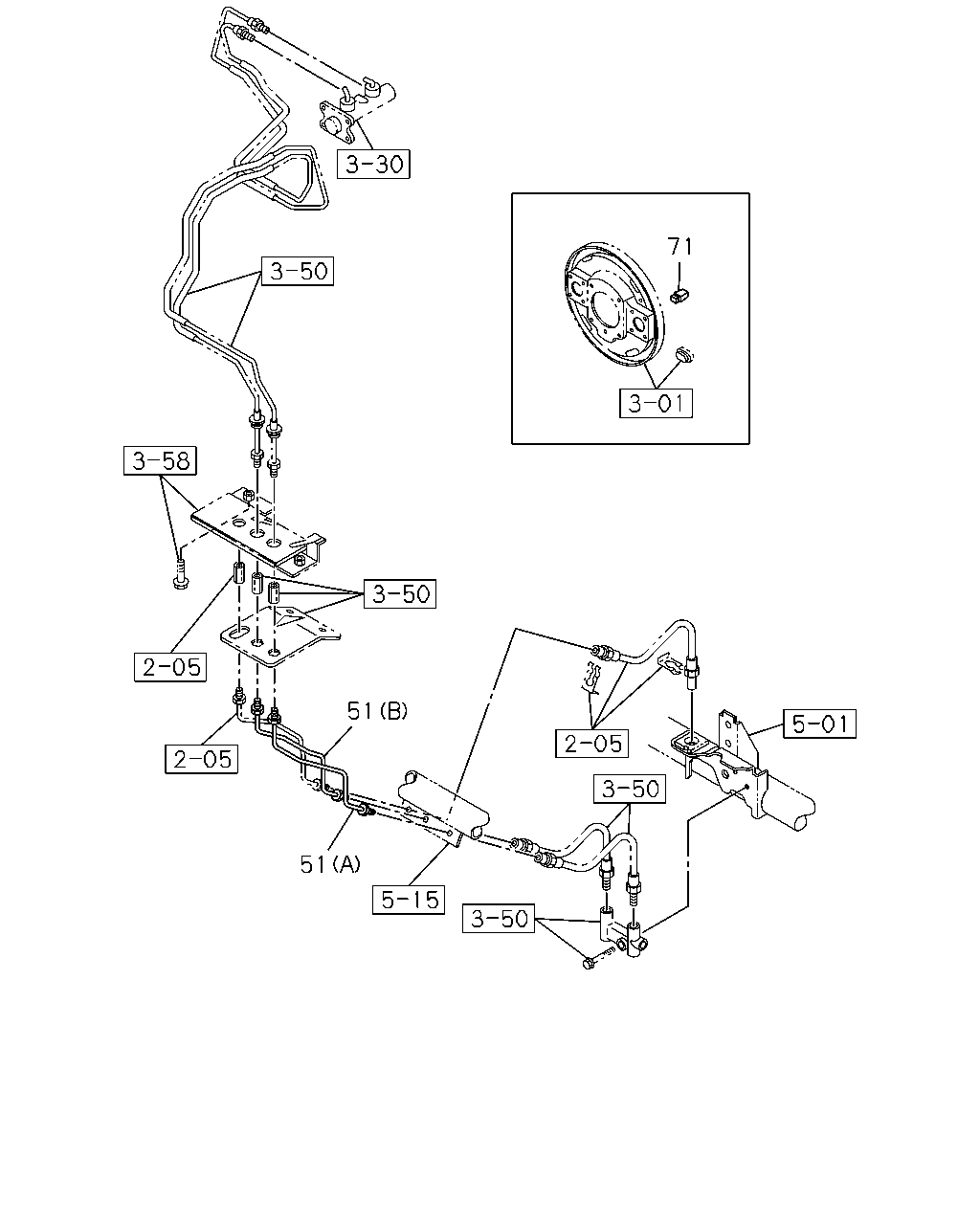

71 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	PIPE; BRK (A) FRONT	8-97040-986-0	01	1	9704-0307	●	●
51	PIPE; BRK (A) FRONT	8-97209-514-0	01	1	0308-	●	●
51	PIPE; BRK (B) REAR	8-97040-988-0	01	1	9704-0307	●	●
51	PIPE; BRK (B) REAR	8-97209-515-0	01	1	0308-	●	●
71	GROMMET; OIL PIPE AXLE ISUZU PRODUCTION<8BF>	9-09756-034-0	02	1	9903-9909	●
71	GROMMET; OIL PIPE	9-09756-034-0	02	1	9910-	●
71	GROMMET; OIL PIPE AXLE ISUZU PRODUCTION<8BF>	8-97044-742-1	02	1	9903-9909		●
71	GROMMET; OIL PIPE	8-97044-742-1	02	1	9910-		●

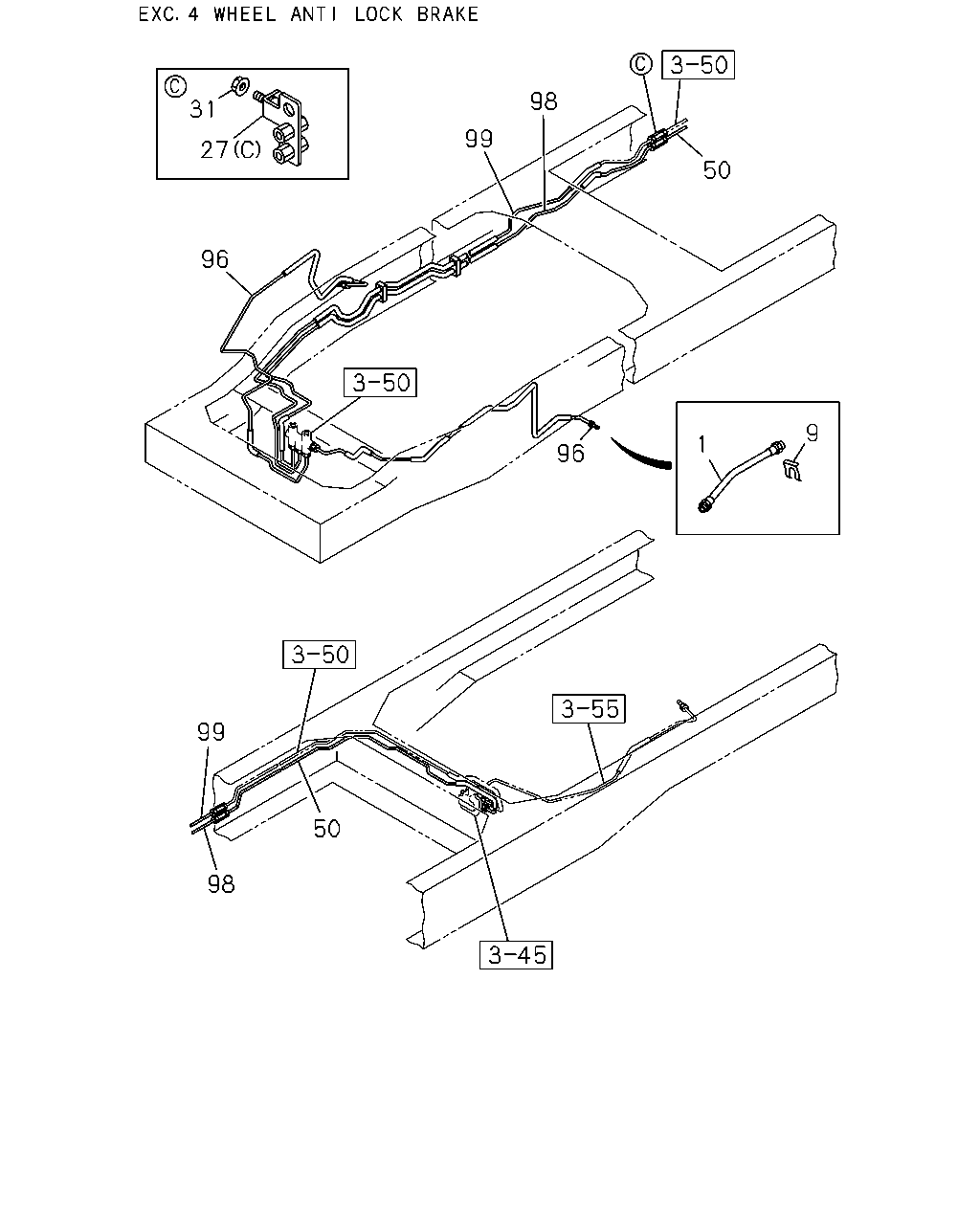

50 98 99 96 1 9 50 98 99 96 27 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	9704-	●	●
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	9704-0610	●	●
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	9704-0610	●	●
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-	●	●
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-	●	●
27	UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> (C)	8-97259-943-1	01	1	1309-	●	●
27	UNION; BRK PIPE (A) M10 STRAIGHT	9-09227-005-0	01	1	9704-0307	●	●
27	UNION; BRK PIPE (B)	8-97287-444-1	01	1	0308-1009	●	●
27	UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-1308	●	●
27	UNION; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT	0-92107-005-0	01	1	1309-	●	●
31	NUT; UNION CLIP BRK WHL LK CONT LSPV<6PH> M6 FLANGE	0-91180-106-0	01	1	1309-	●	●
31	NUT; UNION CLIP M6 FLANGE	0-91150-106-0	01	1	9704-0602	●	●
31	NUT; UNION CLIP M6 FLANGE	0-91180-106-0	01	1	0603-1009	●	●
50	PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH>	8-97325-781-0	01	1	1309-	●
50	PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH>	8-97325-782-0	01	1	1309-		●
96	PIPE ASM; 6 WAY	8-97325-767-2	01	1	0308-	●	●
96	PIPE ASM; 6 WAY	8-97325-762-2	01	1	0308-	●	●
98	PIPE ASM; 4/6 WAY BRK WHL LK CONT LSPV<6PH>	8-97325-772-1	01	1	1309-	●	●
99	PIPE ASM; 4/5/6 WAY	8-97325-773-1	01	1	0308-	●	●
