3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#72411) — 27 parça

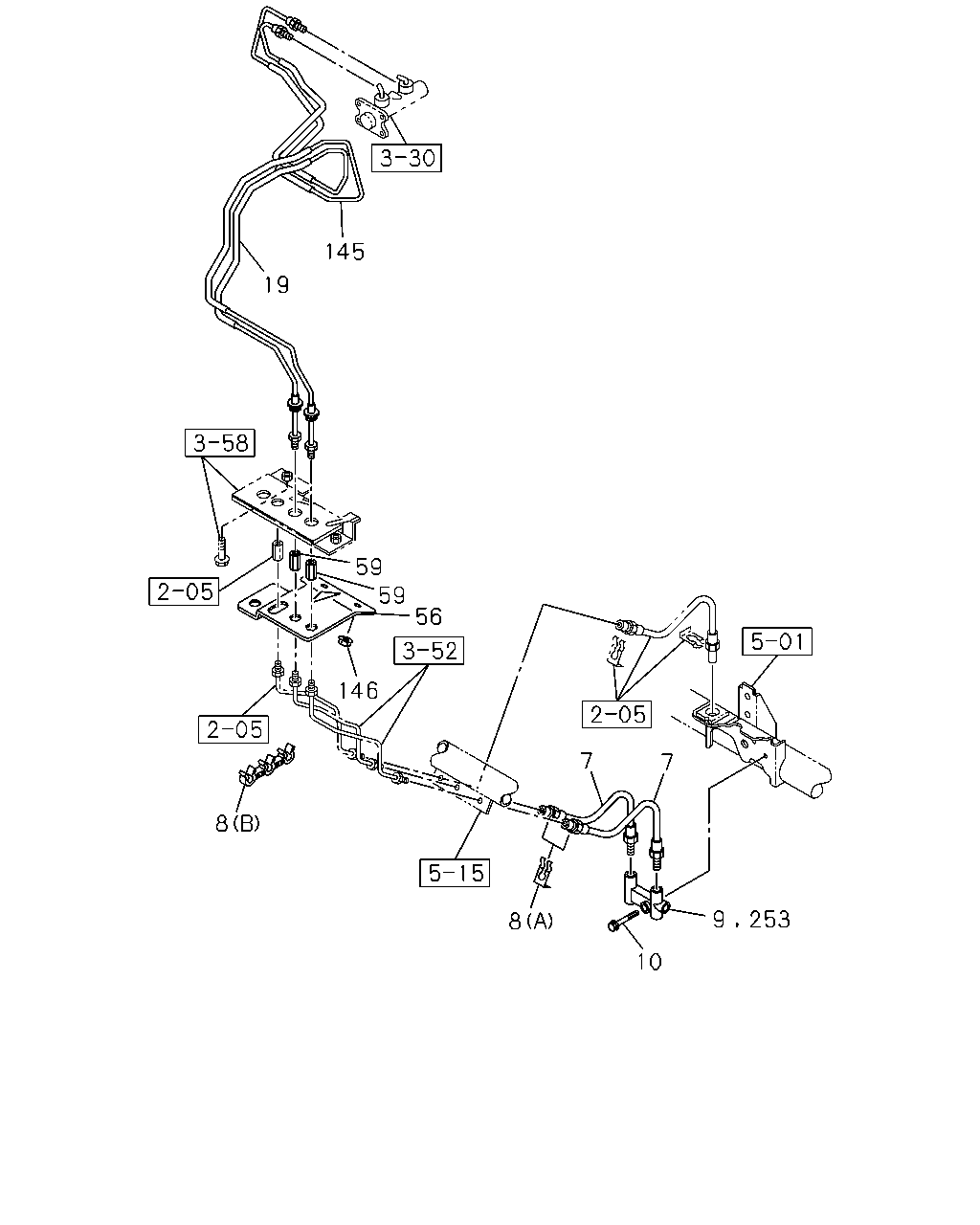

çizim 118426
145 19 59 59 56 146 7 7 8 9 253 8 10
BalonParca AdiParca NoAdetTipApplied Date A B
7 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-97035-573-0 02 1 9704-0307 ● ●
7 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-97171-031-0 02 1 0308- ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-94167-006-0 02 1 9704-0610 ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 0611- ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-97076-471-0 01 1 9704- ● ●
9 JOINT; BRK & CLU PIPE,CAB SIDE 5-47456-009-1 01 1 9704-0307 ● ●
10 BOLT; JOINT
M6X40 FLANGE 		0-28680-640-0 01 1 9704-0512 ● ●
10 BOLT; JOINT
M6X40 FLANGE 		0-28650-640-0 01 1 0601- ● ●
19 PIPE; BRK,M/CYL TO UNION 8-97040-985-1 01 1 9704-0109 ● ●
19 PIPE; BRK,M/CYL TO UNION 8-97315-943-0 01 1 0110-0307 ● ●
19 PIPE; BRK,M/CYL TO UNION 8-97314-592-0 01 1 0308-1303 ● ●
19 PIPE; BRK,M/CYL TO UNION 8-97287-278-0 01 1 1304- ● ●
56 BRACKET; UNION,BRK 8-97078-564-1 01 1 9704-0307 ● ●
56 BRACKET; UNION,BRK 8-97149-604-1 01 1 0308- ● ●
59 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 02 1 9704-0607 ● ●
59 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0608- ● ●
145 PIPE; BRK,METERING VLV TO UNION 8-97040-987-1 01 1 9704-0109 ● ●
145 PIPE; BRK,METERING VLV TO UNION 8-97315-942-0 01 1 0110-0307 ● ●
145 PIPE; BRK,METERING VLV TO UNION 8-97314-585-0 01 1 0308-1303 ● ●
145 PIPE; BRK,METERING VLV TO UNION 8-97168-506-1 01 1 1304- ● ●
146 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9704-0602 ● ●
146 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
253 JOINT
BRK WHL LK CONT LSPV<6PH> 		8-97120-033-2 01 1 1309- ● ●
253 JOINT 5-47456-009-1 01 1 0308-1308 ● ●
253 JOINT
EXC. BRK WHL LK CONT LSPV<6PH> 		5-47456-009-1 01 1 1309- ● ●

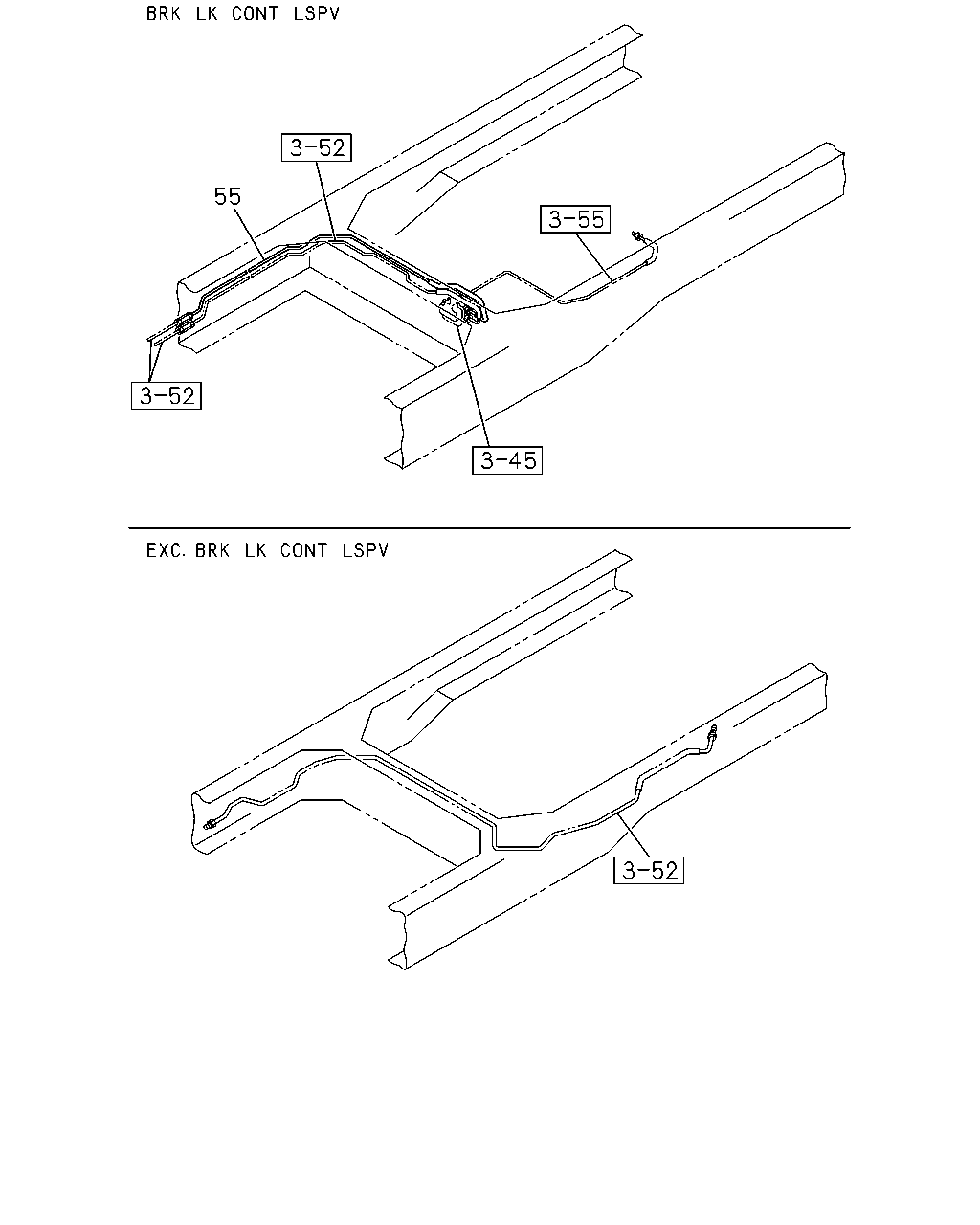

çizim 381706
55
BalonParca AdiParca NoAdetTipApplied Date A B
55 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> 		8-97325-785-0 01 1 1309- ●
55 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> 		8-97325-786-0 01 1 1309- ●
