◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#72407) — 114 parça

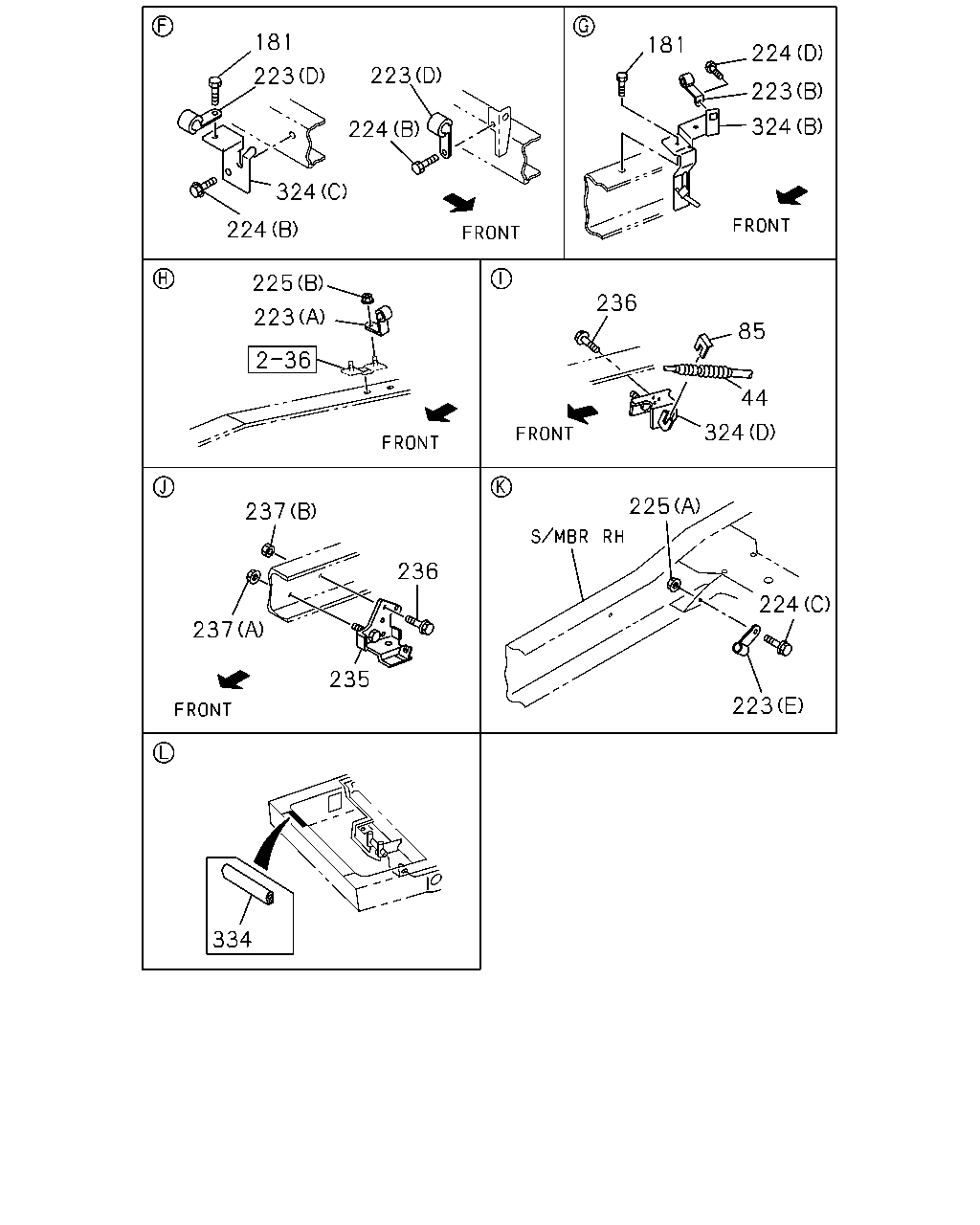

çizim 115502
181 181 224 223 223 223 324 224 324 224 225 236 223 85 44 324 225 237 236 224 237 235 223 334
BalonParca AdiParca NoAdetTipApplied Date A B
44 CABLE; PARKING BRK,FRT 8-97118-374-0 01 1 9704-0307 ● ●
85 CLIP; BRKT 8-97084-216-0 02 1 9704-0307 ● ●
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9704-0512 ● ●
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9704-0512 ● ●
181 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
181 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
223 CLIP; PARKING BRK CABLE
(B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9704- ● ●
223 CLIP; PARKING BRK CABLE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 9704- ● ●
223 CLIP; PARKING BRK CABLE
(A) ID=16 		1-09701-075-0 01 1 9704- ● ●
223 CLIP; PARKING BRK CABLE
(D) ID=11 L=28 		9-09525-055-0 01 1 9704-0606 ● ●
223 CLIP; PARKING BRK CABLE
(D) ID=11 L=28 		0-95235-055-0 01 1 0607- ● ●
223 CLIP; PARKING BRK CABLE
(E) ID=13 L=20 		1-09701-138-1 01 1 0308- ● ●
224 BOLT; CABLE CLIP
4HG1-T ENG(RDP) (D) M8X16 FLANGE 		0-28050-816-0 01 1 1112- ● ●
224 BOLT; CABLE CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9704-0512 ● ●
224 BOLT; CABLE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
224 BOLT; CABLE CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9704-0512 ● ●
224 BOLT; CABLE CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9704-0512 ● ●
224 BOLT; CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-1111 ● ●
224 BOLT; CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-1111 ● ●
224 BOLT; CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1112- ● ●
224 BOLT; CABLE CLIP
4HF1 ENG(RLS) (B) M8X25 FLANGE 		0-28650-825-0 01 1 1112- ● ●
224 BOLT; CABLE CLIP
(C) M10X25 FLANGE 		0-28681-025-0 01 1 0308-0512 ● ●
224 BOLT; CABLE CLIP
(C) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ● ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 9704-0602 ● ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 9704-0602 ● ●
225 NUT; CABLE CLIP
POWER STEERING<N40> (B) M8 FLANGE 		0-91150-108-0 01 1 9704-0602 ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 9704-0602 ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
225 NUT; CABLE CLIP
POWER STEERING<N40> (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
225 NUT; CABLE CLIP
(A) M10 FLANGE 		0-91150-110-0 01 1 0308-0602 ● ●
225 NUT; CABLE CLIP
(A) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
235 BRACKET; CONT CABLE TO FRAME 8-97102-417-3 01 1 9704-9802 ● ●
235 BRACKET; CONT CABLE TO FRAME 8-97201-593-0 01 1 9803-0307 ● ●
236 BOLT; BRKT TO FRAME
M8X35 FLANGE 		0-28680-835-0 01 1 9704-0307 ● ●
236 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 01 1 9704-0307 ● ●
237 NUT; BRKT TO FRAME
(B) M8 FLANGE 		0-91150-108-0 01 1 9704-0307 ● ●
237 NUT; BRKT TO FRAME
(B) M10 FLANGE 		0-91150-110-0 01 1 9704-0307 ● ●
237 NUT; BRKT TO FRAME
(A) M10 FLANGE 		0-91150-210-0 01 1 9704-0307 ● ●
324 BRACKET
POWER STEERING<N40> (A) 		8-97065-098-1 01 1 9704-0008 ●
324 BRACKET
(A) 		8-97065-098-1 01 1 9704-0008 ●
324 BRACKET
POWER STEERING<N40> (A) 		8-97288-446-0 01 1 0009- ●
324 BRACKET
(A) 		8-97288-446-0 01 1 0009- ●
324 BRACKET
(C) 		8-97042-771-0 01 1 9704- ● ●
324 BRACKET
(B) 		8-97071-354-2 01 1 9704- ● ●
324 BRACKET
(D) 		8-97101-829-1 01 1 9704-0307 ● ●
334 PROTECTOR; EDGE
L=200 		8-97096-423-0 01 1 9704- ● ●

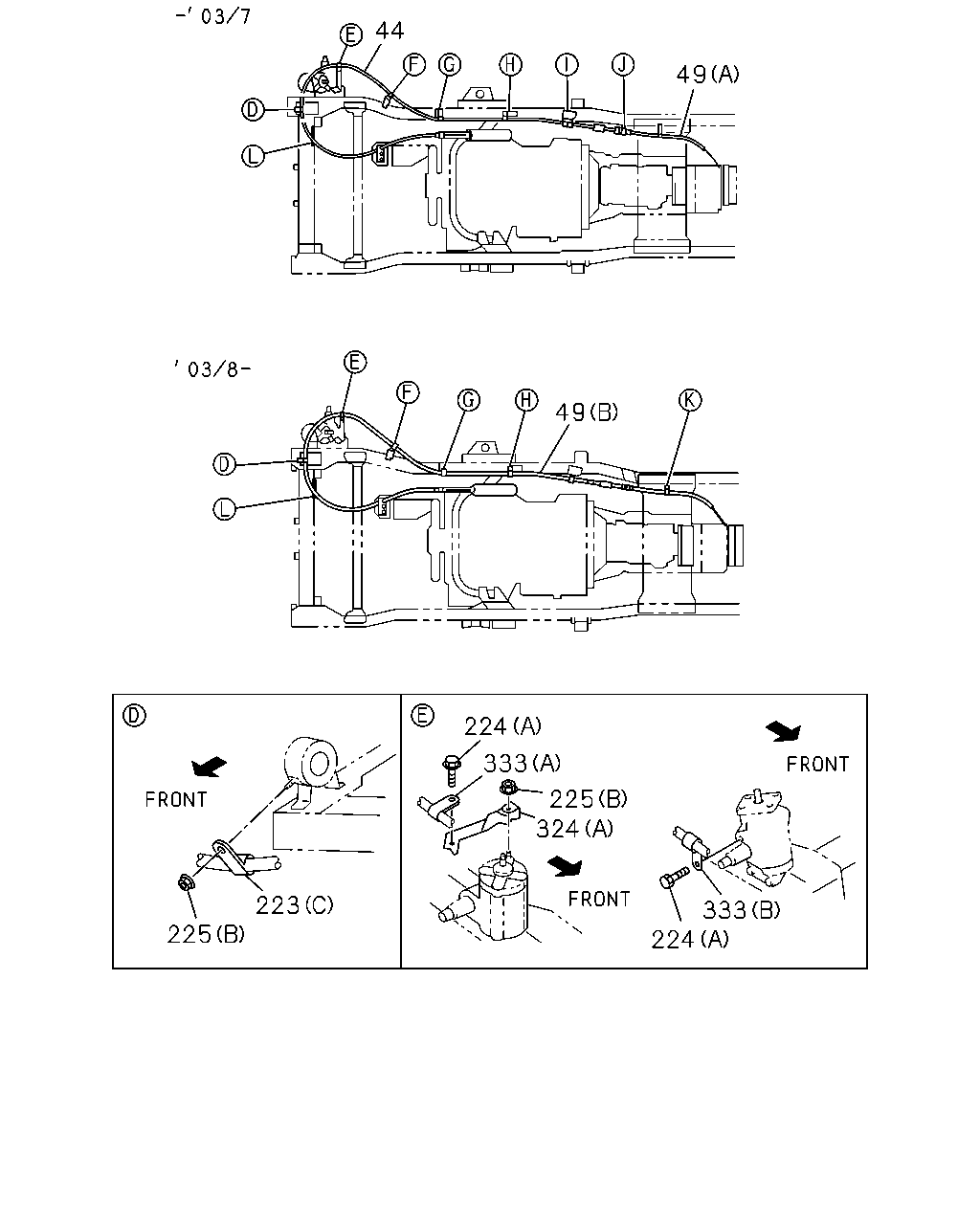

çizim 115682
44 49 49 224 333 225 324 223 333 224 225
BalonParca AdiParca NoAdetTipApplied Date A B
44 CABLE; PARKING BRK,FRT 8-97118-374-0 01 1 9704-0307 ● ●
49 CABLE; PARKING BRK
M/T MXA5R(RMT) (A) 		8-97063-113-6 01 1 9704-0307 ● ●
49 CABLE; PARKING BRK
(B) 		8-97350-533-0 01 1 0308- ● ●
223 CLIP; PARKING BRK CABLE
(B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9704- ● ●
223 CLIP; PARKING BRK CABLE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 9704- ● ●
223 CLIP; PARKING BRK CABLE
(A) ID=16 		1-09701-075-0 01 1 9704- ● ●
223 CLIP; PARKING BRK CABLE
(D) ID=11 L=28 		9-09525-055-0 01 1 9704-0606 ● ●
223 CLIP; PARKING BRK CABLE
(D) ID=11 L=28 		0-95235-055-0 01 1 0607- ● ●
223 CLIP; PARKING BRK CABLE
(E) ID=13 L=20 		1-09701-138-1 01 1 0308- ● ●
224 BOLT; CABLE CLIP
4HG1-T ENG(RDP) (D) M8X16 FLANGE 		0-28050-816-0 01 1 1112- ● ●
224 BOLT; CABLE CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9704-0512 ● ●
224 BOLT; CABLE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
224 BOLT; CABLE CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9704-0512 ● ●
224 BOLT; CABLE CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9704-0512 ● ●
224 BOLT; CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-1111 ● ●
224 BOLT; CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-1111 ● ●
224 BOLT; CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1112- ● ●
224 BOLT; CABLE CLIP
4HF1 ENG(RLS) (B) M8X25 FLANGE 		0-28650-825-0 01 1 1112- ● ●
224 BOLT; CABLE CLIP
(C) M10X25 FLANGE 		0-28681-025-0 01 1 0308-0512 ● ●
224 BOLT; CABLE CLIP
(C) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ● ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 9704-0602 ● ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 9704-0602 ● ●
225 NUT; CABLE CLIP
POWER STEERING<N40> (B) M8 FLANGE 		0-91150-108-0 01 1 9704-0602 ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 9704-0602 ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
225 NUT; CABLE CLIP
POWER STEERING<N40> (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
225 NUT; CABLE CLIP
(A) M10 FLANGE 		0-91150-110-0 01 1 0308-0602 ● ●
225 NUT; CABLE CLIP
(A) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
324 BRACKET
POWER STEERING<N40> (A) 		8-97065-098-1 01 1 9704-0008 ●
324 BRACKET
(A) 		8-97065-098-1 01 1 9704-0008 ●
324 BRACKET
POWER STEERING<N40> (A) 		8-97288-446-0 01 1 0009- ●
324 BRACKET
(A) 		8-97288-446-0 01 1 0009- ●
324 BRACKET
(C) 		8-97042-771-0 01 1 9704- ● ●
324 BRACKET
(B) 		8-97071-354-2 01 1 9704- ● ●
324 BRACKET
(D) 		8-97101-829-1 01 1 9704-0307 ● ●
333 CLIP; CABLE
POWER STEERING<N40> (A) ID=11 L=28 		9-09525-055-0 01 1 9704-0606 ●
333 CLIP; CABLE
(A) ID=11 L=28 		9-09525-055-0 01 1 9704-0606 ●
333 CLIP; CABLE
POWER STEERING<N40> (A) ID=11 L=28 		0-95235-055-0 01 1 0607- ●
333 CLIP; CABLE
(A) ID=11 L=28 		0-95235-055-0 01 1 0607- ●
333 CLIP; CABLE
EXC. POWER STEERING<N40> (B) ID=11 L=60 		9-09525-096-0 01 1 9704-0606 ●
333 CLIP; CABLE
EXC. POWER STEERING<N40> (B) ID=11 L=60 		0-95235-096-0 01 1 0607- ●

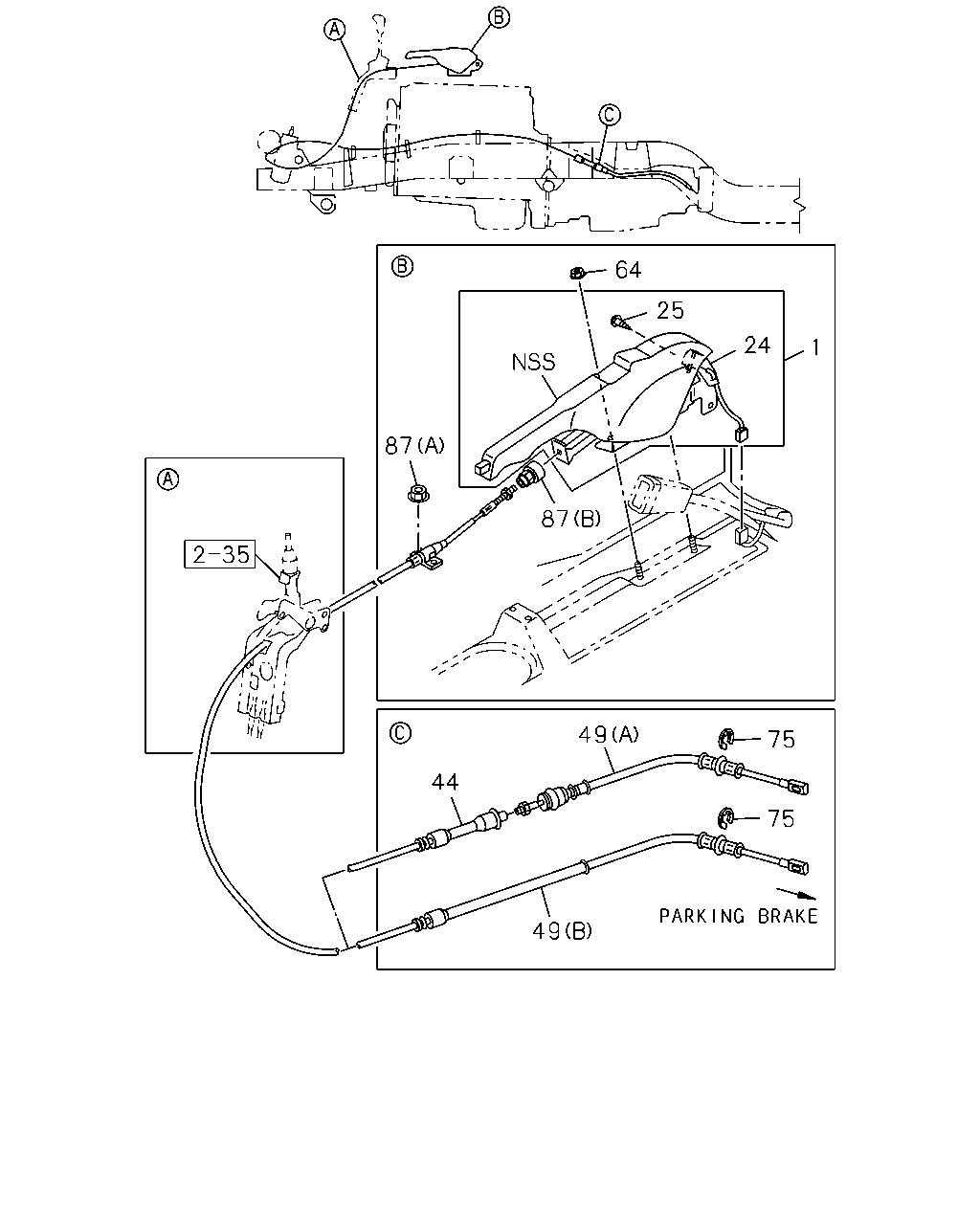

çizim 190501
64 25 24 1 87 87 49 75 44 75 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEM ASM; PARKING BRK
DARK BEIGE 		8-97856-804-5 01 1 9704-9710 ● ●
1 STEM ASM; PARKING BRK
DARK BEIGE 		8-97890-436-1 01 1 9711-0108 ● ●
1 STEM ASM; PARKING BRK
DARK BEIGE 		8-97995-847-0 01 1 0109-0110 ● ●
1 STEM ASM; PARKING BRK
DARK BEIGE 		8-97996-540-1 01 1 0111-0307 ● ●
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-2 01 1 0308-1305 ● ●
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97427-541-0 01 1 1306- ● ●
24 SWITCH ASM; PARK BRK 8-97857-198-1 01 1 9704-9710 ● ●
24 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9711-0108 ● ●
24 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109-1305 ● ●
24 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1306- ● ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0111- ● ●
44 CABLE; PARKING BRK,FRT 8-97118-374-0 01 1 9704-0307 ● ●
49 CABLE; PARKING BRK
M/T MXA5R(RMT) (A) 		8-97063-113-6 01 1 9704-0307 ● ●
49 CABLE; PARKING BRK
(B) 		8-97350-533-0 01 1 0308- ● ●
64 NUT; PARKING BRK
M8 W/LK WASHER 		8-94327-073-0 02 1 9704-0610 ● ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611- ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		9-09185-412-0 01 1 9704-0604 ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0605- ● ●
87 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 9704-0602 ● ●
87 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
87 NUT
(B) M6 		8-97088-730-1 01 1 9704-0310 ● ●
87 NUT
(B) M6 		1-71996-312-0 01 1 0311-0611 ● ●
87 NUT
(B) M6 		8-98034-313-1 01 1 0612- ● ●
