◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#72406) — 35 parça

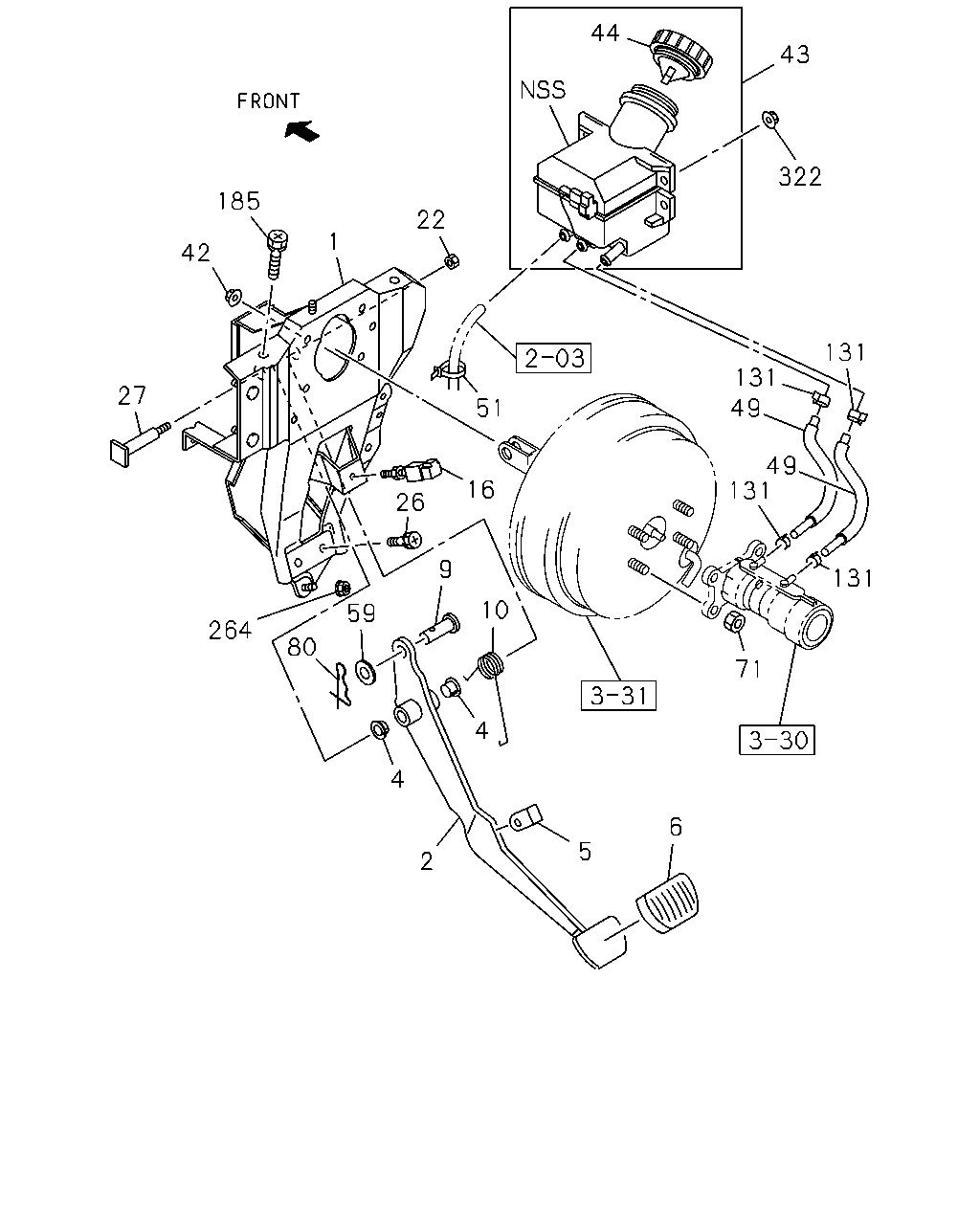

çizim 115285
44 43 322 185 22 1 42 131 131 49 27 51 49 131 16 26 9 131 59 10 264 80 71 4 4 6 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL 8-97853-209-8 01 1 9704-9905 ● ●
1 BRACKET ASM; PEDAL 8-97896-968-5 01 1 9906- ● ●
2 PEDAL; BRK 8-97853-210-3 01 1 9704- ● ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 9704- ● ●
5 STOPPER; BRK PEDAL 8-97853-602-1 01 1 9704- ● ●
6 COVER; BRK PEDAL 8-97853-413-2 01 1 9704- ● ●
9 PIN; JAW JOINT 8-94410-276-0 01 1 9704-1406 ● ●
9 PIN; JAW JOINT 8-97359-812-0 01 1 1407- ● ●
10 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 9704- ● ●
16 SWITCH; STOP LAMP 8-97855-187-0 01 1 9704- ● ●
22 NUT; SHAFT
M10 FLANGE 		1-09440-022-0 01 1 9704- ● ●
26 BOLT; PEDAL
M10X22 W/WASHER 		8-94279-099-0 02 1 9704-0110 ● ●
26 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 02 1 0111- ● ●
27 SHAFT; BRK PEDAL 8-97866-667-0 01 1 9704- ● ●
42 NUT; BRK PEDAL
M8 W/LK WASHER 		8-94279-050-0 04 1 9704- ● ●
43 TANK ASM; OIL
M/T MXA5R(RMT) 		8-97049-568-4 01 1 9704-9811 ● ●
43 TANK ASM; OIL
M/T MXA5R(RMT) 		8-97179-813-1 01 1 9812-0307 ● ●
43 TANK ASM; OIL
M/T MYY5T(RSM) 		8-97179-813-1 01 1 0308- ● ●
44 CAP; OIL TANK
M/T MXA5R(RMT) 		8-97095-698-0 01 1 9704-9811 ● ●
44 CAP; OIL TANK
M/T MXA5R(RMT) 		8-97178-291-1 01 1 9812-0307 ● ●
44 CAP; OIL TANK
M/T MYY5T(RSM) 		8-97178-291-1 01 1 0308- ● ●
49 HOSE; OIL TANK TO BRK M/CYL 8-97129-583-0 02 1 9704- ● ●
51 CLIP; HOSE,OIL TANK
L=140 		5-09707-031-1 01 1 9704-0307 ● ●
51 CLIP; HOSE,OIL TANK
L=140 		5-09707-031-1 01 1 0308- ● ●
59 WASHER; PL,JAW JOINT
ID=15 		9-09160-514-0 01 1 9704-0605 ● ●
59 WASHER; PL,JAW JOINT
ID=15 		0-91610-514-0 01 1 0606- ● ●
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 04 1 9704- ● ●
80 PIN; SNAP,BRK PEDAL 8-94279-912-0 01 1 9704- ● ●
131 CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY 8-97130-480-0 04 1 9704- ● ●
185 BOLT; BRKT
M10X25 FLANGE 		0-28691-025-0 02 1 9704-0512 ● ●
185 BOLT; BRKT
M10X25 FLANGE 		0-28661-025-0 02 1 0601- ● ●
264 NUT; BRKT,COLUMN SUPT TO B.PDL
M8 FLANGE 		8-97046-127-0 01 1 9704-0610 ● ●
264 NUT; BRKT,COLUMN SUPT TO B.PDL
M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611- ● ●
322 NUT; OIL TANK
M6 FLANGE 		0-91150-106-0 02 1 9704-0602 ● ●
322 NUT; OIL TANK
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
