3-08 — PARKING BRAKE (#72405) — 54 parça

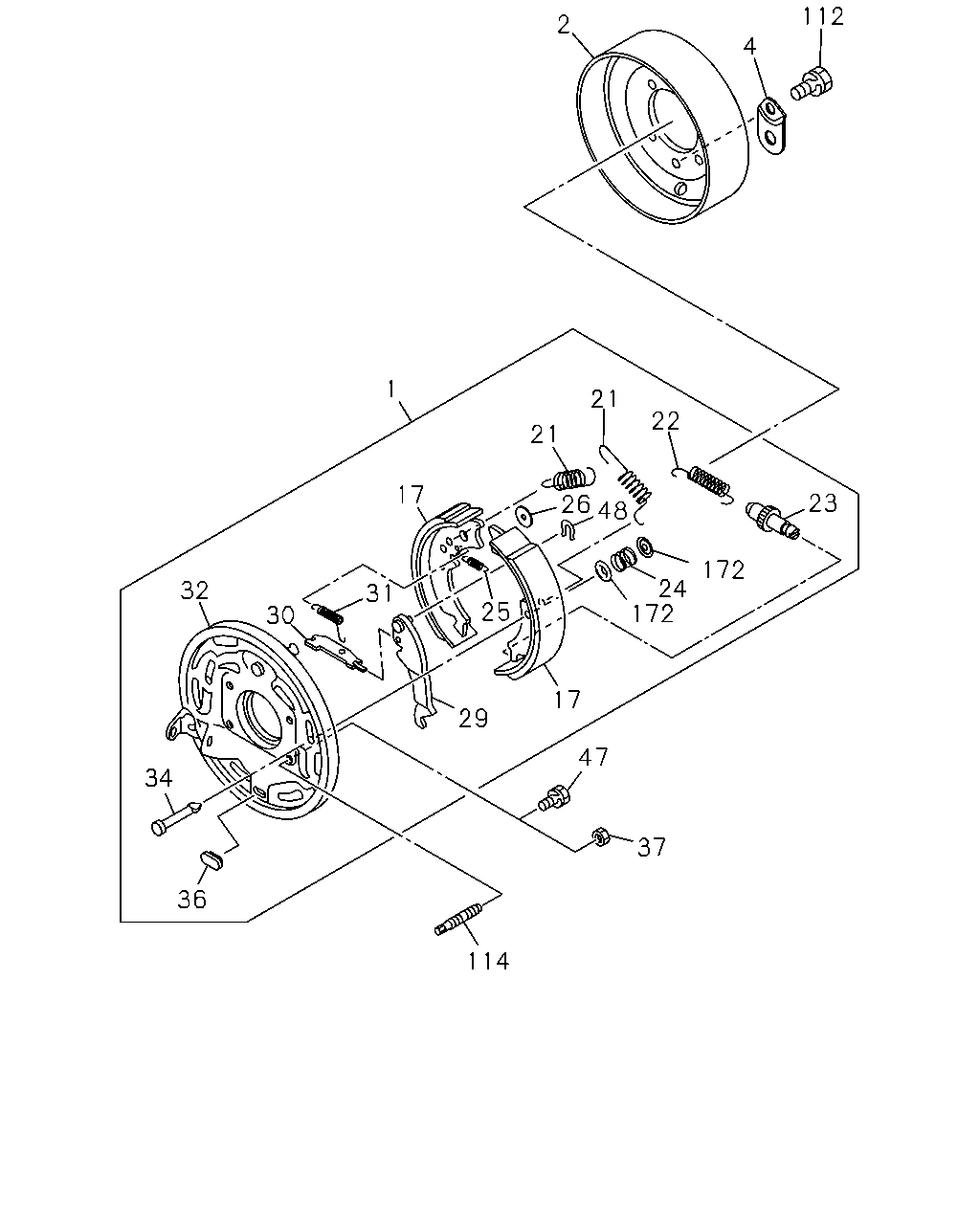

çizim 115331
112 2 4 1 21 22 21 17 23 26 48 172 31 24 172 32 25 30 17 29 47 34 37 36 114
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRAKE ASM; CENTER,PARKING
M/T MXA5R(RMT) 		8-97100-212-2 01 1 9704-0307 ● ●
1 BRAKE ASM; CENTER,PARKING
M/T MYY5T(RSM) 		8-97308-175-0 01 1 0308-0611 ● ●
1 BRAKE ASM; CENTER,PARKING
M/T MYY5T(RSM) 		8-98029-922-0 01 1 0612- ● ●
2 DRUM; PARKING BRK
M/T MXA5R(RMT) 		8-97033-989-1 01 1 9704-0307 ● ●
2 DRUM; PARKING BRK
M/T MYY5T(RSM) 		8-97033-989-1 01 1 0308- ● ●
4 COVER; ADJ HOLE
M/T MXA5R(RMT) 		5-46219-001-0 01 1 9704-0307 ● ●
4 COVER; ADJ HOLE
M/T MYY5T(RSM) 		5-46219-001-0 01 1 0308-0604 ● ●
4 COVER; ADJ HOLE
M/T MYY5T(RSM) 		8-98029-820-0 01 1 0605- ● ●
17 SHOE; PARKING BRK
M/T MXA5R(RMT) 		8-97020-250-2 02 1 9704-0307 ● ●
17 SHOE; PARKING BRK
M/T MYY5T(RSM) 		8-97020-250-2 02 1 0308- ● ●
21 SPRING; RETURN,PARKING BRK SHOE
M/T MXA5R(RMT) 		8-94132-157-0 02 1 9704-0307 ● ●
21 SPRING; RETURN,PARKING BRK SHOE
M/T MYY5T(RSM) 		8-94132-157-0 02 1 0308- ● ●
22 SPRING; ADJ SCREW,PARKING BRK
M/T MXA5R(RMT) 		8-94107-618-0 01 1 9704-0307 ● ●
22 SPRING; ADJ SCREW,PARKING BRK
M/T MYY5T(RSM) 		8-94107-618-0 01 1 0308- ● ●
23 SCREW; ADJ,PARKING BRK SHOE
M/T MXA5R(RMT) 		5-47165-025-0 01 1 9704-0307 ● ●
23 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5T(RSM) 		5-47165-025-0 01 1 0308-0611 ● ●
23 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5T(RSM) 		8-98043-954-0 01 1 0612- ● ●
24 SPRING; BRK SHOE
M/T MXA5R(RMT) 		8-94132-155-0 02 1 9704-0307 ● ●
24 SPRING; BRK SHOE
M/T MYY5T(RSM) 		8-94132-155-1 02 1 0308- ● ●
25 SPRING; SHOE ALIGNMENT
M/T MXA5R(RMT) 		8-94132-156-0 01 1 9704-0307 ● ●
25 SPRING; SHOE ALIGNMENT
M/T MYY5T(RSM) 		8-94132-156-0 01 1 0308- ● ●
26 PLATE; SHOE GUIDE
M/T MXA5R(RMT) 		9-09851-986-0 01 1 9704-0307 ● ●
26 PLATE; SHOE GUIDE
M/T MYY5T(RSM) 		9-09851-986-0 01 1 0308-0611 ● ●
26 PLATE; SHOE GUIDE
M/T MYY5T(RSM) 		8-98043-959-0 01 1 0612- ● ●
29 LEVER; PARKING BRK
M/T MXA5R(RMT) 		8-97027-125-0 01 1 9704-0307 ● ●
29 LEVER; PARKING BRK
M/T MYY5T(RSM) 		8-97027-125-0 01 1 0308-0611 ● ●
29 LEVER; PARKING BRK
M/T MYY5T(RSM) 		8-98043-949-0 01 1 0612- ● ●
30 STRUT; PARKING BRK
M/T MXA5R(RMT) 		8-94311-779-0 01 1 9704-0307 ● ●
30 STRUT; PARKING BRK
M/T MYY5T(RSM) 		8-94311-779-0 01 1 0308-0611 ● ●
30 STRUT; PARKING BRK
M/T MYY5T(RSM) 		8-98043-953-0 01 1 0612- ● ●
31 SPRING; SHOE TO STRUT
M/T MXA5R(RMT) 		8-94132-158-0 01 1 9704-0307 ● ●
31 SPRING; SHOE TO STRUT
M/T MYY5T(RSM) 		8-94132-158-0 01 1 0308- ● ●
32 PLATE; SUPPORT,PARKING BRK
M/T MXA5R(RMT) 		8-94311-780-1 01 1 9704-0307 ● ●
32 PLATE; SUPPORT,PARKING BRK
M/T MYY5T(RSM) 		8-97308-176-0 01 1 0308- ● ●
34 PIN; BRK SHOE
M/T MXA5R(RMT) 		8-94132-159-0 02 1 9704-0307 ● ●
34 PIN; BRK SHOE
M/T MYY5T(RSM) 		8-94132-159-0 02 1 0308-0611 ● ●
34 PIN; BRK SHOE
M/T MYY5T(RSM) 		8-98043-955-0 02 1 0612- ● ●
36 GROMMET; ADJ HOLE
M/T MXA5R(RMT) 		5-47169-002-0 01 1 9704-0307 ● ●
37 NUT; SUPPORT PLATE
M/T MXA5R(RMT) M12 LOCK NUT 		8-97248-173-0 04 1 0010-0307 ● ●
37 NUT; SUPPORT PLATE
M/T MYY5T(RSM) M12 LOCK NUT 		8-97248-173-0 04 1 0308-0604 ● ●
37 NUT; SUPPORT PLATE
M/T MYY5T(RSM) M12 LOCK NUT 		8-98029-927-0 04 1 0605- ● ●
47 BOLT; SUPPORT PLATE
M/T MXA5R(RMT) 		8-97147-821-0 04 1 9704-9809 ● ●
47 BOLT; SUPPORT PLATE
M/T MXA5R(RMT) M12X20 FLANGE 		8-97213-401-0 04 1 9810-0009 ● ●
48 RETAINER; PIN,PARKING BRK
M/T MXA5R(RMT) 		9-46349-005-1 01 1 9704-0307 ● ●
48 RETAINER; PIN,PARKING BRK
M/T MYY5T(RSM) 		9-46349-005-1 01 1 0308-0611 ● ●
48 RETAINER; PIN,PARKING BRK
M/T MYY5T(RSM) 		8-98043-958-0 01 1 0612- ● ●
112 BOLT; COVER TO BRK DRUM
M6X16 W/LK WASHER 		0-50040-616-0 01 1 9704-0512 ● ●
112 BOLT; COVER TO BRK DRUM
M6X16 W/LK WASHER 		0-50540-616-0 01 1 0601- ● ●
114 STUD; SUPPORT PLATE
M/T MXA5R(RMT) 		8-97289-002-0 04 1 0010-0307 ● ●
114 STUD; SUPPORT PLATE
M/T MYY5T(RSM) 		8-97289-280-0 04 1 0308-0604 ● ●
114 STUD; SUPPORT PLATE
M/T MYY5T(RSM) 		8-98029-929-0 04 1 0605- ● ●
172 CUP; SHOE HOLD
M/T MXA5R(RMT) 		9-47162-033-0 04 1 9704-0307 ● ●
172 CUP; SHOE HOLD
M/T MYY5T(RSM) 		9-47162-033-0 04 1 0308-0611 ● ●
172 CUP; SHOE HOLD
M/T MYY5T(RSM) 		8-98043-956-0 04 1 0612- ● ●
