Isuzu WW
▶
TRUCKS
▶
NPR
▶
50783 - NPR(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

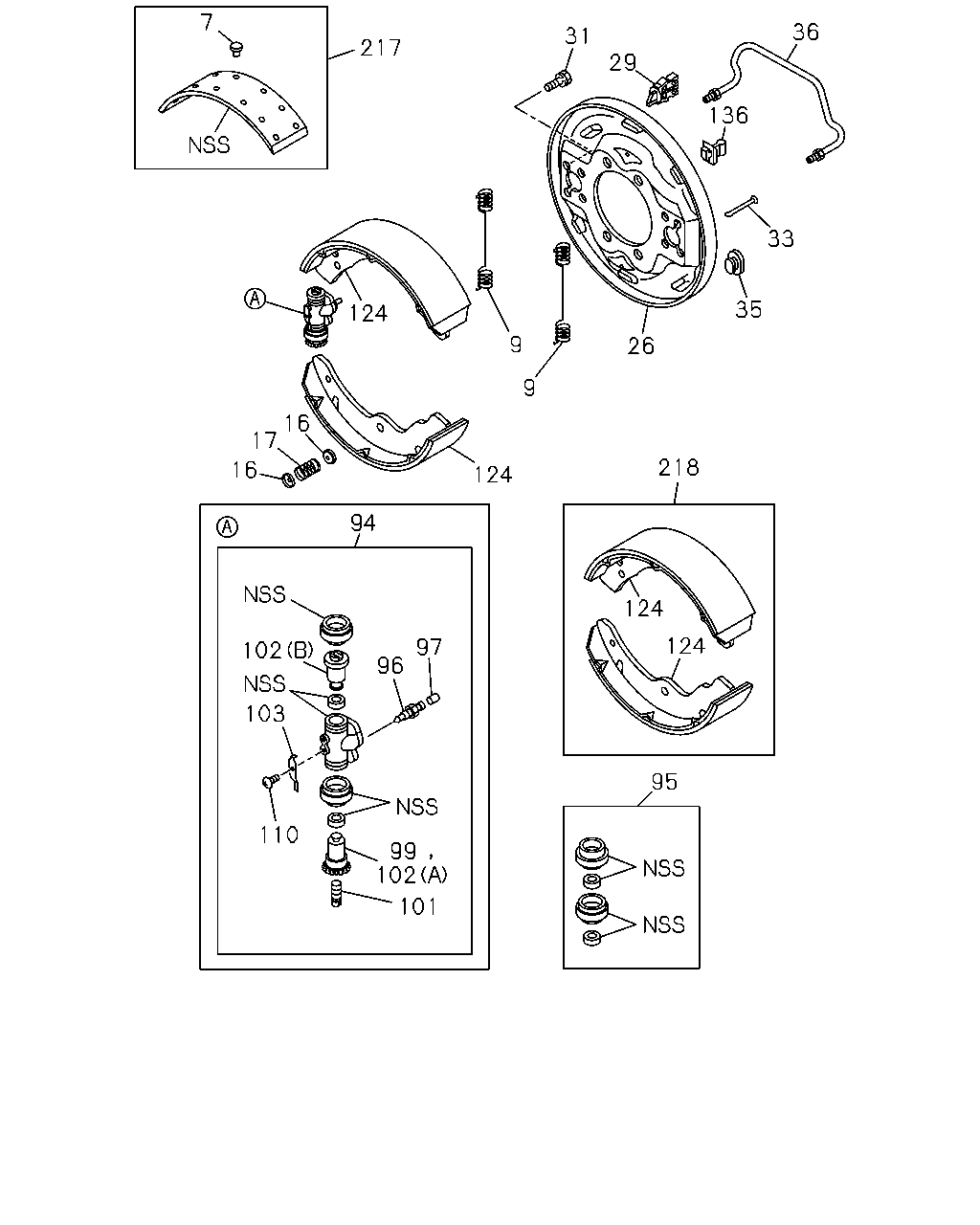

3-05 — REAR WHEEL BRAKE
(#72404) — 72 parça
Tümü
A - NPC5SF
B - NPC5SK
7
36
31
217
29
136
33
35
124
9
26
9
16
17
218
16
124
94
124
124
97
102
96
103
95
110
99
102
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
RIVET; LINING,RR BRK
1-09732-029-0
40
1
9704-
●
7
RIVET; LINING,RR BRK
1-09732-029-0
48
1
9704-
●
9
SPRING; RETURN,BRK SHOE
5-09583-118-0
04
1
9704-
●
9
SPRING; RETURN,BRK SHOE
8-97022-087-0
04
1
9704-
●
16
CUP; SHOE HOLDING
9-47165-096-0
08
1
9704-
●
●
17
SPRING; SHOE HOLD DOWN
5-09580-101-1
04
1
9704-
●
●
26
PLATE; BACK,RR BRK
8-97078-606-0
01
1
9704-
●
26
PLATE; BACK,RR BRK
8-97078-605-0
01
1
9704-
●
26
PLATE; BACK,RR BRK
8-97094-501-0
01
1
9704-0307
●
26
PLATE; BACK,RR BRK
8-97223-574-0
01
1
0308-
●
26
PLATE; BACK,RR BRK
8-97094-500-0
01
1
9704-0307
●
26
PLATE; BACK,RR BRK
8-97223-573-0
01
1
0308-
●
29
CLIP; PIPE,BRK
8-94128-306-0
02
1
9704-
●
29
CLIP; PIPE,BRK
8-97022-086-0
02
1
9704-
●
31
BOLT; RR WHEEL CYL
5-09030-016-1
16
1
9704-
●
31
BOLT; RR WHEEL CYL
8-97022-088-0
16
1
9704-0502
●
31
BOLT; RR WHEEL CYL
8-97081-305-0
16
1
0503-
●
33
PIN; SHOE HOLD DOWN
5-47162-001-0
04
1
9704-
●
33
PIN; SHOE HOLD DOWN
8-97022-089-0
04
1
9704-
●
35
GROMMET; CHECK HOLE
8-94171-287-0
02
1
9704-
●
35
GROMMET; CHECK HOLE
8-97017-507-0
02
1
9704-
●
36
PIPE; OIL,RR BRK
8-94154-916-0
02
1
9704-
●
36
PIPE; OIL,RR BRK
8-97079-847-0
02
1
9704-0307
●
36
PIPE; OIL,RR BRK
8-97192-215-0
02
1
0308-
●
94
CYLINDER; WHEEL,RR BRK
ID=25.40(1")
8-97078-617-0
02
1
9704-9704
●
94
CYLINDER; WHEEL,RR BRK
8-97179-352-0
02
1
9704-
●
94
CYLINDER; WHEEL,RR BRK
REAR ID=25.40(1")
8-97078-618-0
01
1
9704-9704
●
94
CYLINDER; WHEEL,RR BRK
REAR
8-97179-351-0
01
1
9704-
●
94
CYLINDER; WHEEL,RR BRK
FRONT ID=25.40(1")
8-97078-619-0
01
1
9704-9704
●
94
CYLINDER; WHEEL,RR BRK
FRONT
8-97179-350-0
01
1
9704-
●
94
CYLINDER; WHEEL,RR BRK
ID=30.16(1 3/16")
8-97022-143-1
02
1
9704-9704
●
94
CYLINDER; WHEEL,RR BRK
8-97139-825-0
02
1
9704-
●
94
CYLINDER; WHEEL,RR BRK
FRONT ID=30.16(1 3/16")
8-97022-141-1
01
1
9704-9704
●
94
CYLINDER; WHEEL,RR BRK
FRONT
8-97139-822-0
01
1
9704-
●
94
CYLINDER; WHEEL,RR BRK
REAR ID=30.16(1 3/16")
8-97022-142-1
01
1
9704-9704
●
94
CYLINDER; WHEEL,RR BRK
REAR
8-97139-824-0
01
1
9704-
●
95
CUP SET; RR WHEEL CYL
5-87830-539-0
01
1
9704-9704
●
95
CUP SET; RR WHEEL CYL
5-87831-621-0
01
1
9704-
●
95
CUP SET; RR WHEEL CYL
OD=30.16(1 3/16")
5-87830-714-1
02
1
9704-9704
●
95
CUP SET; RR WHEEL CYL
5-87831-598-0
02
1
9704-
●
96
SCREW; BLEEDER,RR BRK
9-47615-027-0
01
1
9704-0711
●
●
96
SCREW; BLEEDER,RR BRK
8-98050-476-0
01
1
0712-
●
●
97
CAP; BLEEDER,RR WHEEL CYL
1-47619-009-0
01
1
9704-0711
●
●
97
CAP; BLEEDER,RR WHEEL CYL
8-98050-479-0
01
1
0712-
●
●
99
PISTON; RR WHEEL CYL
8-97078-622-0
03
1
9704-
●
99
PISTON; RR WHEEL CYL
8-94414-700-1
02
1
9704-0304
●
99
PISTON; RR WHEEL CYL
8-94414-700-1
04
1
0305-
●
101
SCREW; ADJ,RR WHEEL CYL
8-97078-623-0
04
1
9704-
●
101
SCREW; ADJ,RR WHEEL CYL
8-94414-702-0
04
1
9704-
●
102
PISTON; REAR WHEEL CYL
(B) D=25.4
8-94128-531-1
04
1
9704-
●
102
PISTON; REAR WHEEL CYL
(A)
8-97078-622-0
01
1
9704-
●
102
PISTON; REAR WHEEL CYL
(A)
8-94414-700-1
02
1
9704-0304
●
102
PISTON; REAR WHEEL CYL
(B) D=30.16
8-94414-701-1
04
1
9704-0810
●
102
PISTON; REAR WHEEL CYL
(B)
8-97078-045-0
04
1
0811-
●
103
SPRING; LK,RR WHEEL CYL,ADJ
8-94128-486-0
04
1
9704-
●
●
110
SCREW; LOCK SPRING,RR WHEEL CYL
8-94128-727-0
04
1
9704-
●
●
124
SHOE ASM; BRK,RR
8-97066-695-0
04
1
9704-0307
●
124
SHOE ASM; BRK,RR
8-97287-778-0
04
1
0308-
●
124
SHOE ASM; BRK,RR
8-97094-504-1
04
1
9704-0307
●
124
SHOE ASM; BRK,RR
8-97201-061-0
04
1
0308-
●
136
GROMMET
9-09756-034-0
04
1
9704-
●
136
GROMMET
8-97044-742-1
04
1
9704-
●
217
LINING KIT; RR BRK
5-88300-002-0
01
1
9704-0307
●
217
LINING KIT; RR BRK
5-87831-801-0
01
1
0308-
●
217
LINING KIT; RR BRK
5-87870-028-0
01
1
9704-0307
●
217
LINING KIT; RR BRK
5-87831-774-0
01
1
0308-
●
217
LINING KIT; RR BRK
BEST VALUE PARTS
5-87610-121-0
01
1
0308-
●
217
LINING KIT; RR BRK
BEST VALUE PARTS
5-87610-120-0
01
1
0308-
●
218
SHOE KIT; BRK,RR
5-87832-046-0
01
1
0204-0307
●
218
SHOE KIT; BRK,RR
5-87832-047-0
01
1
0308-
●
218
SHOE KIT; BRK,RR
5-87090-122-0
01
1
0204-0307
●
218
SHOE KIT; BRK,RR
5-87831-775-0
01
1
0308-
●
