3-01 — FRONT WHEEL BRAKE (#72403) — 94 parça

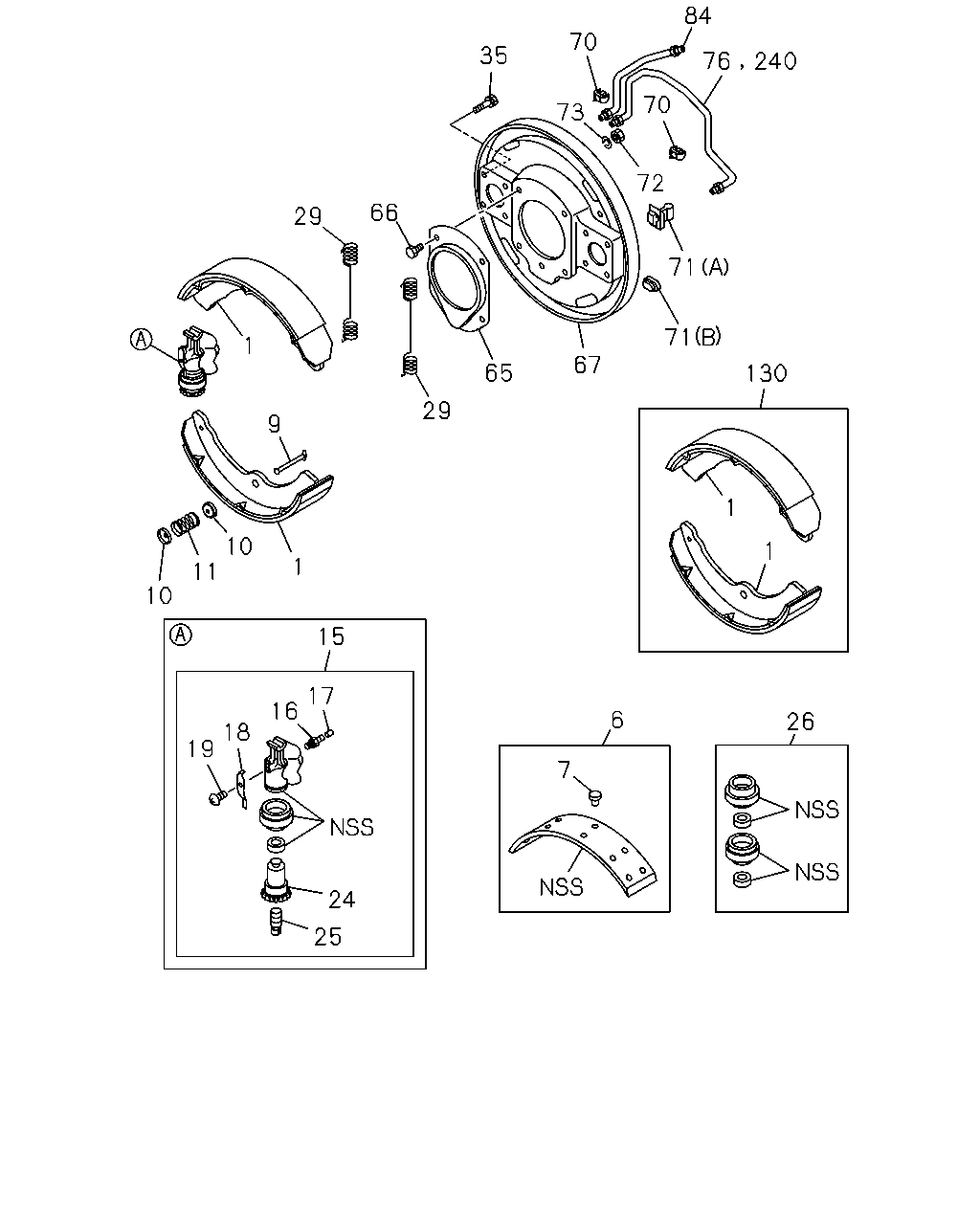

çizim 190497
84 70 35 70 73 72 66 29 71 71 1 67 65 130 29 9 1 10 1 1 11 10 15 17 16 6 26 18 19 7 24 25 76 240
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT 8-97066-695-0 04 1 9704-0307 ●
1 SHOE; BRK,FRT 8-97287-778-0 04 1 0308- ●
1 SHOE; BRK,FRT 8-97094-504-1 04 1 9704-0307 ●
1 SHOE; BRK,FRT 8-97201-061-0 04 1 0308- ●
6 LINING KIT; FRT BRK 5-88300-002-0 01 1 9704-0307 ●
6 LINING KIT; FRT BRK 5-87831-801-0 01 1 0308- ●
6 LINING KIT; FRT BRK 5-87870-028-0 01 1 9704-0307 ●
6 LINING KIT; FRT BRK 5-87831-774-0 01 1 0308- ●
6 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-121-0 01 1 0308- ●
6 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-120-0 01 1 0308- ●
7 RIVET; LINING,FRT BRK 1-09732-029-0 40 1 9704- ●
7 RIVET; LINING,FRT BRK 1-09732-029-0 48 1 9704- ●
9 PIN; SHOE HOLDER 5-47162-001-0 04 1 9704- ●
9 PIN; SHOE HOLDER 8-97022-089-0 04 1 9704- ●
10 CUP; SHOE HOLDING 9-47165-096-0 08 1 9704- ● ●
11 SPRING; SHOE HOLDING 5-09580-101-1 04 1 9704- ● ●
15 CYLINDER; WHEEL,FRT BRK
FRONT ID=28.57(1 1/8") 		8-97078-613-0 01 1 9704-9704 ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97170-950-0 01 1 9704- ●
15 CYLINDER; WHEEL,FRT BRK
REAR ID=28.57(1 1/8") 		8-97078-615-0 01 1 9704-9704 ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97170-952-0 01 1 9704- ●
15 CYLINDER; WHEEL,FRT BRK
FRONT ID=28.57(1 1/8") 		8-97078-614-0 01 1 9704-9704 ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97170-951-0 01 1 9704- ●
15 CYLINDER; WHEEL,FRT BRK
REAR ID=28.57(1 1/8") 		8-97078-616-0 01 1 9704-9704 ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97170-953-0 01 1 9704- ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97022-029-1 01 1 9704-9704 ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97139-821-0 01 1 9704- ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97022-031-1 01 1 9704-9704 ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97139-819-0 01 1 9704- ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97022-028-1 01 1 9704-9704 ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97139-820-0 01 1 9704- ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97022-030-1 01 1 9704-9704 ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97139-818-0 01 1 9704- ●
16 SCREW; BLEEDER,FRT BRK 9-47615-027-0 02 1 9704-0711 ● ●
16 SCREW; BLEEDER,FRT BRK 8-98050-476-0 02 1 0712- ● ●
17 CAP; BLEEDER,FRT WHEEL CYL 1-47619-009-0 02 1 9704-0711 ● ●
17 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 0712- ● ●
18 STOPPER; ADJ SCREW 8-94128-486-0 04 1 9704- ● ●
19 SCREW; STOPPER SETTING 8-94128-727-0 04 1 9704- ● ●
24 PISTON; FRT WHEEL CYL 8-97078-621-0 04 1 9704- ●
24 PISTON; FRT WHEEL CYL 8-94414-700-1 04 1 9704- ●
25 SCREW; ADJ,FRT WHEEL CYL 8-97078-623-0 04 1 9704- ●
25 SCREW; ADJ,FRT WHEEL CYL 8-94414-702-0 04 1 9704- ●
26 CUP SET; FRT WHEEL CYL
OD=28.57(1 1/8") 		5-87830-538-0 01 1 9704-9704 ●
26 CUP SET; FRT WHEEL CYL 5-87831-602-0 01 1 9704- ●
26 CUP SET; FRT WHEEL CYL
OD=30.16(1 3/16") 		5-87830-714-1 01 1 9704-9704 ●
26 CUP SET; FRT WHEEL CYL 5-87831-598-0 01 1 9704- ●
29 SPRING; RETURN,FRT BRK SHOE 5-09583-118-0 04 1 9704- ●
29 SPRING; RETURN,FRT BRK SHOE 8-97022-087-0 04 1 9704- ●
35 BOLT; FRT WHEEL CYL 5-09030-016-1 16 1 9704- ●
35 BOLT; FRT WHEEL CYL 8-97022-088-0 16 1 9704-0502 ●
35 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 0503- ●
65 COVER; OIL SHIELD,FRT 5-47154-003-1 02 1 9704-0103 ● ●
66 BOLT; OIL SHIELD COVER
M12X33 		9-09600-043-3 08 1 9704-0611 ● ●
66 BOLT; OIL SHIELD COVER
M12X33 		8-98009-493-2 08 1 0612- ● ●
67 PLATE; BACK,FRT BRK 8-97078-600-1 01 1 9704-0102 ●
67 PLATE; BACK,FRT BRK 8-97302-589-0 01 1 0103- ●
67 PLATE; BACK,FRT BRK 8-97078-599-1 01 1 9704-0102 ●
67 PLATE; BACK,FRT BRK 8-97302-588-0 01 1 0103- ●
67 PLATE; BACK,FRT BRK 8-97094-497-1 01 1 9704-0102 ●
67 PLATE; BACK,FRT BRK 8-97302-597-0 01 1 0103- ●
67 PLATE; BACK,FRT BRK 8-97094-496-1 01 1 9704-0102 ●
67 PLATE; BACK,FRT BRK 8-97302-596-0 01 1 0103- ●
70 CLIP; PIPE HOLD 8-94128-306-0 02 1 9704- ●
70 CLIP; PIPE HOLD 8-97022-086-0 04 1 9704- ●
71 GROMMET; CHECK HOLE
(B) 		8-94171-287-0 02 1 0308- ●
71 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 02 1 0308- ●
71 GROMMET; CHECK HOLE
EXC. AXLE ISUZU PRODUCTION<8BF> (A) 		9-09756-034-0 04 1 9903-9909 ●
71 GROMMET; CHECK HOLE
(A) 		9-09756-034-0 04 1 9704-9902 ●
71 GROMMET; CHECK HOLE
AXLE ISUZU PRODUCTION<8BF> (A) 		9-09756-034-0 02 1 9903-9909 ●
71 GROMMET; CHECK HOLE
(A) 		9-09756-034-0 02 1 9910- ●
71 GROMMET; CHECK HOLE
(B) 		8-94171-287-0 01 1 9704-0307 ●
71 GROMMET; CHECK HOLE
(A) 		8-97044-742-1 04 1 9704-9902 ●
71 GROMMET; CHECK HOLE
EXC. AXLE ISUZU PRODUCTION<8BF> (A) 		8-97044-742-1 04 1 9903-9909 ●
71 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 01 1 9704-0307 ●
71 GROMMET; CHECK HOLE
AXLE ISUZU PRODUCTION<8BF> (A) 		8-97044-742-1 02 1 9903-9909 ●
71 GROMMET; CHECK HOLE
(A) 		8-97044-742-1 02 1 9910- ●
72 NUT; OIL SHIELD COVER
M12 		9-99110-412-0 08 1 9704-9907 ● ●
72 NUT; OIL SHIELD COVER
EXC. AXLE ISUZU PRODUCTION<8BF> M12 		9-99110-412-0 08 1 9908-9909 ● ●
72 NUT; OIL SHIELD COVER
AXLE ISUZU PRODUCTION<8BF> M12 		9-99110-512-0 08 1 9908-9909 ● ●
72 NUT; OIL SHIELD COVER
M12 		9-99110-512-0 08 1 9910-0512 ● ●
72 NUT; OIL SHIELD COVER
M12 		0-91110-512-0 08 1 0601- ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		9-09150-612-0 08 1 9704-0603 ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		0-91510-612-0 08 1 0604-0611 ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		0-91510-812-0 08 1 0612- ● ●
76 PIPE; OIL,BACKWARD,FRT BRK 8-97079-847-0 02 1 9704- ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-94154-918-0 01 1 9704- ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-94154-917-0 01 1 9704- ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-677-0 01 1 9704- ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-676-0 01 1 9704- ●
130 SHOE KIT; BRK,FRT 5-87832-046-0 01 1 0204-0307 ●
130 SHOE KIT; BRK,FRT 5-87832-047-0 01 1 0308- ●
130 SHOE KIT; BRK,FRT 5-87090-122-0 01 1 0204-0307 ●
130 SHOE KIT; BRK,FRT 5-87831-775-0 01 1 0308- ●
240 PIPE; OIL,FRT BRK 8-94154-916-0 02 1 9704- ●
