2-85 — POWER TAKE OFF CONTROL (#72402) — 148 parça

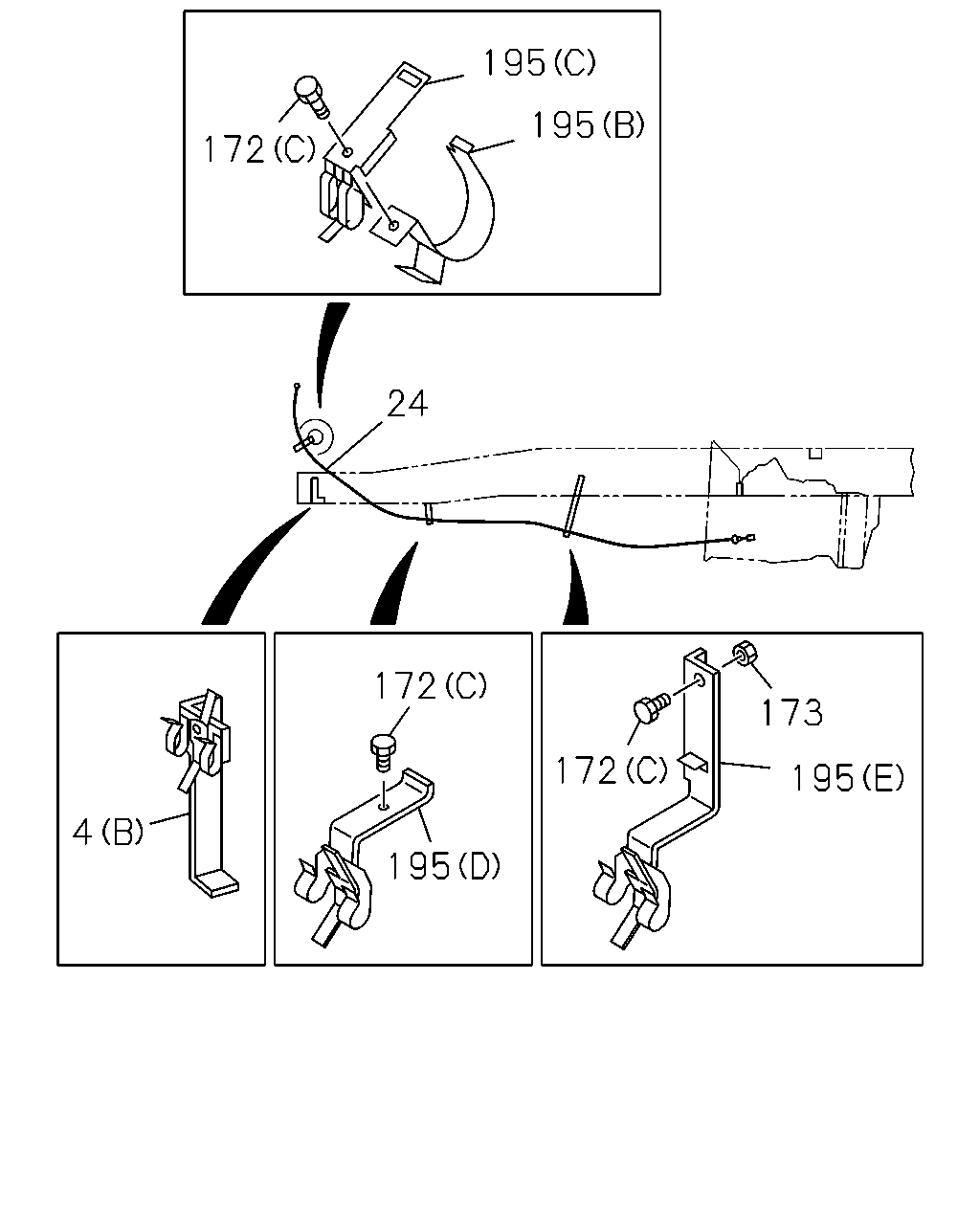

195 195 172 24 172 173 172 195 4 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	9704-0307	●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97310-740-0	01	1	0308-		●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (B)	8-97114-534-1	01	1	9704-0307	●
4	BRACKET; PTO CONT (B)	8-97114-534-1	01	1	0308-		●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3259	8-97142-491-1	01	1	9704-0307	●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3209	8-97352-391-1	01	1	0308-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (C) M8X25 FLANGE	0-28680-825-0	04	1	9704-0307	●
172	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	04	1	0308-0512		●
172	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9704-0307	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0308-0512		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50540-816-0	02	1	0601-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	9704-0307	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0308-0604		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	0-36230-612-0	01	1	0605-		●
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) M8 FLANGE	0-91150-108-0	02	1	9704-0307	●
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) M8 FLANGE	0-91150-108-0	02	1	0308-0602		●
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) M8 FLANGE	0-91180-108-0	02	1	0603-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97079-557-3	01	1	9704-0307	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97079-557-3	01	1	0308-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97079-558-3	01	1	9704-0307	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97079-558-3	01	1	0308-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-559-2	01	1	9704-0307	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-559-2	01	1	0308-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97079-560-3	01	1	9704-0307	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97079-560-3	01	1	0308-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-97088-407-1	01	1	9704-0307	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-97088-407-1	01	1	0308-		●

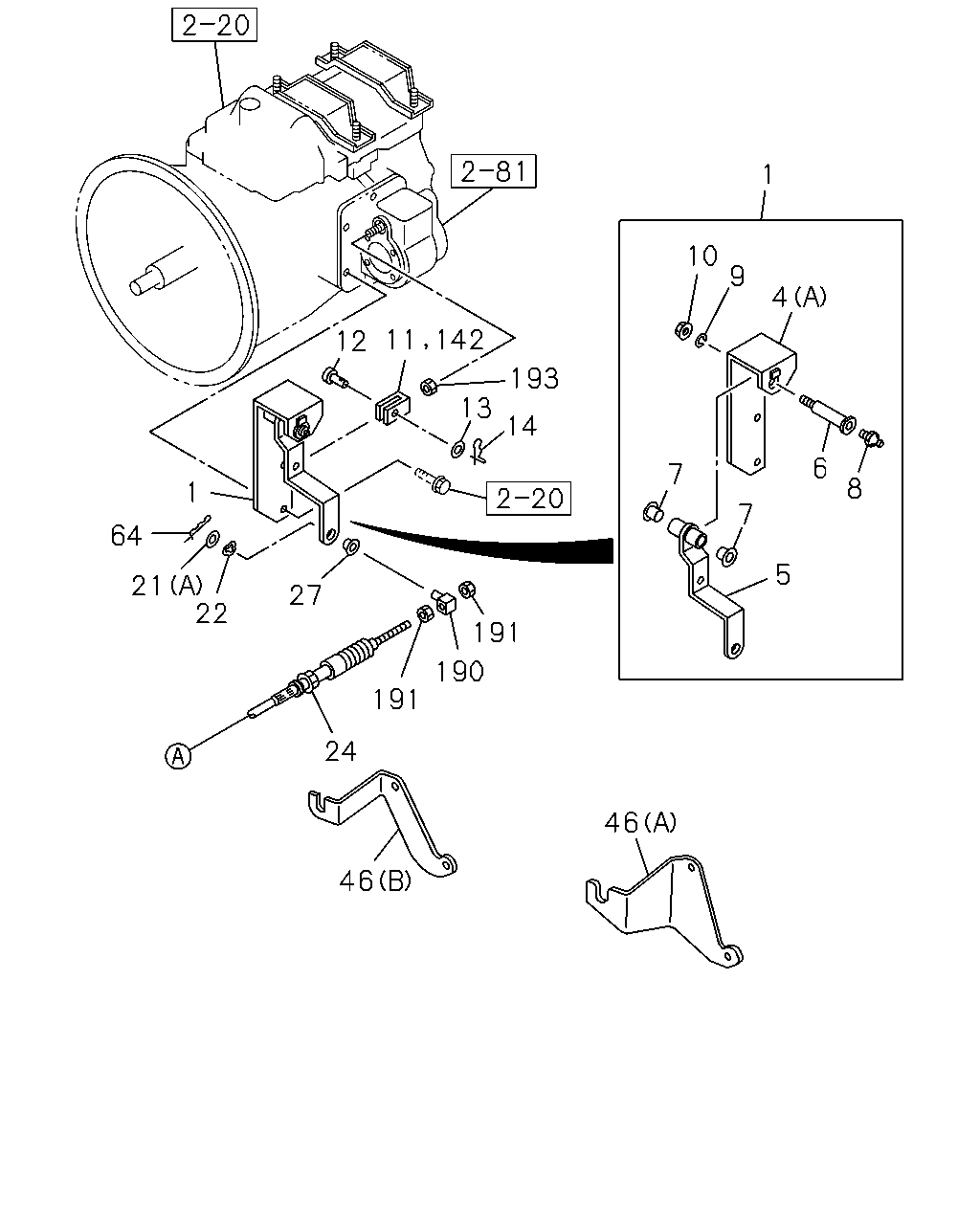

1 10 9 4 12 11 142 193 13 14 6 7 8 1 7 64 5 21 22 27 191 190 191 24 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-97017-114-1	01	1	9704-0307	●
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-97310-741-0	01	1	0308-		●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	9704-0307	●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97310-740-0	01	1	0308-		●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (B)	8-97114-534-1	01	1	9704-0307	●
4	BRACKET; PTO CONT (B)	8-97114-534-1	01	1	0308-		●
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-97017-115-0	01	1	9704-0307	●
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-97310-747-0	01	1	0308-		●
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94419-941-1	01	1	9704-0307	●
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0308-		●
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	9704-0307	●
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0308-		●
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) M6 STRAIGHT	9-09031-006-0	01	1	9704-0307	●
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) M6 STRAIGHT	9-09031-006-0	01	1	0308-0607		●
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) M6 STRAIGHT	0-90301-406-0	01	1	0608-		●
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	9-09150-508-0	01	1	9704-0307	●
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	9-09150-508-0	01	1	0308-0603		●
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0604-		●
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) M8	9-09110-408-0	01	1	9704-0307	●
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) M8	9-09110-408-0	01	1	0308-0512		●
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) M8	0-91110-508-0	01	1	0601-		●
11	JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	9704-0307	●
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	9704-0307	●
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0308-0610		●
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0611-		●
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5	9-09160-512-0	01	1	9704-0307	●
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5	9-09160-512-0	01	1	0308-0605		●
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0606-		●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	1-09987-158-1	01	1	9704-0307	●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	1-09987-158-1	01	1	0308-0805		●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0806-		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	9704-0307	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	0308-0605		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	9-09164-708-0	01	1	9704-0307	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	9-09164-708-0	01	1	0308-0605		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	0-91614-708-0	01	1	0606-		●
22	WASHER; LK,LEVER PTO TRANSMISSION SIDE(V66) ID=8.5 T=0.3	5-09509-001-0	01	1	9704-0307	●
22	WASHER; LK,LEVER PTO TRANSMISSION SIDE(V66) ID=8.5 T=0.3	5-09509-001-0	01	1	0308-		●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3259	8-97142-491-1	01	1	9704-0307	●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3209	8-97352-391-1	01	1	0308-		●
27	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	8-94367-367-0	01	1	9704-0307	●
27	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	8-94367-367-0	01	1	0308-		●
46	BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (A)	8-97022-848-1	01	1	9704-9812	●
46	BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (A)	8-97219-994-0	01	1	9901-9910	●
46	BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (B)	8-97240-638-0	01	1	9911-0307	●
46	BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (B)	8-97264-954-1	01	1	0308-		●
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) L=27.7	8-94111-137-0	01	1	9704-0307	●
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) L=27.7	8-94111-137-0	01	1	0308-		●
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0308-		●
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66)	8-94366-842-1	01	1	9704-0307	●
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66)	8-94366-842-2	01	1	0308-		●
191	NUT; BOSS PTO TRANSMISSION SIDE(V66) M6	9-09110-506-0	02	1	9704-0307	●
191	NUT; BOSS PTO TRANSMISSION SIDE(V66) M6	9-09110-506-0	02	1	0308-0512		●
191	NUT; BOSS PTO TRANSMISSION SIDE(V66) M6	0-91110-506-0	02	1	0601-		●
193	NUT PTO TRANSMISSION SIDE(V66) M12	9-99111-412-0	01	1	9704-0307	●
193	NUT PTO TRANSMISSION SIDE(V66) M12	9-99111-412-0	01	1	0308-0512		●
193	NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0601-		●

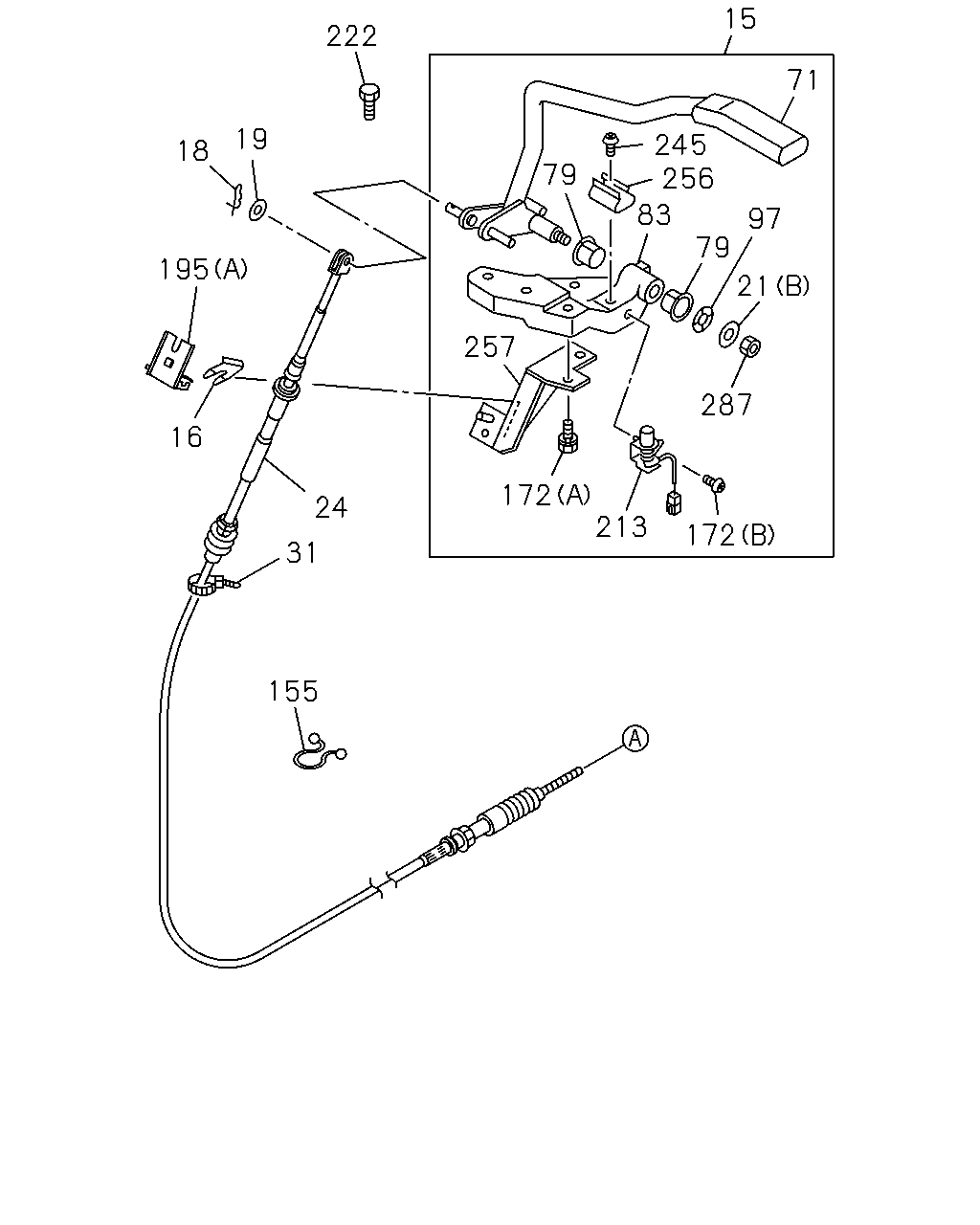

15 222 71 19 245 256 18 79 83 97 79 195 21 257 287 16 172 213 24 172 31 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97105-244-1	01	1	9704-0307	●
15	LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-805-3	01	1	0308-		●
16	CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66)	8-94152-900-0	01	1	9704-0307	●
16	CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66)	8-94152-900-0	01	1	0308-		●
18	PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) L=27.7	8-94111-137-0	01	1	9704-0307	●
18	PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) L=27.7	8-94111-137-0	01	1	0308-		●
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) ID=8.4	9-09160-508-0	01	1	9704-0307	●
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) ID=8.4	9-09160-508-0	01	1	0308-0605		●
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) ID=8.4 OD=16	0-91610-508-0	01	1	0606-		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	9704-0307	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	0308-0605		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	9-09164-708-0	01	1	9704-0307	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	9-09164-708-0	01	1	0308-0605		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	0-91614-708-0	01	1	0606-		●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3259	8-97142-491-1	01	1	9704-0307	●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3209	8-97352-391-1	01	1	0308-		●
31	CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) L=250	5-09707-030-1	01	1	9704-0307	●
31	CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) L=250	5-09707-030-1	01	1	0308-		●
71	LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97105-245-0	01	1	9704-0307	●
71	LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-806-1	01	1	0308-		●
79	BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) ID=14 OD=16	8-94252-671-0	02	1	9704-0307	●
79	BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-94238-596-0	02	1	0308-		●
83	BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97117-352-0	01	1	9704-0307	●
83	BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97117-352-0	01	1	0308-		●
97	WASHER; LK PTO TRANSMISSION SIDE(V66) ID=15 OD=25	8-11053-111-0	01	1	9704-0307	●
97	WASHER; LK PTO TRANSMISSION SIDE(V66) ID=15 OD=25	8-11053-111-0	01	1	0308-		●
155	CLIP; CABLE PTO TRANSMISSION SIDE(V66) ID=15	1-09709-003-0	01	1	9704-0307	●
155	CLIP; CABLE PTO TRANSMISSION SIDE(V66) ID=15	1-09709-003-0	01	1	0308-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (C) M8X25 FLANGE	0-28680-825-0	04	1	9704-0307	●
172	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	04	1	0308-0512		●
172	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9704-0307	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0308-0512		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50540-816-0	02	1	0601-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	9704-0307	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0308-0604		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	0-36230-612-0	01	1	0605-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97079-557-3	01	1	9704-0307	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97079-557-3	01	1	0308-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97079-558-3	01	1	9704-0307	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97079-558-3	01	1	0308-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-559-2	01	1	9704-0307	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-559-2	01	1	0308-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97079-560-3	01	1	9704-0307	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97079-560-3	01	1	0308-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-97088-407-1	01	1	9704-0307	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-97088-407-1	01	1	0308-		●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97041-412-1	01	1	9704-0307	●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97041-412-1	01	1	0308-0308		●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97370-568-0	01	1	0309-		●
222	BOLT; LEVER PTO TRANSMISSION SIDE(V66) M8X14 FLANGE	0-28080-814-0	04	1	9704-0307	●
222	BOLT; LEVER PTO TRANSMISSION SIDE(V66) M8X14 FLANGE	0-28080-814-0	04	1	0308-		●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	9704-0307	●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0308-0604		●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0605-		●
256	PLATE; LOCK PTO TRANSMISSION SIDE(V66)	8-97117-351-0	01	1	9704-0307	●
256	PLATE; LOCK PTO TRANSMISSION SIDE(V66)	8-97117-351-0	01	1	0308-		●
257	REINFORCEMENT; PTO PTO TRANSMISSION SIDE(V66)	8-97088-406-3	01	1	9704-0307	●
257	REINFORCEMENT; PTO PTO TRANSMISSION SIDE(V66)	8-97088-406-3	01	1	0308-		●
287	NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) M8 W/LK WASHER	8-94279-050-0	01	1	9704-0307	●
287	NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) M8 W/LK WASHER	8-94279-050-0	01	1	0308-		●
