2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#72399) — 165 parça

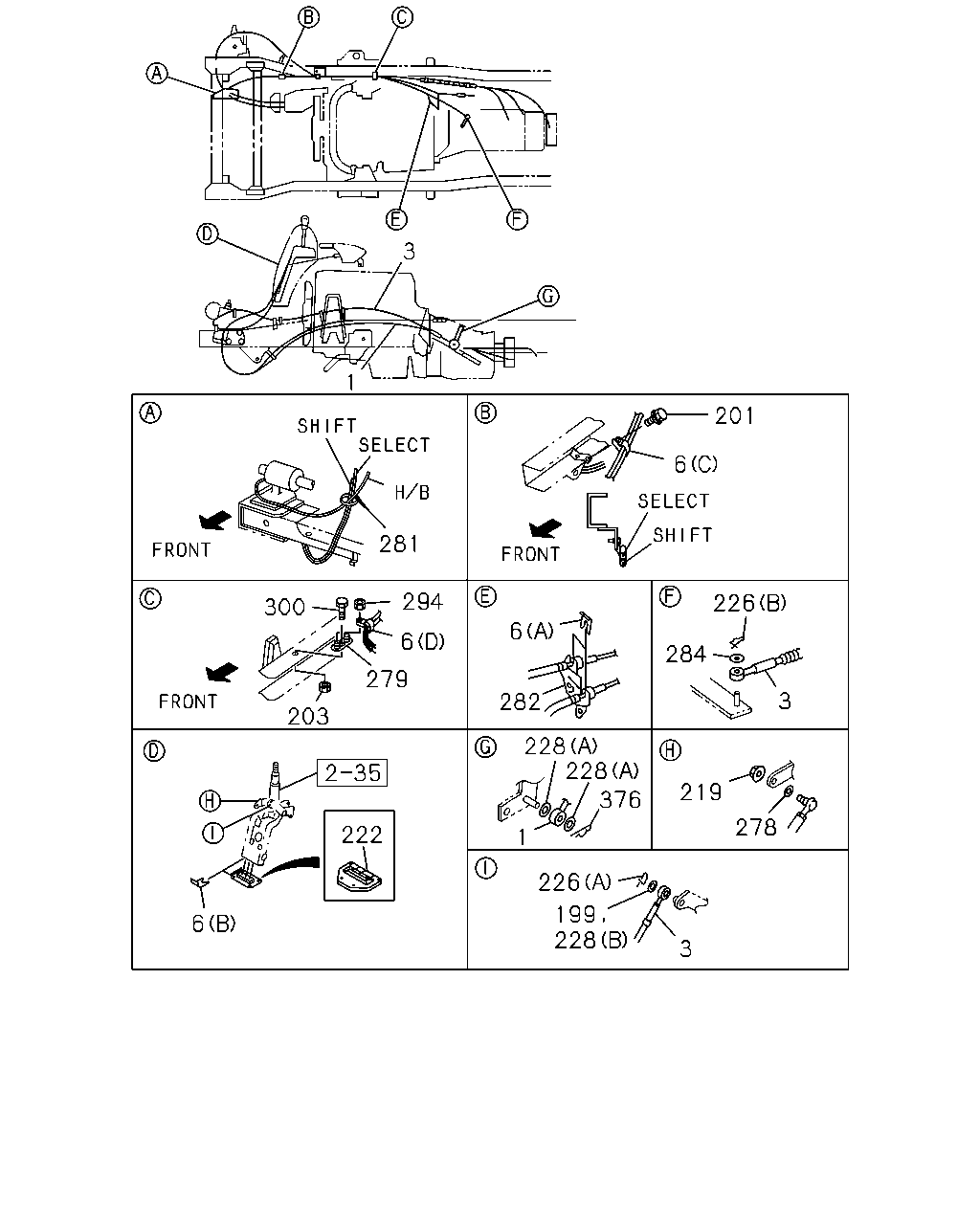

çizim 113925
3 1 201 6 281 294 226 300 6 6 284 279 3 282 203 228 228 219 376 278 222 1 226 199 228 6 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
L=2745 		8-97065-166-4 01 1 9704-9804 ●
1 CABLE; SHIFT,TRANS CONT
L=2745 		8-97203-057-0 01 1 9805-9809 ●
1 CABLE; SHIFT,TRANS CONT
L=2745 		8-97216-339-0 01 1 9810-0307 ●
1 CABLE; SHIFT,TRANS CONT
L=2776 		8-97350-415-1 01 1 0308-1111 ●
1 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) L=2776 		8-97350-415-1 01 1 1112- ●
1 CABLE; SHIFT,TRANS CONT
4HG1-T ENG(RDP) L=2776 		8-97350-417-1 01 1 1112- ●
3 CABLE; SELECT,TRANS CONT
L=2800 		8-97065-168-1 01 1 9704-9804 ●
3 CABLE; SELECT,TRANS CONT
L=2800 		8-97203-060-1 01 1 9805-0307 ●
3 CABLE; SELECT,TRANS CONT
L=2819 		8-97350-416-0 01 1 0308-1111 ●
3 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS) L=2819 		8-97350-416-0 01 1 1112- ●
3 CABLE; SELECT,TRANS CONT
4HG1-T ENG(RDP) L=2819 		8-97350-418-0 01 1 1112- ●
6 CLIP; CABLE
(A) ID=19.2 		8-94365-914-2 02 1 9704-9808 ●
6 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 9809-0307 ●
6 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 01 1 0308- ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9704-0307 ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0308- ●
6 CLIP; CABLE
(C) 		8-97028-508-2 01 1 9704-9804 ●
6 CLIP; CABLE
(C) ID=33X16.5 L=50 		5-09700-341-0 01 1 9805-0307 ●
6 CLIP; CABLE
(C) ID=33X16.5 L=50 		5-09700-341-0 01 1 0308- ●
6 CLIP; CABLE
(D) 		9-09917-171-0 01 1 9704-0307 ●
6 CLIP; CABLE
(D) 		9-09917-171-0 01 1 0308- ●
6 CLIP; CABLE
(E) ID=22.2 		1-09701-209-1 01 1 0308- ●
199 WASHER; PL,SELECT
ID=8.4 		9-09160-508-0 01 1 9704-0307 ●
199 WASHER; PL,SELECT
ID=8.4 		9-09160-508-0 01 1 0308-0605 ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ●
201 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9704-0307 ●
201 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0308-0512 ●
201 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
203 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 01 1 9704-0307 ●
203 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ●
203 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
219 NUT; FLANGE,SHAFT CABLE
M8 T=8.0 		8-94363-045-0 01 1 9704-0307 ●
219 NUT; FLANGE,SHAFT CABLE
M8 T=8.0 		8-94363-045-0 01 1 0308- ●
222 GROMMET; CABLE 8-97065-212-1 01 1 9704-0307 ●
222 GROMMET; CABLE 8-97065-212-1 01 1 0308- ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 9704-0307 ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 0308- ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9704-0307 ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0308- ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9704-9707 ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9708-0307 ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0308- ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 9704-0307 ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 0308-0605 ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606- ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9704-0307 ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0308-0604 ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 0605- ●
279 BRACKET; CABLE TO FRAME 8-97028-496-1 01 1 9704-0307 ●
279 BRACKET; CABLE TO FRAME 8-97028-496-1 01 1 0308- ●
281 CLIP; BAND
L=250 		5-09707-030-1 01 1 9704-0307 ●
281 CLIP; BAND
L=250 		5-09707-030-1 01 1 0308- ●
282 BRACKET; TRANS SIDE 8-97035-760-0 01 1 9704-9707 ●
282 BRACKET; TRANS SIDE 8-97182-260-0 01 1 9708-0307 ●
282 BRACKET; TRANS SIDE 8-97311-441-1 01 1 0308- ●
284 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9704-0307 ●
284 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0308- ●
294 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9704-0307 ●
294 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ●
294 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9704-0307 ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0308-0512 ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
376 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9704-0307 ●
376 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0308- ●

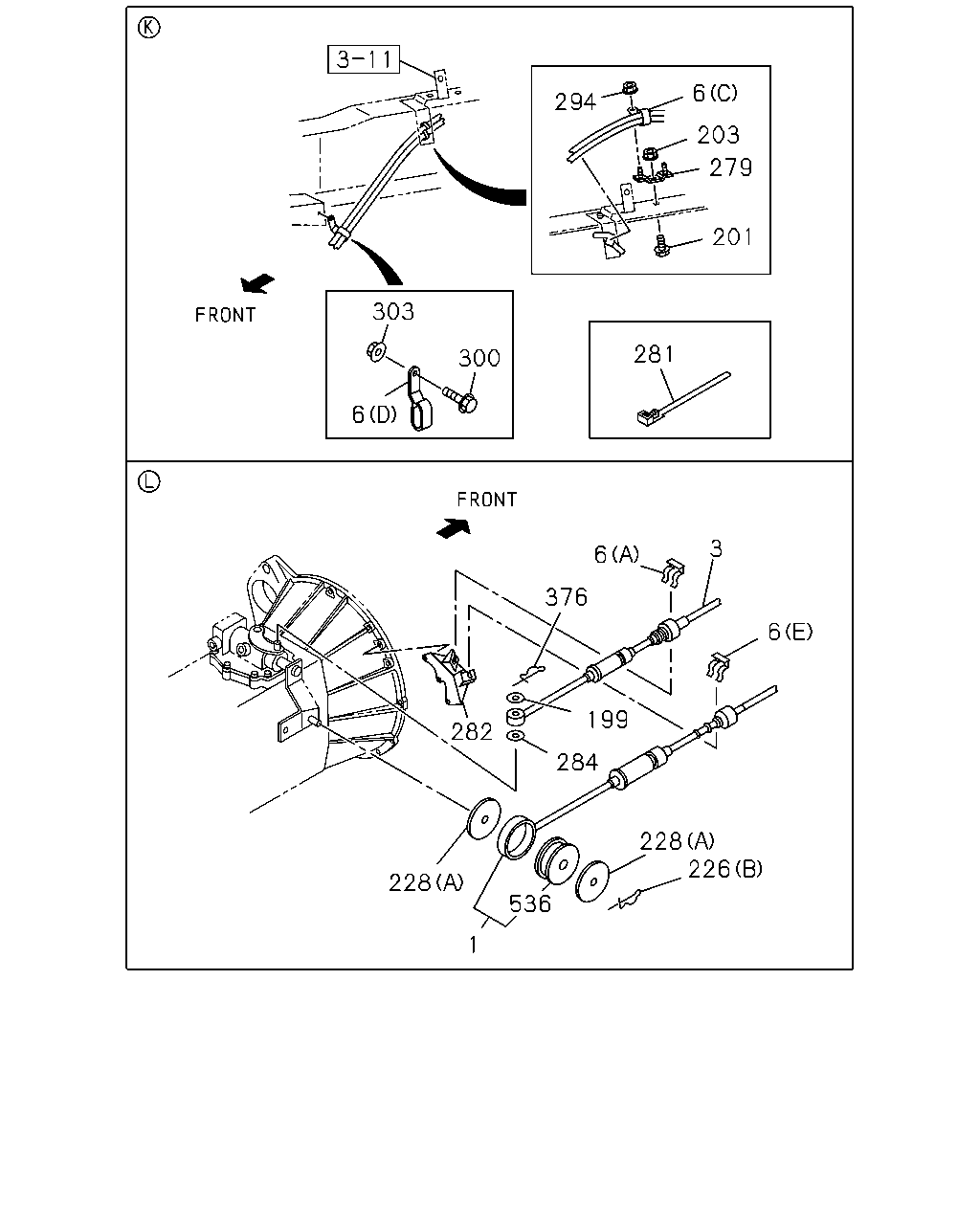

çizim 114140
6 294 203 279 201 303 281 300 6 3 6 376 6 199 282 284 228 226 228 536 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
L=2745 		8-97065-166-4 01 1 9704-9804 ●
1 CABLE; SHIFT,TRANS CONT
L=2745 		8-97203-057-0 01 1 9805-9809 ●
1 CABLE; SHIFT,TRANS CONT
L=2745 		8-97216-339-0 01 1 9810-0307 ●
1 CABLE; SHIFT,TRANS CONT
L=2776 		8-97350-415-1 01 1 0308-1111 ●
1 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) L=2776 		8-97350-415-1 01 1 1112- ●
1 CABLE; SHIFT,TRANS CONT
4HG1-T ENG(RDP) L=2776 		8-97350-417-1 01 1 1112- ●
3 CABLE; SELECT,TRANS CONT
L=2800 		8-97065-168-1 01 1 9704-9804 ●
3 CABLE; SELECT,TRANS CONT
L=2800 		8-97203-060-1 01 1 9805-0307 ●
3 CABLE; SELECT,TRANS CONT
L=2819 		8-97350-416-0 01 1 0308-1111 ●
3 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS) L=2819 		8-97350-416-0 01 1 1112- ●
3 CABLE; SELECT,TRANS CONT
4HG1-T ENG(RDP) L=2819 		8-97350-418-0 01 1 1112- ●
6 CLIP; CABLE
(A) ID=19.2 		8-94365-914-2 02 1 9704-9808 ●
6 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 9809-0307 ●
6 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 01 1 0308- ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9704-0307 ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0308- ●
6 CLIP; CABLE
(C) 		8-97028-508-2 01 1 9704-9804 ●
6 CLIP; CABLE
(C) ID=33X16.5 L=50 		5-09700-341-0 01 1 9805-0307 ●
6 CLIP; CABLE
(C) ID=33X16.5 L=50 		5-09700-341-0 01 1 0308- ●
6 CLIP; CABLE
(D) 		9-09917-171-0 01 1 9704-0307 ●
6 CLIP; CABLE
(D) 		9-09917-171-0 01 1 0308- ●
6 CLIP; CABLE
(E) ID=22.2 		1-09701-209-1 01 1 0308- ●
199 WASHER; PL,SELECT
ID=8.4 		9-09160-508-0 01 1 9704-0307 ●
199 WASHER; PL,SELECT
ID=8.4 		9-09160-508-0 01 1 0308-0605 ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ●
201 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9704-0307 ●
201 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0308-0512 ●
201 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
203 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 01 1 9704-0307 ●
203 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ●
203 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 9704-0307 ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 0308- ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9704-0307 ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0308- ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9704-9707 ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9708-0307 ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0308- ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 9704-0307 ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 0308-0605 ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606- ●
279 BRACKET; CABLE TO FRAME 8-97028-496-1 01 1 9704-0307 ●
279 BRACKET; CABLE TO FRAME 8-97028-496-1 01 1 0308- ●
281 CLIP; BAND
L=250 		5-09707-030-1 01 1 9704-0307 ●
281 CLIP; BAND
L=250 		5-09707-030-1 01 1 0308- ●
282 BRACKET; TRANS SIDE 8-97035-760-0 01 1 9704-9707 ●
282 BRACKET; TRANS SIDE 8-97182-260-0 01 1 9708-0307 ●
282 BRACKET; TRANS SIDE 8-97311-441-1 01 1 0308- ●
284 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9704-0307 ●
284 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0308- ●
294 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9704-0307 ●
294 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ●
294 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9704-0307 ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0308-0512 ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ●
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
376 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9704-0307 ●
376 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0308- ●
536 DAMPER; CABLE 8-98097-681-0 01 1 0711- ●

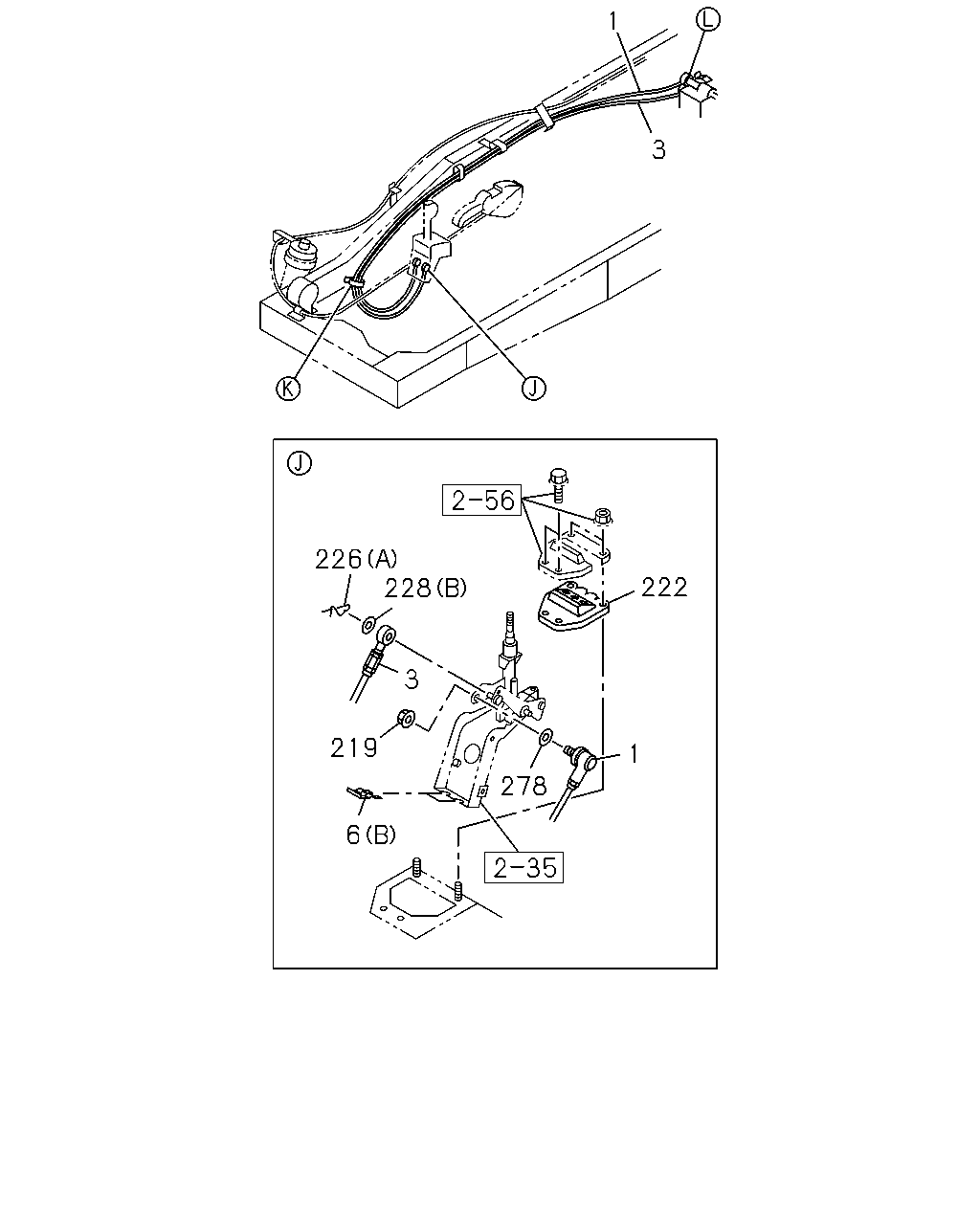

çizim 190494
1 3 226 228 222 3 219 1 278 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
L=2745 		8-97065-166-4 01 1 9704-9804 ●
1 CABLE; SHIFT,TRANS CONT
L=2745 		8-97203-057-0 01 1 9805-9809 ●
1 CABLE; SHIFT,TRANS CONT
L=2745 		8-97216-339-0 01 1 9810-0307 ●
1 CABLE; SHIFT,TRANS CONT
L=2776 		8-97350-415-1 01 1 0308-1111 ●
1 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) L=2776 		8-97350-415-1 01 1 1112- ●
1 CABLE; SHIFT,TRANS CONT
4HG1-T ENG(RDP) L=2776 		8-97350-417-1 01 1 1112- ●
3 CABLE; SELECT,TRANS CONT
L=2800 		8-97065-168-1 01 1 9704-9804 ●
3 CABLE; SELECT,TRANS CONT
L=2800 		8-97203-060-1 01 1 9805-0307 ●
3 CABLE; SELECT,TRANS CONT
L=2819 		8-97350-416-0 01 1 0308-1111 ●
3 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS) L=2819 		8-97350-416-0 01 1 1112- ●
3 CABLE; SELECT,TRANS CONT
4HG1-T ENG(RDP) L=2819 		8-97350-418-0 01 1 1112- ●
6 CLIP; CABLE
(A) ID=19.2 		8-94365-914-2 02 1 9704-9808 ●
6 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 9809-0307 ●
6 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 01 1 0308- ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9704-0307 ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0308- ●
6 CLIP; CABLE
(C) 		8-97028-508-2 01 1 9704-9804 ●
6 CLIP; CABLE
(C) ID=33X16.5 L=50 		5-09700-341-0 01 1 9805-0307 ●
6 CLIP; CABLE
(C) ID=33X16.5 L=50 		5-09700-341-0 01 1 0308- ●
6 CLIP; CABLE
(D) 		9-09917-171-0 01 1 9704-0307 ●
6 CLIP; CABLE
(D) 		9-09917-171-0 01 1 0308- ●
6 CLIP; CABLE
(E) ID=22.2 		1-09701-209-1 01 1 0308- ●
219 NUT; FLANGE,SHAFT CABLE
M8 T=8.0 		8-94363-045-0 01 1 9704-0307 ●
219 NUT; FLANGE,SHAFT CABLE
M8 T=8.0 		8-94363-045-0 01 1 0308- ●
222 GROMMET; CABLE 8-97065-212-1 01 1 9704-0307 ●
222 GROMMET; CABLE 8-97065-212-1 01 1 0308- ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 9704-0307 ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 0308- ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9704-0307 ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0308- ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9704-9707 ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9708-0307 ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0308- ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 9704-0307 ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 0308-0605 ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606- ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9704-0307 ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0308-0604 ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 0605- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
