◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#72397) — 134 parça

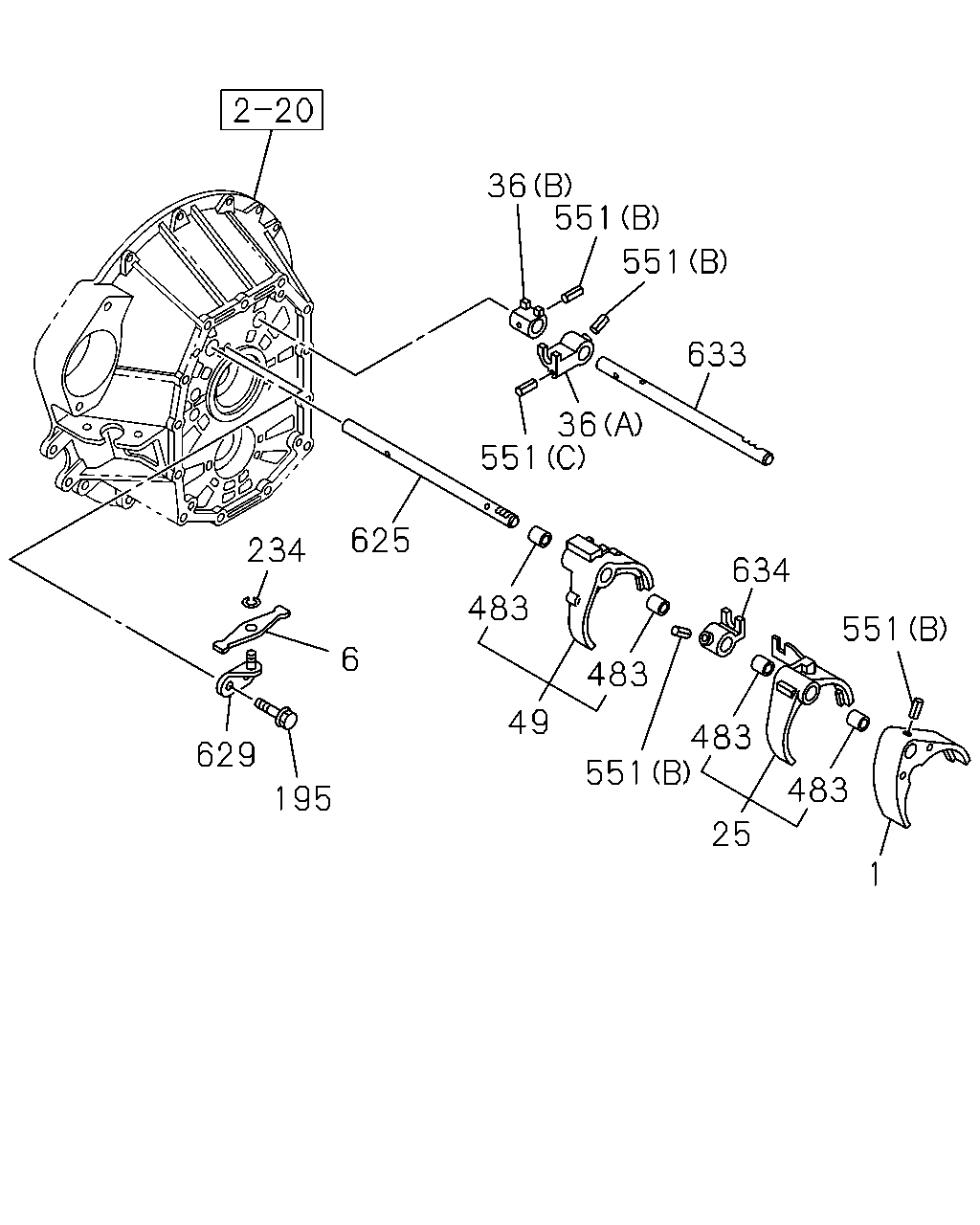

çizim 113375
36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 8-97034-825-1 01 1 9704-0307 ●
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0308- ●
6 LEVER; RELAY 8-97241-344-0 01 1 0308- ●
25 ARM; SHIFT,2ND & 3RD 8-97034-826-2 01 1 9704-0307 ●
25 ARM; SHIFT,2ND & 3RD 8-97355-690-0 01 1 0308-0404 ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 0405-1407 ●
25 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ●
36 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 0308- ●
36 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 0308- ●
49 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 0308- ●
195 BOLT
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0308-0604 ●
195 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605- ●
234 RING; SNAP
ID=12 		8-94460-357-0 01 1 0308- ●
483 BUSHING; SHIFT ARM 8-97241-326-2 04 1 0308- ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0308- ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0308- ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0308- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97241-333-3 01 1 0308-0404 ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 0405- ●
629 BRIDGE; LEVER 8-97237-107-1 01 1 0308- ●
633 ROD; GEAR SHIFT,4TH,5TH 8-97358-832-0 01 1 0308-0404 ●
633 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 0405- ●
634 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 0308- ●

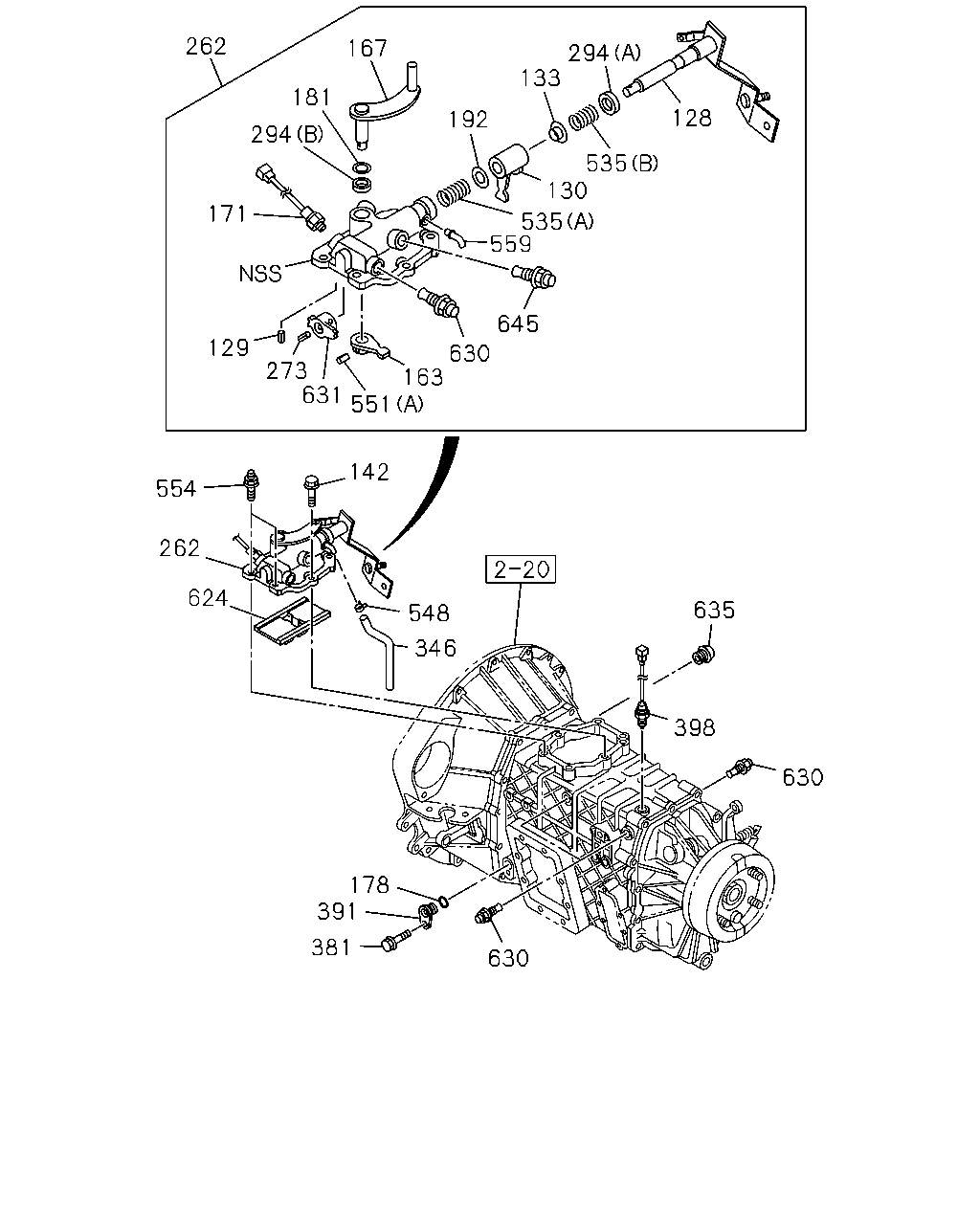

çizim 190493
262 167 294 133 181 128 192 294 535 130 171 535 559 645 129 630 163 551 273 631 142 554 262 624 635 548 346 398 630 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date A B
128 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 0308- ●
129 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 0308- ●
130 LEVER; SHIFT,INTERNAL 8-94340-131-2 01 1 9704-0307 ●
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0308- ●
133 SEAT; SPR 8-97305-667-0 01 1 0308- ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-94448-815-3 04 1 0308-0604 ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 0605- ●
163 LEVER; SELECT,INTERNAL 8-97034-886-0 01 1 9704-0307 ●
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 0308- ●
167 LEVER; SELECT,EXTERNAL 8-97035-558-1 01 1 9704-0307 ●
167 LEVER; SELECT,EXTERNAL 8-97306-648-0 01 1 0308-0611 ●
167 LEVER; SELECT,EXTERNAL 8-98039-434-0 01 1 0612- ●
171 SWITCH; NEUTRAL 8-97165-946-1 01 1 9704-0307 ●
171 SWITCH; NEUTRAL 8-97316-688-1 01 1 0308-0611 ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0612-1312 ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ●
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09571-612-0 01 1 9704-0307 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 0308- ●
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 0308- ●
192 WASHER; PL 8-97305-661-0 01 1 0308- ●
262 BOX ASM; SHIFT CONT 8-97256-825-7 01 1 0308-0404 ●
262 BOX ASM; SHIFT CONT 8-97362-750-2 01 1 0405-1312 ●
262 BOX ASM; SHIFT CONT 8-98240-999-2 01 1 1401- ●
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 0308- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 0308- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 0308- ●
346 HOSE; AIR 8-97309-855-0 01 1 0308- ●
381 BOLT
M6X16 FLANGE 		0-28680-616-0 01 1 0308-0512 ●
381 BOLT
M6X16 FLANGE 		0-28650-616-0 01 1 0601- ●
391 PLUG; SW HOLE 8-97300-273-1 01 1 0308- ●
398 SWITCH; REV LAMP 8-97165-947-1 01 1 9704-0307 ●
398 SWITCH; REV LAMP 8-97316-688-1 01 1 0308-0604 ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0605-1312 ●
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ●
535 SPRING; LEVER
(A) 		8-97323-771-0 01 1 0308- ●
535 SPRING; LEVER
(B) 		8-97323-772-0 01 1 0308- ●
548 CLIP; HOSE 8-97031-674-0 01 1 0308- ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0308- ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0308- ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0308- ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97352-677-0 02 1 0308-0604 ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 0605- ●
559 PIPE; BREATHER 8-97305-517-0 01 1 0308-0604 ●
559 PIPE; BREATHER 8-97358-318-0 01 1 0605- ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0308- ●
630 DETENT ASM 8-97241-341-0 03 1 0308-0604 ●
630 DETENT ASM 8-98019-536-0 03 1 0605- ●
631 STOPPER; SPRING 8-97305-666-0 01 1 0308- ●
635 PLUG; DETENT 8-97229-313-2 01 1 0308-0611 ●
635 PLUG; DETENT 8-97380-892-0 01 1 0612- ●
645 DETENT ASM 8-97241-341-0 01 1 0405-0604 ●
645 DETENT ASM 8-98019-536-0 01 1 0605- ●

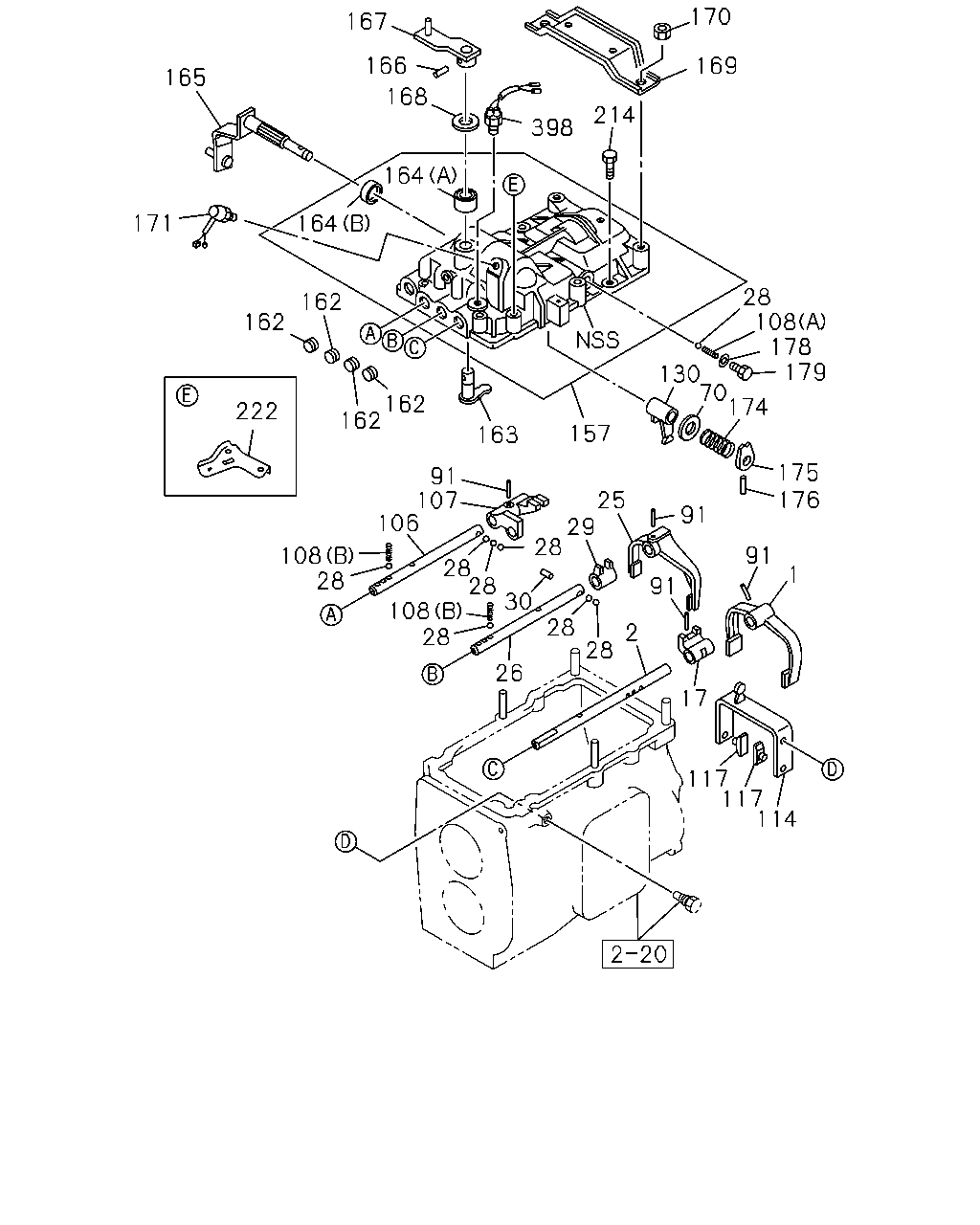

çizim 190495
170 167 166 169 165 168 214 398 164 171 164 28 108 178 179 162 162 130 70 174 162 162 222 157 163 175 176 91 107 106 25 29 28 91 91 108 28 28 28 30 108 28 1 91 28 2 28 26 17 117 117 114
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 8-97034-825-1 01 1 9704-0307 ●
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0308- ●
2 ROD; SHIFT,1ST & REV 8-97034-820-0 01 1 9704-0307 ●
17 BLOCK; SHIFT,1ST & REV 8-97034-829-1 01 1 9704-0307 ●
25 ARM; SHIFT,2ND & 3RD 8-97034-826-2 01 1 9704-0307 ●
25 ARM; SHIFT,2ND & 3RD 8-97355-690-0 01 1 0308-0404 ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 0405-1407 ●
25 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ●
26 ROD; SHIFT,2ND & 3RD 8-97129-493-0 01 1 9704-0307 ●
28 BALL; INTER LK 9-00097-010-0 07 1 9704-0307 ●
29 BLOCK; SHIFT,2ND & 3RD 8-97034-830-0 01 1 9704-0307 ●
30 PIN; INTER LK 8-97035-041-0 01 1 9704-0307 ●
70 WASHER; PL,SHIFT LEVER 8-94461-345-0 01 1 9704-0307 ●
91 PIN; SPR,SHIFT ARM
L=25 OD=5 		8-94135-771-0 03 1 9704-0307 ●
91 PIN; SPR,SHIFT ARM
L=32 		8-97011-596-2 02 1 9704-0307 ●
106 ROD; SHIFT,OD TO TOP 8-97166-578-0 01 1 9704-0307 ●
107 BLOCK; SHIFT,OD TO TOP 8-97034-832-0 01 1 9704-0307 ●
108 SPRING; LOCK BALL
(A) 		8-97035-053-0 01 1 9704-0307 ●
108 SPRING; LOCK BALL
(B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9704-0307 ●
114 ARM; SHIFT,OD TO TOP 8-97034-827-1 01 1 9704-0307 ●
117 PIECE; SHIFT,OD TO TOP 8-94316-996-0 02 1 9704-0307 ●
130 LEVER; SHIFT,INTERNAL 8-94340-131-2 01 1 9704-0307 ●
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0308- ●
157 BOX; QUAD,TRANS 8-97167-640-0 01 1 9704-9911 ●
157 BOX; QUAD,TRANS 8-97249-547-0 01 1 9912-0307 ●
162 COVER; SHIFT ROD,QUAD BOX 8-94101-319-0 04 1 9704-0307 ●
163 LEVER; SELECT,INTERNAL 8-97034-886-0 01 1 9704-0307 ●
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 0308- ●
164 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27 		8-94128-784-0 01 1 9704-0011 ●
164 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27 		8-97304-068-0 01 1 0012-0307 ●
164 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32 		8-94462-019-0 01 1 9704-0011 ●
164 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32 		8-97304-066-0 01 1 0012-0307 ●
165 LEVER; SHIFT 8-97034-816-0 01 1 9704-0307 ●
166 PIN; SPR,SELECT LEVER
L=25 OD=5 		8-94135-771-0 01 1 9704-0307 ●
167 LEVER; SELECT,EXTERNAL 8-97035-558-1 01 1 9704-0307 ●
167 LEVER; SELECT,EXTERNAL 8-97306-648-0 01 1 0308-0611 ●
167 LEVER; SELECT,EXTERNAL 8-98039-434-0 01 1 0612- ●
168 WASHER; LK,SELECT LEVER 8-94249-250-1 01 1 9704-0307 ●
169 BRACKET; ENG MTG TO TRANS 8-94112-892-2 02 1 9704-0307 ●
170 NUT; CONT BOX
M12 FLANGE 		8-94249-242-0 04 1 9704-0307 ●
171 SWITCH; NEUTRAL 8-97165-946-1 01 1 9704-0307 ●
171 SWITCH; NEUTRAL 8-97316-688-1 01 1 0308-0611 ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0612-1312 ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ●
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ●
174 SPRING; REV 8-97035-052-0 01 1 9704-0307 ●
175 RING; STOPPER,SHIFT LEVER 8-97034-819-0 01 1 9704-0307 ●
176 PIN; SPR,STOPPER
L=30 OD=4 		9-09678-549-0 02 1 9704-0307 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09571-612-0 01 1 9704-0307 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 0308- ●
179 PLUG; LOCK BALL 8-97031-668-0 01 1 9704-0307 ●
214 BOLT; CONT BOX,SUB TRANS
M8X25 		8-94128-786-0 04 1 9704-0307 ●
214 BOLT; CONT BOX,SUB TRANS
M8X45 		8-94132-164-0 06 1 9704-0307 ●
222 BRACKET; CLIP 8-97061-051-0 01 1 9704-0307 ●
398 SWITCH; REV LAMP 8-97165-947-1 01 1 9704-0307 ●
398 SWITCH; REV LAMP 8-97316-688-1 01 1 0308-0604 ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0605-1312 ●
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
