2-26 — MANUAL TRANSMISSION GEAR (#72396) — 175 parça

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0308-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0308-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0308-	●
108	SHAFT; COUNTER Z=45-49-33-20	8-97326-590-0	01	1	0308-0404	●
108	SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	0405-	●
132	SHAFT; REV	8-94415-162-1	01	1	9704-0307		●
132	SHAFT; REV	8-97252-655-0	01	1	0308-	●
135	GEAR; REV IDLER Z=27	5-33361-042-2	01	1	9704-0307		●
135	GEAR; REV IDLER Z=25	8-97241-293-0	01	1	0308-0512	●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	0601-	●
268	PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	0308-	●
314	BEARING; NEEDLE,REV GEAR NSK	9-00096-638-0	01	1	9704-0307		●
314	BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	9802-0307		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0308-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0308-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0308-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0308-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0308-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0308-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0308-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0308-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0308-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0308-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.95	8-97320-549-0	01	1	0308-0404	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=3.01	8-97320-550-0	01	1	0308-0404	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=3.07	8-97320-551-0	01	1	0308-0404	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=3.13	8-97320-552-0	01	1	0308-0404	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=3.19	8-97320-553-0	01	1	0308-0404	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0405-	●
408	SPRING (B)	8-94148-196-0	03	1	0308-	●
408	SPRING (A)	8-94422-075-0	02	1	0308-0404	●
408	SPRING (A)	8-97366-040-1	02	1	0405-	●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0308-	●
510	PIN; STRAIGHT,ANTI LASH	9-08160-825-0	03	1	0308-	●
511	RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0308-	●

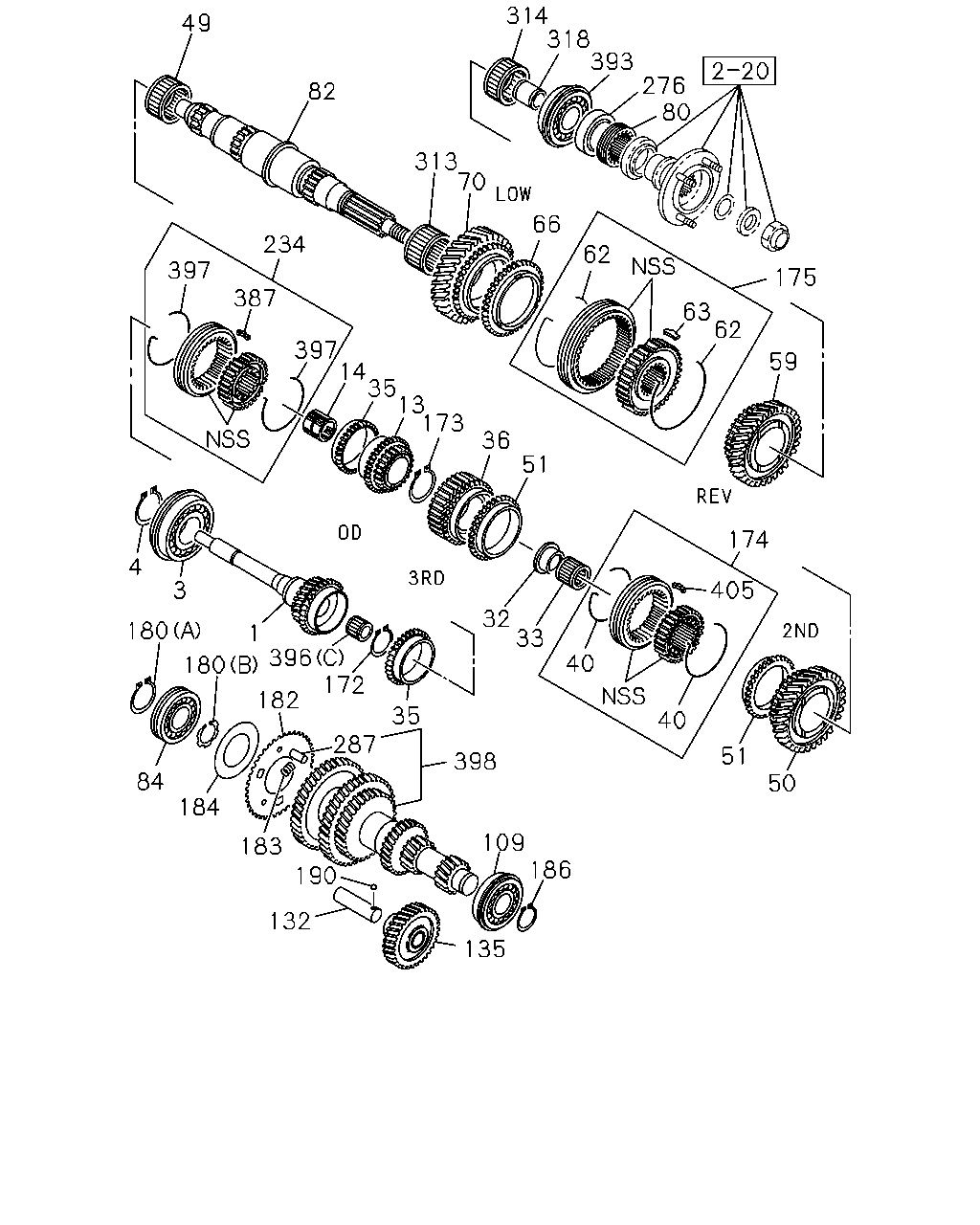

314 318 393 276 80 49 82 313 70 66 234 62 397 175 387 63 62 397 14 35 13 173 59 36 51 174 4 3 405 32 33 180 1 396 172 40 180 182 35 40 287 51 398 84 50 184 109 186 183 190 132 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=29	8-97168-980-0	01	1	9704-0307		●
1	SHAFT; TOP GEAR,TRANS Z=28	8-97252-924-1	01	1	0308-	●
3	BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	9704-0307		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0308-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT	8-97035-040-0	01	1	9704-0307		●
13	GEAR; 5TH,MAINSHAFT Z=23	8-97034-856-0	01	1	9704-0307		●
14	BEARING; NEEDLE,5TH	8-97147-572-0	01	1	9704-0307		●
32	COLLAR; 3RD GEAR	8-94178-500-2	01	1	9704-0307		●
33	BEARING; NEEDLE,3RD GEAR NSK	9-00096-638-0	01	1	9704-0307		●
33	BEARING; NEEDLE,3RD GEAR NTN	8-97201-005-0	01	1	9802-0307		●
35	RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	9704-0307		●
36	GEAR; 3RD,MAINSHAFT Z=37	8-97091-430-1	01	1	9704-0307		●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0308-	●
40	SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	9704-0307		●
49	BEARING; NEEDLE,2ND GEAR NSK	9-00096-638-0	01	1	9704-0307		●
49	BEARING; NEEDLE,2ND GEAR NTN	8-97201-005-0	01	1	9802-0307		●
50	GEAR; 2ND,MAINSHAFT Z=37	8-94178-506-4	01	1	9704-0105		●
50	GEAR; 2ND,MAINSHAFT Z=37	8-97315-471-0	01	1	0106-0307		●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0308-	●
51	RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	9704-0307		●
59	GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	9704-0307		●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0308-	●
62	SPRING; INSERT,REV & 5TH	8-97023-709-0	02	1	9704-0307		●
63	INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	9704-0307		●
66	RING; BLOCK,SYN Z=45	8-97061-752-0	01	1	9704-0307		●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	9704-0307		●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97241-242-1	01	1	0308-0404	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	0405-	●
80	GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	9704-0307		●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0308-	●
82	SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	9704-0307		●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0308-	●
84	BEARING; COUNTER SHAFT,FRT NSK	8-97035-048-0	01	1	9704-0307		●
109	BEARING; COUNTER SHAFT,RR	8-97035-049-0	01	1	9704-0307		●
132	SHAFT; REV	8-94415-162-1	01	1	9704-0307		●
132	SHAFT; REV	8-97252-655-0	01	1	0308-	●
135	GEAR; REV IDLER Z=27	5-33361-042-2	01	1	9704-0307		●
135	GEAR; REV IDLER Z=25	8-97241-293-0	01	1	0308-0512	●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	0601-	●
172	RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	9704-0307		●
172	RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	9704-0307		●
172	RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	9704-0307		●
173	RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	9704-0307		●
173	RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	9704-0307		●
173	RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	9704-0307		●
173	RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	9704-0307		●
174	SYNCHRONIZER ASM; 2ND-3RD	8-97091-432-0	01	1	9704-9711		●
174	SYNCHRONIZER ASM; 2ND-3RD	8-97190-992-0	01	1	9712-0307		●
175	SYNCHRONIZER; LOW-REV	8-97091-434-0	01	1	9704-0307		●
180	RING; SNAP,CLUSTER GEAR (B) ID=44.5	5-09589-010-0	01	1	9704-0307		●
180	RING; SNAP,CLUSTER GEAR (A) ID=32.2	9-09180-035-0	01	1	9704-0307		●
182	PLATE; CLUSTER GEAR	8-94131-924-1	01	1	9704-0307		●
183	SPRING; PLATE,CLUSTER GEAR	8-94148-196-0	03	1	9704-0307		●
184	SPRING; CLUSTER GEAR	8-94101-320-0	01	1	9704-0307		●
186	RING; SNAP,CLUSTER GEAR ID=32.2	9-09180-035-0	01	1	9704-0307		●
190	BALL; LK,REV SHAFT	9-00097-509-0	01	1	9704-0307		●
234	SYNCHRONIZER ASM; 4TH TO 5TH	8-97034-841-1	01	1	9704-0307		●
276	SPACER; BRG TO DRIVE GEAR	8-97034-876-0	01	1	9704-0307		●
287	PIN; COUNTER GEAR	8-94402-462-0	03	1	9704-0307		●
313	BEARING; NEEDLE,LOW GEAR NSK	9-00096-638-0	01	1	9704-0307		●
313	BEARING; NEEDLE,LOW GEAR NTN	8-97201-005-0	01	1	9802-0307		●
314	BEARING; NEEDLE,REV GEAR NSK	9-00096-638-0	01	1	9704-0307		●
314	BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	9802-0307		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0308-	●
318	COLLAR; DIST,REV GEAR	8-97076-908-0	01	1	9704-0307		●
387	INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	9704-0307		●
393	BEARING; MAINSHAFT END	8-94178-731-0	01	1	9704-0307		●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	0308-	●
396	BEARING; NEEDLE,MAINSHAFT (C)	8-97035-050-0	01	1	9704-9904		●
396	BEARING; NEEDLE,MAINSHAFT (C)	8-97228-274-0	01	1	9905-0307		●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0308-	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0308-	●
397	SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	9704-0307		●
398	GEAR; COUNTER Z=45-49-36-20-14-13	8-97075-976-0	01	1	9704-0307		●
405	INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	9704-0307		●

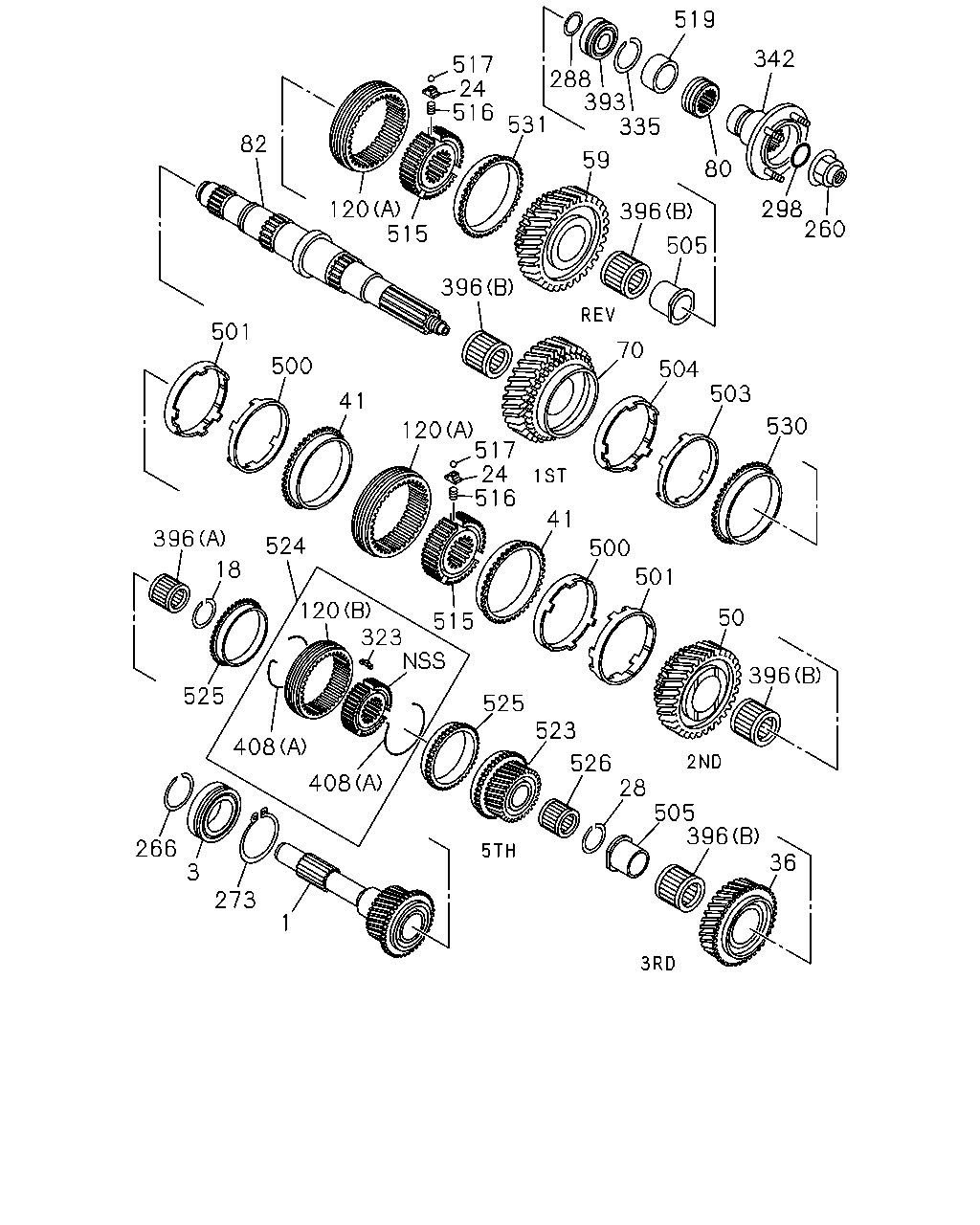

519 342 517 24 516 288 393 335 531 82 59 80 120 515 298 260 396 505 396 501 70 500 504 503 41 530 120 517 24 516 41 396 524 500 18 501 120 323 50 515 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=29	8-97168-980-0	01	1	9704-0307		●
1	SHAFT; TOP GEAR,TRANS Z=28	8-97252-924-1	01	1	0308-	●
3	BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	9704-0307		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0308-	●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0308-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	06	1	0308-	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0308-	●
36	GEAR; 3RD,MAINSHAFT Z=37	8-97091-430-1	01	1	9704-0307		●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0308-	●
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0308-	●
50	GEAR; 2ND,MAINSHAFT Z=37	8-94178-506-4	01	1	9704-0105		●
50	GEAR; 2ND,MAINSHAFT Z=37	8-97315-471-0	01	1	0106-0307		●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0308-	●
59	GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	9704-0307		●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0308-	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	9704-0307		●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97241-242-1	01	1	0308-0404	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	0405-	●
80	GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	9704-0307		●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0308-	●
82	SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	9704-0307		●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0308-	●
120	SLEEVE (B) Z=45	8-94421-871-1	01	1	0308-	●
120	SLEEVE (A) Z=45	8-97241-296-1	02	1	0308-1311	●
120	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-	●
260	NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0308-0604	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	0605-	●
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	0308-	●
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0308-	●
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0308-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-94481-411-0	01	1	0308-0507	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	0508-	●
323	INSERT	8-94448-202-2	03	1	0308-	●
335	RING; SNAP,BEARING	8-97254-722-0	01	1	0308-	●
342	FLANGE; OUTPUT	8-97252-814-1	01	1	0308-0604	●
342	FLANGE; OUTPUT	8-98031-640-0	01	1	0605-	●
393	BEARING; MAINSHAFT END	8-94178-731-0	01	1	9704-0307		●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	0308-	●
396	BEARING; NEEDLE,MAINSHAFT (C)	8-97035-050-0	01	1	9704-9904		●
396	BEARING; NEEDLE,MAINSHAFT (C)	8-97228-274-0	01	1	9905-0307		●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0308-	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0308-	●
408	SPRING (B)	8-94148-196-0	03	1	0308-	●
408	SPRING (A)	8-94422-075-0	02	1	0308-0404	●
408	SPRING (A)	8-97366-040-1	02	1	0405-	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0308-	●
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0308-	●
503	RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	0308-	●
504	RING; INSIDE,LOW & REV	8-97241-312-1	01	1	0308-	●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	0308-	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	0308-	●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0308-	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0308-	●
519	COLLAR; MAINSHAFT END,5TH	8-97252-940-0	01	1	0308-	●
523	GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	0308-	●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97300-195-0	01	1	0308-0404	●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	0405-	●
525	RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	0308-	●
526	BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	0308-	●
530	RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	0308-	●
531	RING; BLOCK,REV Z=45	8-97368-343-0	01	1	0308-	●
