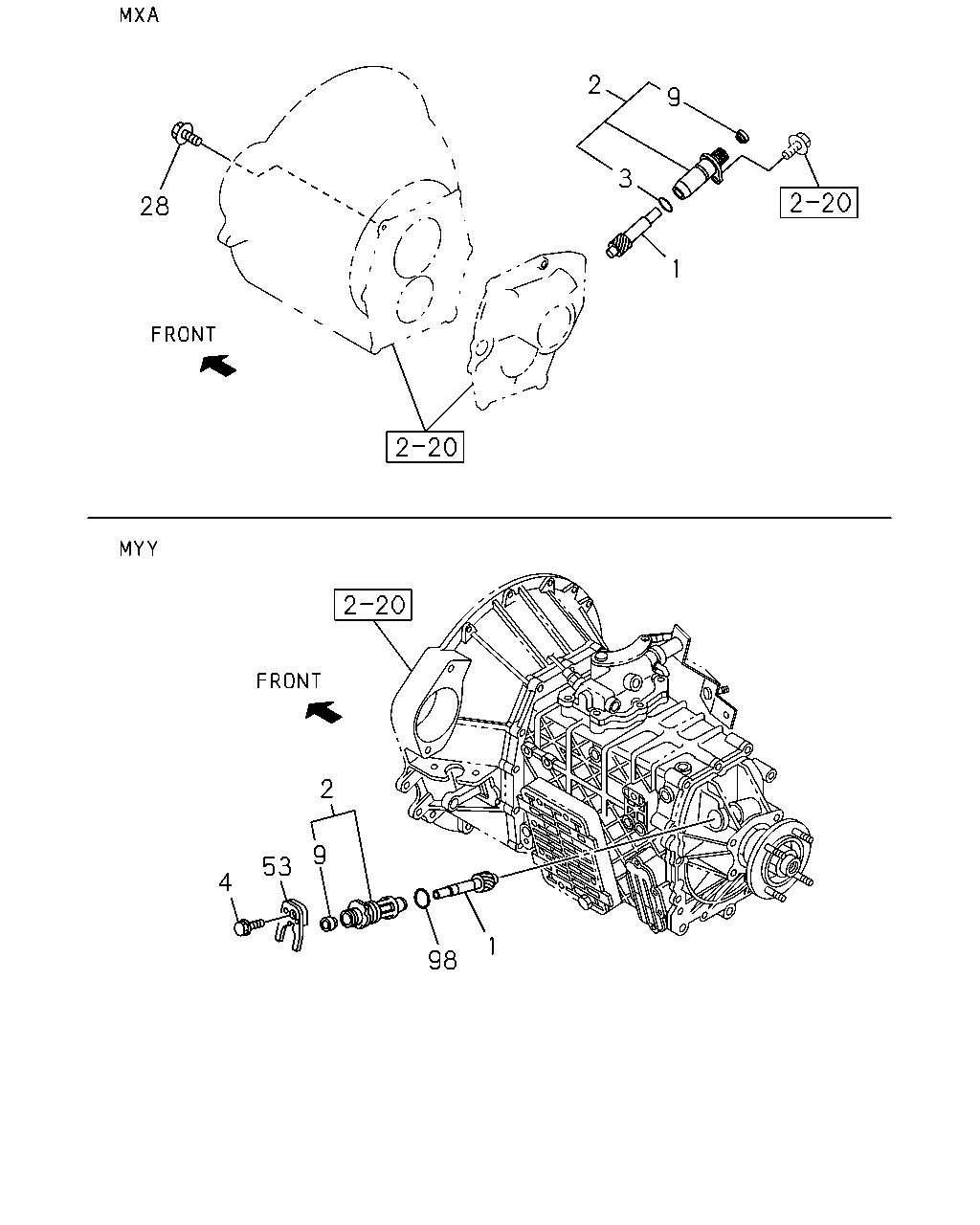

2-25 — SPEEDOMETER DRIVEN GEAR (#72395) — 33 parça

2 9 3 28 1 2 9 53 4 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 39/7(GV1) Z=14	8-97253-561-1	01	1	0308-1110	●	●
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 39/7(GV1) Z=14	8-97253-561-1	01	1	1111-1111		●
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 43/8(R40) Z=14	8-97253-561-1	01	1	1112-	●
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/8(R40) Z=14	8-97253-561-1	01	1	1112-		●
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 41/7(R41) Z=15	8-97253-560-1	01	1	0308-1110	●
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) Z=15	8-97253-560-1	01	1	0308-1110		●
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) Z=15	8-97253-560-1	01	1	1111-	●
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 41/7(R41) Z=15	8-97253-560-1	01	1	1111-		●
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 43/7(R42) Z=16	8-97253-558-1	01	1	0308-1110	●
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 43/7(R42) Z=16	8-97253-558-1	01	1	1111-	●	●
1	GEAR; DRIVEN,SPD M/T MXA5R(RMT) FINAL GEAR RATIO 41/7(R41) Z=15	8-94249-063-0	01	1	9704-0307	●
1	GEAR; DRIVEN,SPD M/T MXA5R(RMT) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) Z=15	8-94249-063-0	01	1	9704-0307		●
1	GEAR; DRIVEN,SPD M/T MXA5R(RMT) FINAL GEAR RATIO 43/7(R42) Z=16	8-94249-064-0	01	1	9704-0307	●
1	GEAR; DRIVEN,SPD M/T MXA5R(RMT) FINAL GEAR RATIO 39/7(GV1) Z=14	8-94249-062-0	01	1	9704-0307	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY5T(RSM) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) MARK "12,13,14,15"	8-97253-125-0	01	1	0308-1110	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY5T(RSM) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) MARK "12,13,14,15"	8-97253-125-0	01	1	0308-1110		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY5T(RSM) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) MARK "12,13,14,15"	8-97253-125-0	01	1	1111-1111	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY5T(RSM) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 41/7(R41) MARK "12,13,14,15"	8-97253-125-0	01	1	1112-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY5T(RSM) FINAL GEAR RATIO 43/7(R42) MARK "10,11,16,17"	8-97253-124-0	01	1	0308-1110	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY5T(RSM) FINAL GEAR RATIO 43/7(R42) MARK "10,11,16,17"	8-97253-124-0	01	1	1111-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT) FINAL GEAR RATIO 41/7(R41) Z=15 MARK "5"	8-97080-361-1	01	1	9704-0307	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) Z=15 MARK "5"	8-97080-361-1	01	1	9704-0307		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT) FINAL GEAR RATIO 43/7(R42) Z=16 MARK "6"	8-97080-362-1	01	1	9704-0307	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT) FINAL GEAR RATIO 39/7(GV1) Z=14 MARK "4"	8-97080-360-1	01	1	9704-0307	●	●
3	GASKET; BUSHING M/T MXA5R(RMT)	9-09920-852-0	01	1	9704-0307	●	●
4	BOLT; RET,DRIVEN GEAR M/T MYY5T(RSM) M8X20 FLANGE	0-28680-820-0	01	1	0308-0512	●	●
4	BOLT; RET,DRIVEN GEAR M/T MYY5T(RSM) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
9	SEAL; OIL,DRIVEN GEAR M/T MXA5R(RMT) NOK	8-97080-507-0	01	1	9704-0307	●	●
9	SEAL; OIL,DRIVEN GEAR M/T MYY5T(RSM) NOK	8-97131-328-1	01	1	0308-	●	●
28	BOLT; TRANS CASE TO HSG M/T MXA5R(RMT) M12X35 FLANGE	8-94249-246-0	06	1	9704-0307	●	●
53	PLATE; LOCK,DRIVEN GEAR M/T MYY5T(RSM)	8-97252-679-2	01	1	0308-0604	●	●
53	PLATE; LOCK,DRIVEN GEAR M/T MYY5T(RSM)	8-98046-217-0	01	1	0605-	●	●
98	SEAL; OIL,BUSH M/T MYY5T(RSM)	9-09561-324-0	01	1	0308-	●	●
