2-20 — MANUAL TRANSMISSION ASM AND CASE (#72394) — 160 parça

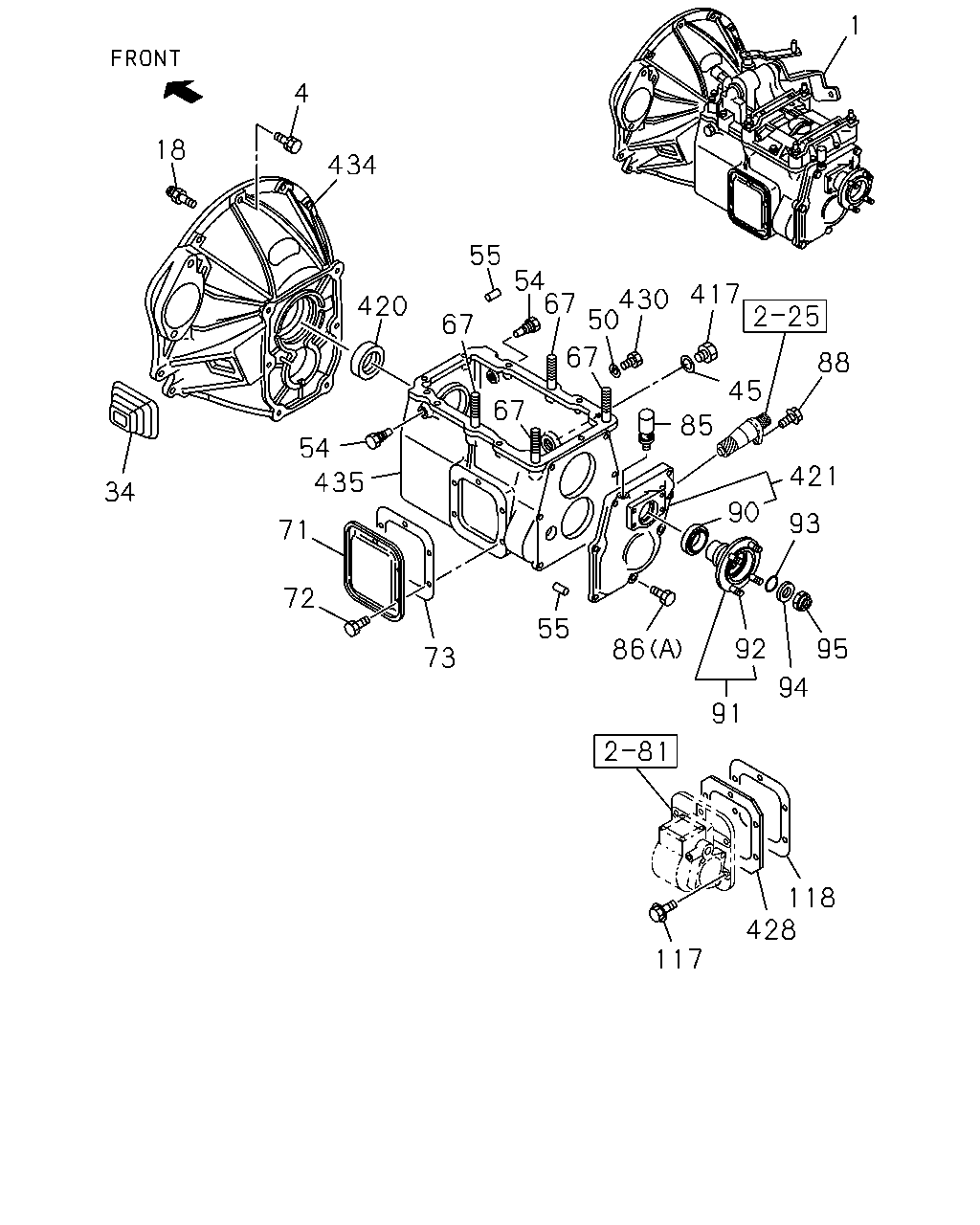

1 4 18 434 55 54 67 417 430 50 420 67 67 88 45 67 85 54 421 435 34 90 93 71 72 55 92 95 86 73 94 91 118 428 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	8-97161-342-1	01	1	9704-0307	●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-97350-617-0	01	1	0308-0404		●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0405-		●
1	TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-97350-617-0	01	1	0308-0404		●
1	TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0405-		●
4	BOLT; FLYWHEEL HSG M10X30 FLANGE	0-28181-030-0	02	1	9704-0307	●
4	BOLT; FLYWHEEL HSG EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28181-030-0	02	1	9704-0307	●
4	BOLT; FLYWHEEL HSG M10X30 FLANGE	0-28181-030-0	02	1	0308-0512		●
4	BOLT; FLYWHEEL HSG EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28181-030-0	02	1	0308-0512		●
4	BOLT; FLYWHEEL HSG M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28181-035-0	03	1	9704-0307	●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28181-035-0	03	1	0308-0512		●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28151-035-0	03	1	0601-		●
4	BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	9704-0307	●
4	BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0308-0805		●
4	BOLT; FLYWHEEL HSG M10X55 FLANGE	8-97365-449-0	02	1	0806-		●
4	BOLT; FLYWHEEL HSG PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28181-035-0	02	1	9704-0307	●
4	BOLT; FLYWHEEL HSG PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28181-035-0	02	1	0308-0512		●
4	BOLT; FLYWHEEL HSG PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28151-035-0	02	1	0601-		●
18	SUPPORT; DRAW LEVER L=47.5	5-31345-002-1	01	1	9704-9903	●
18	SUPPORT; DRAW LEVER L=47.5	8-97225-469-1	01	1	9904-0307	●
34	COVER; DUST,SHIFT FORK	8-97017-333-0	01	1	9704-0307	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.3	8-94336-511-0	01	1	9704-0307	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0308-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.3	8-94336-511-0	01	1	9704-0307	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0308-		●
54	BOLT; FULCRUM	8-97171-503-0	02	1	9704-0307	●
55	PIN; KNOCK,CASE,TRANS	9-08161-016-0	02	1	9704-0307	●
67	STUD; CASE TRANS	5-09302-011-0	04	1	9704-0307	●
71	COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	9704-0307	●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0308-		●
72	BOLT; SIDE COVER M10X12 FLANGE	8-94128-791-0	06	1	9704-0307	●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	8-97254-833-0	06	1	0308-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	9-33142-601-0	01	1	9704-0307	●
85	BREATHER; RR COVER	8-97165-939-0	01	1	9704-0307	●
86	BOLT; RR COVER (A) M10X50	8-94318-782-0	01	1	9704-0307	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28181-040-0	10	1	0308-0512		●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	10	1	0601-		●
86	BOLT; RR COVER (A) M10X30 FLANGE	8-94482-338-0	06	1	9704-0307	●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0308-0604		●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-		●
88	SCREW; SPEEDOMETER BUSHING M8X12	8-94128-785-0	01	1	9704-0307	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). JTEKT	8-97036-167-0	01	1	9704-9709	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97074-651-0	01	1	9704-0008	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97257-296-0	01	1	0009-0307	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0308-		●
91	DRIVER; COUPLING	8-97011-344-2	01	1	9704-0005	●
91	DRIVER; COUPLING	8-97212-108-0	01	1	0006-0307	●
92	BOLT; COUPLING DRIVER	8-97109-697-1	04	1	9704-0307	●
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T).	8-94178-725-0	01	1	9704-0307	●
94	WASHER; COUPLING DRIVER	8-94249-240-0	01	1	9704-0307	●
95	NUT; MAINSHAFT M24 FLANGE	8-97087-750-0	01	1	9704-0307	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 W/LK WASHER	0-50041-025-0	04	1	9704-0307	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28781-030-0	03	1	0308-0512		●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28751-030-0	03	1	0601-		●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 W/LK WASHER	0-50041-030-0	02	1	9704-9705	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28081-030-0	02	1	9706-0302	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 W/LK WASHER	0-50041-030-0	02	1	0303-0307	●
118	GASKET; PTO TO TRANS PTO TRANSMISSION SIDE(V66)	9-38113-603-0	02	1	9704-9705	●
417	PLUG; OIL FILLER,TRANS M18	8-94337-946-1	01	1	9704-0307	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0308-0604		●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-		●
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97017-350-0	01	1	9704-0307	●
421	COVER; RR,TRANS	8-97034-809-0	01	1	9704-0008	●
421	COVER; RR,TRANS	8-97249-001-1	01	1	0009-0307	●
421	COVER; RR,TRANS	8-97252-621-0	01	1	0308-0507		●
421	COVER; RR,TRANS	8-98020-029-0	01	1	0508-		●
428	PLATE; DIST PTO TRANSMISSION SIDE(V66)	8-97026-807-0	01	1	9704-9705	●
430	PLUG; OIL DRAIN	8-94336-512-1	01	1	9704-0307	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0308-0604		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-		●
434	HOUSING; CLU	8-97034-801-2	01	1	9704-0307	●
434	HOUSING; CLU	8-97237-099-5	01	1	0308-		●
435	CASE; TRANS	8-97034-803-2	01	1	9704-9903	●
435	CASE; TRANS	8-97204-132-1	01	1	9904-0307	●
435	CASE; TRANS	8-97252-623-7	01	1	0308-0403		●
435	CASE; TRANS	8-97379-375-0	01	1	0404-		●

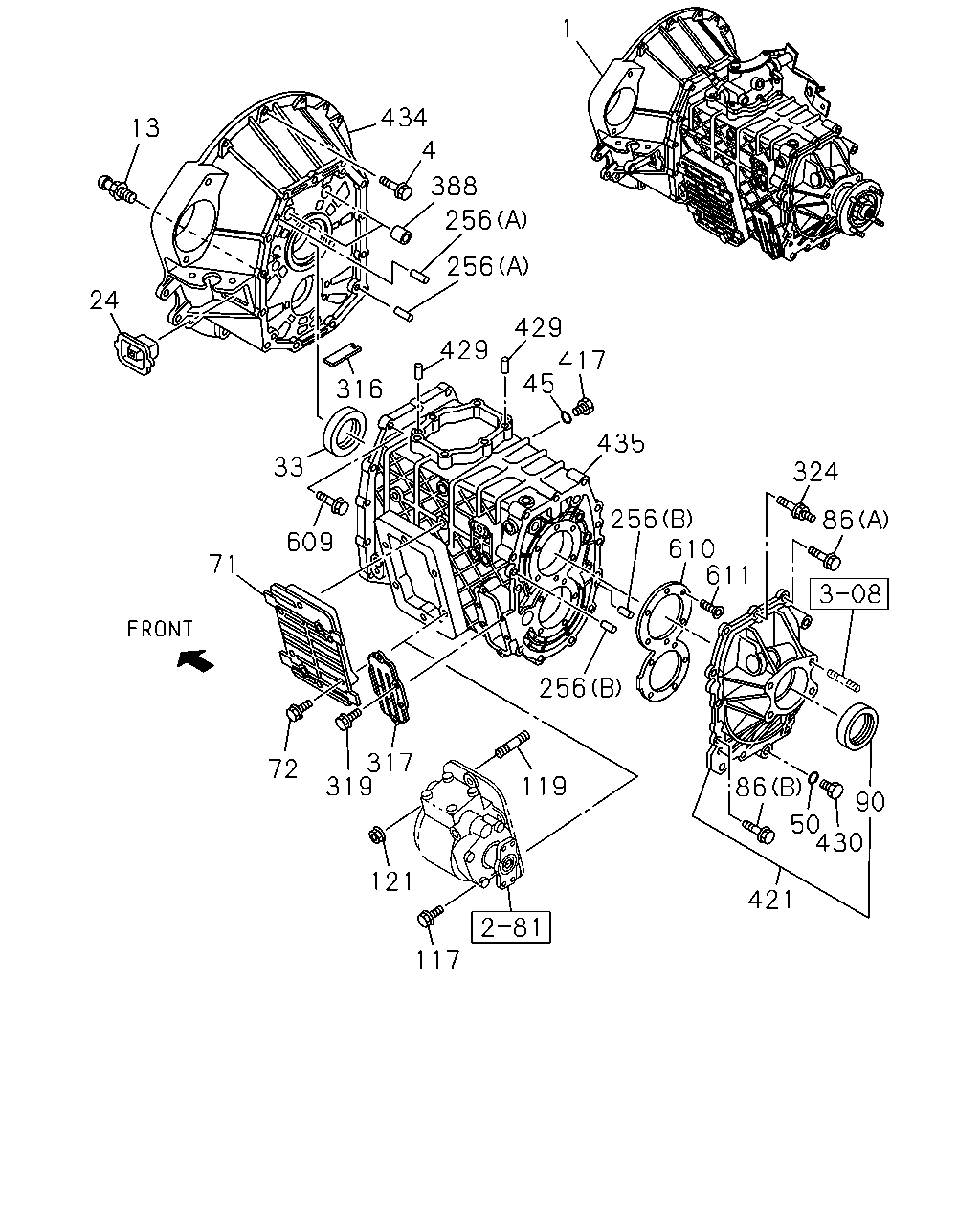

1 434 13 4 388 256 256 24 429 429 417 45 316 435 33 324 256 610 611 86 609 71 256 86 317 319 72 119 90 50 430 121 421 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	8-97161-342-1	01	1	9704-0307	●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-97350-617-0	01	1	0308-0404		●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0405-		●
1	TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-97350-617-0	01	1	0308-0404		●
1	TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0405-		●
4	BOLT; FLYWHEEL HSG M10X30 FLANGE	0-28181-030-0	02	1	9704-0307	●
4	BOLT; FLYWHEEL HSG EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28181-030-0	02	1	9704-0307	●
4	BOLT; FLYWHEEL HSG M10X30 FLANGE	0-28181-030-0	02	1	0308-0512		●
4	BOLT; FLYWHEEL HSG EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28181-030-0	02	1	0308-0512		●
4	BOLT; FLYWHEEL HSG M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28181-035-0	03	1	9704-0307	●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28181-035-0	03	1	0308-0512		●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28151-035-0	03	1	0601-		●
4	BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	9704-0307	●
4	BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0308-0805		●
4	BOLT; FLYWHEEL HSG M10X55 FLANGE	8-97365-449-0	02	1	0806-		●
4	BOLT; FLYWHEEL HSG PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28181-035-0	02	1	9704-0307	●
4	BOLT; FLYWHEEL HSG PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28181-035-0	02	1	0308-0512		●
4	BOLT; FLYWHEEL HSG PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28151-035-0	02	1	0601-		●
13	SUPPORT; SHIFT FORK	8-97255-384-1	01	1	0308-		●
24	COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	0308-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0308-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.3	8-94336-511-0	01	1	9704-0307	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0308-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.3	8-94336-511-0	01	1	9704-0307	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0308-		●
71	COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	9704-0307	●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0308-		●
72	BOLT; SIDE COVER M10X12 FLANGE	8-94128-791-0	06	1	9704-0307	●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	8-97254-833-0	06	1	0308-		●
86	BOLT; RR COVER (A) M10X50	8-94318-782-0	01	1	9704-0307	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28181-040-0	10	1	0308-0512		●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	10	1	0601-		●
86	BOLT; RR COVER (A) M10X30 FLANGE	8-94482-338-0	06	1	9704-0307	●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0308-0604		●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). JTEKT	8-97036-167-0	01	1	9704-9709	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97074-651-0	01	1	9704-0008	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97257-296-0	01	1	0009-0307	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0308-		●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 W/LK WASHER	0-50041-025-0	04	1	9704-0307	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28781-030-0	03	1	0308-0512		●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28751-030-0	03	1	0601-		●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 W/LK WASHER	0-50041-030-0	02	1	9704-9705	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28081-030-0	02	1	9706-0302	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 W/LK WASHER	0-50041-030-0	02	1	0303-0307	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 L=40	9-04411-025-0	03	1	0308-0604		●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 L=40	0-44011-025-0	03	1	0605-		●
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) M10 FLANGE	0-91150-210-0	03	1	0308-0602		●
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) M10 FLANGE	0-91180-210-0	03	1	0603-		●
256	PIN; KNOCK (A) OD=10 L=20	8-97135-423-0	02	1	0308-		●
256	PIN; KNOCK (B) ID=6 L=12	9-08160-612-0	02	1	0308-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0308-		●
317	COVER; CASE	8-97252-626-0	01	1	0308-		●
319	BOLT; COVER M8X20 FLANGE	0-28080-820-0	06	1	0308-0512		●
319	BOLT; COVER M8X20 FLANGE	0-28050-820-0	06	1	0601-		●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0308-0604		●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-		●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	0308-		●
417	PLUG; OIL FILLER,TRANS M18	8-94337-946-1	01	1	9704-0307	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0308-0604		●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-		●
421	COVER; RR,TRANS	8-97034-809-0	01	1	9704-0008	●
421	COVER; RR,TRANS	8-97249-001-1	01	1	0009-0307	●
421	COVER; RR,TRANS	8-97252-621-0	01	1	0308-0507		●
421	COVER; RR,TRANS	8-98020-029-0	01	1	0508-		●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	0308-		●
430	PLUG; OIL DRAIN	8-94336-512-1	01	1	9704-0307	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0308-0604		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-		●
434	HOUSING; CLU	8-97034-801-2	01	1	9704-0307	●
434	HOUSING; CLU	8-97237-099-5	01	1	0308-		●
435	CASE; TRANS	8-97034-803-2	01	1	9704-9903	●
435	CASE; TRANS	8-97204-132-1	01	1	9904-0307	●
435	CASE; TRANS	8-97252-623-7	01	1	0308-0403		●
435	CASE; TRANS	8-97379-375-0	01	1	0404-		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28181-040-0	13	1	0308-0512		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	0601-		●
610	RETAINER; BRG	8-97241-315-1	01	1	0308-		●
611	SCREW M10X27	8-97254-834-2	11	1	0308-0604		●
611	SCREW M10X27 TORQUES	8-97365-354-0	11	1	0605-		●
