2-08 — CLUTCH MASTER CYLINDER (#72392) — 23 parça

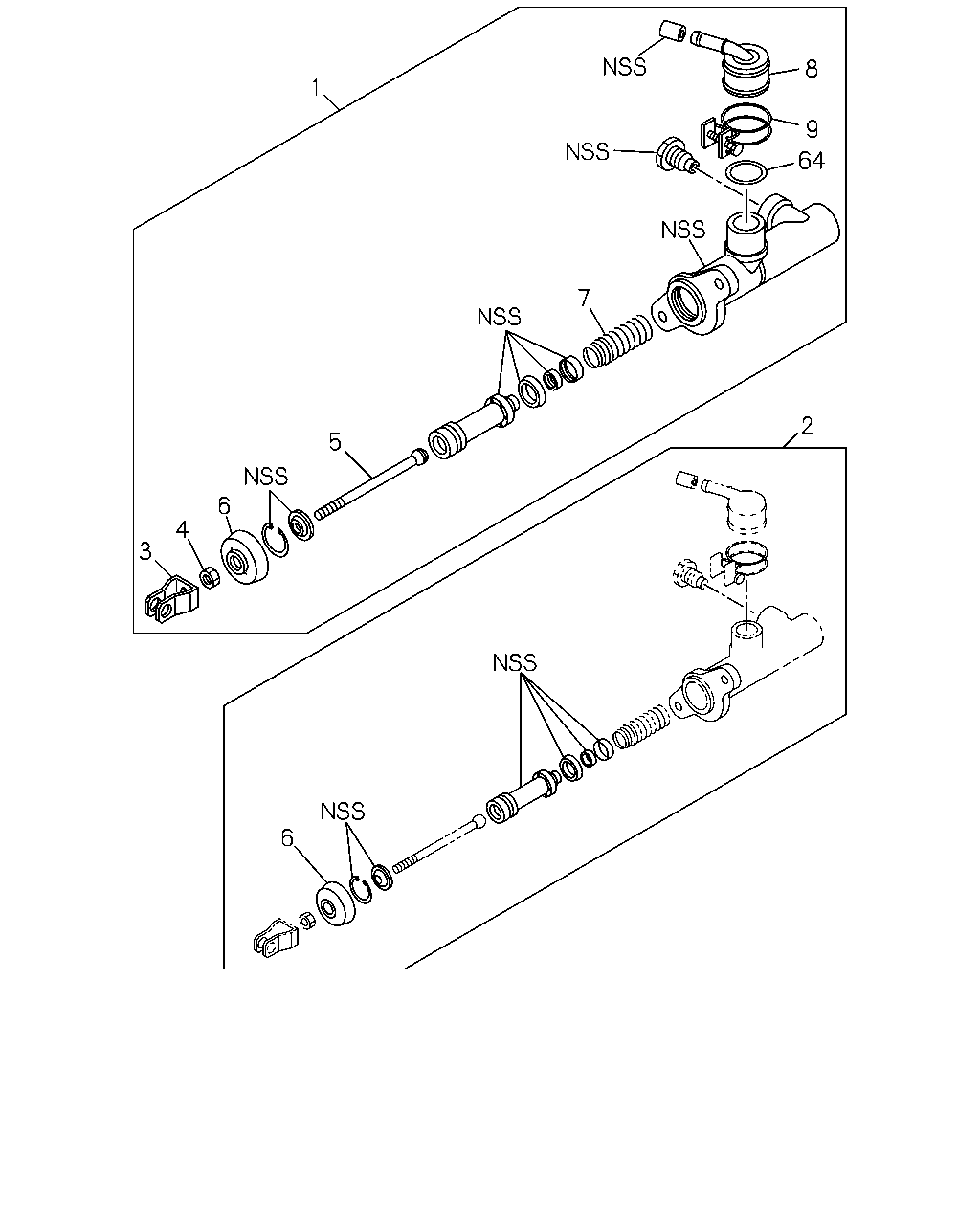

çizim 104637
8 1 9 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER 8-97162-963-0 01 1 9704-0803 ●
1 CYLINDER ASM; CLUTCH MASTER 8-98117-639-0 01 1 0804-1111 ●
1 CYLINDER ASM; CLUTCH MASTER 8-98117-639-0 01 1 1112- ● ●
2 REPAIR KIT; CLU M/CYL 5-87831-597-0 01 1 9704-0803 ●
2 REPAIR KIT; CLU M/CYL 5-87832-226-0 01 1 0804-1111 ●
2 REPAIR KIT; CLU M/CYL 5-87832-226-0 01 1 1112- ● ●
3 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 9704-1111 ●
3 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 1112- ● ●
4 NUT; JAW JOINT
M8 		9-09111-408-0 01 1 9704-0511 ●
4 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 0512-1111 ●
4 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 1112- ● ●
5 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 9704-1111 ●
5 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 1112- ● ●
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 9704-1111 ●
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 1112- ● ●
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 9704-1111 ●
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 1112- ● ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 9704-1111 ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 1112- ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 9704-1111 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1112- ● ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 9704-1111 ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 1112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
