◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#72391) — 27 parça

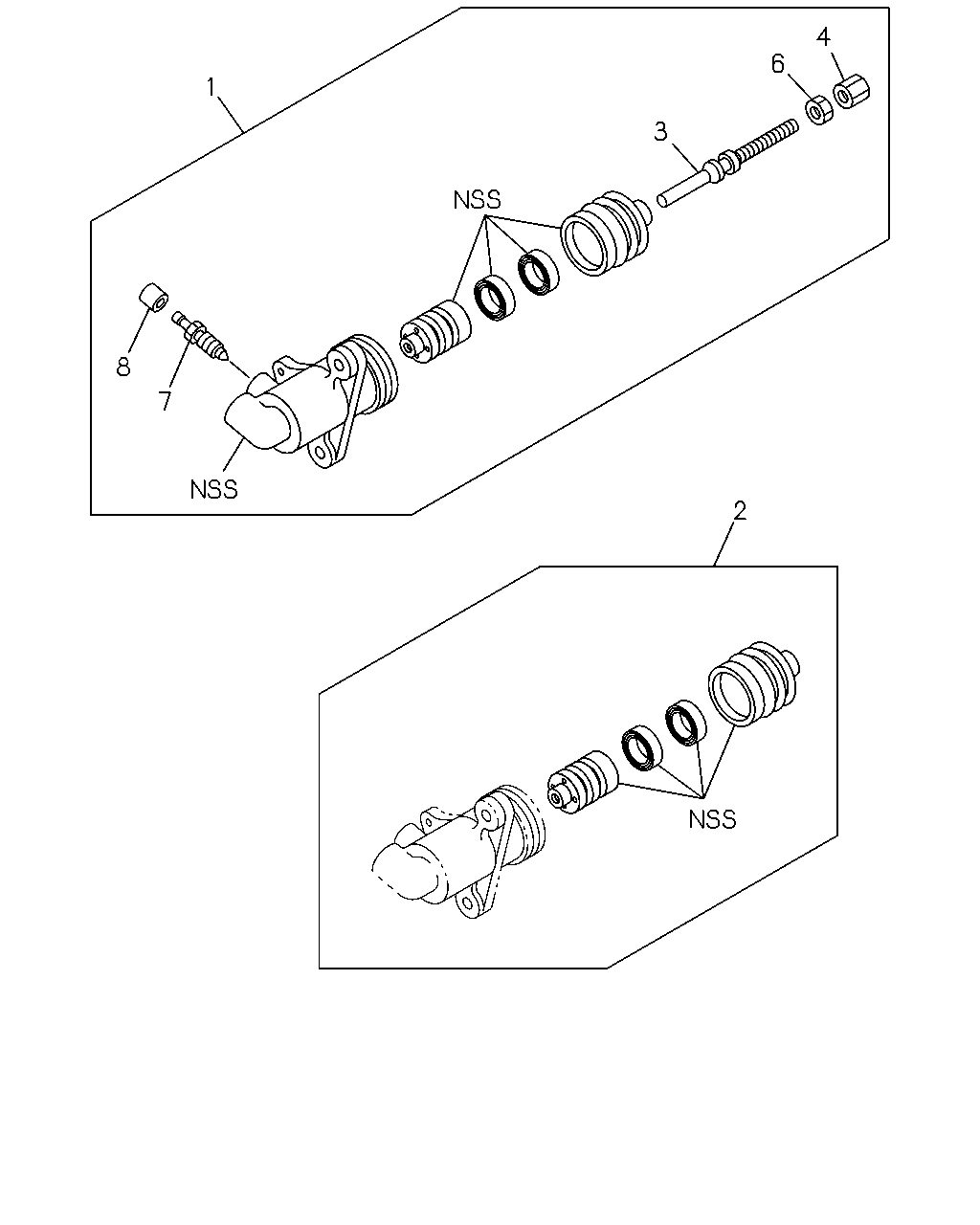

çizim 190488
4 6 1 3 8 7 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; SLAVE,CLU
M/T MXA5R(RMT) 		8-97032-847-1 01 1 9704-0307 ●
1 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) 		8-97349-423-0 01 1 0308-0908 ●
1 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) 		8-98004-780-1 01 1 0909-1111 ●
1 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) 		8-98004-780-1 01 1 1112- ● ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MXA5R(RMT) 		5-87831-204-0 01 1 9704-0307 ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) 		5-87831-204-0 01 1 0308-1111 ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) 		5-87831-204-0 01 1 1112- ● ●
3 ROD; PUSH,SLAVE CYL
M/T MXA5R(RMT) 		8-94457-860-0 01 1 9704-0307 ●
3 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) 		8-97255-389-0 01 1 0308-0908 ●
3 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) 		8-98061-132-0 01 1 0909-1111 ●
3 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) 		8-98061-132-0 01 1 1112- ● ●
4 NUT; ADJ,SLAVE CYL PUSH ROD
M/T MXA5R(RMT) 		8-97032-299-0 01 1 9704-0307 ●
4 NUT; ADJ,SLAVE CYL PUSH ROD
M/T MYY5T(RSM) 		8-97065-441-0 01 1 0308-0908 ●
4 NUT; ADJ,SLAVE CYL PUSH ROD
M/T MYY5T(RSM) 		8-98061-149-0 01 1 0909-1111 ●
4 NUT; ADJ,SLAVE CYL PUSH ROD
M/T MYY5T(RSM) 		8-98061-149-0 01 1 1112- ● ●
6 NUT; LK,ROD END
M/T MXA5R(RMT) M8 		9-09111-408-0 01 1 9704-0307 ●
6 NUT; LK,ROD END
M/T MYY5T(RSM) M10 		9-09111-410-0 01 1 0308-0512 ●
6 NUT; LK,ROD END
M/T MYY5T(RSM) M10 		0-91111-510-0 01 1 0601-1111 ●
6 NUT; LK,ROD END
M/T MYY5T(RSM) M10 		0-91111-510-0 01 1 1112- ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MXA5R(RMT) M8X16.5 		8-94115-113-0 01 1 9704-0307 ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X16.5 		8-94115-113-0 01 1 0308-0511 ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X10 		8-98020-477-0 01 1 0512-1111 ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X10 		8-98020-477-0 01 1 1112- ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MXA5R(RMT) OD=9.5 		9-47619-005-0 01 1 9704-0307 ●
8 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0308-1111 ●
8 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 1112-1209 ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=10 		8-97940-638-0 01 1 1210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
