3-05 — REAR WHEEL BRAKE (#7239) — 96 parça

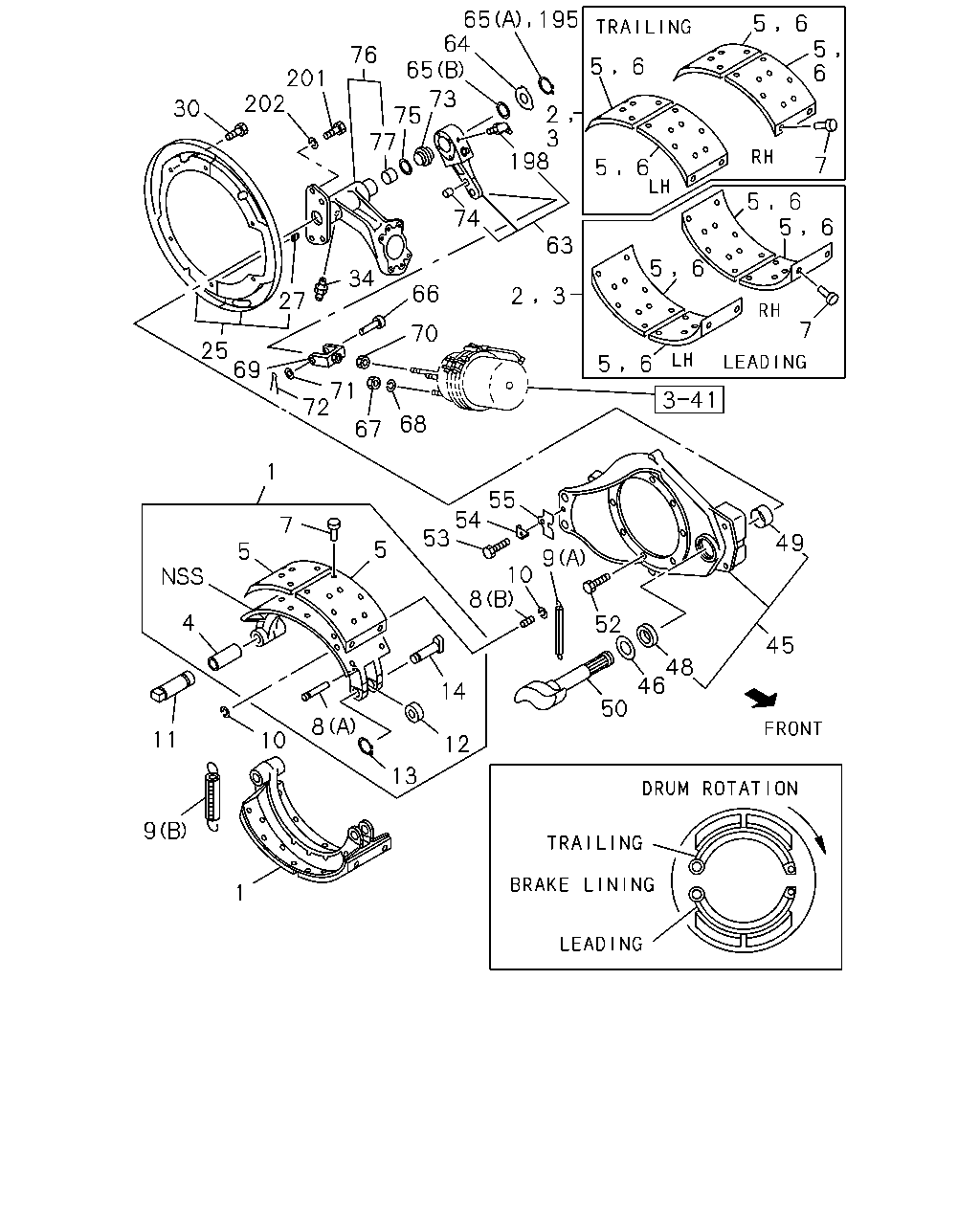

çizim 6251
65 64 65 195 5 6 5 6 76 5 6 201 202 73 75 77 30 2 3 198 7 5 6 5 6 5 74 6 63 6 5 34 66 2 3 27 7 70 25 69 5 6 71 72 68 67 1 55 54 53 7 49 5 5 9 10 8 4 52 45 48 46 50 14 8 11 10 12 13 9 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-337-0 02 1 9906-
1 SHOE; BRK,RR
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-338-0 02 1 9906-
1 SHOE; BRK,RR
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-336-0 02 1 9906-
1 SHOE; BRK,RR
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-339-0 02 1 9906-
1 SHOE; BRK,RR
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47110-969-0 02 1 9906-0006
1 SHOE; BRK,RR
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-715-0 02 1 0007-
1 SHOE; BRK,RR
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47110-970-0 02 1 9906-0006
1 SHOE; BRK,RR
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-716-0 02 1 0007-
1 SHOE; BRK,RR
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47110-967-0 02 1 9906-0006
1 SHOE; BRK,RR
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-713-0 02 1 0007-
1 SHOE; BRK,RR
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47110-968-0 02 1 9906-0006
1 SHOE; BRK,RR
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-714-0 02 1 0007-
2 LINING SET; RR BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-313-0 02 1 9906-
2 LINING SET; RR BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-315-0 02 1 9906-
2 LINING SET; RR BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88302-925-0 02 1 9906-0006
2 LINING SET; RR BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-521-0 02 1 0007-
2 LINING SET; RR BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88302-933-0 02 1 9906-0006
2 LINING SET; RR BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-523-0 02 1 0007-
3 LINING SET; RR BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-314-0 02 1 9906-
3 LINING SET; RR BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-316-0 02 1 9906-
3 LINING SET; RR BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88302-926-0 02 1 9906-0006
3 LINING SET; RR BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-522-0 02 1 0007-
3 LINING SET; RR BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88302-934-0 02 1 9906-0006
3 LINING SET; RR BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-524-0 02 1 0007-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 08 1 9906-
5 LINING; RR BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE 		1-47125-435-0 08 1 9906-
5 LINING; RR BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=16 		1-47125-436-0 08 1 9906-
5 LINING; RR BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE 		1-47125-445-0 08 1 9906-
5 LINING; RR BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-773-0 08 1 9906-0006
5 LINING; RR BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-797-0 08 1 0007-
5 LINING; RR BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-817-0 08 1 9906-0006
5 LINING; RR BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-799-0 08 1 0007-
6 LINING; RR BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE 		1-47125-437-0 08 1 9906-
6 LINING; RR BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=17 		1-47125-438-0 08 1 9906-
6 LINING; RR BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE 		1-47125-446-0 08 1 9906-
6 LINING; RR BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-774-0 08 1 9906-0006
6 LINING; RR BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-798-0 08 1 0007-
6 LINING; RR BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-818-0 08 1 9906-0006
6 LINING; RR BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-800-0 08 1 0007-
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 9906-
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-021-0 08 1 9906-
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-029-0 08 1 9906-
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 04 1 9906-
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-196-0 04 1 9906-
10 RING; SNAP,SPR PIN
ID=10 		9-09185-410-0 16 1 9906-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 08 1 9906-
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 08 1 9906-
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 08 1 9906-
14 PIN; CAM ROLLER,BRK SHOE 1-09744-061-0 08 1 9906-
25 COVER SET; RR BRK DRUM 1-47151-462-1 04 1 9906-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 08 1 9906-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 08 1 9906-
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 24 1 9906-
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9906-
45 BRACKET; ANCHOR PIN,W/BUSHING
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47137-244-0 02 1 9906-
45 BRACKET; ANCHOR PIN,W/BUSHING
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47137-243-0 02 1 9906-
45 BRACKET; ANCHOR PIN,W/BUSHING
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47137-120-2 04 1 9906-
45 BRACKET; ANCHOR PIN,W/BUSHING
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-47137-120-2 04 1 9906-
46 RING; SPACER,CM/SHF,RR BRK 1-47143-005-0 04 1 9906-
48 SEAL; OIL,CM/SHF,RR BRK 1-09625-228-0 04 1 9906-
49 BUSHING; CM/SHF,RR BRK 1-47146-003-1 04 1 9906-
50 CAMSHAFT; BRK,RR BRK 1-47141-053-0 02 1 9906-
50 CAMSHAFT; BRK,RR BRK 1-47141-054-0 02 1 9906-
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 04 1 9906-
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 04 1 9906-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 04 1 9906-
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 04 1 9906-
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-045-0 02 1 9906-
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-046-0 02 1 9906-
64 PLATE; STOPPER,CM/SHF 1-47149-022-0 04 1 9906-
65 SPACER; SLACK ADJ,BRK
(B) 		1-47143-004-0 04 1 9906-
65 SPACER; SLACK ADJ,BRK
(A) 		9-09180-038-0 02 1 9906-
66 PIN; JAW JOINT 1-09744-088-0 04 1 9906-
67 NUT; POWER CHAMBER FIX
M16 		9-99110-416-0 16 1 9906-
68 WASHER; LK,CHAMBER
ID=16.2 		9-09150-516-0 16 1 9906-
69 JOINT; JAW 1-09768-060-1 04 1 9906-
70 NUT; LK,JAW JOINT
M16 		9-99111-416-0 04 1 9906-
71 WASHER; PL,JAW JOINT
ID=17 OD=32 		9-09160-616-0 04 1 9906-
72 PIN; SPLIT
OD=3.7 L=28 		9-08114-028-0 04 1 9906-
73 COLLAR; FELT RING,CM/SHF 1-47143-016-0 04 1 9906-
74 BUSHING; SLACK ADJ 1-09330-041-0 04 1 9906-
75 RING; FELT,CM/SHF 1-09620-009-0 04 1 9906-
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-083-0 02 1 9906-
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-084-0 02 1 9906-
77 BUSHING 1-47146-003-1 04 1 9906-
195 RING; SNAP,CM/SHF 9-09180-038-0 02 1 9906-
195 RING; SNAP,CM/SHF 9-09180-038-0 02 1 9906-
198 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 9906-
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-20801-435-0 16 1 9906-
202 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 16 1 9906-

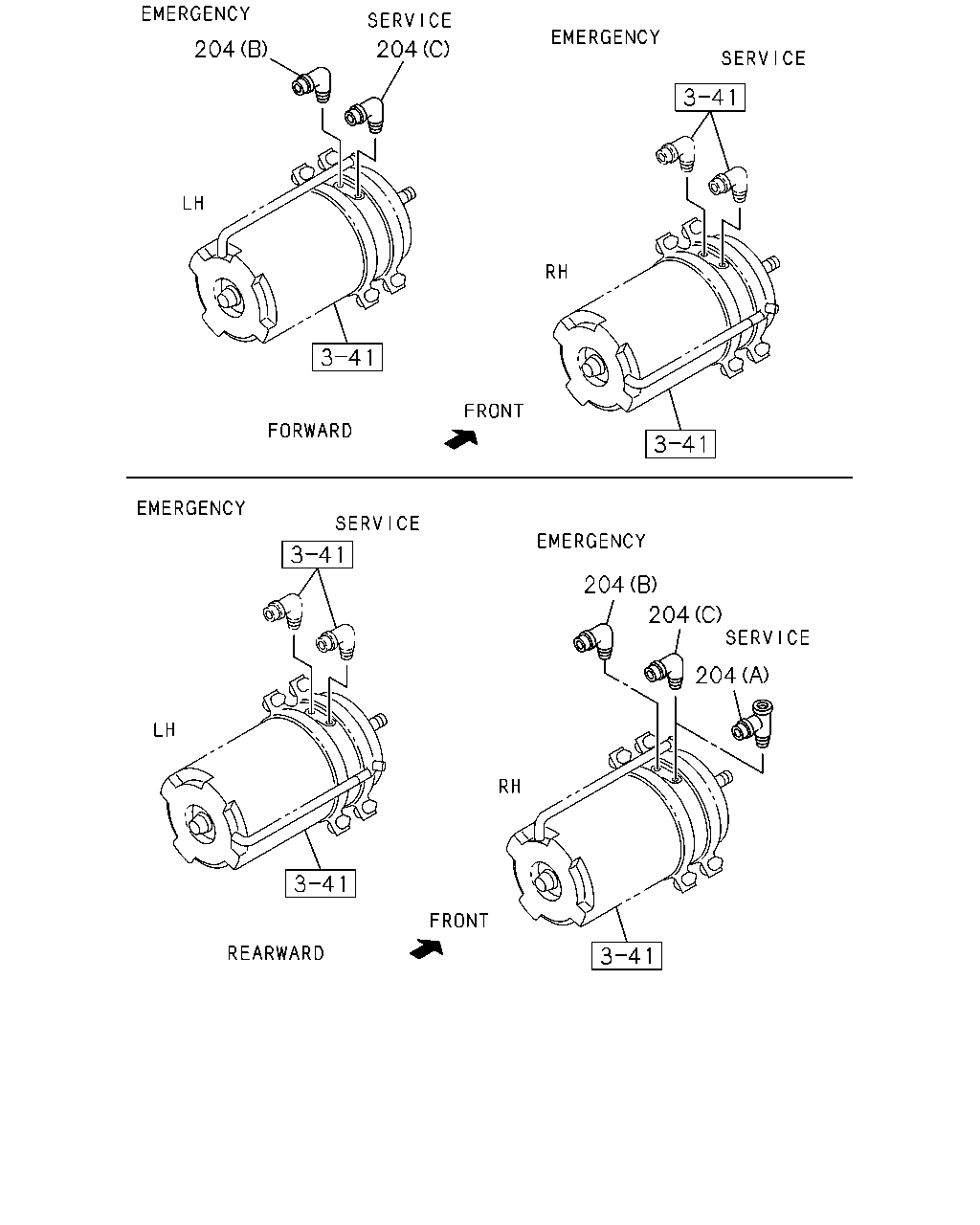

çizim 43950
204 204 204 204 204
BalonParca AdiParca NoAdetTipApplied Date
204 CONNECTOR; SPR CHAMBER
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9906-
204 CONNECTOR; SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. REAR AXLE RT260<C2B> (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 9906-
204 CONNECTOR; SPR CHAMBER
REAR AXLE RT260<C2B> (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9906-
204 CONNECTOR; SPR CHAMBER
REAR AXLE RT260<C2B> (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9906-
204 CONNECTOR; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> (B) FORWARD DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9906-
204 CONNECTOR; SPR CHAMBER
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,REAR AXLE RT260<C2B> (B) REARWARD DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9906-
