◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#72388) — 37 parça

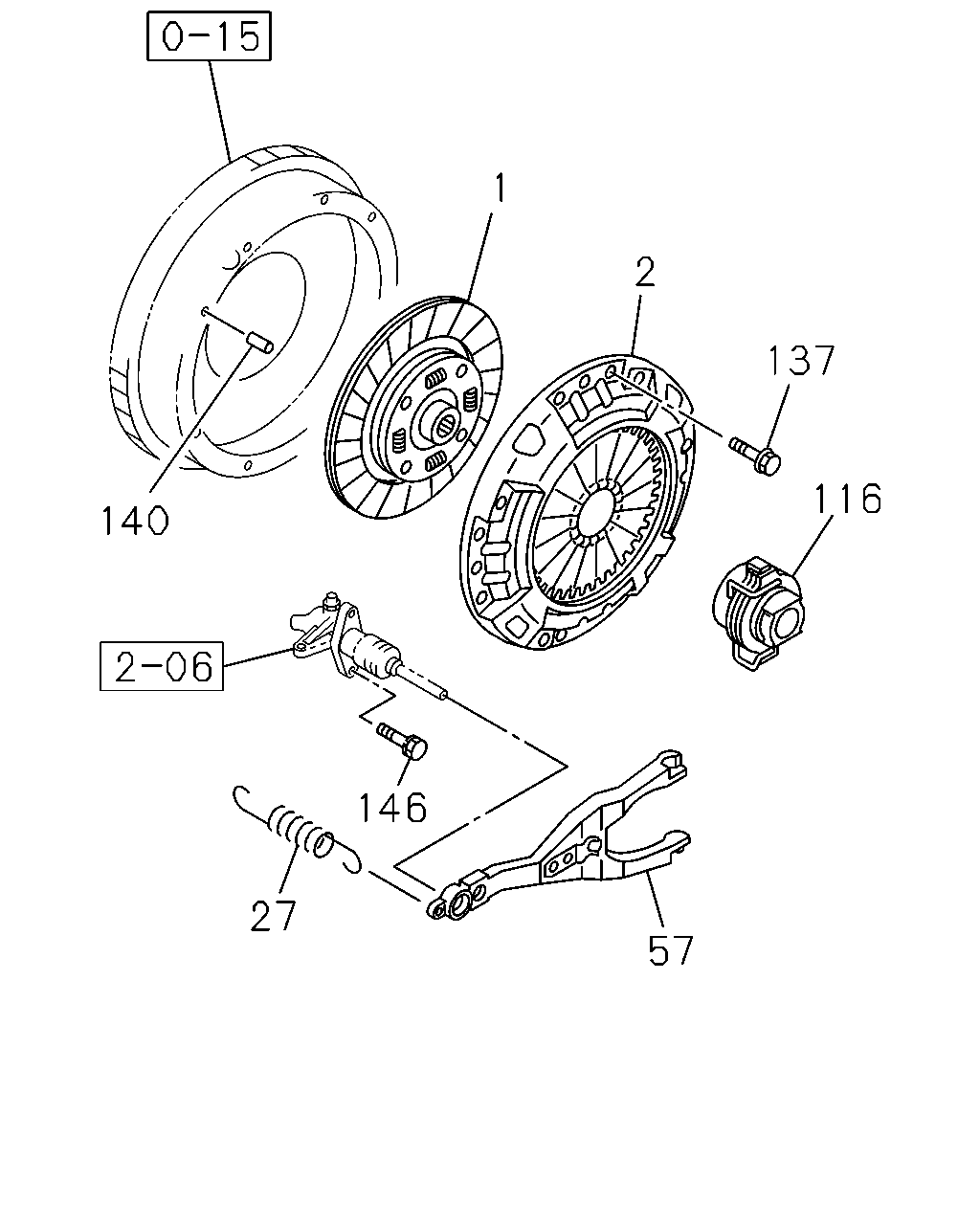

çizim 97713
1 2 137 116 140 146 27 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH 8-97162-966-1 01 1 9704-0307 ●
1 DISC; CLUTCH 8-97320-355-0 01 1 0308-0412 ●
1 DISC; CLUTCH 8-97377-149-0 01 1 0501-1111 ●
1 DISC; CLUTCH 8-97377-149-0 01 1 1112-1402 ● ●
1 DISC; CLUTCH 8-98255-959-1 01 1 1403- ● ●
1 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-049-0 01 1 0501-1111 ●
1 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-049-0 01 1 1112-1402 ● ●
1 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-049-2 01 1 1403- ● ●
2 PLATE ASM; PRESSURE,CLU 8-97031-757-2 01 1 9704-0103 ●
2 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0104-0302 ●
2 PLATE ASM; PRESSURE,CLU 8-97351-833-0 01 1 0303-0412 ●
2 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0501- ●
2 PLATE ASM; PRESSURE,CLU 8-97169-534-0 01 1 1112- ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-050-1 01 1 0104- ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-079-0 01 1 1112- ●
27 SPRING; RETURN,SHIFT FORK 8-94335-691-2 01 1 9704-9712 ●
27 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 9801-0812 ●
27 SPRING; RETURN,SHIFT FORK 8-98025-313-0 01 1 0901-1111 ●
27 SPRING; RETURN,SHIFT FORK 8-98025-313-0 01 1 1112- ● ●
57 FORK; SHIFT,CLU
M/T MXA5R(RMT) 		8-97045-138-0 01 1 9704-9712 ●
57 FORK; SHIFT,CLU
M/T MXA5R(RMT) 		8-97187-936-0 01 1 9801-0307 ●
57 FORK; SHIFT,CLU
M/T MYY5T(RSM) 		8-97255-303-0 01 1 0308-1111 ●
57 FORK; SHIFT,CLU
M/T MYY5T(RSM) 		8-97255-303-0 01 1 1112- ● ●
116 BLOCK; SHIFT,CLU
M/T MXA5R(RMT) 		8-97089-652-0 01 1 9704-0307 ●
116 BLOCK; SHIFT,CLU
M/T MYY5T(RSM) 		8-97255-313-0 01 1 0308-1111 ●
116 BLOCK; SHIFT,CLU
M/T MYY5T(RSM) 		8-97255-313-0 01 1 1112- ● ●
116 BLOCK; SHIFT,CLU
M/T MXA5R(RMT) BEST VALUE PARTS 		5-87610-145-0 01 1 9704-0307 ●
116 BLOCK; SHIFT,CLU
M/T MYY5T(RSM) BEST VALUE PARTS 		5-87610-110-0 01 1 0308-1111 ●
116 BLOCK; SHIFT,CLU
M/T MYY5T(RSM) BEST VALUE PARTS 		5-87610-110-0 01 1 1112- ● ●
137 BOLT; CLU COVER
M10X16 FLANGE 		0-28081-016-0 10 1 9704-0512 ●
137 BOLT; CLU COVER
M10X16 FLANGE 		0-28051-016-0 10 1 0601-1111 ●
137 BOLT; CLU COVER
M10X16 FLANGE 		0-28051-016-0 10 1 1112- ● ●
140 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9704-1111 ●
140 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 1112- ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE 		0-28680-830-0 02 1 9704-0512 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE 		0-28650-830-0 02 1 0601-1111 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE 		0-28650-830-0 02 1 1112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
