1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#72386) — 45 parça

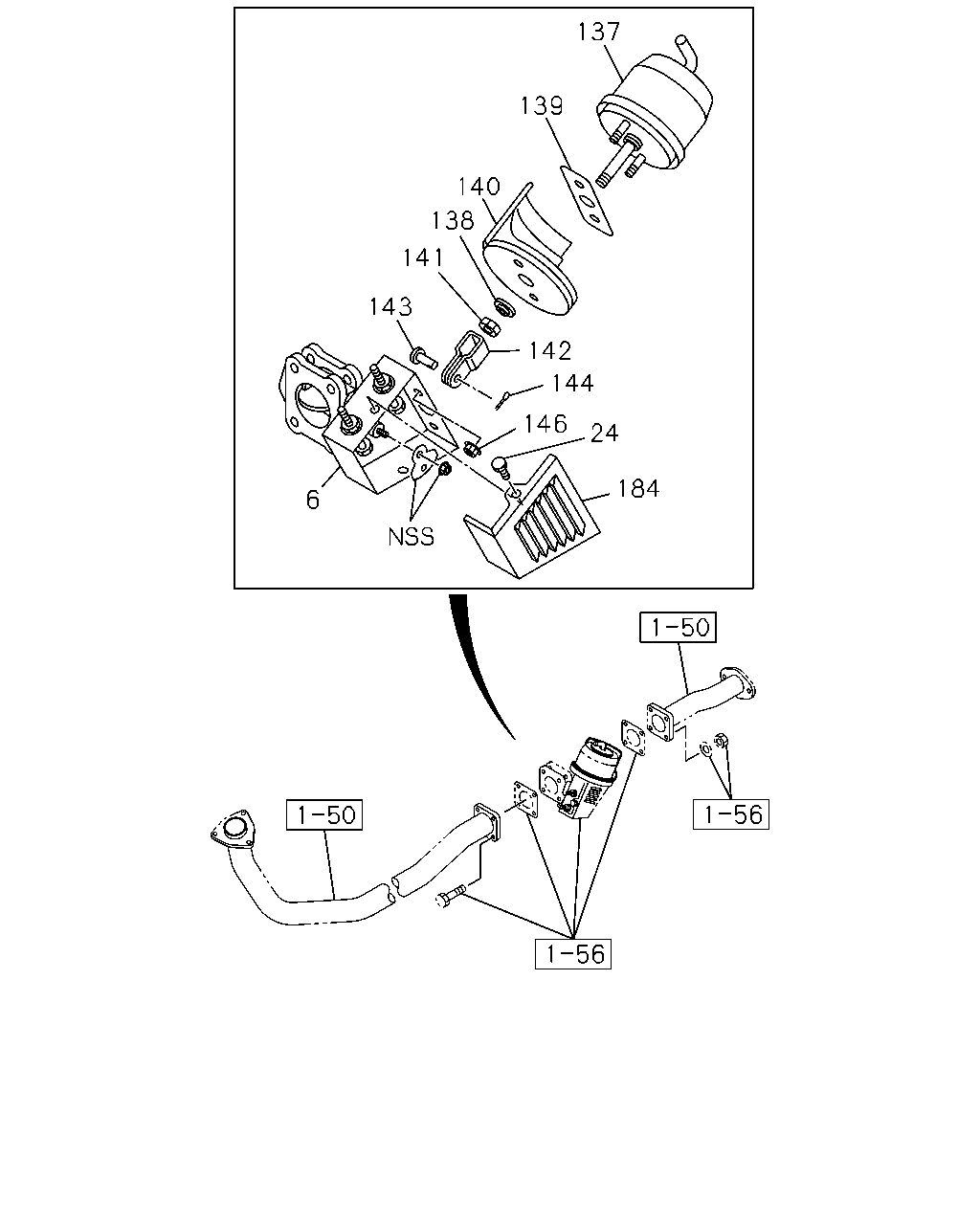

çizim 97244
137 139 140 138 141 143 142 144 146 24 184 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE 8-97173-334-0 01 1 9704-9706 ● ●
24 BOLT; COVER 8-97065-029-0 02 1 9704-9706 ● ●
24 BOLT; COVER 8-97065-029-0 02 1 0612- ● ●
137 CHAMBER; POWER 8-97173-331-0 01 1 9704-9706 ● ●
137 CHAMBER; POWER 8-98070-470-0 01 1 0612- ● ●
138 BEARING; EXH BRK VLV 5-22189-004-0 01 1 9704-9706 ● ●
138 BEARING; EXH BRK VLV 5-22189-004-0 01 1 0612- ● ●
139 GASKET; EXH BRK VLV 8-94328-234-0 01 1 9704-9706 ● ●
139 GASKET; EXH BRK VLV 8-94328-234-0 01 1 0612- ● ●
140 INSULATOR; EXH BRK VLV 8-97173-333-0 01 1 9704-9706 ● ●
140 INSULATOR; EXH BRK VLV 8-97173-333-0 01 1 0612- ● ●
141 NUT; CLEVIS,EXH BRK VLV 8-94311-428-0 01 1 9704-9706 ● ●
141 NUT; CLEVIS,EXH BRK VLV 8-94311-428-0 01 1 0612- ● ●
142 CLEVIS; EXH BRK VLV 8-94428-084-0 01 1 9704-9706 ● ●
142 CLEVIS; EXH BRK VLV 8-97177-311-0 01 1 0612- ● ●
143 PIN; EXH BRK VLV 8-94311-452-0 01 1 9704-9706 ● ●
143 PIN; EXH BRK VLV 8-94311-452-0 01 1 0612- ● ●
144 PIN; SPLIT,EXH BRK VLV 8-97029-428-0 01 1 0612- ● ●
144 PIN; SPLIT,EXH BRK VLV 8-97029-428-0 01 1 9704-9706 ● ●
146 NUT; EXH BRK VLV
M8 W/LK WASHER 		8-94279-050-0 02 1 9704-9706 ● ●
146 NUT; EXH BRK VLV
M8 FLANGE 		0-91180-108-0 02 1 0612- ● ●
184 COVER; BRKT 8-97319-412-0 01 1 9704-9706 ● ●
184 COVER; BRKT 8-98070-514-0 01 1 0612- ● ●

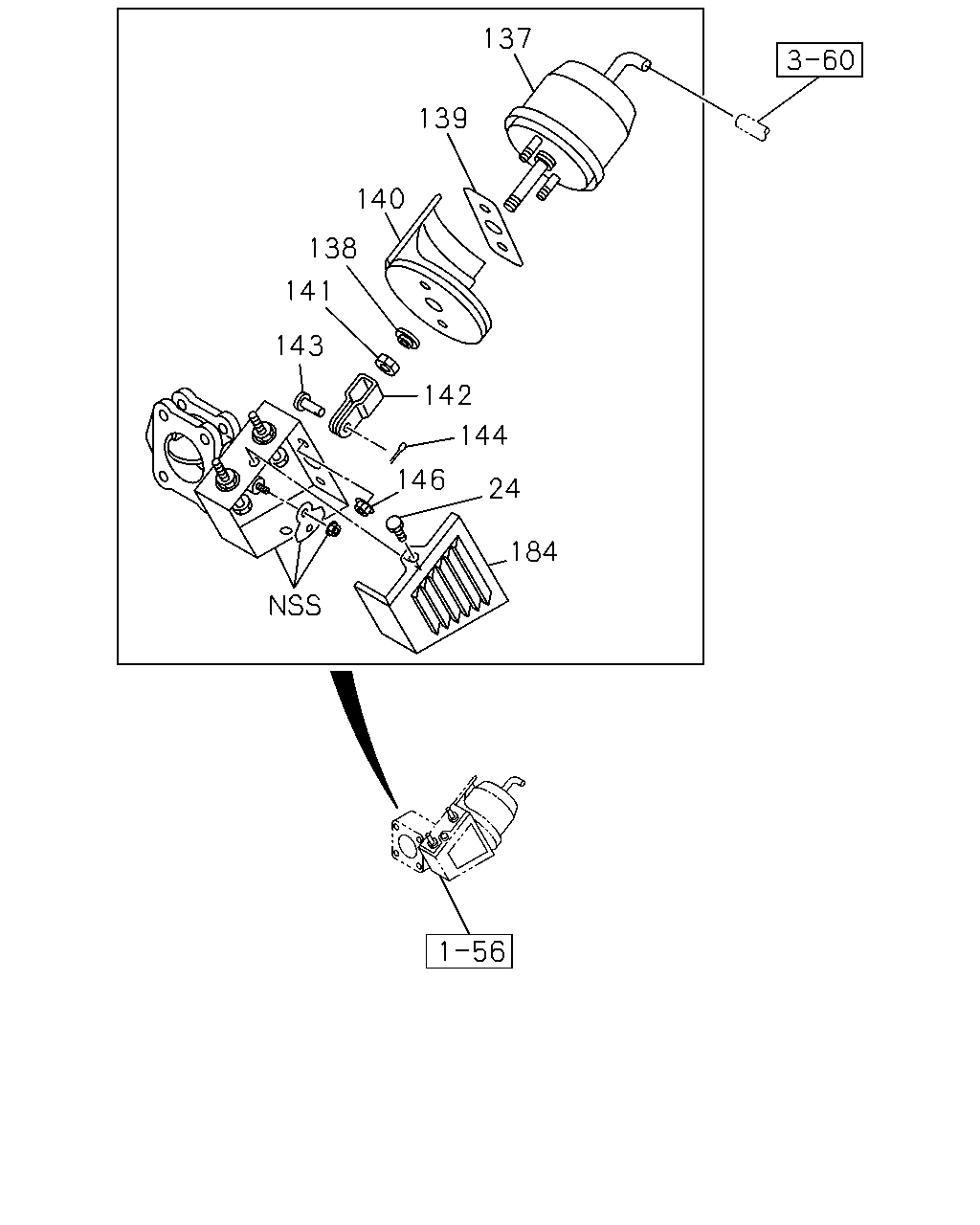

çizim 190487
137 139 140 138 141 143 142 144 146 24 184
BalonParca AdiParca NoAdetTipApplied Date A B
24 BOLT; COVER 8-97065-029-0 02 1 9704-9706 ● ●
24 BOLT; COVER 8-97065-029-0 02 1 0612- ● ●
137 CHAMBER; POWER 8-97173-331-0 01 1 9704-9706 ● ●
137 CHAMBER; POWER 8-98070-470-0 01 1 0612- ● ●
138 BEARING; EXH BRK VLV 5-22189-004-0 01 1 9704-9706 ● ●
138 BEARING; EXH BRK VLV 5-22189-004-0 01 1 0612- ● ●
139 GASKET; EXH BRK VLV 8-94328-234-0 01 1 9704-9706 ● ●
139 GASKET; EXH BRK VLV 8-94328-234-0 01 1 0612- ● ●
140 INSULATOR; EXH BRK VLV 8-97173-333-0 01 1 9704-9706 ● ●
140 INSULATOR; EXH BRK VLV 8-97173-333-0 01 1 0612- ● ●
141 NUT; CLEVIS,EXH BRK VLV 8-94311-428-0 01 1 9704-9706 ● ●
141 NUT; CLEVIS,EXH BRK VLV 8-94311-428-0 01 1 0612- ● ●
142 CLEVIS; EXH BRK VLV 8-94428-084-0 01 1 9704-9706 ● ●
142 CLEVIS; EXH BRK VLV 8-97177-311-0 01 1 0612- ● ●
143 PIN; EXH BRK VLV 8-94311-452-0 01 1 9704-9706 ● ●
143 PIN; EXH BRK VLV 8-94311-452-0 01 1 0612- ● ●
144 PIN; SPLIT,EXH BRK VLV 8-97029-428-0 01 1 0612- ● ●
144 PIN; SPLIT,EXH BRK VLV 8-97029-428-0 01 1 9704-9706 ● ●
146 NUT; EXH BRK VLV
M8 W/LK WASHER 		8-94279-050-0 02 1 9704-9706 ● ●
146 NUT; EXH BRK VLV
M8 FLANGE 		0-91180-108-0 02 1 0612- ● ●
184 COVER; BRKT 8-97319-412-0 01 1 9704-9706 ● ●
184 COVER; BRKT 8-98070-514-0 01 1 0612- ● ●
