◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#72385) — 96 parça

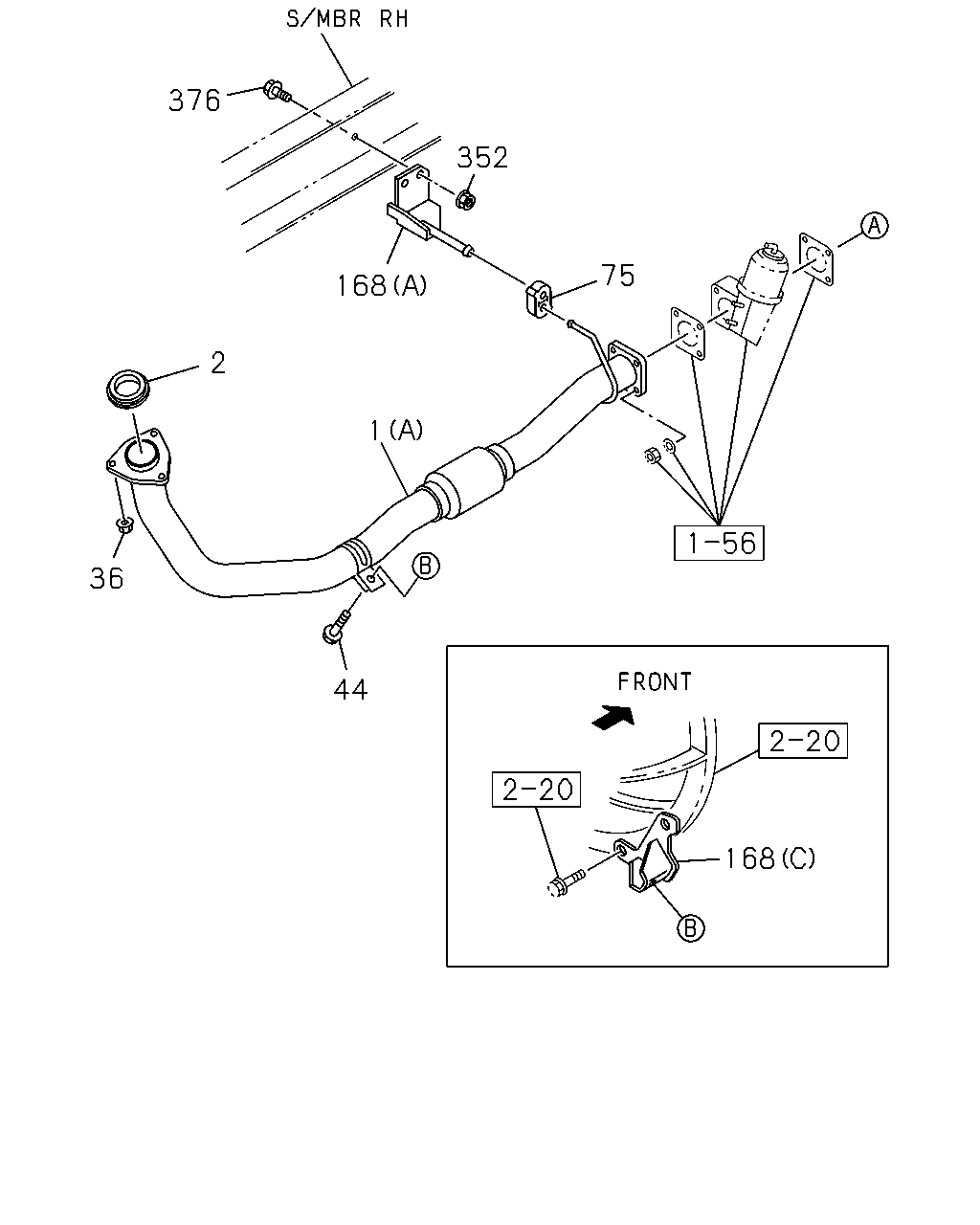

çizim 96735
376 352 75 168 2 1 36 44 168
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
4HG1-T ENG(RDP) (A) 		8-97187-143-1 01 1 1112- ● ●
1 PIPE; EXH
(A) 		8-97125-845-0 01 1 9704-0003 ● ●
1 PIPE; EXH
(A) 		8-97256-415-1 01 1 0004-1111 ● ●
1 PIPE; EXH
4HF1 ENG(RLS) (A) 		8-97256-415-1 01 1 1112- ● ●
1 PIPE; EXH
(B) 		8-97089-322-0 01 1 9704- ●
2 GASKET; PIPE TO MANIF 8-97036-287-0 01 1 9704-9709 ● ●
2 GASKET; PIPE TO MANIF 8-97180-749-2 01 1 9710-0408 ● ●
2 GASKET; PIPE TO MANIF 8-97381-455-0 01 1 0409- ● ●
36 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 03 1 9704- ● ●
44 BOLT; BRKT
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9704-0909 ● ●
44 BOLT; BRKT
M8X45 W/LK WASHER 		0-50540-845-0 01 1 0910- ● ●
75 RUBBER; SUPPORT,BRKT 8-97166-498-1 01 1 9704- ● ●
168 BRACKET; EXH PIPE,FRT
(B) 		5-22151-044-0 01 1 9704- ● ●
168 BRACKET; EXH PIPE,FRT
(A) 		8-94370-689-2 01 1 9704- ● ●
168 BRACKET; EXH PIPE,FRT
(C) 		8-97037-379-2 01 1 9704-9908 ● ●
168 BRACKET; EXH PIPE,FRT
(C) 		8-97238-728-0 01 1 9909- ● ●
352 NUT; BRKT
M10 FLANGE 		0-91150-110-0 02 1 9704-0602 ● ●
352 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
376 BOLT; BRKT
4HG1-T ENG(RDP) M10X30 FLANGE 		0-28651-030-0 02 1 1112- ● ●
376 BOLT; BRKT
M10X30 FLANGE 		0-28081-030-0 02 1 9704-0512 ● ●
376 BOLT; BRKT
M10X30 FLANGE 		0-28051-030-0 02 1 0601-1111 ● ●
376 BOLT; BRKT
4HF1 ENG(RLS) M10X30 FLANGE 		0-28051-030-0 02 1 1112- ● ●

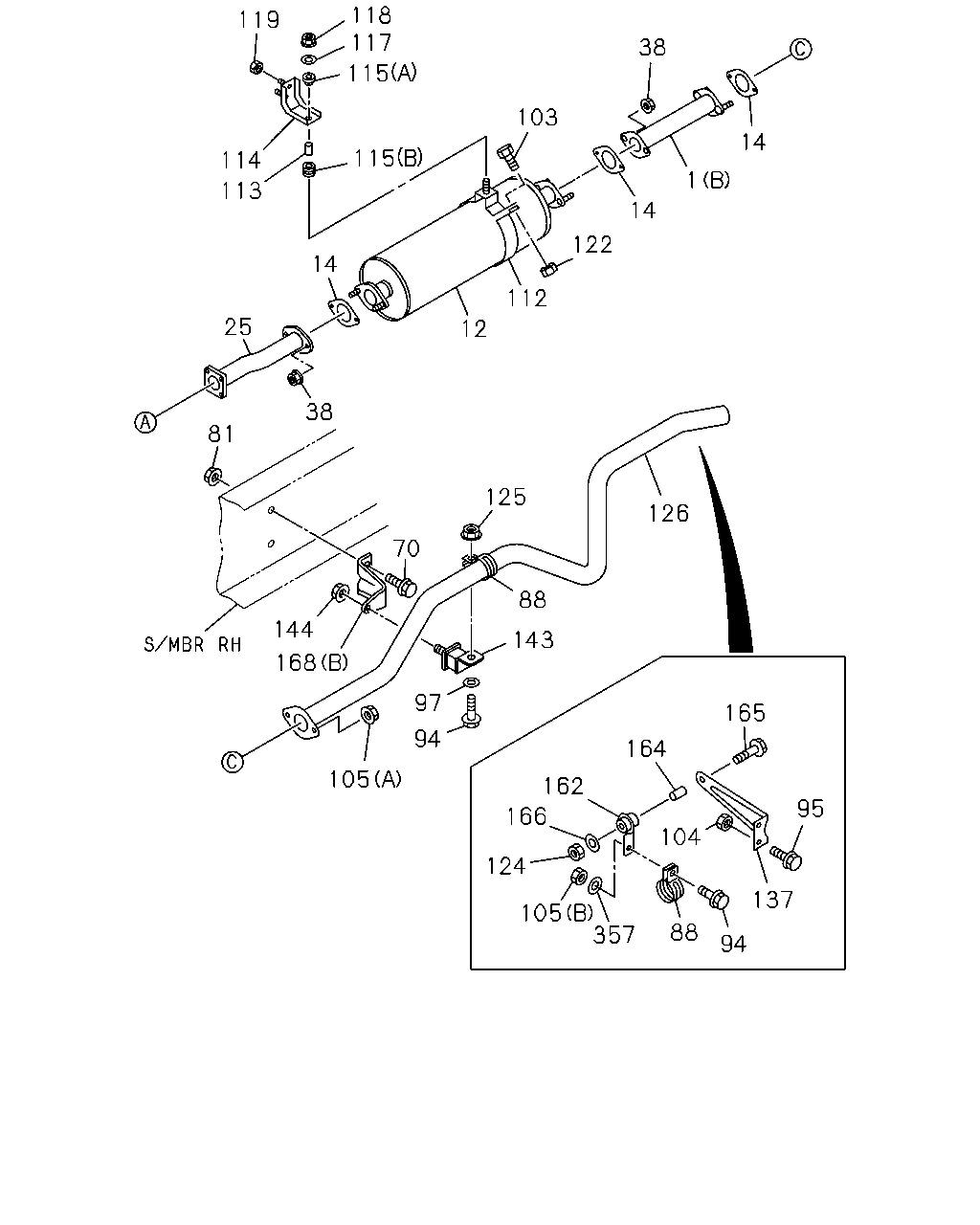

çizim 190489
118 117 119 38 115 103 14 115 114 1 113 14 122 14 112 25 12 38 81 125 126 70 88 144 143 168 97 165 94 164 105 162 95 166 104 124 137 105 357 88 94
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
4HG1-T ENG(RDP) (A) 		8-97187-143-1 01 1 1112- ● ●
1 PIPE; EXH
(A) 		8-97125-845-0 01 1 9704-0003 ● ●
1 PIPE; EXH
(A) 		8-97256-415-1 01 1 0004-1111 ● ●
1 PIPE; EXH
4HF1 ENG(RLS) (A) 		8-97256-415-1 01 1 1112- ● ●
1 PIPE; EXH
(B) 		8-97089-322-0 01 1 9704- ●
12 SILENCER ASM; EXH
4HG1-T ENG(RDP) 		8-97114-564-1 01 1 1112- ● ●
12 SILENCER ASM; EXH 8-97120-517-0 01 1 9704-9806 ● ●
12 SILENCER ASM; EXH 8-97206-525-3 01 1 9807-1111 ● ●
12 SILENCER ASM; EXH
4HF1 ENG(RLS) 		8-97206-525-3 01 1 1112- ● ●
14 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 9704- ● ●
14 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 9704- ● ●
14 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 9704- ●
25 PIPE; EXH,BRK VLV TO SILENCER
4HG1-T ENG(RDP) 		8-97361-725-0 01 1 1112- ● ●
25 PIPE; EXH,BRK VLV TO SILENCER 8-97063-464-1 01 1 9704-1111 ● ●
25 PIPE; EXH,BRK VLV TO SILENCER
4HF1 ENG(RLS) 		8-97063-464-1 01 1 1112- ● ●
38 NUT; SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9704-0602 ● ●
38 NUT; SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9704-0602 ●
38 NUT; SILENCER
M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
38 NUT; SILENCER
M10 FLANGE 		0-91180-110-0 02 1 0603- ●
70 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9704-0512 ● ●
70 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
81 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9704-0602 ● ●
81 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
88 CLAMP; EXH PIPE
ID=61.6 		8-97010-307-0 01 1 9704- ● ●
88 CLAMP; EXH PIPE
ID=61.6 		8-97010-307-0 01 1 9704- ● ●
94 BOLT; CLAMP
M8X45 		0-20800-845-0 01 1 9704- ● ●
94 BOLT; CLAMP
M8X45 		0-20800-845-0 01 1 9704- ● ●
95 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9704-0512 ● ●
95 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
97 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 9704-0605 ● ●
97 WASHER; PL,CLAMP
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ● ●
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9704-0909 ● ●
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50540-845-0 01 1 0910- ● ●
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9704-0602 ● ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
105 NUT; CLAMP
(A) M10 FLANGE 		0-91150-110-0 02 1 9704-0602 ● ●
105 NUT; CLAMP
(A) M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
105 NUT; CLAMP
(B) M8 		9-09110-408-0 01 1 9704-0512 ● ●
105 NUT; CLAMP
(B) M8 		0-91110-508-0 01 1 0601- ● ●
112 BRACKET; HANGER 8-97076-020-0 01 1 9704- ● ●
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 9704- ● ●
114 BRACKET; EXH SILENCER 8-94329-856-0 01 1 9704- ● ●
115 RUBBER; MTG,SILENCER
(A) 		8-94457-277-1 01 1 9704- ● ●
115 RUBBER; MTG,SILENCER
(B) 		8-94457-278-1 01 1 9704- ● ●
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 9704- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 9704- ● ●
119 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9704-0602 ● ●
119 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
122 NUT; HANGER BRKT
M8 		9-09110-408-0 01 1 9704-0512 ● ●
122 NUT; HANGER BRKT
M8 		0-91110-508-0 01 1 0601- ● ●
124 NUT; SUPPORT RUBBER
M10 FLANGE 		0-91150-110-0 01 1 9704-0602 ● ●
124 NUT; SUPPORT RUBBER
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
125 NUT; CLAMP
M8 		9-09110-408-0 01 1 9704-0512 ● ●
125 NUT; CLAMP
M8 		0-91110-508-0 01 1 0601- ● ●
126 PIPE; EXH,RR 8-97034-103-0 01 1 9704-0201 ● ●
126 PIPE; EXH,RR 8-97328-181-0 01 1 0202- ● ●
137 BRACKET; TAIL PIPE 8-94114-022-1 01 1 9704- ● ●
143 RUBBER; SUPPORT 8-97046-148-1 01 1 9704-9908 ● ●
143 RUBBER; SUPPORT 8-97229-586-0 01 1 9909-0308 ● ●
143 RUBBER; SUPPORT 8-97371-655-1 01 1 0309- ● ●
144 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 9704-0602 ● ●
144 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
162 RUBBER; SUPPORT,TAIL PIPE
L=115 		8-94156-256-0 01 1 9704- ● ●
164 COLLAR; DIST,TAIL PIPE
L=37.5 		9-22151-217-0 01 1 9704- ● ●
165 BOLT; SUPPORT RUBBER
M10X70 FLANGE 		0-28081-070-0 01 1 9704-0512 ● ●
165 BOLT; SUPPORT RUBBER
M10X70 FLANGE 		0-28051-070-0 01 1 0601- ● ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=10.5 OD=32 		9-09164-810-0 01 1 9704-0605 ● ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ●
168 BRACKET; EXH PIPE,FRT
(B) 		5-22151-044-0 01 1 9704- ● ●
168 BRACKET; EXH PIPE,FRT
(A) 		8-94370-689-2 01 1 9704- ● ●
168 BRACKET; EXH PIPE,FRT
(C) 		8-97037-379-2 01 1 9704-9908 ● ●
168 BRACKET; EXH PIPE,FRT
(C) 		8-97238-728-0 01 1 9909- ● ●
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 9704-0605 ● ●
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ● ●
