◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#72384) — 56 parça

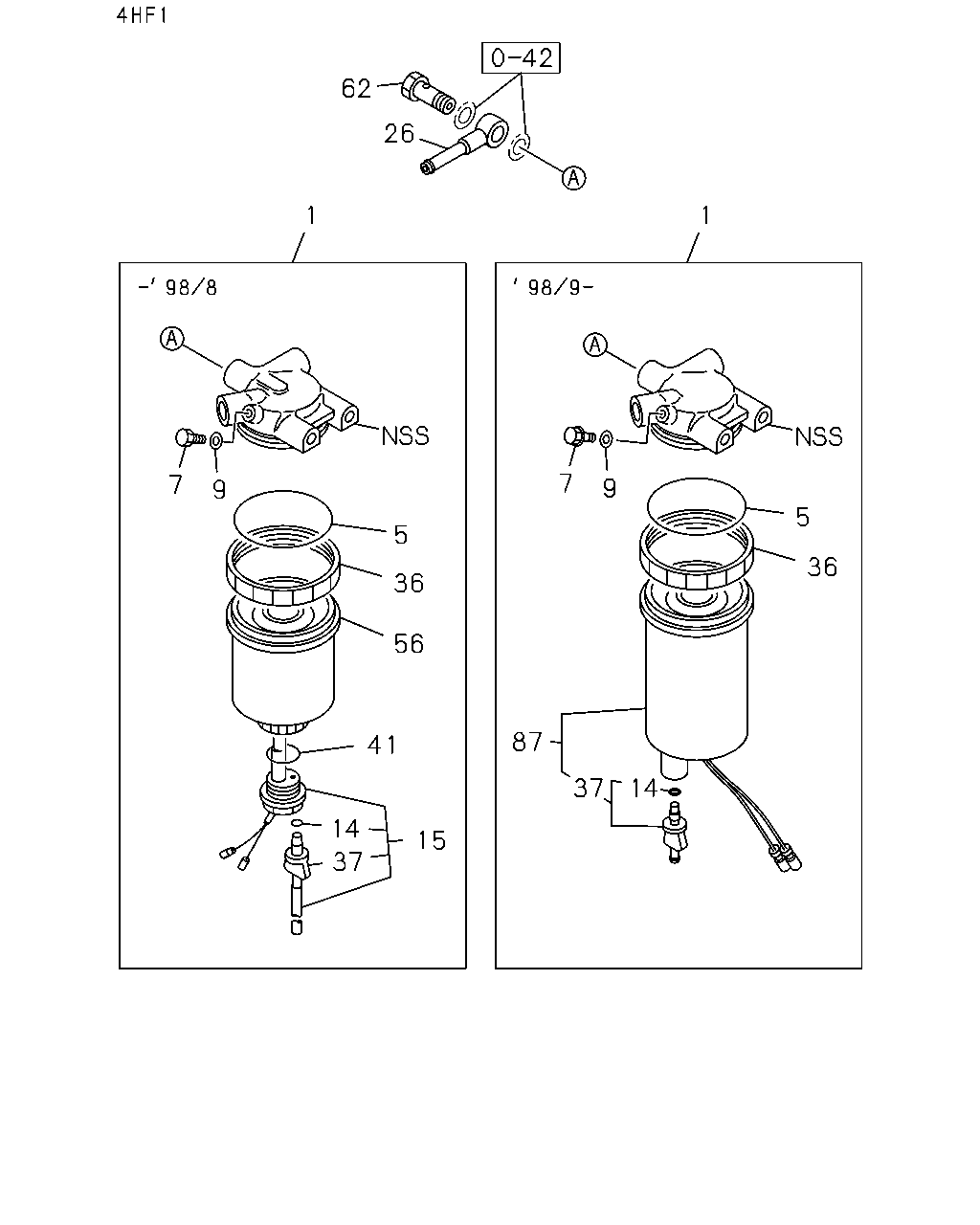

çizim 96376
62 26 1 1 7 7 9 9 5 5 36 36 56 87 41 37 14 14 15 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 SEDIMENTER; FUEL
4HG1-T ENG(RDP) 		8-97081-814-3 01 1 1112- ● ●
1 SEDIMENTER; FUEL 8-94144-933-4 01 1 9704-1111 ● ●
1 SEDIMENTER; FUEL
4HF1 ENG(RLS) 		8-94144-933-4 01 1 1112- ● ●
5 GASKET; UPR COVER,SEDIMENTER 5-09623-075-0 01 1 9704- ● ●
7 PLUG; DRAIN,SEDIMENTER 9-09612-021-0 01 1 9704-9808 ● ●
7 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 9809- ● ●
9 GASKET; DRAIN PLUG & CONNECTOR
4HG1-T ENG(RDP) 		8-94132-675-0 01 1 1112- ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 9-09571-406-0 01 1 9704-1111 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) 		9-09571-406-0 01 1 1112- ● ●
14 GASKET; SENSOR TO CENTER BOLT 8-94416-377-0 01 1 9704-9808 ● ●
14 GASKET; SENSOR TO CENTER BOLT 8-94447-156-0 01 1 9809- ● ●
15 SENSOR ASM; SEDIMENTER 8-94153-430-0 01 1 9704-9808 ● ●
26 PIPE; FUEL,IN & OUT 5-15411-223-1 02 1 9704-1111 ● ●
26 PIPE; FUEL,IN & OUT
4HF1 ENG(RLS) 		5-15411-223-1 02 1 1112- ● ●
36 RING; BODY TO CASE 5-13234-001-0 01 1 9704- ● ●
37 PLUG; SENSOR 8-94416-376-0 01 1 9704-9808 ● ●
37 PLUG; SENSOR 8-94453-746-0 01 1 9809- ● ●
41 GASKET; SENSOR TO CASE 9-09563-334-0 01 1 9704-9808 ● ●
56 CASE; FUEL SEDIMENTER 5-13211-030-1 01 1 9704-9808 ● ●
62 BOLT; EYE,FUEL FILTER
M14X29 EYE-BOLT 		9-09906-325-1 02 1 9704-1111 ● ●
62 BOLT; EYE,FUEL FILTER
4HF1 ENG(RLS) M14X29 EYE-BOLT 		9-09906-325-1 02 1 1112- ● ●
87 CASE ASM; SEDIMENTER 8-97219-363-1 01 1 9809- ● ●
çizim 96457
21 20 20 20 19 1 20 21 19 20 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SEDIMENTER; FUEL
4HG1-T ENG(RDP) 		8-97081-814-3 01 1 1112- ● ●
1 SEDIMENTER; FUEL 8-94144-933-4 01 1 9704-1111 ● ●
1 SEDIMENTER; FUEL
4HF1 ENG(RLS) 		8-94144-933-4 01 1 1112- ● ●
19 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> (A) 		8-97090-298-2 01 1 9704-0306 ● ●
19 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> (A) 		8-97370-092-0 01 1 0307- ● ●
19 BRACKET; FUEL SEDIMENTER
EXC. FUEL FILTER DUAL<S6B> (B) 		8-94366-685-0 01 1 9704- ● ●
20 BOLT; BRKT TO SEDIMENTER
(A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9704-0307 ● ●
20 BOLT; BRKT TO SEDIMENTER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0308-0512 ● ●
20 BOLT; BRKT TO SEDIMENTER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
20 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> (B) M10X30 FLANGE 		0-28081-030-0 02 1 9704-0512 ● ●
20 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> (B) M10X30 FLANGE 		0-28051-030-0 02 1 0601- ● ●
20 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> (C) M10X30 FLANGE 		0-28081-030-0 03 1 9704-0512 ● ●
20 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> (C) M10X30 FLANGE 		0-28051-030-0 03 1 0601- ● ●
20 BOLT; BRKT TO SEDIMENTER
EXC. FUEL FILTER DUAL<S6B> (C) M8X30 FLANGE 		0-28080-830-0 02 1 9704-0512 ● ●
20 BOLT; BRKT TO SEDIMENTER
EXC. FUEL FILTER DUAL<S6B> (C) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ● ●
21 NUT; BRKT TO FRAME
FUEL FILTER DUAL<S6B> M10 FLANGE 		0-91150-110-0 02 1 9704-0602 ● ●
21 NUT; BRKT TO FRAME
FUEL FILTER DUAL<S6B> M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
21 NUT; BRKT TO FRAME
EXC. FUEL FILTER DUAL<S6B> M8 FLANGE 		0-91150-108-0 02 1 9704-0602 ● ●
21 NUT; BRKT TO FRAME
EXC. FUEL FILTER DUAL<S6B> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
çizim 190486
1 9 7 5 36 87 14 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 SEDIMENTER; FUEL
4HG1-T ENG(RDP) 		8-97081-814-3 01 1 1112- ● ●
1 SEDIMENTER; FUEL 8-94144-933-4 01 1 9704-1111 ● ●
1 SEDIMENTER; FUEL
4HF1 ENG(RLS) 		8-94144-933-4 01 1 1112- ● ●
5 GASKET; UPR COVER,SEDIMENTER 5-09623-075-0 01 1 9704- ● ●
7 PLUG; DRAIN,SEDIMENTER 9-09612-021-0 01 1 9704-9808 ● ●
7 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 9809- ● ●
9 GASKET; DRAIN PLUG & CONNECTOR
4HG1-T ENG(RDP) 		8-94132-675-0 01 1 1112- ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 9-09571-406-0 01 1 9704-1111 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) 		9-09571-406-0 01 1 1112- ● ●
14 GASKET; SENSOR TO CENTER BOLT 8-94416-377-0 01 1 9704-9808 ● ●
14 GASKET; SENSOR TO CENTER BOLT 8-94447-156-0 01 1 9809- ● ●
36 RING; BODY TO CASE 5-13234-001-0 01 1 9704- ● ●
37 PLUG; SENSOR 8-94416-376-0 01 1 9704-9808 ● ●
37 PLUG; SENSOR 8-94453-746-0 01 1 9809- ● ●
87 CASE ASM; SEDIMENTER 8-97219-363-1 01 1 9809- ● ●
