◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11367 - FSR-R W/DOC EXC.SPA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#72351) — 37 parça

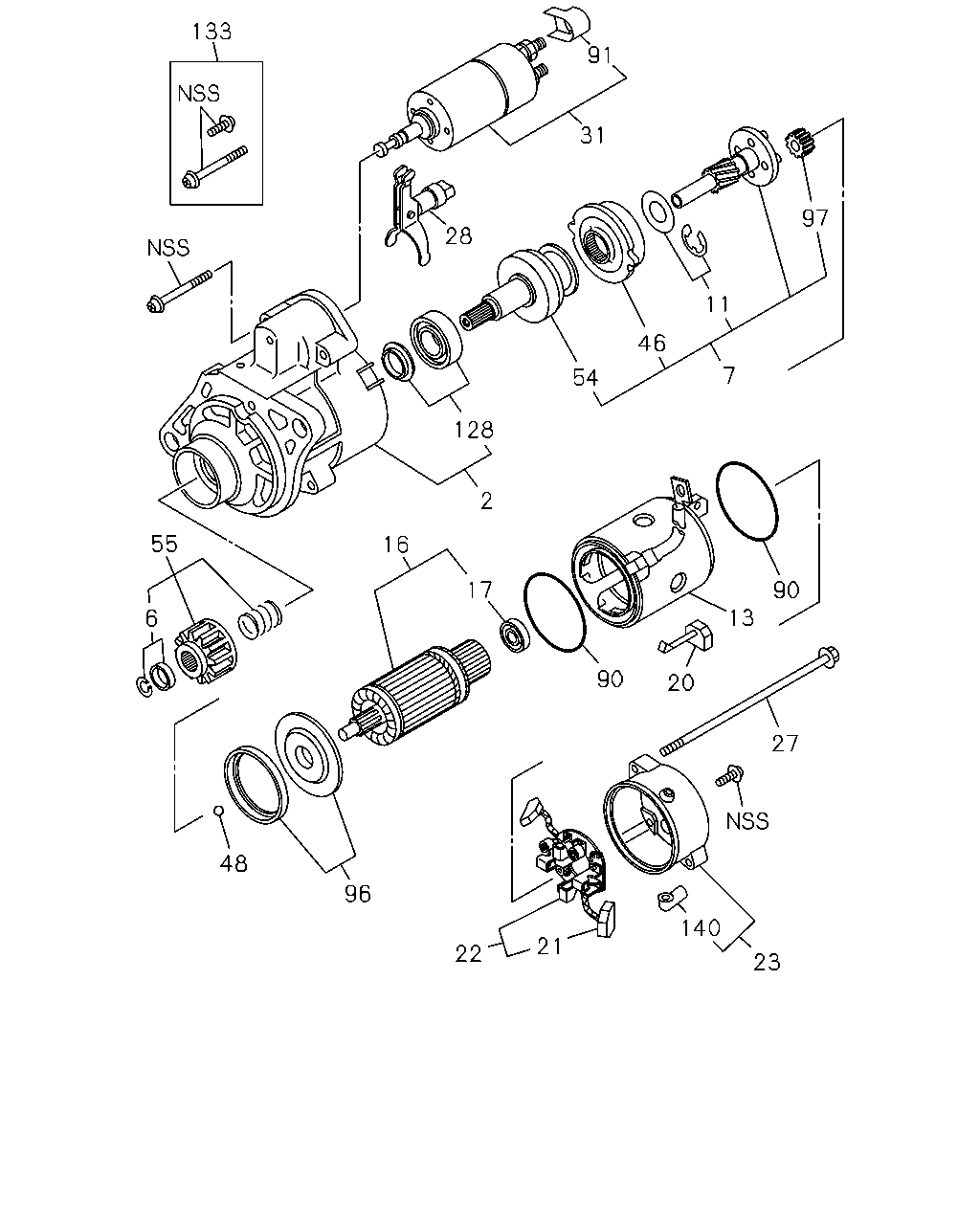

çizim 73736
90 13 20 27 140 23 21 22 96 48 6 55 16 2 17 128 54 46 11 97 31 91 28 133 90 7
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
MITSUBISHI ASM PART: A = 8-98141-206-3 		8-98152-868-0 01 1 -
2 CASE; PINION,STARTER
ASM PART: B = 8-98261-669-0 		8-98261-349-0 01 1 -
6 STOPPER; PINION STARTER
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		8-94475-688-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-98141-206-3 		1-81129-759-0 01 1 -1407
7 CLUTCH ASM; PINION,STARTER
ASM PART: B = 8-98261-669-0 		8-98245-549-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-98141-206-3 		8-98245-549-0 01 1 1408-
11 WASHER; GEAR SHAFT STARTER
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		8-97116-484-0 01 1 -
13 YOKE; STARTER
MITSUBISHI ASM PART: A = 8-98141-206-3 		8-98152-277-0 01 1 -
13 YOKE; STARTER
ASM PART: B = 8-98261-669-0 		8-98285-040-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		1-81121-075-0 01 1 -
17 BEARING; ARMATURE,STARTER
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		1-81129-837-0 01 1 -
20 BRUSH; (+),STARTER
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		1-81116-066-0 02 1 -
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		1-81129-768-0 04 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 8-98141-206-3 		1-81121-066-0 01 1 -1407
22 HOLDER; BRUSH STARTER
ASM PART: A = 8-98141-206-3 		8-98245-553-0 01 1 1408-
22 HOLDER; BRUSH STARTER
ASM PART: B = 8-98261-669-0 		8-98245-553-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 8-98141-206-3 		1-81115-229-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: B = 8-98261-669-0 		8-98248-764-0 01 1 -
27 BOLT; THROUGH,STARTER
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		1-81129-769-0 01 1 -
28 LEVER; SHIFT,STARTER
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		1-81129-762-0 01 1 -
31 SWITCH; ENGAGE STARTER
MITSUBISHI ASM PART: A = 8-98141-206-3 		8-98152-274-0 01 1 -1308
31 SWITCH; ENGAGE STARTER
ASM PART: A = 8-98141-206-3 		8-98237-257-0 01 1 1309-
31 SWITCH; ENGAGE STARTER
ASM PART: B = 8-98261-669-0 		8-98285-039-0 01 1 -
46 GEAR; CLU STARTER
ASM PART: B = 8-98261-669-0 		8-97116-485-0 01 1 -
46 GEAR; CLU STARTER
ASM PART: A = 8-98141-206-3 		8-97116-485-0 01 1 1408-
46 GEAR; CLU STARTER
ASM PART: A = 8-98141-206-3 		8-97178-153-0 01 1 -1407
48 BALL; PINION,STARTER
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		8-97116-515-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		1-81129-761-0 01 1 -
55 PINION; CLU,STARTER
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		8-98060-835-0 01 1 -
90 GASKET; ARMATURE
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		1-81129-767-0 02 1 -
91 COVER; STARTER
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		1-81129-764-0 01 1 -
96 GASKET; FRT CASE
ASM PART: A = 8-98141-206-3 		8-97116-489-0 01 1 -
96 GASKET; FRT CASE
ASM PART: B = 8-98261-669-0 		8-98248-761-0 01 1 -
97 GEAR; STARTER
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		8-97116-490-0 04 1 -
128 BEARING; STARTER
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		1-81129-758-0 01 1 -
133 SCREW SET; STARTER
ASM PART: A = 8-98141-206-3, B = 8-98261-669-0 		1-81129-765-0 01 1 -
140 GROMMET; RR COVER
ASM PART: A = 8-98141-206-3 		8-97376-390-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
