Isuzu WW
▶
TRUCKS
▶
FSR
▶
11367 - FSR-R W/DOC EXC.SPA
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

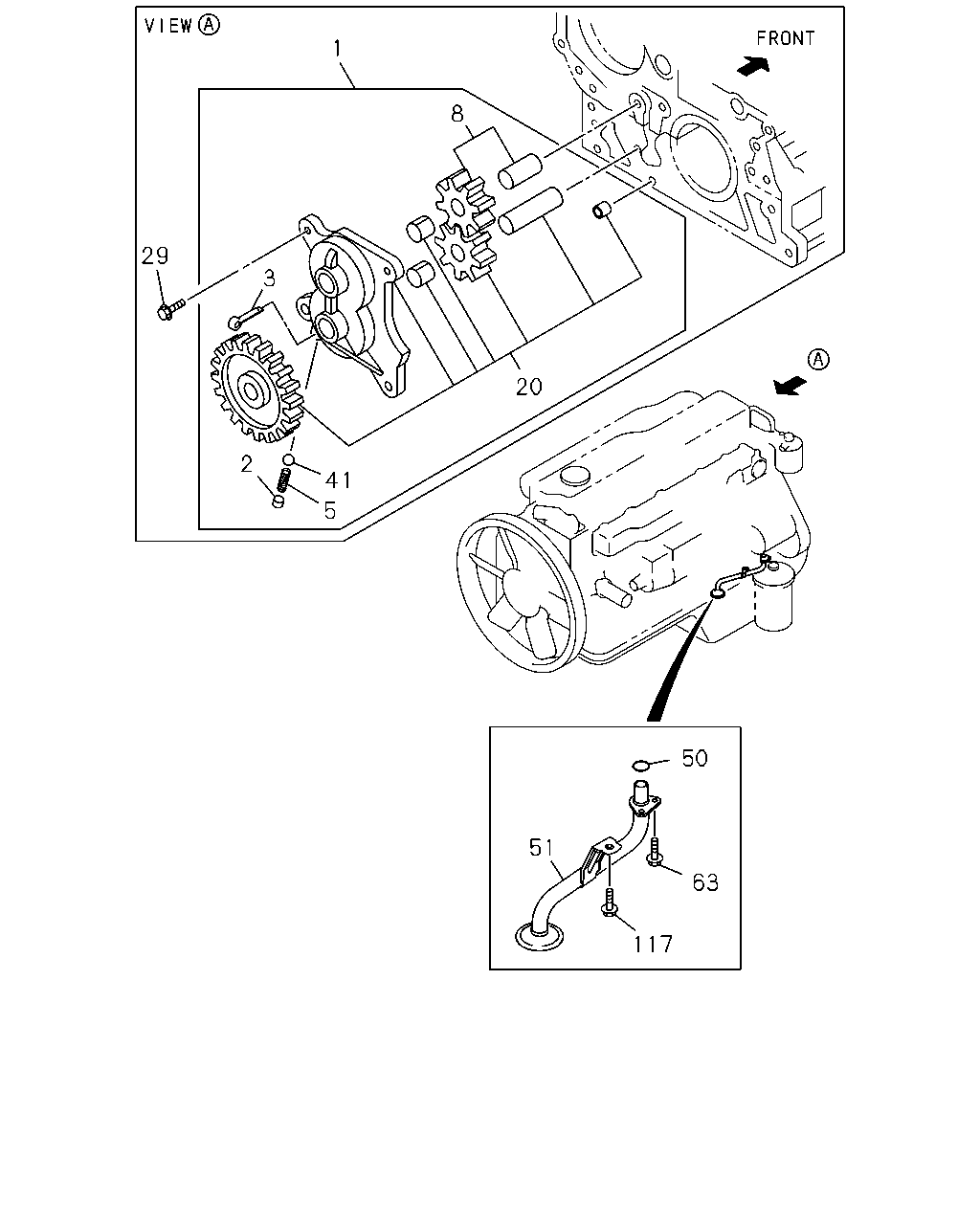

0-51 — OIL PUMP AND OIL STRAINER
(#72346) — 16 parça
117
63
50
51
20
41
5
2
3
29
1
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL
8-94390-414-3
01
1
1103-1209
1
PUMP ASM; OIL
8-97641-835-0
01
1
1210-
2
SEAT; SPR
5-13165-004-0
01
1
1103-
3
PIN; SPLIT
L=30
9-08104-030-0
01
1
1103-
5
SPRING; COIL
5-09580-098-0
01
1
1103-
8
GEAR; DRIVEN,OIL PUMP
8-97602-115-0
01
1
1103-1209
8
GEAR; DRIVEN,OIL PUMP
8-97641-838-0
01
1
1210-
20
GEAR; DRIVE,OIL PUMP
8-97602-132-1
01
1
1103-1209
20
GEAR; DRIVE,OIL PUMP
8-97641-839-0
01
1
1210-
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28050-825-0
04
1
1103-
41
BALL; OIL RELIEF VLV
5-09843-003-0
01
1
1103-
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
1103-
51
STRAINER & PIPE ASM; OIL
8-97608-494-1
01
1
1103-1209
51
STRAINER & PIPE ASM; OIL
8-98204-153-0
01
1
1210-
63
BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE
0-28080-814-0
02
1
1103-
117
BOLT; STAY TO CRANKCASE
M10X75 FLANGE
8-94399-669-1
01
1
1103-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
