Isuzu WW
▶
TRUCKS
▶
FSR
▶
11367 - FSR-R W/DOC EXC.SPA
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

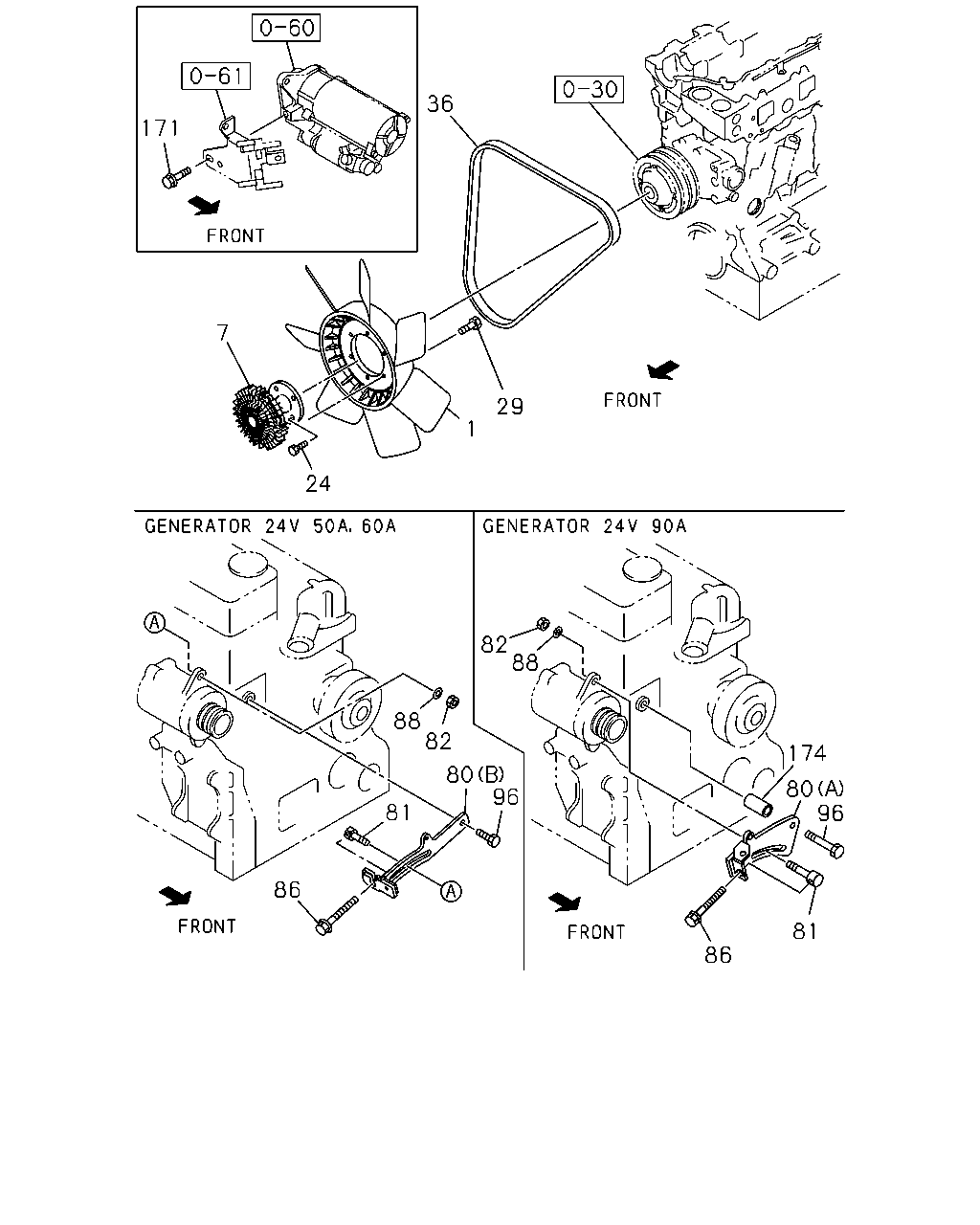

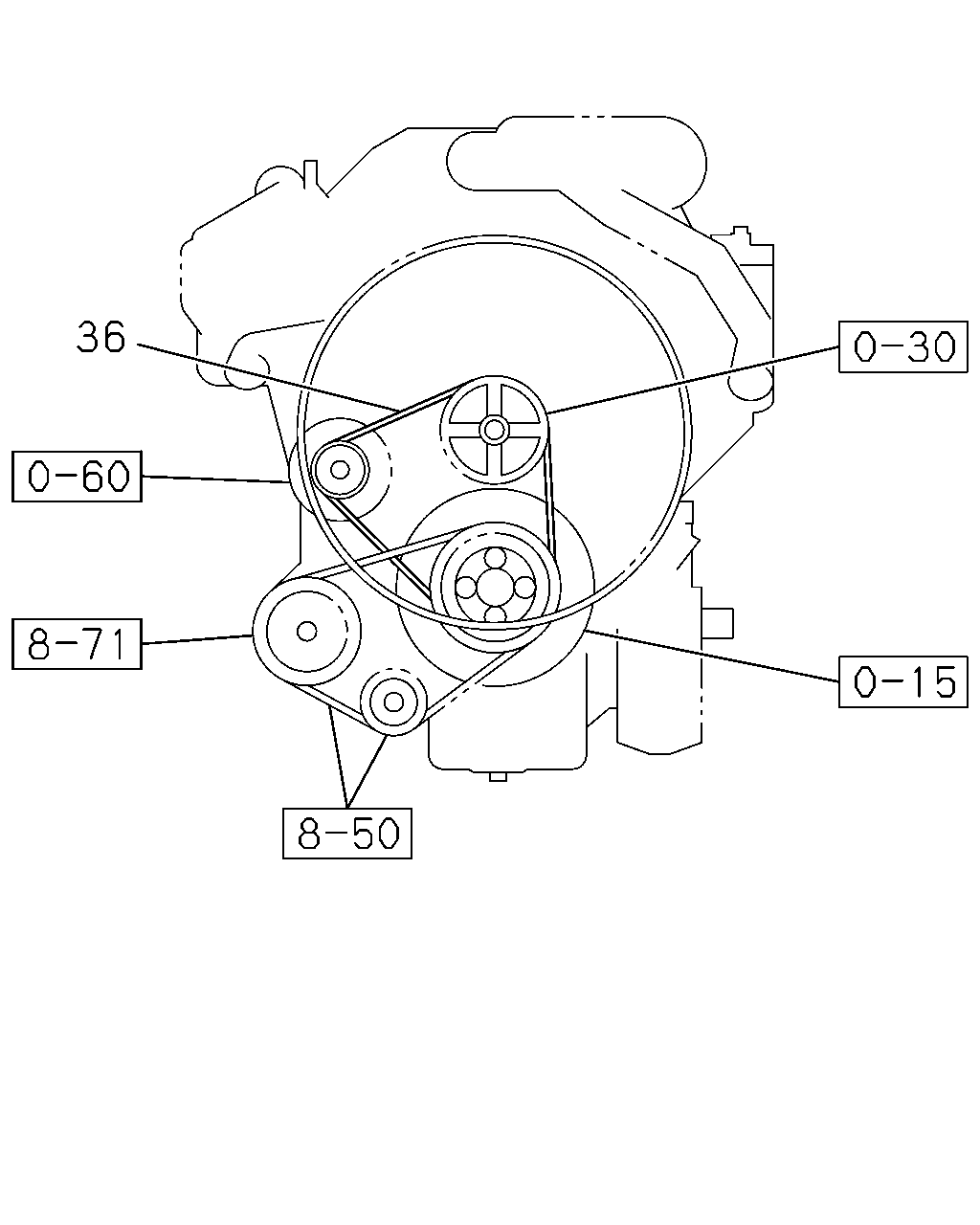

0-33 — FAN AND FAN BELT
(#72338) — 24 parça
◀
[033A] FAN BELT (4 parça)
[033A] COOLING FAN (20 parça)
▶
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
36
BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170
8-97611-859-1
01
1
1103-
36
BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190
8-97611-860-0
01
1
1103-
36
BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS
1-87610-105-0
01
1
1103-
36
BELT; COOLING FAN
GENERATOR 24V90A(K44) BEST VALUE PARTS
1-87610-106-0
01
1
1103-
171
36
29
1
24
7
88
82
80
96
81
86
86
81
96
80
174
88
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FAN; COOLING
OD=560
8-98073-467-1
01
1
1103-
7
COUPLING; FAN
8-98075-290-1
01
1
1103-
24
BOLT; FAN
M10X25 FLANGE
0-28151-025-0
04
1
1103-
29
BOLT; COUPLING TO WATER PUMP
M8X16 FLANGE
0-28050-816-0
06
1
1103-
36
BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170
8-97611-859-1
01
1
1103-
36
BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190
8-97611-860-0
01
1
1103-
36
BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS
1-87610-105-0
01
1
1103-
36
BELT; COOLING FAN
GENERATOR 24V90A(K44) BEST VALUE PARTS
1-87610-106-0
01
1
1103-
80
PLATE; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)
8-97601-020-1
01
1
1103-
80
PLATE; ADJ
GENERATOR 24V90A(K44) (A)
8-97617-940-0
01
1
1103-
81
PIECE; SLIDING
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M12X45
1-13674-160-0
01
1
1103-
81
PIECE; SLIDING
GENERATOR 24V90A(K44) M12X59
1-13674-161-0
01
1
1103-
82
NUT; ADJ PLATE
M12 FLANGE
0-91180-112-0
01
1
1103-
86
BOLT; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X155 FLANGE
1-09009-114-1
01
1
1103-
86
BOLT; ADJ
GENERATOR 24V90A(K44) M10X135
1-09009-113-1
01
1
1103-
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
0-91614-712-0
01
1
1103-
96
BOLT; ADJ PLATE
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X45 FLANGE
0-28151-045-0
01
1
1103-
96
BOLT; ADJ PLATE
GENERATOR 24V90A(K44) M10X75 FLANGE
8-94399-669-1
01
1
1103-
171
BOLT; HEAT PROTECTOR
M10X20 FLANGE
0-28051-020-0
01
1
1103-
174
SPACER; ADJ PLATE
GENERATOR 24V90A(K44)
8-98056-785-0
01
1
1103-
