Isuzu WW
▶
TRUCKS
▶
FSR
▶
11367 - FSR-R W/DOC EXC.SPA
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

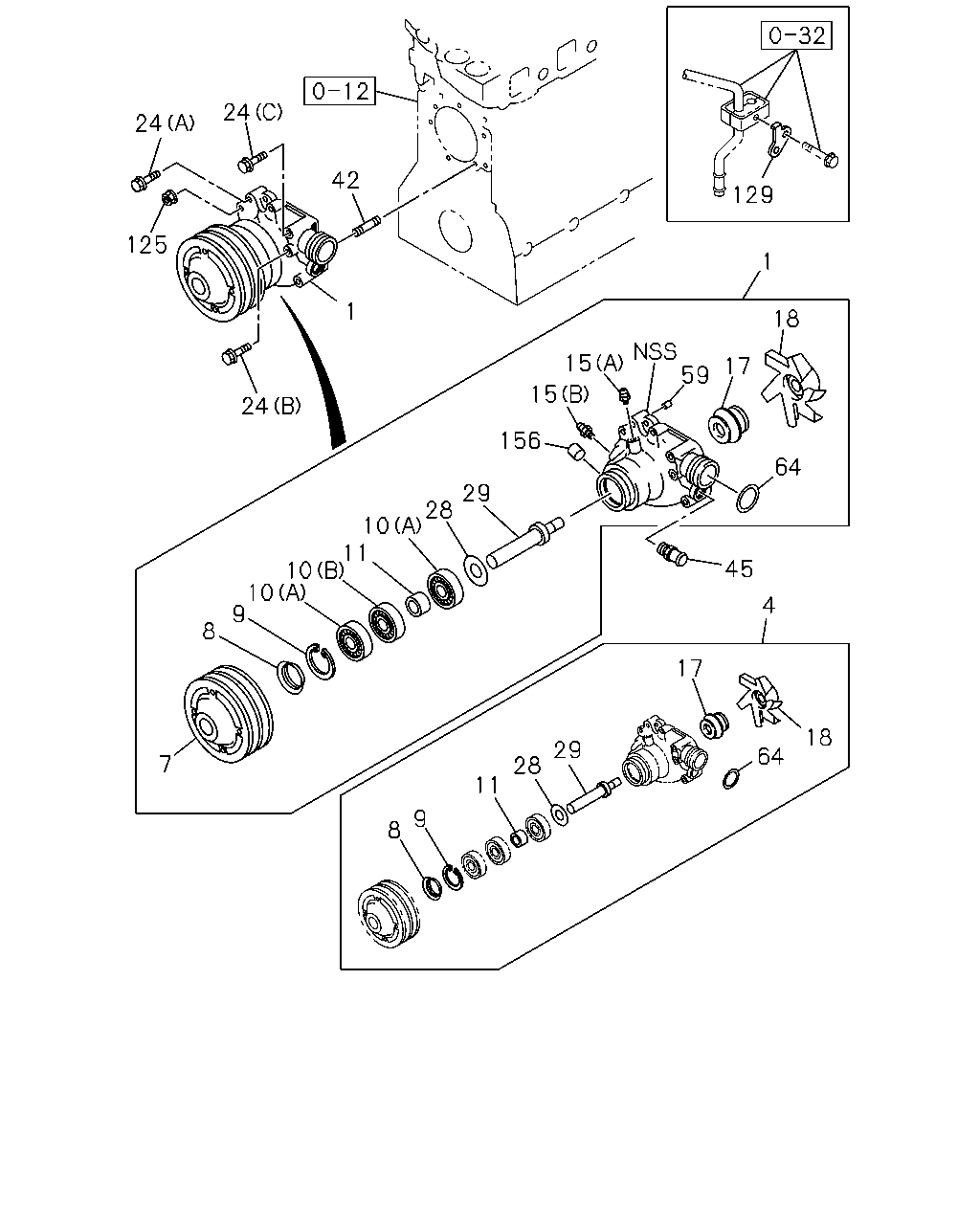

0-30 — WATER PUMP AND CORROSION RESISTOR
(#72335) — 35 parça
129
1
18
17
59
15
15
156
29
28
10
11
10
10
9
8
7
8
9
11
28
29
17
4
18
64
45
64
1
24
125
24
24
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; WATER,W/GASKET
8-98042-848-2
01
1
1103-1208
1
PUMP ASM; WATER,W/GASKET
1-87310-835-0
01
1
1209-1312
1
PUMP ASM; WATER,W/GASKET
1-87310-902-0
01
1
1401-1405
1
PUMP ASM; WATER,W/GASKET
1-87310-974-0
01
1
1406-
4
REPAIR KIT; WATER PUMP
1-87814-167-0
01
1
1401-1405
4
REPAIR KIT; WATER PUMP
1-87814-615-0
01
1
1406-
4
REPAIR KIT; WATER PUMP
1-87812-040-1
01
1
1103-1208
4
REPAIR KIT; WATER PUMP
1-87813-949-0
01
1
1209-1312
7
PULLEY; WATER PUMP
8-97616-657-0
01
1
1103-1405
7
PULLEY; WATER PUMP
8-98281-099-0
01
1
1406-
8
THROWER; DUST,WATER PUMP
8-94399-457-0
01
1
1103-
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
1103-
10
BEARING; WATER PUMP
(A)
8-94391-298-0
02
1
1103-
10
BEARING; WATER PUMP
(B)
8-94391-299-0
01
1
1103-
11
SPACER; BRG,WATER PUMP
1-13634-040-0
01
1
1103-
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
0-90301-410-0
01
1
1103-
15
NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT
1-09380-002-0
01
1
1103-
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
1103-1208
17
SEAL UNIT; WATER PUMP
8-98221-159-0
01
1
1209-1312
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
1401-1405
17
SEAL UNIT; WATER PUMP
8-98272-791-0
01
1
1406-
18
IMPELLER; WATER PUMP
8-94392-922-0
01
1
1103-
24
BOLT; WATER PUMP
(B) M8X80 FLANGE
0-28050-880-0
01
1
1103-
24
BOLT; WATER PUMP
(A) M8X58 FLANGE
8-94130-055-1
03
1
1103-
24
BOLT; WATER PUMP
(C) M10X85 FLANGE
8-94397-359-1
01
1
1103-
28
WASHER; WATER PUMP
ID=25.5 OD=50
8-94397-097-0
01
1
1103-
29
SHAFT; WATER PUMP
8-94396-130-1
01
1
1103-1405
29
SHAFT; WATER PUMP
8-98280-700-0
01
1
1406-
42
STUD; WATER PUMP
M8X30 L=46
0-40110-830-0
01
1
1103-
45
JOINT; HTR HOSE,WATER PUMP
8-94396-180-0
01
1
1103-
59
DOWEL; WATER PUMP
OD=12 L=9
1-13119-003-0
02
1
1103-
64
GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7
1-09623-383-0
01
1
1103-
125
NUT; WATER PUMP
M8 FLANGE
0-91180-108-0
04
1
1103-
129
BRACKET; CLIP
8-98066-087-0
01
1
1103-
156
CUP; SEALING
OD=25
1-09600-016-0
01
1
1103-
