Isuzu WW
▶
TRUCKS
▶
FSR
▶
11367 - FSR-R W/DOC EXC.SPA
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

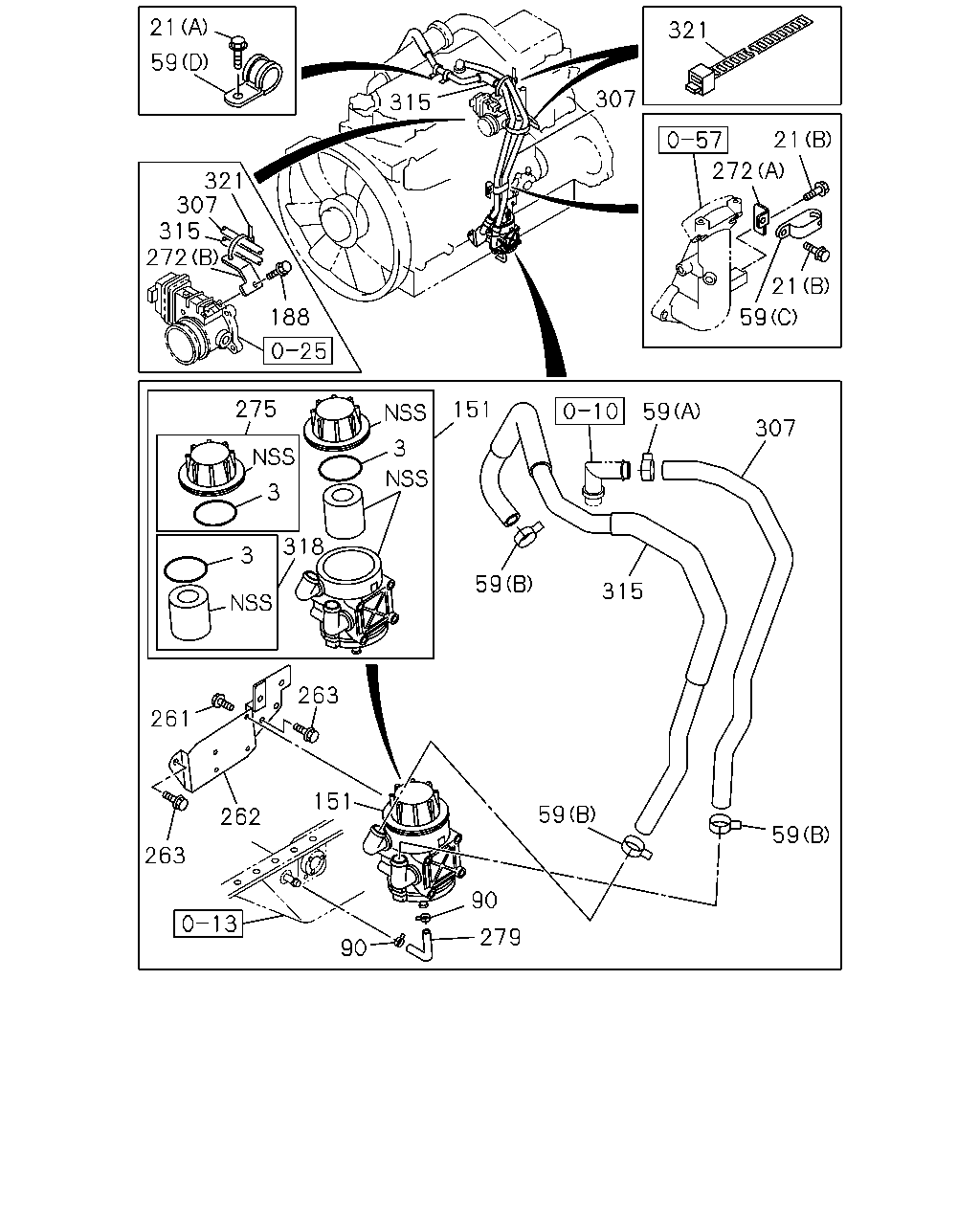

0-28 — VENTILATION SYSTEM
(#72334) — 22 parça
21
59
321
307
315
272
188
275
3
3
3
318
261
263
262
263
151
90
279
90
59
315
59
151
59
307
59
272
21
21
59
315
307
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
1103-
21
BOLT; CLIP
(A) M8X12 FLANGE
0-28050-812-0
02
1
1103-
21
BOLT; CLIP
(B) M8X16 FLANGE
0-28050-816-0
02
1
1103-
59
CLIP; HOSE
(D) ID=35 L=33
1-09700-945-0
02
1
1103-
59
CLIP; HOSE
(C) ID=30X2 L=28
1-09701-266-0
01
1
1103-
59
CLIP; HOSE
(B) ID=28.5
1-09707-150-0
03
1
1103-
59
CLIP; HOSE
(A) ID=31.2
8-97237-146-0
01
1
1103-
90
CLIP; RUBBER HOSE
ID=14
1-09704-102-0
02
1
1103-
151
SEPARATOR; OIL,PCV
8-97602-262-2
01
1
1103-
188
BOLT; BRKT
M6X12 FLANGE
0-28050-612-0
01
1
1103-
188
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
01
1
1103-
261
BOLT; SEPARETOR
M8X16 FLANGE
0-28050-816-0
04
1
1103-
262
BRACKET; OIL SEPARETOR
8-97610-919-1
01
1
1103-
263
BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE
0-28751-025-0
02
1
1103-
272
BRACKET; PIPE
(A)
8-97607-396-1
01
1
1103-
272
BRACKET; PIPE
(B)
8-97607-397-0
01
1
1103-
275
CAP; PCV
8-97606-319-0
01
1
1103-
279
HOSE; RUBBER,OIL DRAIN
L=210 SERVICED BY L=1000
0-02759-100-0
01
1
1103-
307
HOSE; RUBBER,HEAD COVER TO OIL SEPARAT
8-98054-285-2
01
1
1103-
315
HOSE; RUBBER
8-98054-286-2
01
1
1103-
318
ELEMENT KIT; PCV
8-97606-318-0
01
1
1103-
321
CLIP; HOSE,SEPARATOR
L=300
1-09707-001-1
02
1
1103-
