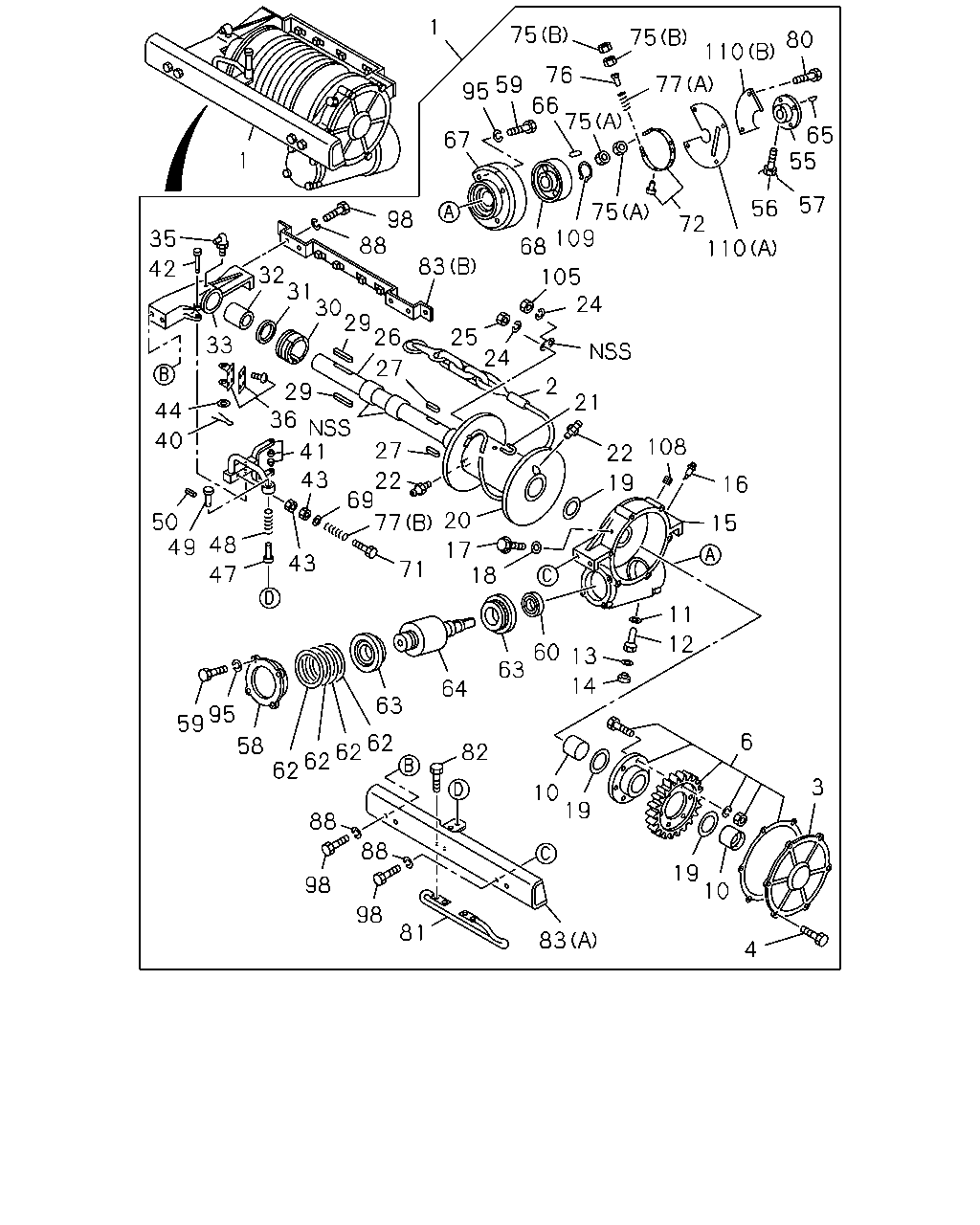

9-10 — WINCH (#72320) — 86 parça

1 75 75 80 110 76 77 59 95 66 75 65 55 67 1 57 56 75 109 98 88 72 110 35 68 32 31 30 29 26 83 42 105 24 33 25 24 27 2 29 36 21 44 41 40 108 27 22 43 22 69 77 19 16 20 50 49 15 48 17 18 43 71 47 11 12 60 63 13 14 64 63 95 59 6 58 62 62 62 62 82 3 10 19 88 88 19 10 98 98 81 83 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	WINCH ASM WINCH-5.5TON<SEU>	1-56100-013-0	01	1	0602-
2	CABLE; WINCH WINCH-5.5TON<SEU>	1-56215-006-0	01	1	0602-
3	COVER; GEAR CASE WINCH-5.5TON<SEU>	1-56151-002-0	01	1	0602-
4	BOLT; GEAR CASE COVER WINCH-5.5TON<SEU> M12X25 W/LK WASHER	0-50051-225-0	06	1	0602-
6	WHEEL; WORM,WINCH WINCH-5.5TON<SEU>	1-56231-003-0	01	1	0602-
10	BUSHING; GEAR CASE WINCH-5.5TON<SEU>	1-56152-001-1	02	1	0602-0902
10	BUSHING; GEAR CASE WINCH-5.5TON<SEU>	8-98092-681-0	02	1	0903-
11	GASKET; DRAIN PLUG WINCH-5.5TON<SEU> ID=20.5 OD=28.0	9-09571-420-0	01	1	0602-
12	PLUG; DRAIN,GEAR CASE WINCH-5.5TON<SEU>	9-09862-174-0	01	1	0602-
13	GASKET; LEVEL PLUG WINCH-5.5TON<SEU> ID=10.2 OD=16.0	9-09571-410-0	01	1	0602-
14	PLUG; LEVEL WINCH-5.5TON<SEU> M10X7	9-09202-310-0	01	1	0602-
15	CASE; GEAR,WINCH WINCH-5.5TON<SEU>	1-56151-006-2	01	1	0602-
16	BREATHER; GEAR CASE,WINCH WINCH-5.5TON<SEU>	1-09893-018-1	01	1	0602-
17	PLUG; OIL FILLER WINCH-5.5TON<SEU> M24X17 FLANGE	1-09604-022-0	01	1	0602-
18	GASKET; PLUG,OIL FILLER WINCH-5.5TON<SEU> ID=26.8 MAL	1-09623-058-0	01	1	0602-
19	WASHER; THRUST,CASE SIDE WINCH-5.5TON<SEU>	1-56244-003-0	03	1	0602-
20	DRUM; WINCH CABLE WINCH-5.5TON<SEU>	1-56211-002-1	01	1	0602-
21	CLAMP; WINCH CABLE WINCH-5.5TON<SEU>	1-56213-002-1	02	1	0602-
22	NIPPLE; GREASE,DRUM WINCH-5.5TON<SEU> PT1/8 STRAIGHT	0-90301-410-0	02	1	0602-
24	WASHER; LK,CLAMP WINCH-5.5TON<SEU> ID=10.2	9-09150-510-0	08	1	0602-0603
24	WASHER; LK,CLAMP WINCH-5.5TON<SEU> ID=10.2 MAL	0-91510-510-0	08	1	0604-
25	NUT; CLAMP WINCH-5.5TON<SEU> M10 MAL	0-91110-510-0	04	1	0602-
26	SHAFT; CABLE DRUM WINCH-5.5TON<SEU>	1-56241-004-0	01	1	0602-
27	KEY; FEATHER,DRUM SHAFT WINCH-5.5TON<SEU>	1-09735-044-0	02	1	0602-
29	KEY; FEATHER,DRUM SHAFT WINCH-5.5TON<SEU>	1-09735-043-0	02	1	0602-
30	CLUTCH; WINCH DRUM WINCH-5.5TON<SEU>	1-56311-002-1	01	1	0602-
31	COLLAR; THRUST,DRUM SHAFT WINCH-5.5TON<SEU>	1-56244-004-0	01	1	0602-
32	BUSHING; WINCH FOOT WINCH-5.5TON<SEU>	1-56174-001-0	01	1	0602-0902
32	BUSHING; WINCH FOOT WINCH-5.5TON<SEU>	8-98090-258-0	01	1	0903-
33	FOOT; WINCH WINCH-5.5TON<SEU>	1-56171-001-0	01	1	0602-
35	NIPPLE; GREASE,ELBOW WINCH-5.5TON<SEU> PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0602-
36	SHOE; DRAG BRK WINCH-5.5TON<SEU>	1-56341-008-0	01	1	0602-
40	PIN; SPLIT,WINCH FOOT WINCH-5.5TON<SEU> OD=3.7 L=20	9-08114-020-0	01	1	0602-0606
40	PIN; SPLIT,WINCH FOOT WINCH-5.5TON<SEU> OD=3.7 L=20	0-81124-020-0	01	1	0607-
41	FORK; SHIFT,CLU,WINCH WINCH-5.5TON<SEU>	1-56313-015-0	01	1	0602-
42	PIN; SHIFT FORK WINCH-5.5TON<SEU>	9-08234-276-0	01	1	0602-
43	NUT; SHIFT FORK WINCH-5.5TON<SEU> M8	0-91110-508-0	02	1	0602-
44	WASHER; PL,SHIFT FORK WINCH-5.5TON<SEU> ID=12.5	9-09160-512-0	01	1	0602-0605
44	WASHER; PL,SHIFT FORK WINCH-5.5TON<SEU> ID=12.5 OD=22 MAL	0-91610-512-0	01	1	0606-
47	POPPET; KNOB,SHIFT FORK WINCH-5.5TON<SEU>	9-56323-002-0	01	1	0602-
48	SPRING; COIL,POPPET WINCH-5.5TON<SEU>	9-09940-031-0	01	1	0602-
49	KNOB; SHIFT FORK WINCH-5.5TON<SEU>	1-56321-003-0	01	1	0602-
50	PIN; TENSION,POPPET WINCH-5.5TON<SEU>	9-09878-616-0	01	1	0602-
55	FLANGE; DRIVE SHAFT,WINCH WINCH-5.5TON<SEU>	1-37211-013-1	01	1	0602-
56	BOLT; FLANGE WINCH-5.5TON<SEU> M8X20	1-09050-005-1	01	1	0602-
57	WIRE; BOLT,FLANGE WINCH-5.5TON<SEU>	9-08351-030-0	01	1	0602-
58	COVER; BRG,WORM SHAFT WINCH-5.5TON<SEU>	1-56153-004-0	01	1	0602-
59	BOLT; BRG COVER WINCH-5.5TON<SEU> M12X30	9-02361-230-0	08	1	0602-
60	SEAL; OIL,WORM SHAFT WINCH-5.5TON<SEU>	1-09625-109-0	01	1	0602-
62	SHIM; BRG COVER WINCH-5.5TON<SEU> T=0.10	1-56253-001-0	AR	1	0602-
62	SHIM; BRG COVER WINCH-5.5TON<SEU> T=0.30	1-56253-002-0	AR	1	0602-
62	SHIM; BRG COVER WINCH-5.5TON<SEU> T=0.50	1-56253-003-0	AR	1	0602-
62	SHIM; BRG COVER WINCH-5.5TON<SEU> T=0.15	1-56253-004-0	AR	1	0602-
63	BEARING; WORM SHAFT WINCH-5.5TON<SEU> NSK	1-09812-026-0	02	1	0602-1001
63	BEARING; WORM SHAFT WINCH-5.5TON<SEU> NSK	5-09812-063-0	02	1	1002-
63	BEARING; WORM SHAFT WINCH-5.5TON<SEU> JTEKT	5-09812-062-1	02	1	1002-
64	WORM; WINCH WINCH-5.5TON<SEU>	1-56235-004-0	01	1	0602-
65	KEY; WOODRUFF,FLANGE WINCH-5.5TON<SEU>	9-08055-832-0	01	1	0602-
66	KEY; FEATHER,DRUM WINCH-5.5TON<SEU>	9-08011-025-0	01	1	0602-
67	HOUSING; WINCH BRK WINCH-5.5TON<SEU>	1-56157-003-3	01	1	0602-
68	DRUM; AUTO BRK,WINCH WINCH-5.5TON<SEU>	1-56361-001-0	01	1	0602-
69	WASHER; PL,DRUM WINCH-5.5TON<SEU> ID=8.4 OD=18	9-09160-608-0	01	1	0602-0605
69	WASHER; PL,DRUM WINCH-5.5TON<SEU> ID=8.4 OD=18	0-91610-608-0	01	1	0606-
71	BOLT; DRUM WINCH-5.5TON<SEU>	1-09000-145-1	01	1	0602-
72	BAND; BRK,WINCH WINCH-5.5TON<SEU>	1-56362-003-0	01	1	0602-
75	NUT; BRK BAND WINCH-5.5TON<SEU> (A) M8	0-91110-508-0	02	1	0602-
75	NUT; BRK BAND WINCH-5.5TON<SEU> (B) M10 MAL	0-91110-510-0	02	1	0602-
76	SEAT; SPR,BRK BAND WINCH-5.5TON<SEU>	9-56367-001-0	01	1	0602-
77	SPRING; COIL,BRK BAND WINCH-5.5TON<SEU> (A)	9-09940-038-0	01	1	0602-
77	SPRING; COIL,BRK BAND WINCH-5.5TON<SEU> (B)	9-09940-047-0	01	1	0602-
80	BOLT; VENTILATOR WINCH-5.5TON<SEU> M8X12 W/LK WASHER	0-50540-812-0	04	1	0602-
81	GUARD; WINCH CABLE WINCH-5.5TON<SEU>	1-56121-006-0	01	1	0602-
82	BOLT; CABLE GUARD WINCH-5.5TON<SEU> M10X28 W/LK WASHER	0-50041-028-0	04	1	0602-0906
82	BOLT; CABLE GUARD WINCH-5.5TON<SEU> M10X28 W/LK WASHER	0-50541-028-0	04	1	0907-
83	BRACKET; WINCH FOOT WINCH-5.5TON<SEU> (A)	1-56111-016-0	01	1	0602-
83	BRACKET; WINCH FOOT WINCH-5.5TON<SEU> (B)	1-56113-010-0	01	1	0602-
88	WASHER; LK,BRKT WINCH-5.5TON<SEU> ID=14.2	9-09150-514-0	08	1	0602-0603
88	WASHER; LK,BRKT WINCH-5.5TON<SEU> ID=14.2	0-91510-514-0	08	1	0604-
95	WASHER; LK,BRG COVER WINCH-5.5TON<SEU> ID=12.2	9-09150-812-0	08	1	0602-0603
95	WASHER; LK,BRG COVER WINCH-5.5TON<SEU> ID=12.2 MAL	0-91510-812-0	08	1	0604-
98	BOLT; WINCH BRKT WINCH-5.5TON<SEU> M14X30	0-23801-430-0	08	1	0602-
105	NUT; WINCH WINCH-5.5TON<SEU> M10 MAL	0-91110-510-0	04	1	0602-
108	PLUG; GEAR CASE WINCH-5.5TON<SEU>	8-97063-612-0	01	1	0602-
109	RING; SNAP,DRUM BRK WINCH-5.5TON<SEU> T=1.50	5-09588-020-1	01	1	0602-
110	COVER; BRK HOUSING WINCH-5.5TON<SEU> (A)	1-56158-003-0	01	1	0602-
110	COVER; BRK HOUSING WINCH-5.5TON<SEU> (B)	1-56158-004-0	01	1	0602-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
