8-28 — CHASSIS ELECTRICAL (#72311) — 75 parça

284 273 40 273 284 714 34 34 36 34 34 714

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

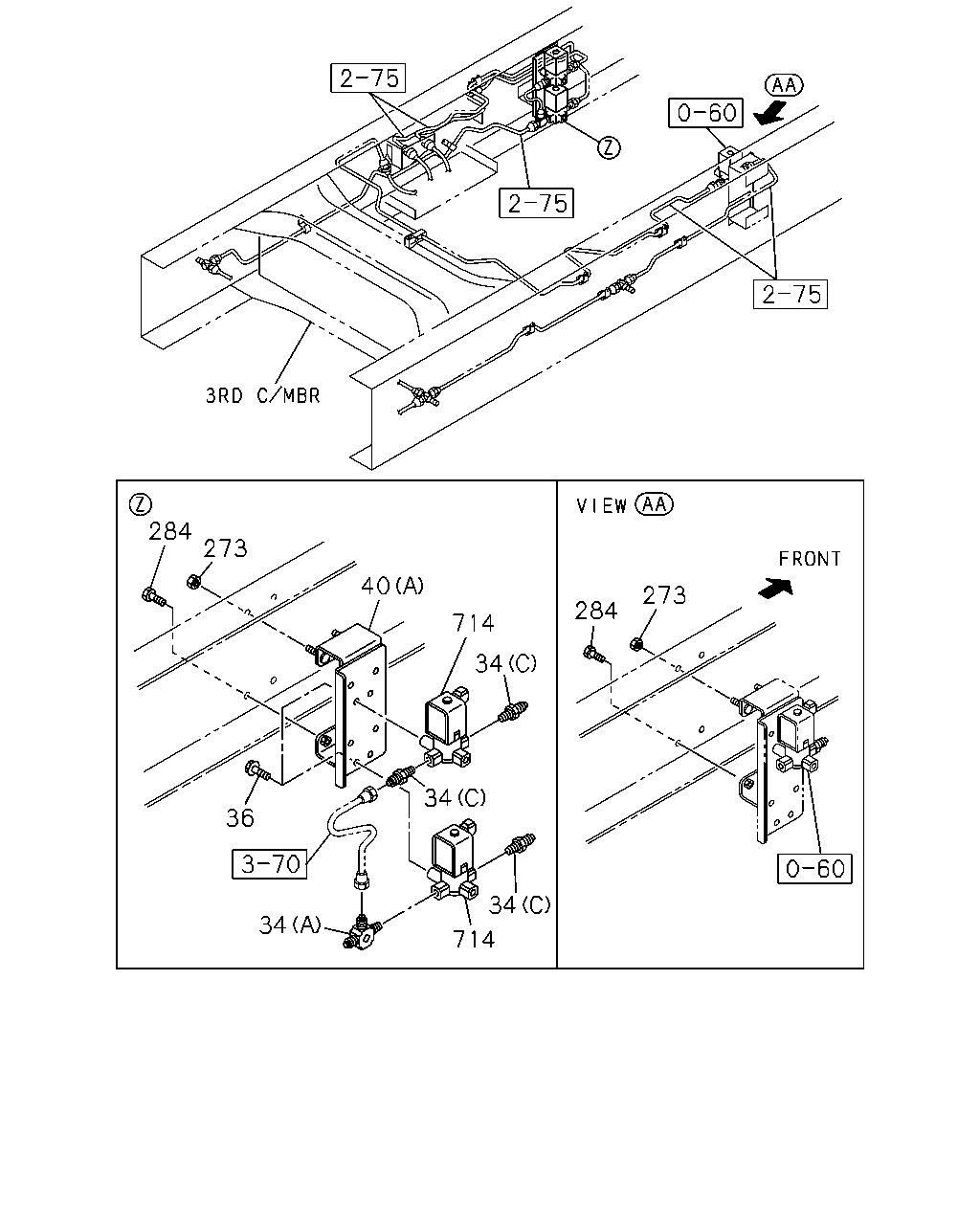

34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	01	1	0602-
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	03	1	0602-
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	0602-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) (B) M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	0602-
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY MAL	1-09656-230-1	01	1	0602-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) (A) M12X2 & PT1/4 3WAY MAL	1-09656-230-1	01	1	0602-
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE MAL	0-28650-820-0	04	1	0602-
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE MAL	0-28650-820-0	02	1	0602-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) M8X20 FLANGE MAL	0-28650-820-0	02	1	0602-
40	BRACKET; MAG VLV (A)	1-47477-327-2	01	1	0602-
40	BRACKET; MAG VLV (B)	1-82569-259-0	01	1	0602-
273	NUT; MAG VLV M8 FLANGE	0-91150-108-0	04	1	0602-0602
273	NUT; MAG VLV M8 FLANGE MAL	0-91180-108-0	04	1	0603-
284	BOLT; MAG VLV M8X25 FLANGE MAL	0-28650-825-0	02	1	0602-
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-598-5	02	1	0602-

190 93 24 94 25 93 24 22 352 94 29 226 31 1 180 377 58 59 385 290 438 538 333 123 231 31 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

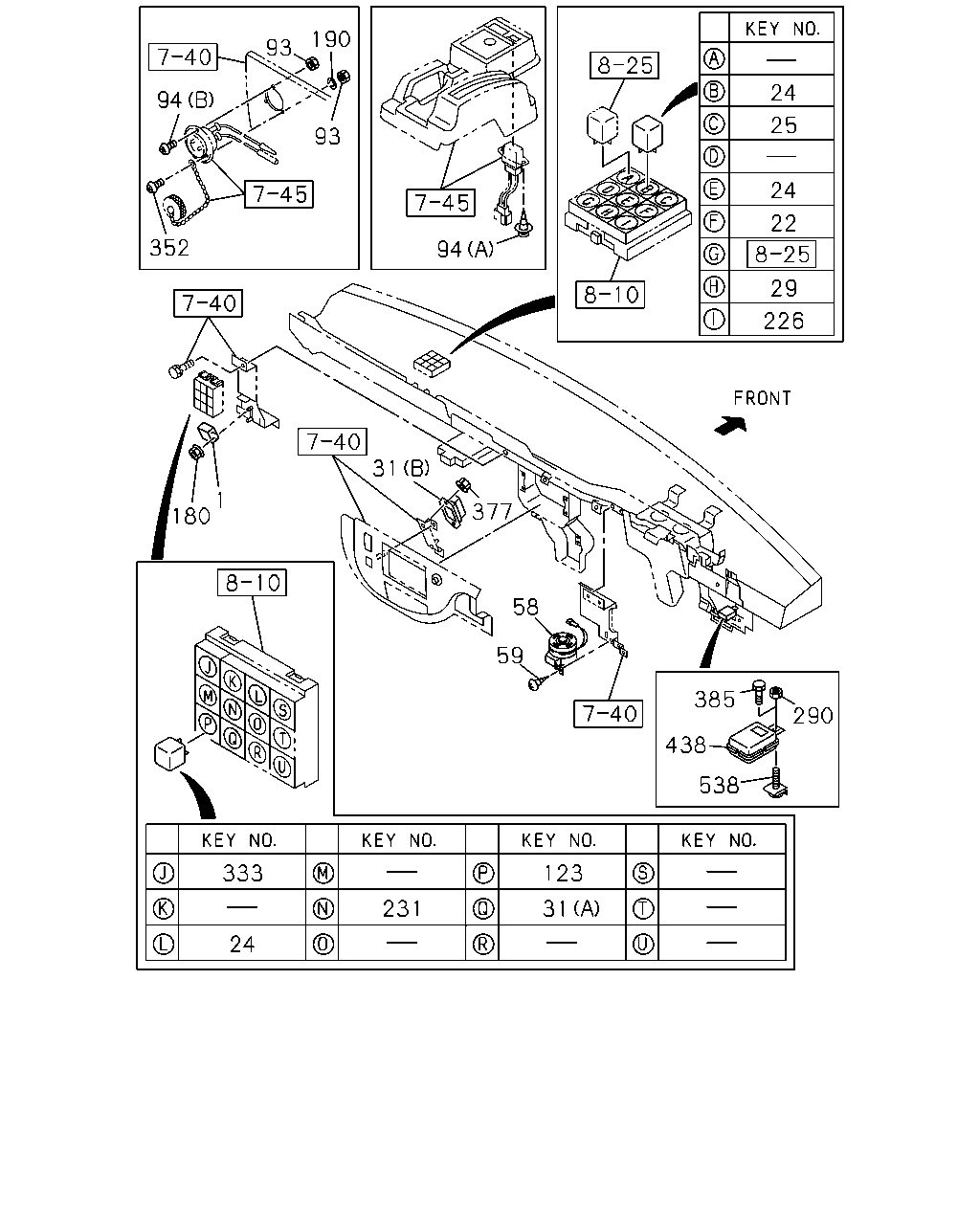

1	UNIT; FLASHER MAL	1-83470-060-1	01	1	0602-
22	RELAY; STOP LAMP 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	0602-
24	RELAY; LIGHTING 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	0602-
24	RELAY; LIGHTING 24V 12.5A PANASONIC MAL	8-97262-933-0	02	1	0602-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	0602-
29	RELAY; HORN 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	0602-
31	RELAY; PTO CONT PTO CONTROL(SV6) (B) 24V	1-82550-187-1	01	1	0602-
31	RELAY; PTO CONT PTO CONTROL(SV6) (A) 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	0602-
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	0602-1308
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	0602-0612
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	8-98069-865-0	01	1	0701-1308
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-865-0	01	1	1309-
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	8-98069-865-0	01	1	1309-
59	SCREW; BUZZER M5X14 MAL	8-94279-325-0	01	1	0602-
93	NUT; CONSENT TO BLIND PNL M3	9-99110-403-0	03	1	0602-
94	SCREW; CONSENT TO BLIND PNL (A) M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0602-0604
94	SCREW; CONSENT TO BLIND PNL (A) M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-
94	SCREW; CONSENT TO BLIND PNL (B) M3X10 CK-HEAD	9-93090-310-0	02	1	0602-
123	RELAY; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	0602-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0602-0602
180	NUT; FLASHER UNIT M6 FLANGE MAL	0-91180-106-0	01	1	0603-
190	WASHER ID=3.1	9-09150-503-0	01	1	0602-0604
190	WASHER ID=3.1	0-91510-503-0	01	1	0605-
226	RELAY; EXH BRK 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	0602-
231	RELAY; HAZARD 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	0602-
290	NUT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91150-106-0	01	1	0602-0602
290	NUT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE MAL	0-91180-106-0	01	1	0603-
333	RELAY; MARKER LAMP 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	0602-
352	SCREW; BRKT M3X10	9-93490-310-0	01	1	0602-
377	NUT; RELAY PTO CONTROL(SV6) M6 FLANGE	0-91150-106-0	02	1	0602-0602
377	NUT; RELAY PTO CONTROL(SV6) M6 FLANGE MAL	0-91180-106-0	02	1	0603-
385	BOLT; CONT UNIT EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER MAL	8-94279-201-0	01	1	0602-
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	0602-
538	CLIP; CONT UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97806-845-2	01	1	0602-

49 46 46 44 49 283 45 33 34 34 261 89 39 90 35 40 34 34 36 36 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

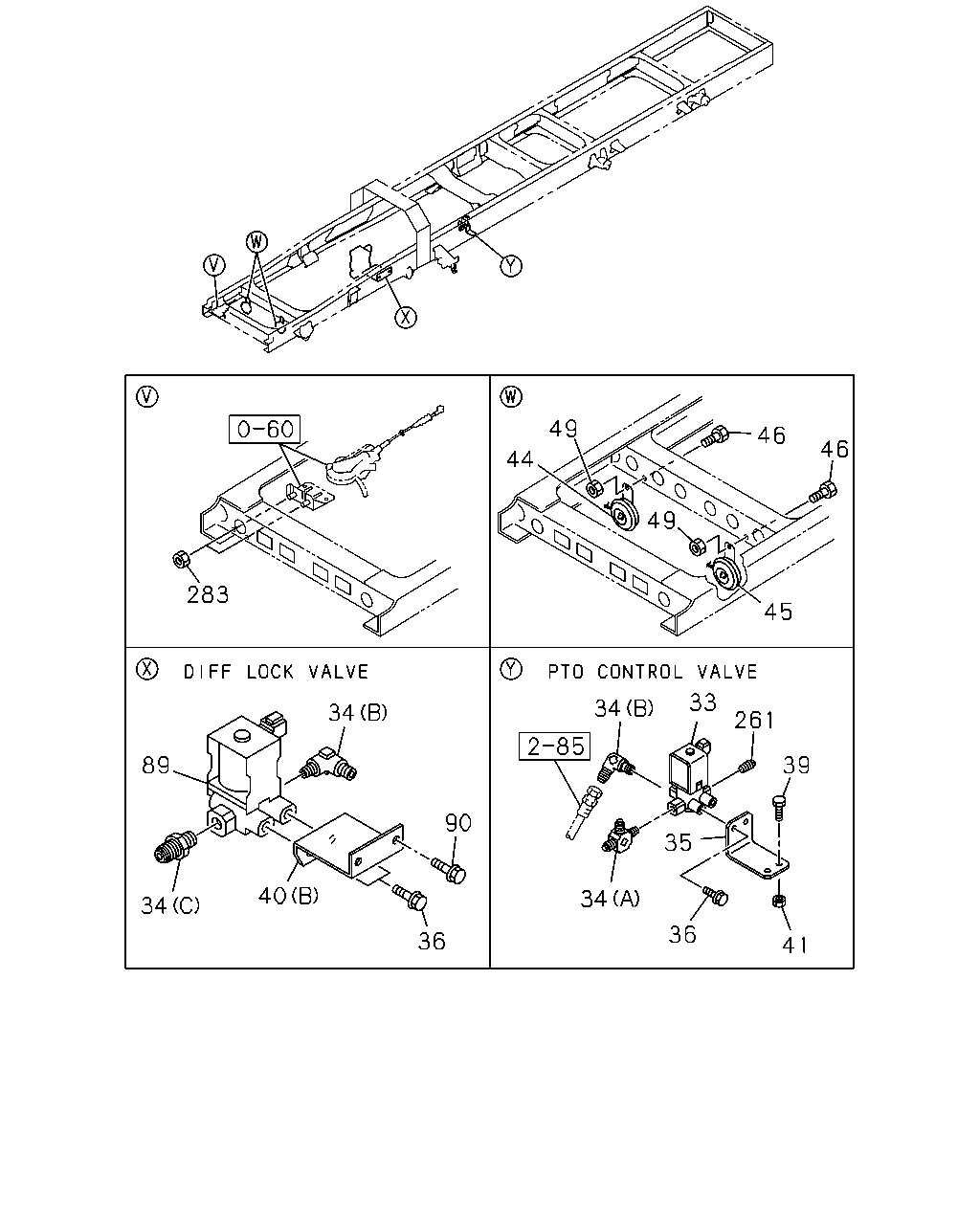

33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-82563-600-5	01	1	0602-
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	01	1	0602-
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	03	1	0602-
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	0602-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) (B) M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	0602-
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY MAL	1-09656-230-1	01	1	0602-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) (A) M12X2 & PT1/4 3WAY MAL	1-09656-230-1	01	1	0602-
35	BRACKET; MAG VLV,PTO CONT TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-47477-267-0	01	1	0602-
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE MAL	0-28650-820-0	04	1	0602-
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE MAL	0-28650-820-0	02	1	0602-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION SIDE PTO WO/LEVER<SH5> PTO CONTROL(SV6) M8X20 FLANGE MAL	0-28650-820-0	02	1	0602-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X30 FLANGE	0-28650-830-0	02	1	0602-
40	BRACKET; MAG VLV (A)	1-47477-327-2	01	1	0602-
40	BRACKET; MAG VLV (B)	1-82569-259-0	01	1	0602-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE	0-91150-108-0	02	1	0602-0602
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE MAL	0-91180-108-0	02	1	0603-
44	HORN; HIGH NOTE MAL	1-83410-065-1	01	1	0602-
45	HORN; LOW NOTE MAL	1-83410-064-1	01	1	0602-
46	BOLT; HORN TO BODY M8X25 FLANGE MAL	0-28650-825-0	02	1	0602-
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0602-0602
49	NUT; HORN TO BODY M8 FLANGE MAL	0-91180-108-0	02	1	0603-
89	VALVE; MAG,DIFF LOCK MAL	1-82563-602-6	01	1	0602-
90	BOLT; MAG VLV M8X20 FLANGE MAL	0-28650-820-0	02	1	0602-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> PT1/4 MAL	9-99204-513-0	01	1	0602-
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0602-0602
283	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	02	1	0603-
