Isuzu WW
▶
TRUCKS
▶
FSS
▶
11365 - FSS(MALAYSIA)M/T
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

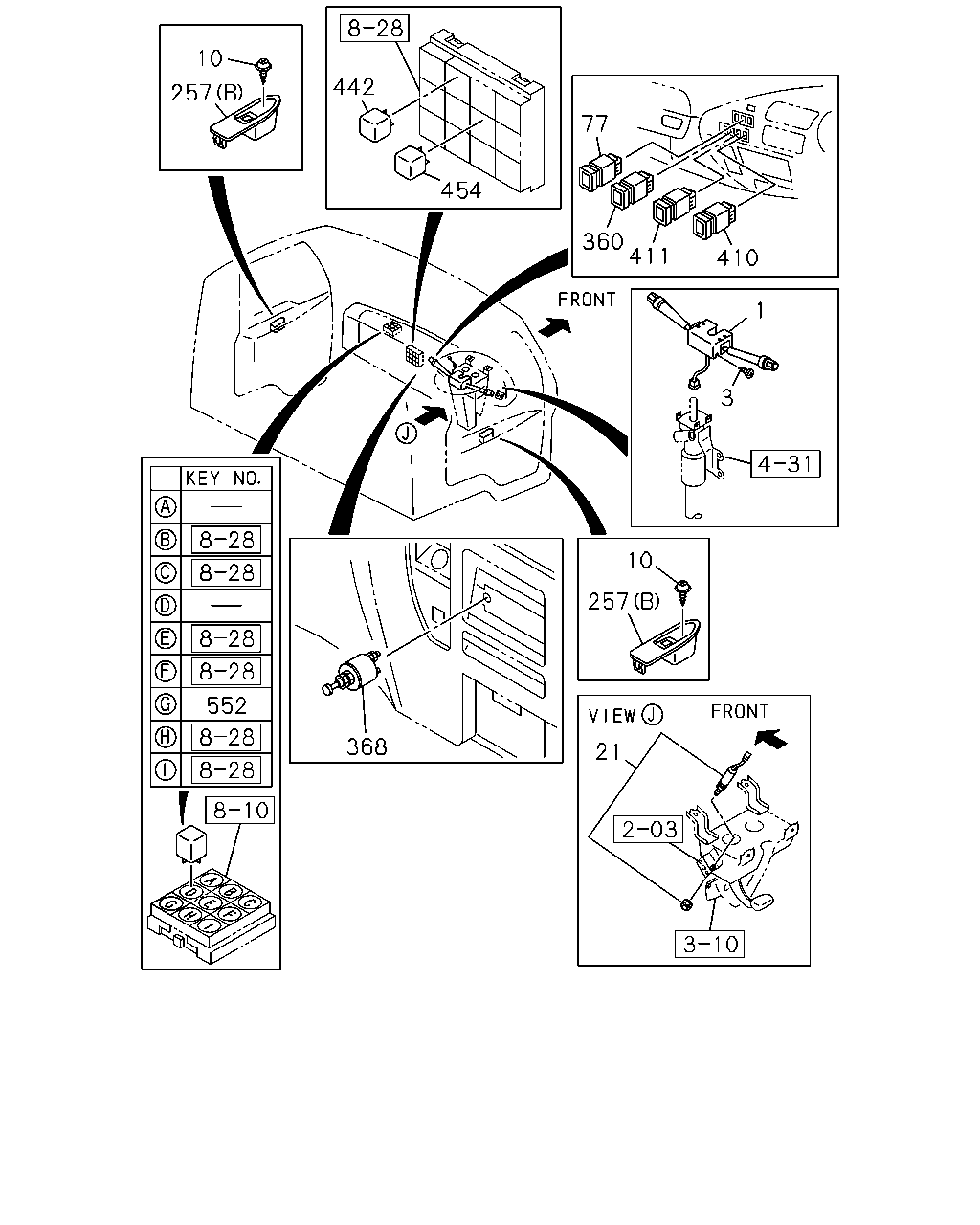

8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#72309) — 22 parça
◀
[825A] DOOR SIDE (5 parça)
[825A] CAB SIDE (17 parça)
▶
29
30
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
MAL
8-97855-032-3
01
1
0602-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
0602-
257
COVER; HOLE,SW
(B)
1-82389-011-2
01
1
0602-
257
COVER; HOLE,SW
(B)
1-82389-012-2
01
1
0602-
257
COVER; HOLE,SW
(A) MAL
8-94229-914-1
01
1
0602-
10
442
257
77
454
360
411
410
1
3
10
257
552
368
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
1-82360-719-0
01
1
0602-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0602-0604
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0605-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
0602-0604
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER MAL
0-74360-516-0
02
1
0605-
21
SWITCH; CLU
1-82380-114-3
01
1
0602-
77
SWITCH; PTO
PTO CONTROL(SV6)
1-82340-403-0
01
1
0602-
257
COVER; HOLE,SW
(B)
1-82389-011-2
01
1
0602-
257
COVER; HOLE,SW
(B)
1-82389-012-2
01
1
0602-
257
COVER; HOLE,SW
(A) MAL
8-94229-914-1
01
1
0602-
360
SWITCH ASM; DIFF LK
1-82340-404-0
01
1
0602-
368
SWITCH; LAMP
9-82750-469-0
01
1
0602-
410
SWITCH; FRT DRIVE
1-82350-264-0
01
1
0602-
411
SWITCH; TRANSFER
1-82350-265-0
01
1
0602-
442
RELAY
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0602-
454
RELAY; PASSING
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0602-
552
RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0602-
