Isuzu WW
▶
TRUCKS
▶
FSS
▶
11365 - FSS(MALAYSIA)M/T
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶

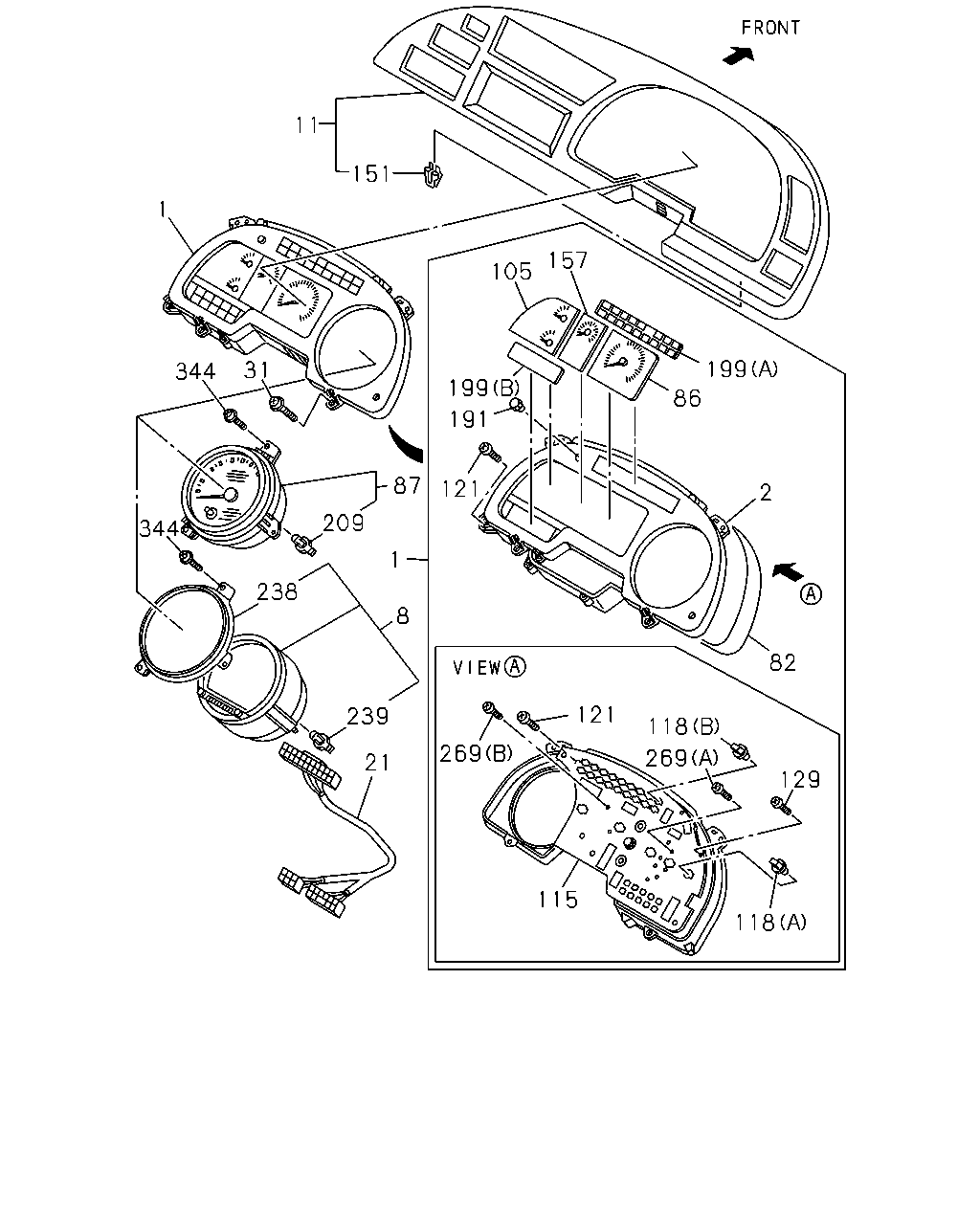

8-21 — METER ASM
(#72308) — 28 parça
11
151
1
157
105
31
199
344
199
86
191
87
121
2
209
344
1
238
8
82
121
239
118
269
269
21
129
115
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
1-83115-002-0
01
1
0602-
2
PANEL; CLUSTER
1-83119-499-0
01
1
0602-
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7>
1-83120-935-0
01
1
0602-
11
CLUSTER ASM; METER
1-72418-012-9
01
1
0602-
21
HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7>
1-82624-665-1
01
1
0602-
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74110-620-0
03
1
0602-0604
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
0605-
82
CASE ASM; CLUSTER METER
1-83119-432-0
01
1
0602-
86
TACHOMETER; CLUSTER METER
1-83120-661-0
01
1
0602-
87
SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7>
1-83120-490-1
01
1
0602-
105
GAUGE; THERMO & FUEL,CLUSTER METER
1-83180-274-0
01
1
0602-
115
CIRCUIT; PRINTED,CLUSTER METER
1-83189-345-0
01
1
0602-
118
BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET
1-82194-061-0
04
1
0602-
118
BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET
1-82194-062-0
16
1
0602-
121
SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING
1-83119-442-0
08
1
0602-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING
1-83119-052-0
10
1
0602-
151
CLIP; METER CLUSTER
MAL
8-97217-066-0
10
1
0602-
157
METER; AIR PRESSURE,CLUSTER METER
1-83150-178-0
01
1
0602-
191
KNOB; BULB CHECK
1-83119-500-0
01
1
0602-
199
LENS; WARNING LAMP
(B)
1-83119-435-0
01
1
0602-
199
LENS; WARNING LAMP
(A)
1-83119-583-0
01
1
0602-
209
BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET
1-82194-061-0
02
1
0602-
238
PANEL; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7>
1-83129-311-0
01
1
0602-
239
BULB; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 24V 1.4W
1-82194-101-0
03
1
0602-
269
SCREW; METER CLUSTER
(B) M3 TAPPING
1-83119-439-0
04
1
0602-
269
SCREW; METER CLUSTER
(A) M3 TAPPING
1-83119-441-0
06
1
0602-
344
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
0-74110-620-0
03
1
0602-0604
344
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
0605-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
