◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11365 - FSS(MALAYSIA)M/T ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#72307) — 153 parça

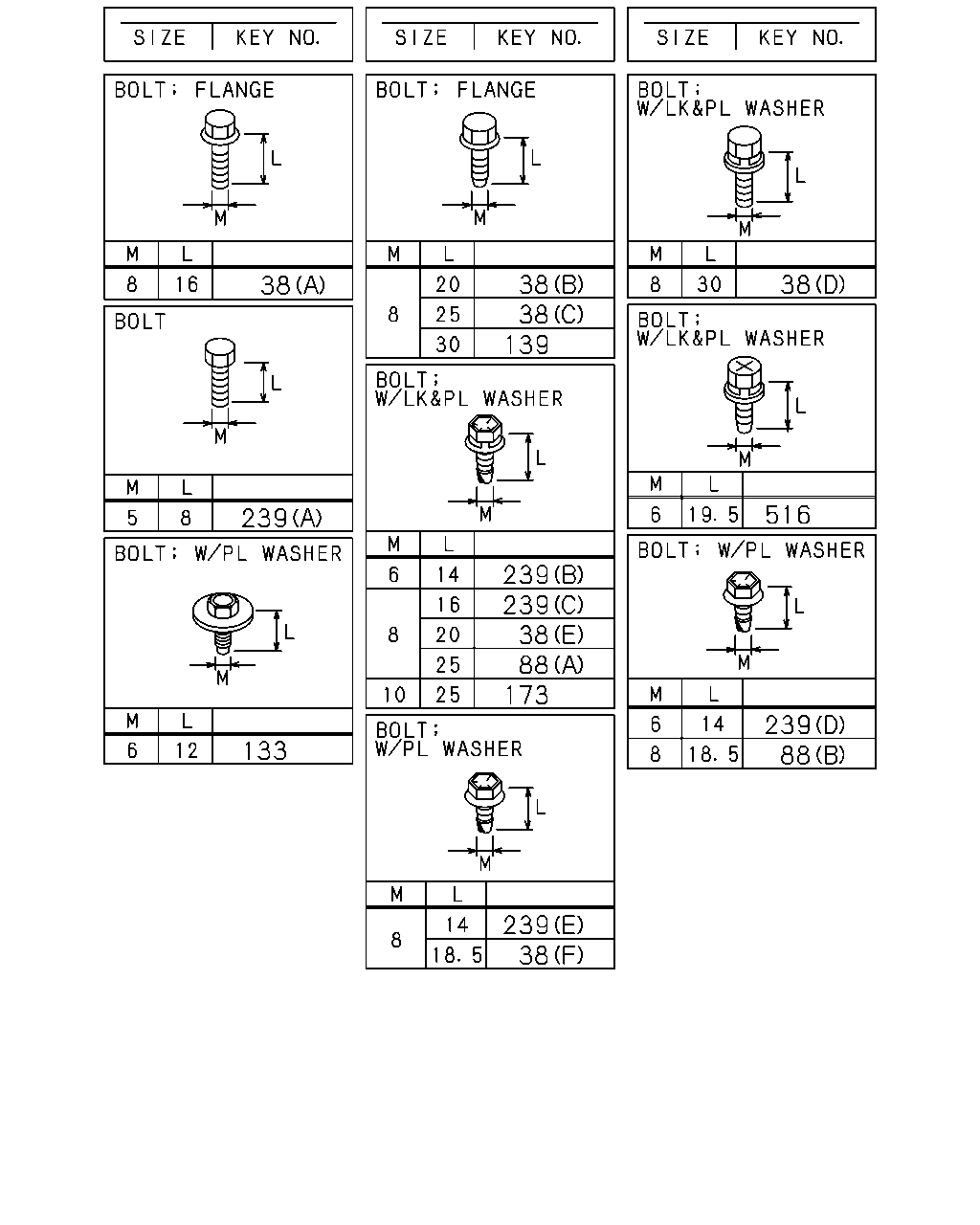

çizim 136624
38 38 139 38 38 516 239 239 239 38 88 173 239 88 133 239 38
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE MAL 		0-28050-816-0 04 1 0602-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 0602-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE MAL 		0-28650-825-0 01 1 0602-
38 BOLT; CLIP,HARNESS
(D) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0602-
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0602-1201
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER MAL 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE MAL 		0-28650-825-0 02 1 0602-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0602-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER MAL 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0602-
139 BOLT; BRKT
M8X25 FLANGE MAL 		0-28650-825-0 01 1 0602-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0602-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0602-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0602-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0602-1201
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 02 1 0602-

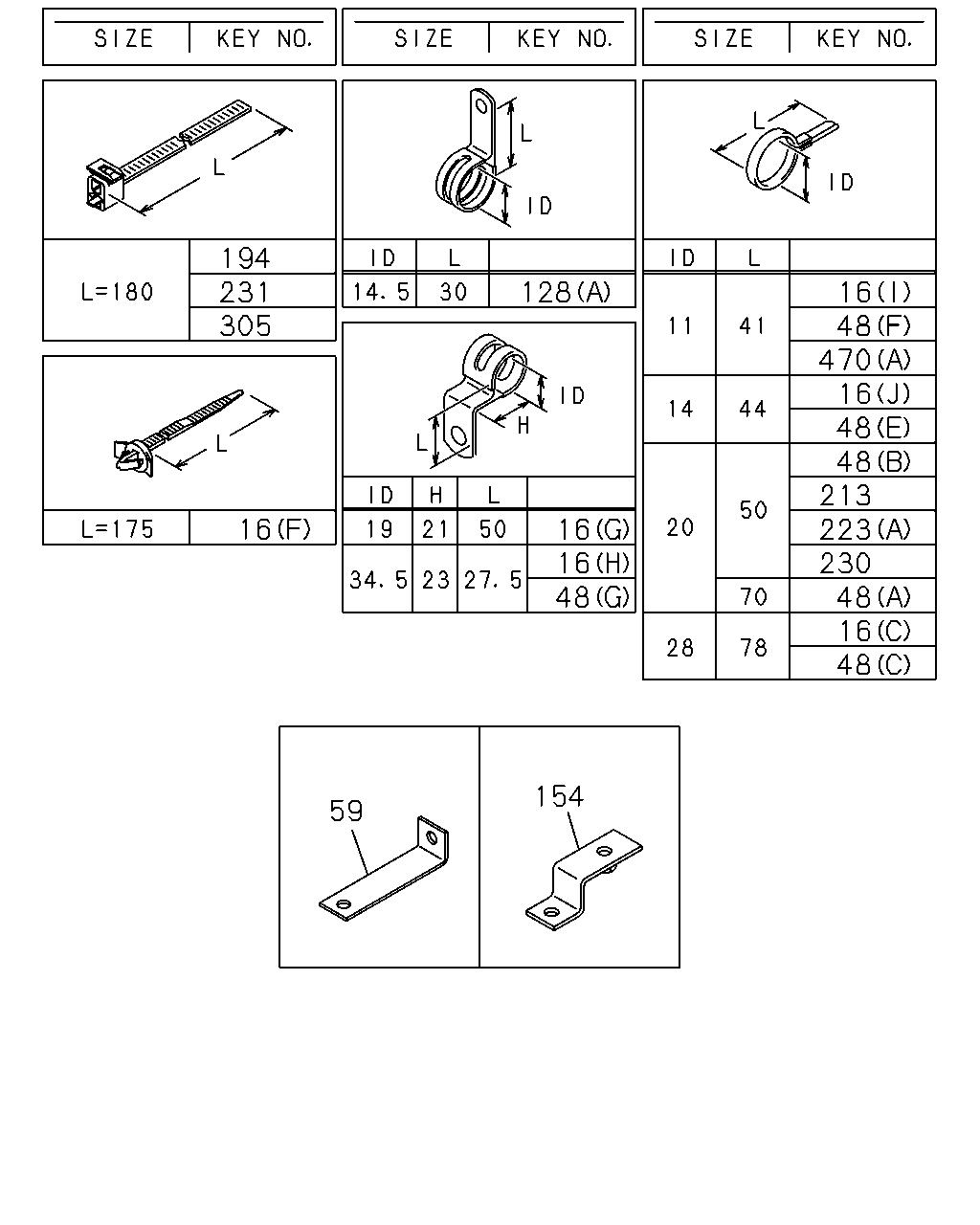

çizim 136791
194 231 305 128 16 48 470 16 48 48 213 223 230 48 16 48 16 16 16 48 154 59
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 0602-
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 05 1 0602-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 0602-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0602-
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0602-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0602-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 02 1 0602-
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0602-
16 CLIP; HARNESS
(K) L=140 MAL 		5-09707-031-1 01 1 0602-
16 CLIP; HARNESS
(F) L=175 MAL 		8-97110-167-0 02 1 0602-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0602-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0602-
48 CLIP; FRAME HARNESS
(F) ID=11 L=41 		1-09700-403-0 05 1 0602-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 05 1 0602-
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 05 1 0602-
48 CLIP; FRAME HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0602-
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0602-0606
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(E) ID=14 L=44 		9-09917-427-0 02 1 0602-
48 CLIP; FRAME HARNESS
(E) ID=14 L=44 		9-09917-427-0 03 1 0602-
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0602-
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 22 1 0602-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0602-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0602-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0602-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0602-
194 CLIP; BAND
L=180 		1-09707-162-1 04 1 0602-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 04 1 0602-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 0602-
223 CLIP; AIR TANK HARNESS
(C) L=140 MAL 		5-09707-031-1 01 1 0602-
223 CLIP; AIR TANK HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0602-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0602-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0602-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0602-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0602-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0602-
çizim 136794
148 168 128 48 171 16 116 421 16 171 223 470 148 121
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 0602-
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 05 1 0602-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 0602-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0602-
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0602-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0602-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 02 1 0602-
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0602-
16 CLIP; HARNESS
(K) L=140 MAL 		5-09707-031-1 01 1 0602-
16 CLIP; HARNESS
(F) L=175 MAL 		8-97110-167-0 02 1 0602-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0602-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0602-
48 CLIP; FRAME HARNESS
(F) ID=11 L=41 		1-09700-403-0 05 1 0602-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 05 1 0602-
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 05 1 0602-
48 CLIP; FRAME HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0602-
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0602-0606
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(E) ID=14 L=44 		9-09917-427-0 02 1 0602-
48 CLIP; FRAME HARNESS
(E) ID=14 L=44 		9-09917-427-0 03 1 0602-
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0602-
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 22 1 0602-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0602-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
121 CLIP; FACIA HARNESS
(A) L=140 MAL 		5-09707-031-1 01 1 0602-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0602-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0602-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0602-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0602-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 MAL 		8-97069-515-0 01 1 0602-
168 CLIP; DASH HARNESS
ID=6 & 10-13 MAL 		8-97069-515-0 05 1 0602-
171 CLIP; STARTER HARNESS
(C) L=300 		1-09707-001-1 01 1 0602-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0602-
171 CLIP; STARTER HARNESS
(A) ID=19 L=28 		9-09525-856-0 04 1 0602-0606
171 CLIP; STARTER HARNESS
(A) ID=19 L=28 		0-95235-856-0 04 1 0607-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 0602-
223 CLIP; AIR TANK HARNESS
(C) L=140 MAL 		5-09707-031-1 01 1 0602-
223 CLIP; AIR TANK HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0602-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0602-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0602-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0602-
çizim 137116
524 219 294 210 520 184 209
BalonParca AdiParca NoAdetTipApplied Date
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0602-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0602-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0602-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0602-0602
219 NUT
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 0602-0602
219 NUT
M8 FLANGE MAL 		0-91180-108-0 04 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0602-0602
294 NUT
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0602-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0602-0602
524 NUT; HARNESS
M6 FLANGE MAL 		0-91180-106-0 01 1 0603-

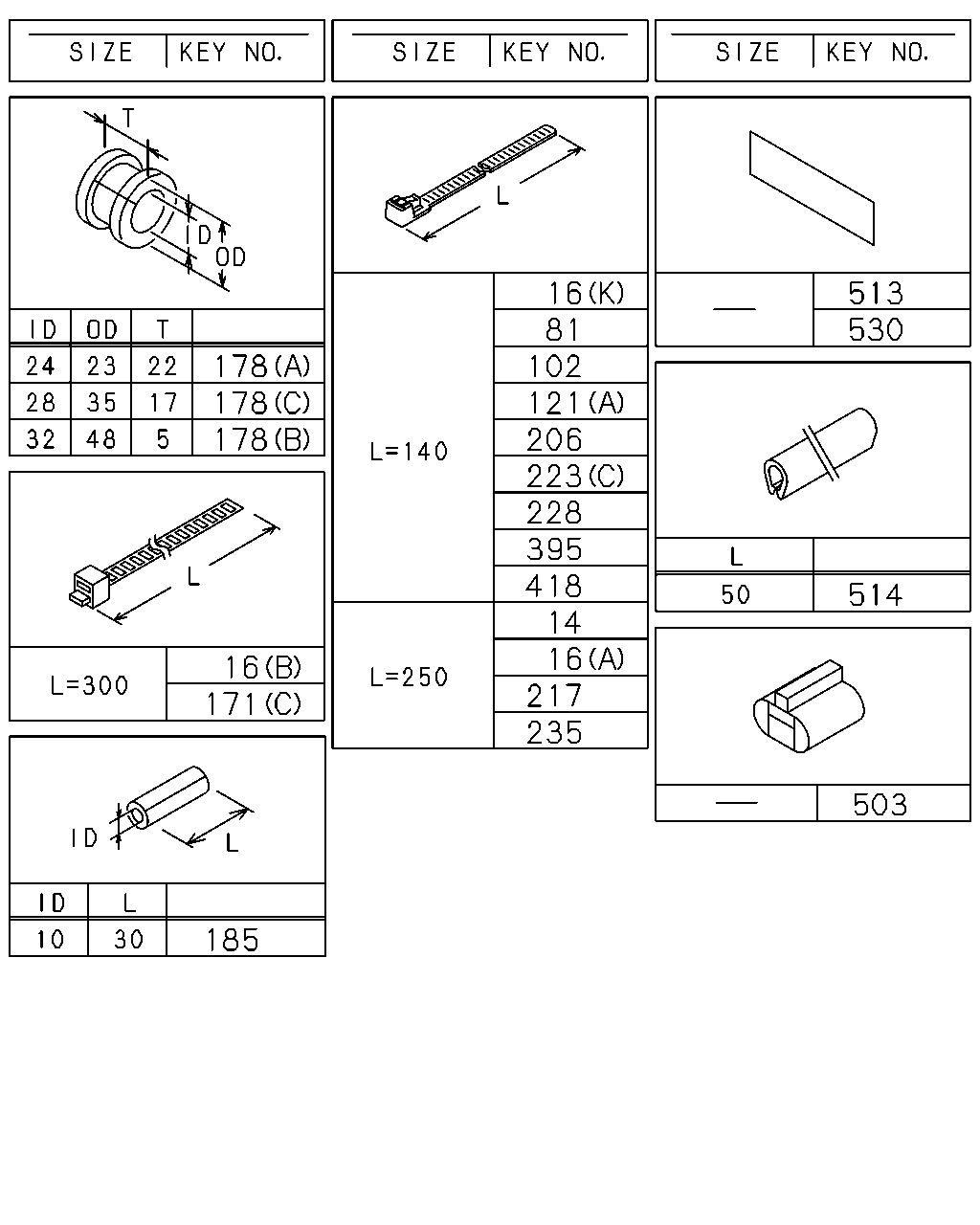

çizim 137225
16 81 102 121 206 223 228 395 418 14 16 217 235 513 530 178 178 178 514 16 171 503 185
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=250 		5-09707-030-1 05 1 0602-
14 CLIP; BAND,HARNESS
L=250 		5-09707-030-1 01 1 0602-1205
14 CLIP; BAND,HARNESS
L=250 		8-98216-430-0 01 1 1206-
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 0602-
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 05 1 0602-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 0602-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0602-
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0602-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0602-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 02 1 0602-
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0602-
16 CLIP; HARNESS
(K) L=140 MAL 		5-09707-031-1 01 1 0602-
16 CLIP; HARNESS
(F) L=175 MAL 		8-97110-167-0 02 1 0602-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0602-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0602-
81 CLIP; HARNESS
L=140 MAL 		5-09707-031-1 02 1 0602-
102 CLIP; BAND
L=140 MAL 		5-09707-031-1 01 1 0602-
121 CLIP; FACIA HARNESS
(A) L=140 MAL 		5-09707-031-1 01 1 0602-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0602-
171 CLIP; STARTER HARNESS
(C) L=300 		1-09707-001-1 01 1 0602-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0602-
171 CLIP; STARTER HARNESS
(A) ID=19 L=28 		9-09525-856-0 04 1 0602-0606
171 CLIP; STARTER HARNESS
(A) ID=19 L=28 		0-95235-856-0 04 1 0607-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0602-
178 GROMMET; HARNESS
(B) ID=32 OD=48 T=5 		9-09575-232-0 01 1 0602-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 03 1 0602-
185 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 03 1 0602-
206 CLIP; FUEL TANK HARNESS
L=140 MAL 		5-09707-031-1 02 1 0602-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0602-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 0602-
223 CLIP; AIR TANK HARNESS
(C) L=140 MAL 		5-09707-031-1 01 1 0602-
223 CLIP; AIR TANK HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0602-
228 CLIP; COOLER HARNESS
L=140 MAL 		5-09707-031-1 01 1 0602-
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=250 		5-09707-030-1 01 1 0602-
395 CLIP; WIPER HARNESS
L=140 MAL 		5-09707-031-1 01 1 0602-
418 CLIP; LAMP HARNESS
RADIO CLARION<SK2> L=140 MAL 		5-09707-031-1 01 1 0703-
503 CONNECTOR 1-82690-668-0 02 1 0602-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0602-0906
514 FINISHER; HARNESS
EXC. RADIO AM/FM STEREO & TAPE PLAYER<UN3> L=50 		8-94270-377-1 01 1 0907-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0602-
