Isuzu WW
▶
TRUCKS
▶
FSS
▶
11365 - FSS(MALAYSIA)M/T
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#72306) — 52 parça
◀
[810A] FACIA HARNESS (9 parça)
[810A] CAB,FLOOR,DOOR HARNESS AND EARTH CABLE (15 parça)
[810A] FUSE BOX AND FUSE,DIODE (21 parça)
[810A] ENG,STARTER AND AIR TANK HARNESS (5 parça)
[810A] BUMPER AND FRAME HARNESS (2 parça)
▶

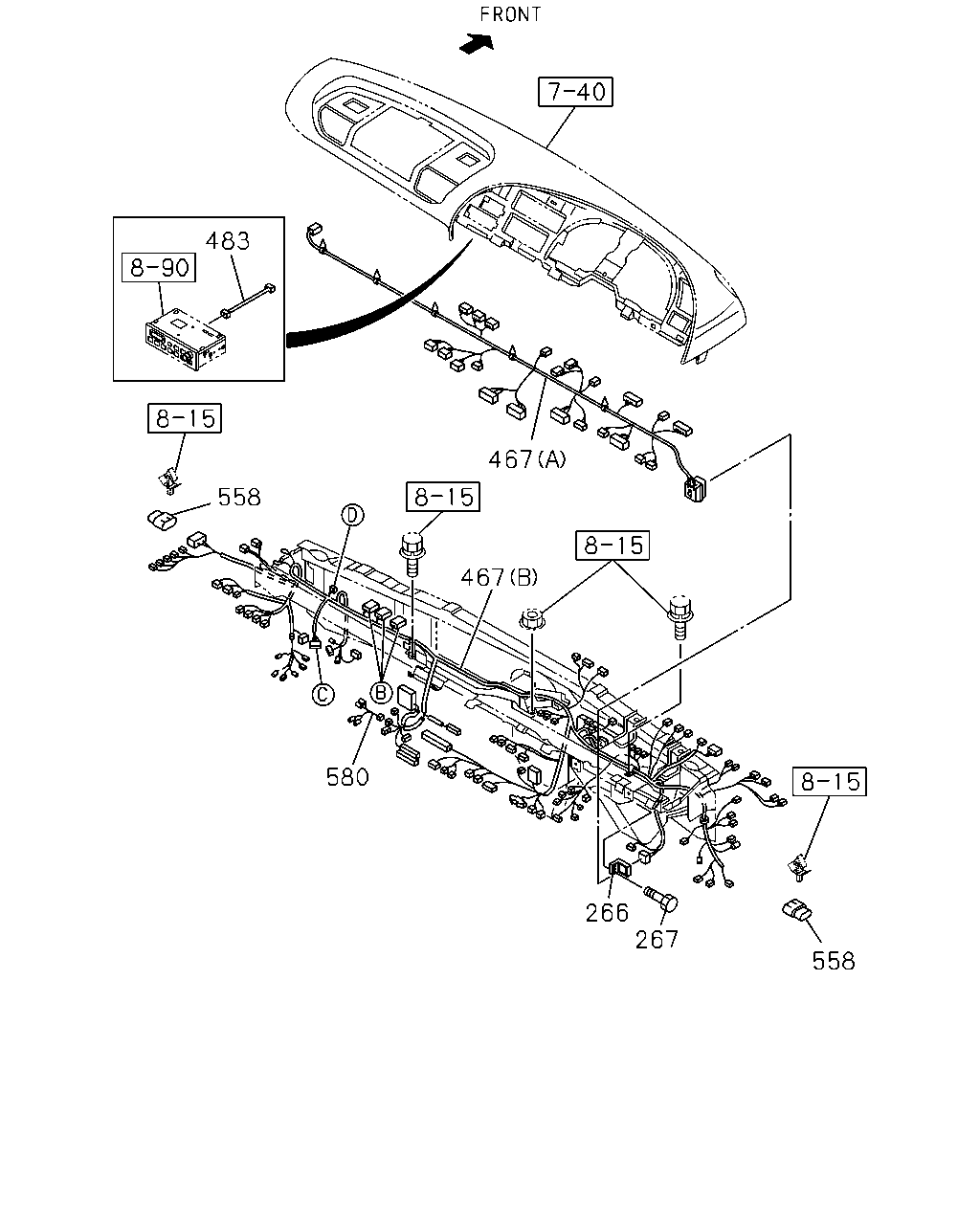

483
467
558
467
580
266
267
558
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
266
BRACKET; CONN BOX
1-82699-580-0
01
1
0602-
267
BOLT; BRKT
M6X16 W/PL WASHER
1-09981-438-0
02
1
0602-
467
HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) UPPER
1-82626-803-2
01
1
0602-
467
HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) LOWER
1-82662-523-2
01
1
0602-
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (A) UPPER
1-82661-524-0
01
1
0602-
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B) LOWER
1-82662-524-2
01
1
0602-
483
HARNESS; EXT,RADIO
RADIO CLARION<SK2>
8-98075-645-0
01
1
0703-
558
CONNECTOR; HARNESS
1-82690-666-0
02
1
0602-
580
HARNESS; MAP LAMP
1-82629-863-1
01
1
0602-

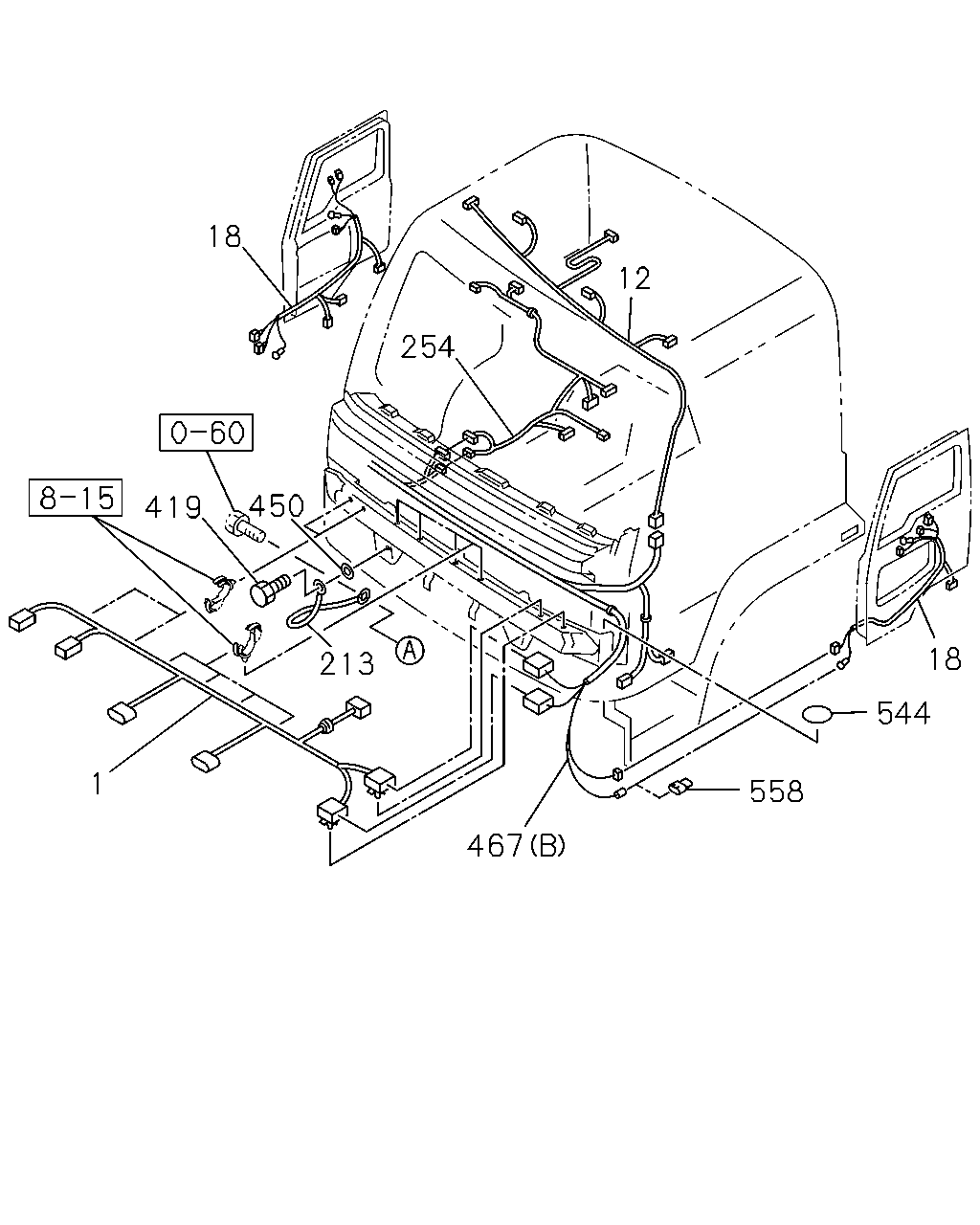

18
12
254
450
419
18
213
544
1
558
467
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
1-82625-717-1
01
1
0602-
12
HARNESS; ROOF
1-82625-713-4
01
1
0602-
18
HARNESS; DOOR
1-82628-581-0
02
1
0602-
213
CABLE; EARTH,CAB TO FRAME
1-82657-055-1
01
1
0602-
254
HARNESS; CAB FLOOR
1-82626-804-1
01
1
0602-
419
BOLT; CAB EARTH
M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
0602-1201
419
BOLT; CAB EARTH
M8X24 W/PL WASHER
8-98141-256-1
01
1
1202-
450
WASHER; PL,CAB EARTH
ID=8.4 OD=18
9-09164-608-0
01
1
0602-0605
450
WASHER; PL,CAB EARTH
ID=8.4 OD=18
0-91614-608-0
01
1
0606-
467
HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) UPPER
1-82626-803-2
01
1
0602-
467
HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) LOWER
1-82662-523-2
01
1
0602-
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (A) UPPER
1-82661-524-0
01
1
0602-
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B) LOWER
1-82662-524-2
01
1
0602-
544
SEAL; FRT MTG RAIL
OD=25 BLACK MAL
1-76798-019-0
01
1
0602-
558
CONNECTOR; HARNESS
1-82690-666-0
02
1
0602-

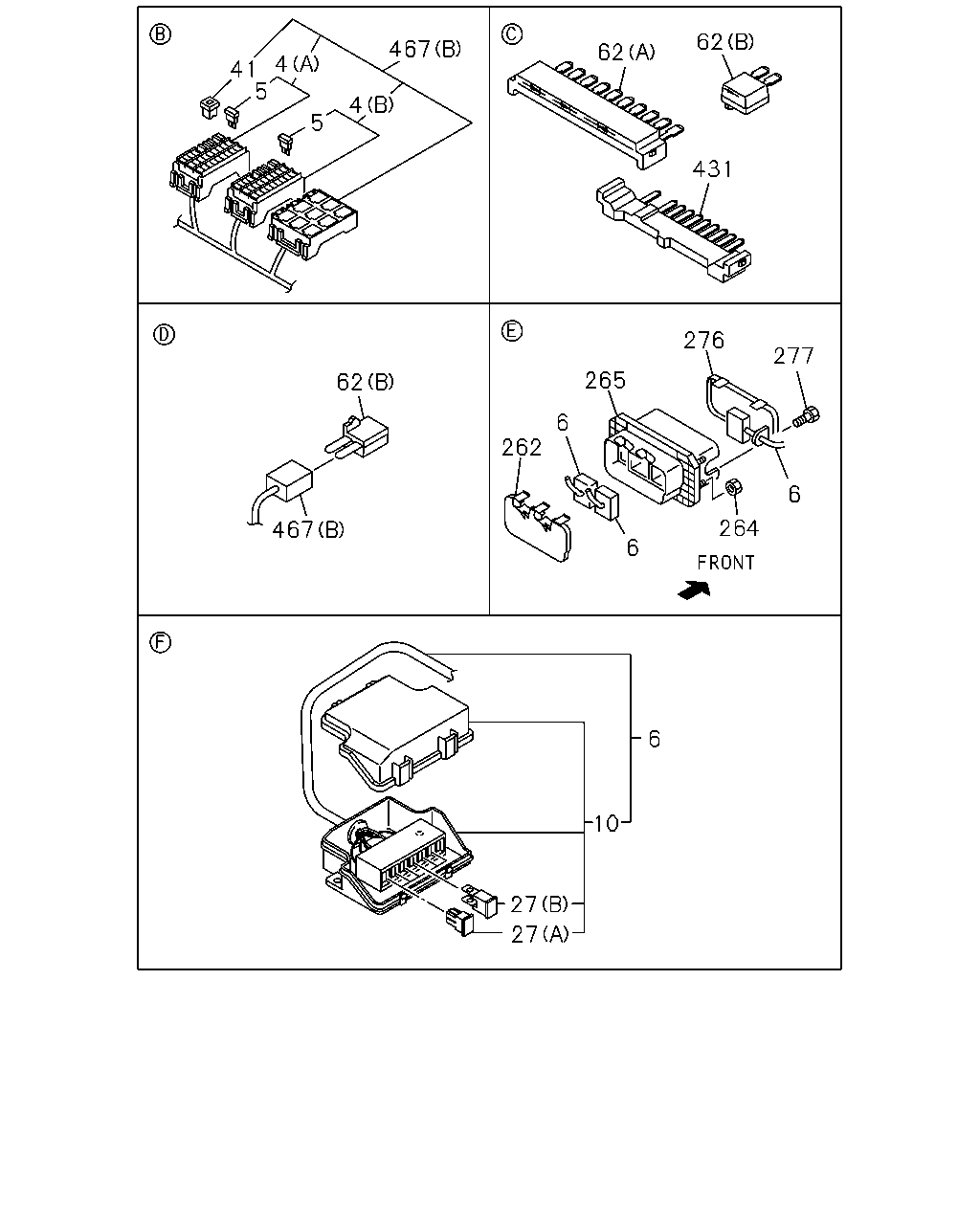

62
467
62
4
41
5
4
5
431
276
277
265
62
6
262
6
264
467
6
6
10
27
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
(A) 7.5AX16
1-82510-395-0
01
1
0602-
4
BOX ASM; FUSE,HARNESS
(B) 15AX14
1-82510-472-0
01
1
0602-
5
FUSE; FACIA HARNESS
15A BLUE MAL
5-82516-003-0
14
1
0602-
5
FUSE; FACIA HARNESS
7.5A BROWN
8-94159-007-0
16
1
0602-
6
HARNESS; FRAME
1-82673-723-1
01
1
0602-
10
BOX; FUSE,HARNESS
1-82510-409-0
01
1
0602-
27
FUSE UNIT
(A) 40A GREEN
8-94468-662-0
03
1
0602-
27
FUSE UNIT
(B) 60A YELLOW
8-94468-669-0
01
1
0602-
41
PULLER; FUSE
L=25.3 B=11.5 MAL
8-94121-482-0
01
1
0602-
62
DIODE; HARNESS
(A) BLACK 10P
1-82699-703-0
02
1
0602-
62
DIODE; HARNESS
(B) BLACK 2P-1.5A MAL
8-94422-639-1
01
1
0602-
262
COVER; CONNECTOR BOX,FRT PNL
1-82699-605-1
01
1
0602-
264
NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0602-
265
BOX; CONN,FRT PNL
1-82699-538-3
01
1
0602-
276
COVER; BOX,FRAME HARNESS
1-82699-558-3
01
1
0602-
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50640-625-0
02
1
0602-
431
CONNECTOR; JOINT
10P BROWN MAL
1-82699-601-0
01
1
0602-
467
HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) UPPER
1-82626-803-2
01
1
0602-
467
HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) LOWER
1-82662-523-2
01
1
0602-
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (A) UPPER
1-82661-524-0
01
1
0602-
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B) LOWER
1-82662-524-2
01
1
0602-

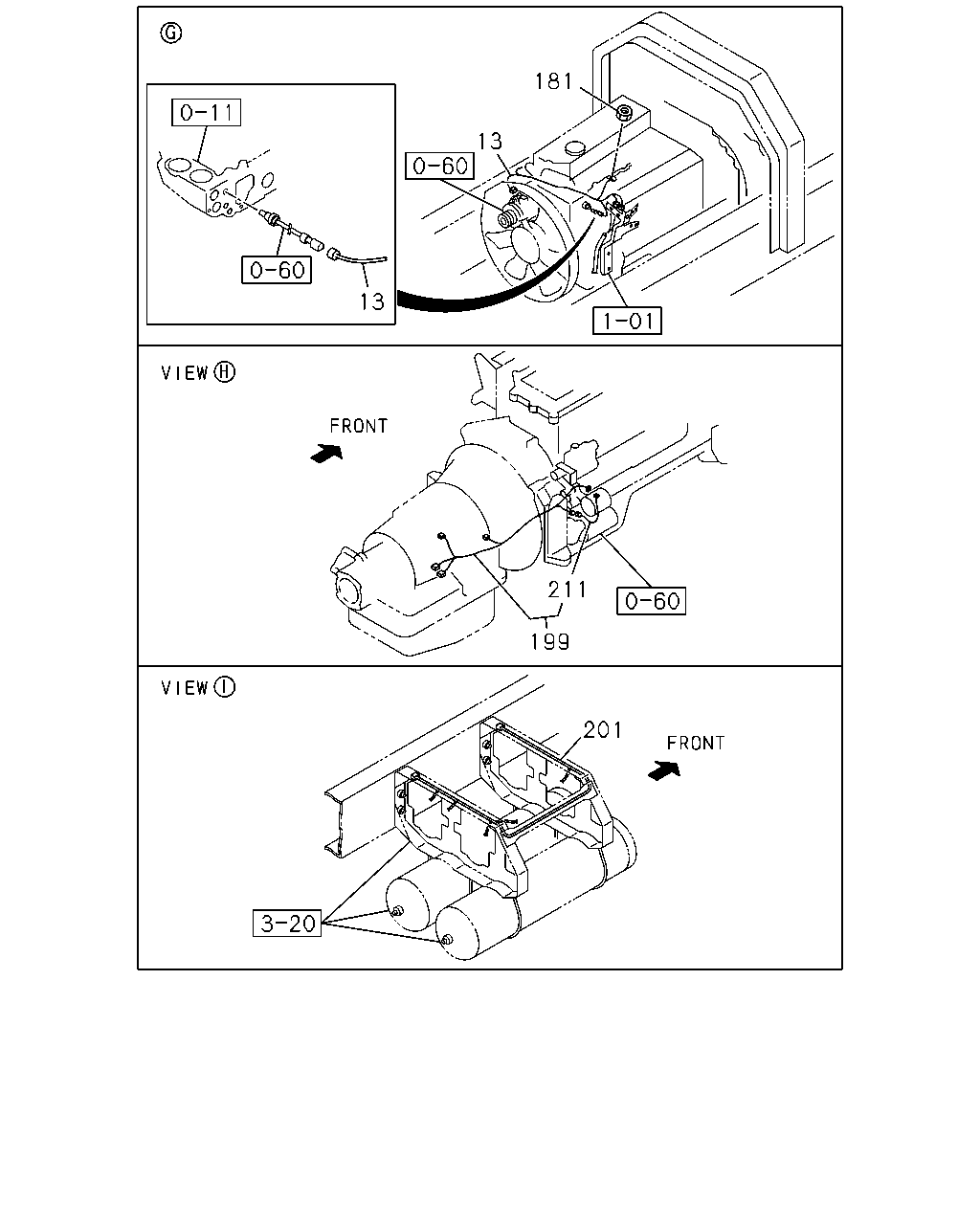

181
13
13
211
199
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
1-82640-714-0
01
1
0602-
181
NUT; GLOW PLUG HARNESS
M4 FLANGE
5-09440-007-0
01
1
0602-
199
HARNESS; STARTER
1-82641-161-2
01
1
0602-
201
HARNESS; AIR TANK
1-82638-997-0
01
1
0602-
211
WIRE; FUSIBLE LINK,STARTER
WHITE
1-82659-124-1
01
1
0602-

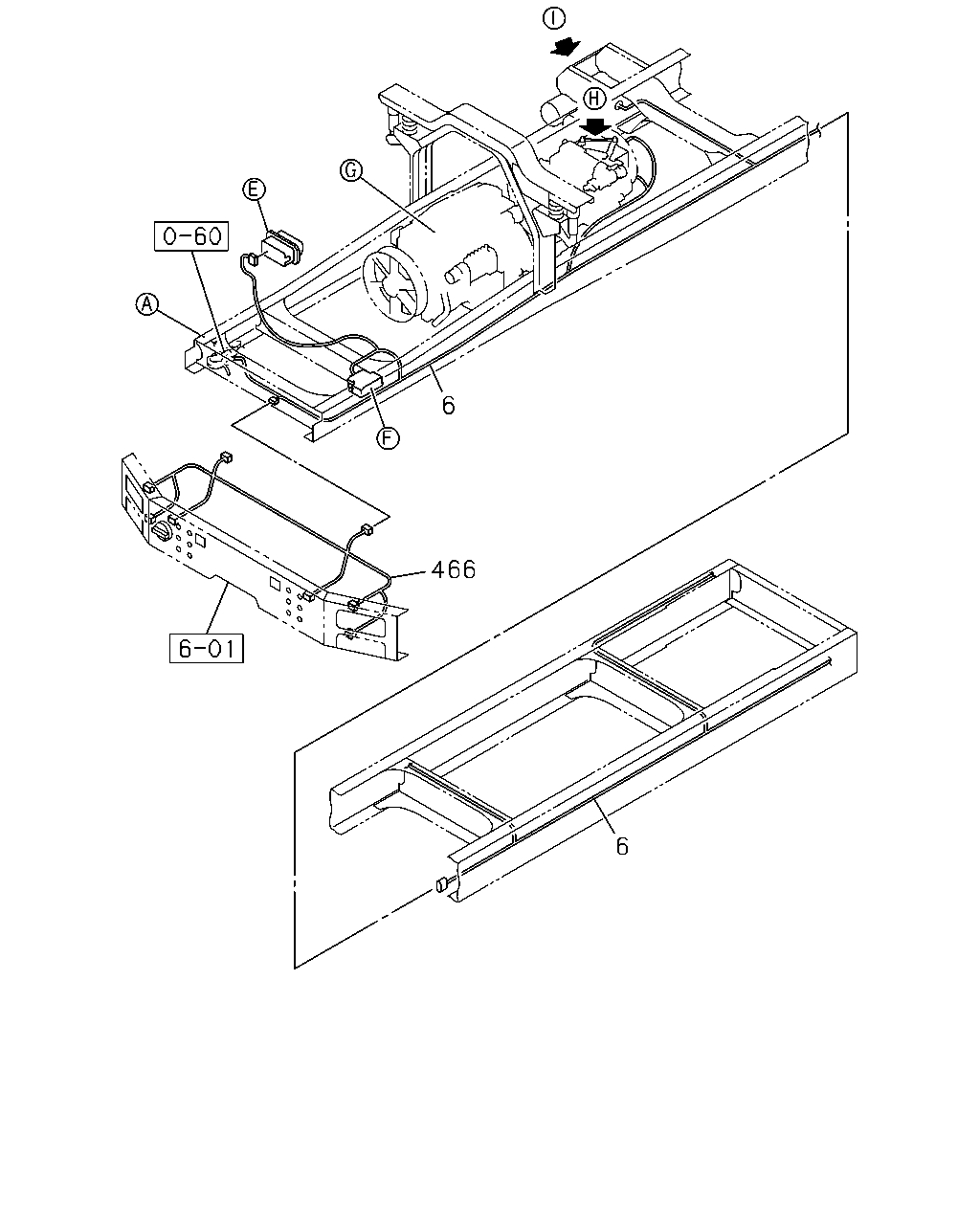

6
466
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82673-723-1
01
1
0602-
466
HARNESS; BUMPER
1-82673-724-0
01
1
0602-
