Isuzu WW
▶
TRUCKS
▶
FSS
▶
11365 - FSS(MALAYSIA)M/T
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

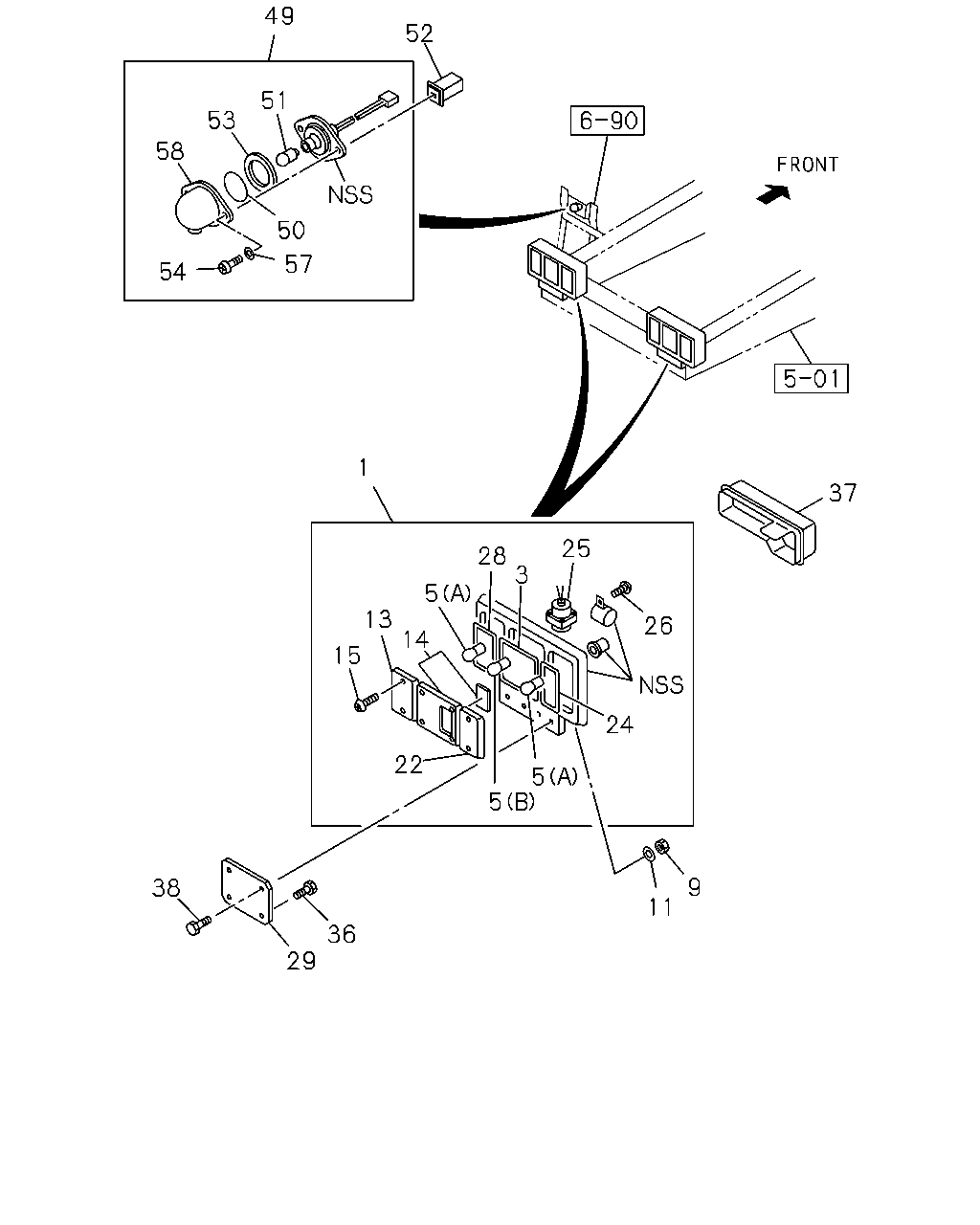

8-03 — LAMP; REAR AND REAR SIDE
(#72304) — 39 parça
49
52
51
53
58
50
57
54
1
37
25
28
3
5
13
26
14
15
24
22
5
5
9
38
11
36
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
1-82230-135-2
01
1
0602-
1
LAMP ASM; RR COMB
1-82230-132-2
01
1
0602-
3
GASKET; RR COMB LAMP
MAL
8-94257-505-0
01
1
0602-
3
GASKET; RR COMB LAMP
MAL
8-94257-505-0
01
1
0602-
5
BULB; RR COMB LAMP
(A) 24V 21W
8-94125-956-0
02
1
0602-
5
BULB; RR COMB LAMP
(A) 24V 21W
8-94125-956-0
02
1
0602-
5
BULB; RR COMB LAMP
(B) 24V 21/5W MAL
8-94125-957-0
01
1
0602-
5
BULB; RR COMB LAMP
(B) 24V 21/5W MAL
8-94125-957-0
01
1
0602-
9
NUT; LAMP,RR COMB
M6
0-91110-506-0
04
1
0602-
11
WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18
9-09160-706-0
04
1
0602-0605
11
WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18
0-91610-706-0
04
1
0606-
13
LENS; TURN SIGNAL
1-82235-015-0
01
1
0602-
13
LENS; TURN SIGNAL
1-82235-014-0
01
1
0602-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94257-511-0
01
1
0602-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94257-510-0
01
1
0602-
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
08
1
0602-
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
08
1
0602-
22
LENS; BACKUP,RR COMB LAMP
8-94257-512-0
01
1
0602-
22
LENS; BACKUP,RR COMB LAMP
8-94257-512-0
01
1
0602-
24
GASKET; BACK,LAMP
MAL
8-94257-506-0
01
1
0602-
24
GASKET; BACK,LAMP
MAL
8-94257-506-0
01
1
0602-
25
HORN ASM; BACK
MAL
8-94257-518-0
01
1
0602-
26
SCREW; BACK HORN
M4X12 TAPPING
9-07076-412-0
01
1
0602-
26
SCREW; BACK HORN
M4X14 TAPPING
9-07076-414-0
02
1
0602-
28
GASKET; TURN,LAMP
MAL
8-94257-507-0
01
1
0602-
28
GASKET; TURN,LAMP
MAL
8-94257-507-0
01
1
0602-
29
BRACKET; LAMP,RR COMB
1-82237-050-1
02
1
0602-
36
BOLT; BRKT,RR COMB
M10X25 FLANGE MAL
0-28651-025-0
04
1
0602-
37
COVER; RR COMB LAMP
1-82239-008-0
01
1
0602-
37
COVER; RR COMB LAMP
1-82239-007-0
01
1
0602-
38
BOLT; LAMP,RR COMB
M6X30 FLANGE
0-28650-630-0
04
1
0602-
49
LAMP; LICENSE PLATE
24V 10W MAL
1-82120-024-1
01
1
0602-
50
LENS; LICENSE PLATE LAMP
1-82235-006-0
01
1
0602-
51
BULB; LICENSE PLATE LAMP
24V 10W
1-82194-037-0
01
1
0602-
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
8-94275-946-0
02
1
0602-
53
GASKET; LICENSE LAMP
1-82126-005-0
01
1
0602-
54
SCREW; LICENSE PLATE LAMP
M5X20
1-82129-007-0
02
1
0602-
57
WASHER; PL,LICENSE PLATE LAMP
1-82129-008-0
02
1
0602-
58
COVER; LICENSE PLATE LAMP
1-82129-005-0
01
1
0602-
