Isuzu WW
▶
TRUCKS
▶
FSS
▶
11365 - FSS(MALAYSIA)M/T
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

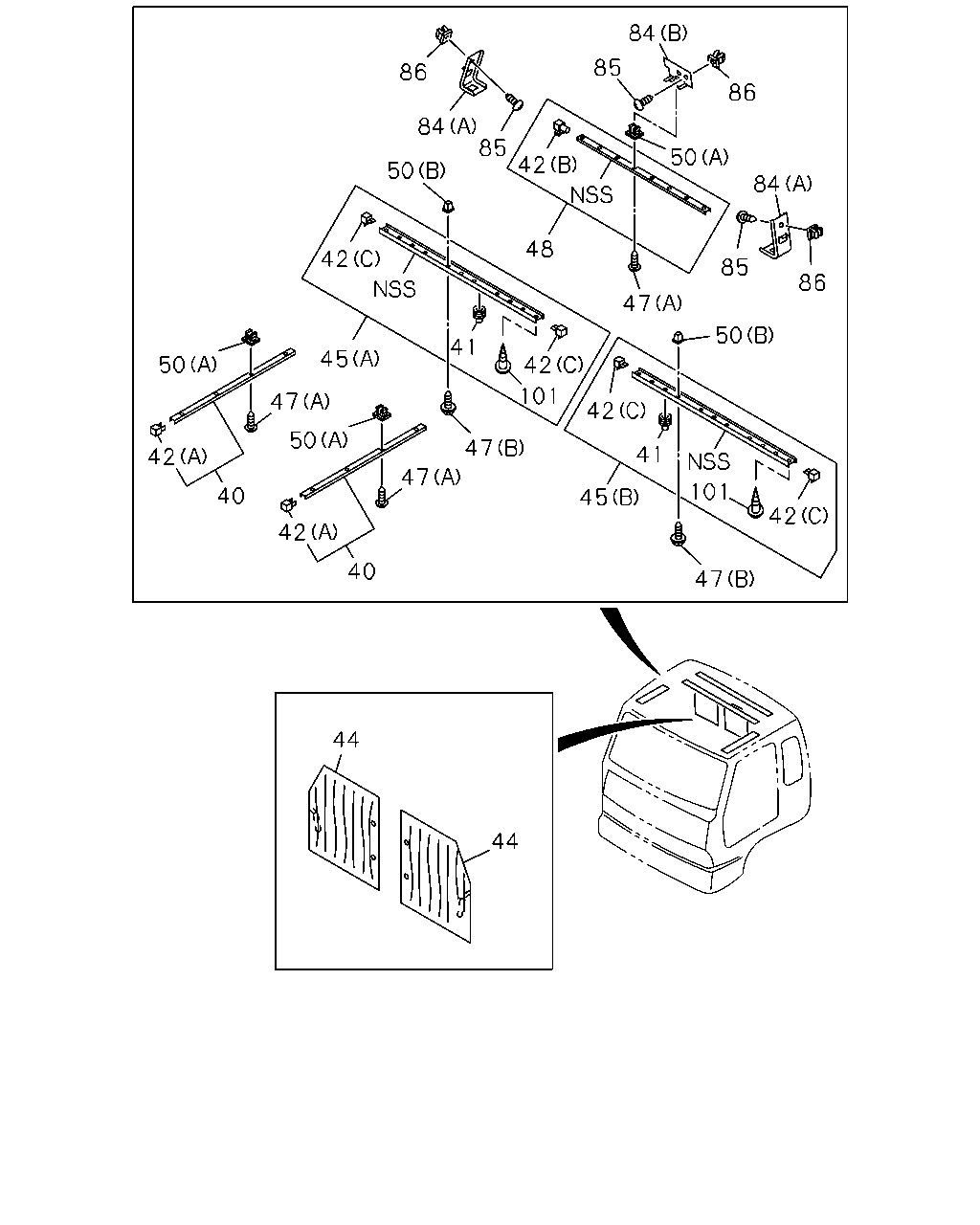

7-70 — SEPARATER AND BED
(#72302) — 20 parça
84
85
86
86
84
85
50
42
50
84
48
42
85
86
47
50
41
45
50
42
101
47
42
50
47
41
42
47
101
40
45
42
42
40
47
44
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
40
RAIL; CURTAIN,SIDE
1-73908-220-1
01
1
0602-
40
RAIL; CURTAIN,SIDE
1-73908-219-0
01
1
0602-
41
HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY
1-73996-105-0
14
1
0602-
42
STOPPER; CURTAIN RAIL
(C)
1-73907-403-1
02
1
0602-
42
STOPPER; CURTAIN RAIL
(A)
1-73908-193-0
02
1
0602-
42
STOPPER; CURTAIN RAIL
(B)
1-73996-146-2
01
1
0602-
44
CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25>
1-73908-207-1
01
1
0602-
44
CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25>
1-73908-208-1
01
1
0602-
45
RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> (A)
1-73908-150-2
01
1
0602-
45
RAIL; CURTAIN,FRT
EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)
1-73908-148-1
01
1
0602-
47
SCREW; CURTAIN RAIL
(A) M5X20 MAL
5-09981-059-0
17
1
0602-
47
SCREW; CURTAIN RAIL
(B) M5X25
5-09981-093-0
07
1
0602-
48
RAIL; CURTAIN,BACK
8-94265-811-1
01
1
0602-
50
GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5
1-09983-159-0
07
1
0602-
50
GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 MAL
8-94279-078-0
17
1
0602-
84
BRACKET; CURTAIN RAIL
(A)
1-73998-986-2
02
1
0602-
84
BRACKET; CURTAIN RAIL
(B)
1-73998-987-4
07
1
0602-
85
SCREW; BRKT
M5X20 MAL
5-09981-059-0
09
1
0602-
86
GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 MAL
8-94279-078-0
09
1
0602-
101
SCREW; STOPPER
1-73907-400-0
02
1
0602-
