◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11365 - FSS(MALAYSIA)M/T ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#72301) — 11 parça

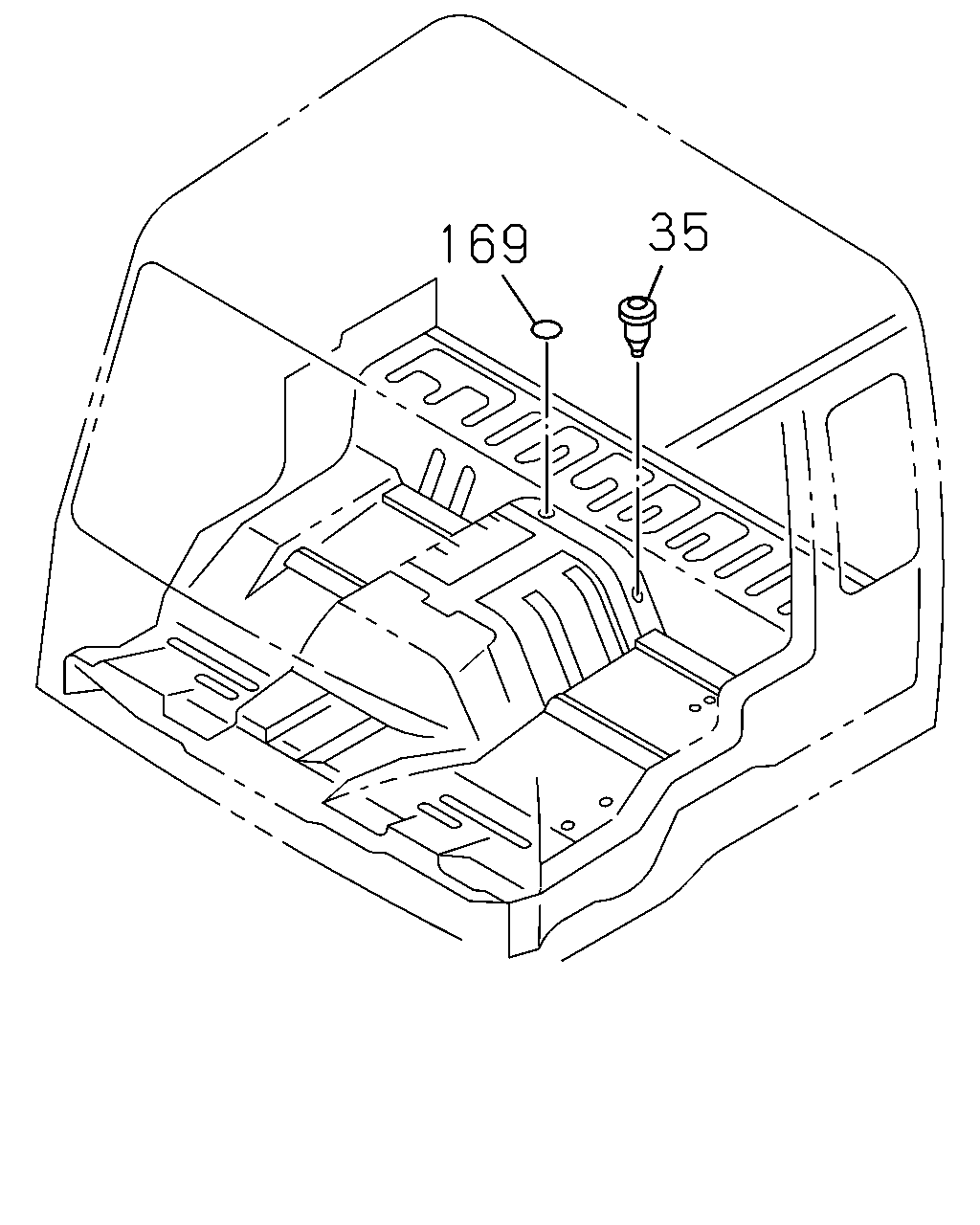

çizim 135921
35 169
BalonParca AdiParca NoAdetTipApplied Date
35 GROMMET; SEAT BELT ANCHOR
CENTER SEAT DELETE 2 CREWS<SP9> OD=22 MAL 		9-61168-535-0 01 1 0602-1005
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK MAL 		1-76798-019-0 01 1 1006-

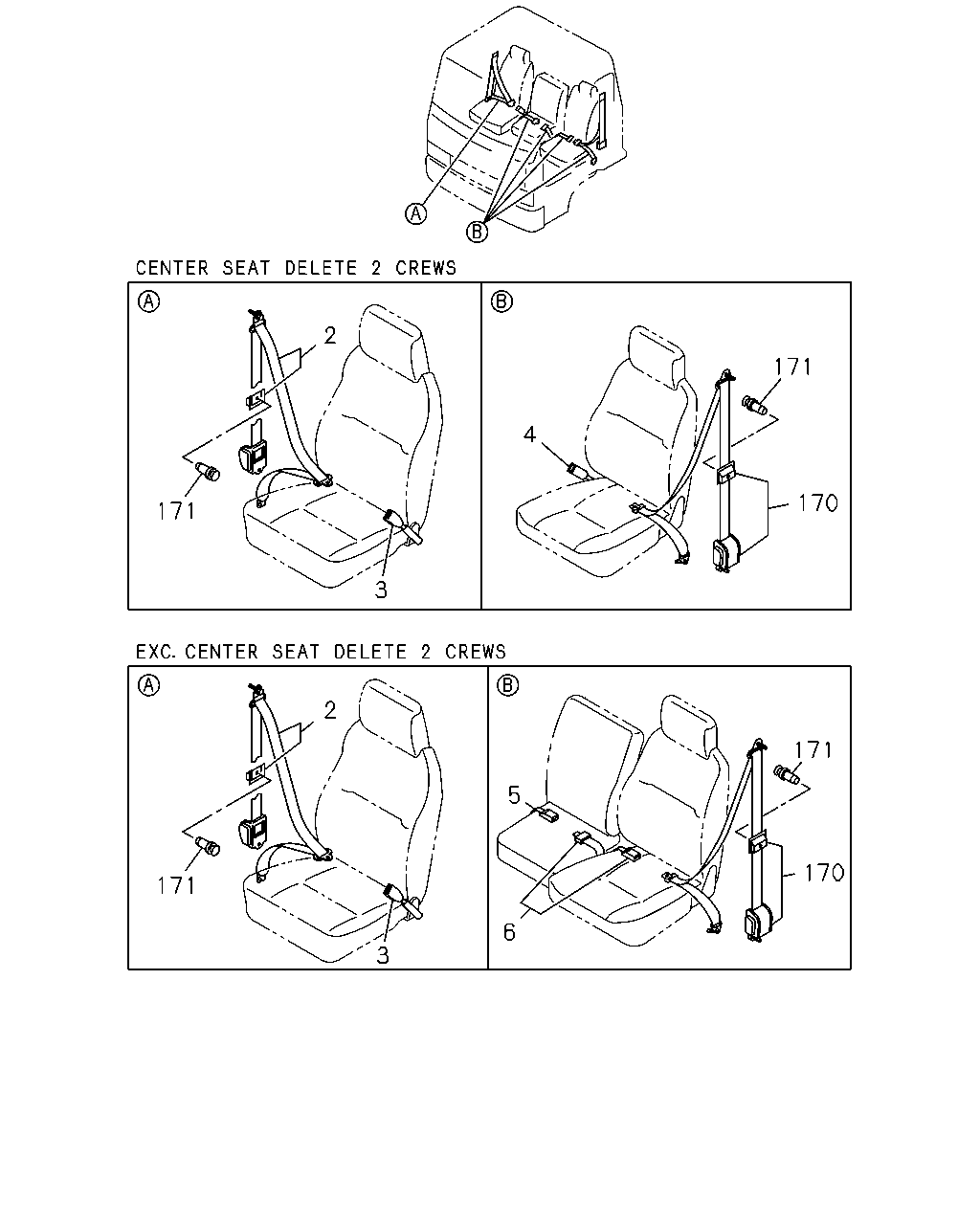

çizim 190228
2 171 4 170 171 3 2 171 5 170 171 6 3
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE 1-75617-509-6 01 1 0602-0806
2 BELT; SEAT,TONGUE SIDE 8-98120-803-0 01 1 0807-
3 BELT; SEAT,BUCKLE SIDE 1-75618-779-0 01 1 0602-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-75618-752-1 01 1 0602-
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75618-739-0 01 1 0602-
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75618-737-5 01 1 0602-
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-514-6 01 1 0602-0806
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98120-801-0 01 1 0807-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0602-
