◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11365 - FSS(MALAYSIA)M/T ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#72300) — 101 parça

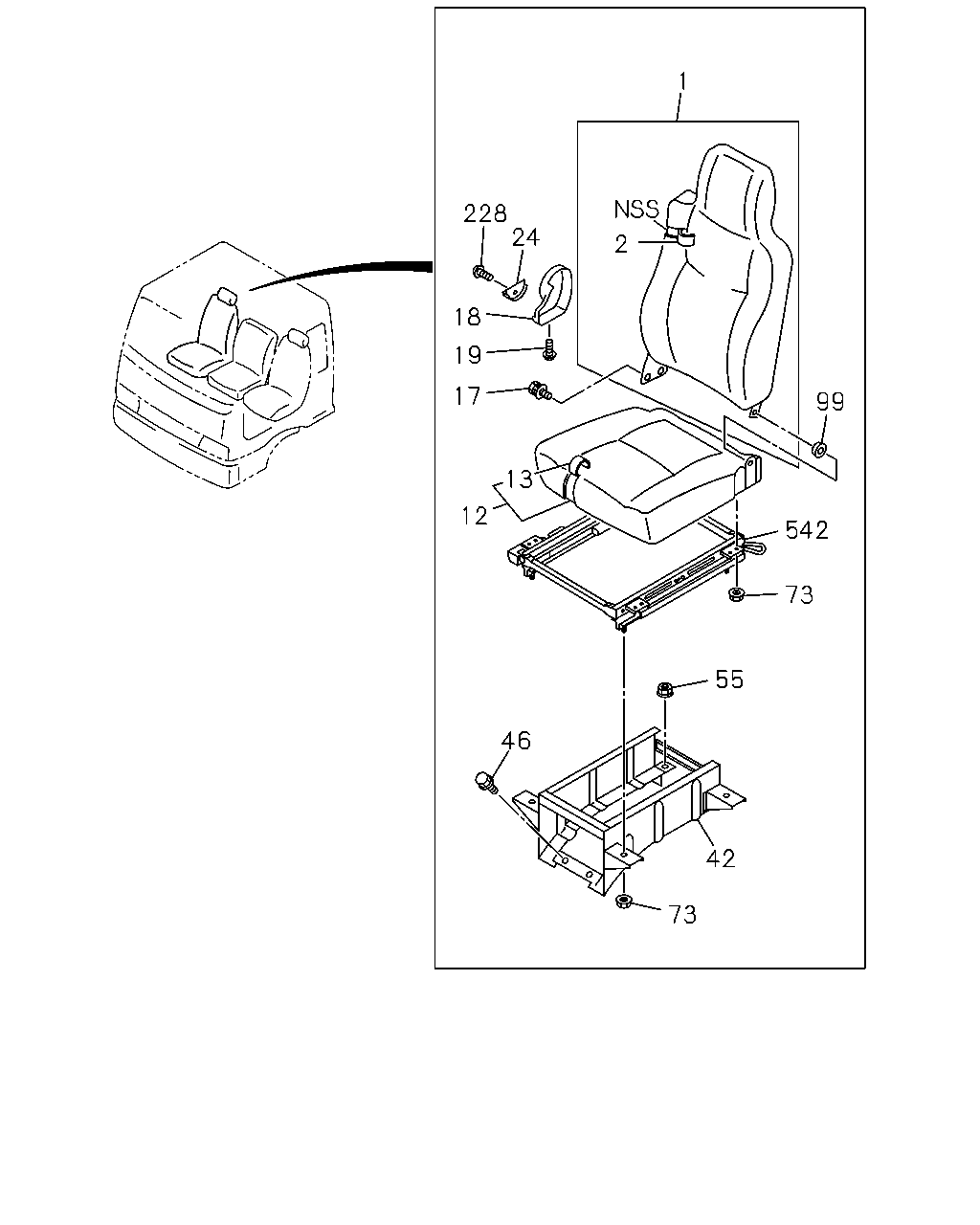

çizim 134067
1 228 24 2 18 19 17 99 13 12 542 73 55 46 42 73
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT 1-75208-060-3 01 1 0602-
2 COVER; TRIM,FRT SEAT,BACK 1-75116-600-1 01 1 0602-
12 CUSHION; SEAT,FRT 1-75026-686-1 01 1 0602-
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-554-1 01 1 0602-
17 BOLT; RECLINING
M8X20 MAL 		8-97255-906-0 02 1 0602-
18 COVER; RECLINING 1-75418-050-0 01 1 0602-
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0602-
24 KNOB; RECLINING,FRT,SEAT
PASSENGER 		1-75418-056-0 01 1 0602-
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-059-0 01 1 0602-0710
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-068-0 01 1 0711-
42 STAND; DRIVER SEAT 1-75558-604-2 01 1 0602-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0602-0703
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0602-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE MAL 		0-91180-110-0 02 1 0704-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0602-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0602-
99 BUSHING; SEAT BACK
MAL 		8-97854-087-0 01 1 0602-
228 SCREW; KNOB
M4X6 MAL 		8-97042-273-0 01 1 0602-0710
228 SCREW; KNOB
M4X6 MAL 		8-97042-273-0 01 1 0602-0710
228 SCREW; KNOB
PASSENGER M4X6 MAL 		8-97042-273-0 01 1 0711-
228 SCREW; KNOB
DRIVER M4 MAL 		8-98062-662-0 01 1 0711-
542 ADJUSTER ASM; SEAT SLIDE 1-75518-286-3 01 1 0602-1502
542 ADJUSTER ASM; SEAT SLIDE 8-98291-659-0 01 1 1503-

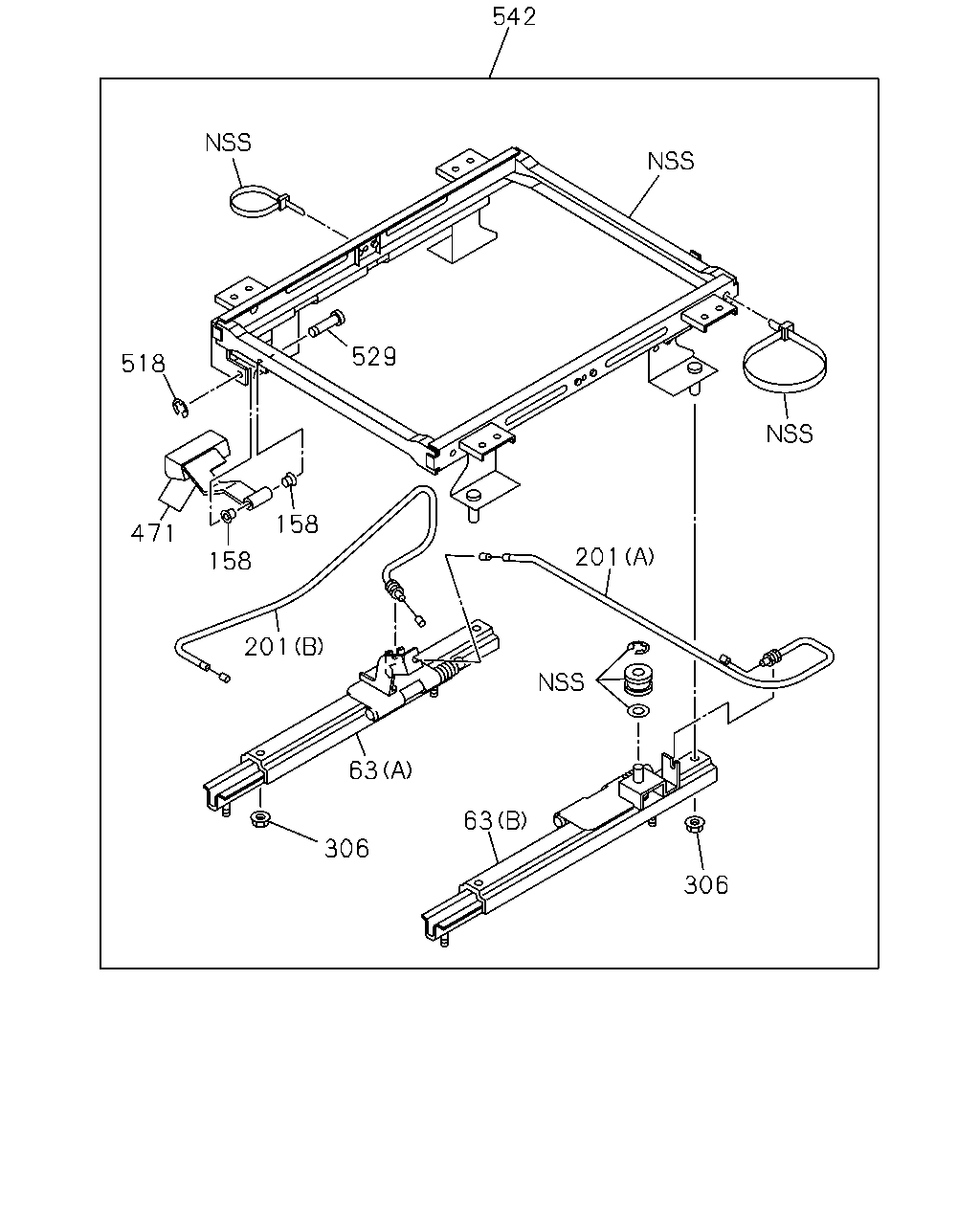

çizim 135054
542 529 518 158 471 201 158 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-1 01 1 0602-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-1 01 1 0602-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0602-
201 CABLE; ADJ
(B) L=667 		1-75518-288-0 01 1 0602-
201 CABLE; ADJ
(A) L=605 		1-75518-289-1 01 1 0602-
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 04 1 0602-
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0602-0710
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0711-
518 NUT; TILT ADJ 1-75518-263-0 01 1 0602-
529 PIN; LINK 1-75518-262-0 01 1 0602-
542 ADJUSTER ASM; SEAT SLIDE 1-75518-286-3 01 1 0602-1502
542 ADJUSTER ASM; SEAT SLIDE 8-98291-659-0 01 1 1503-

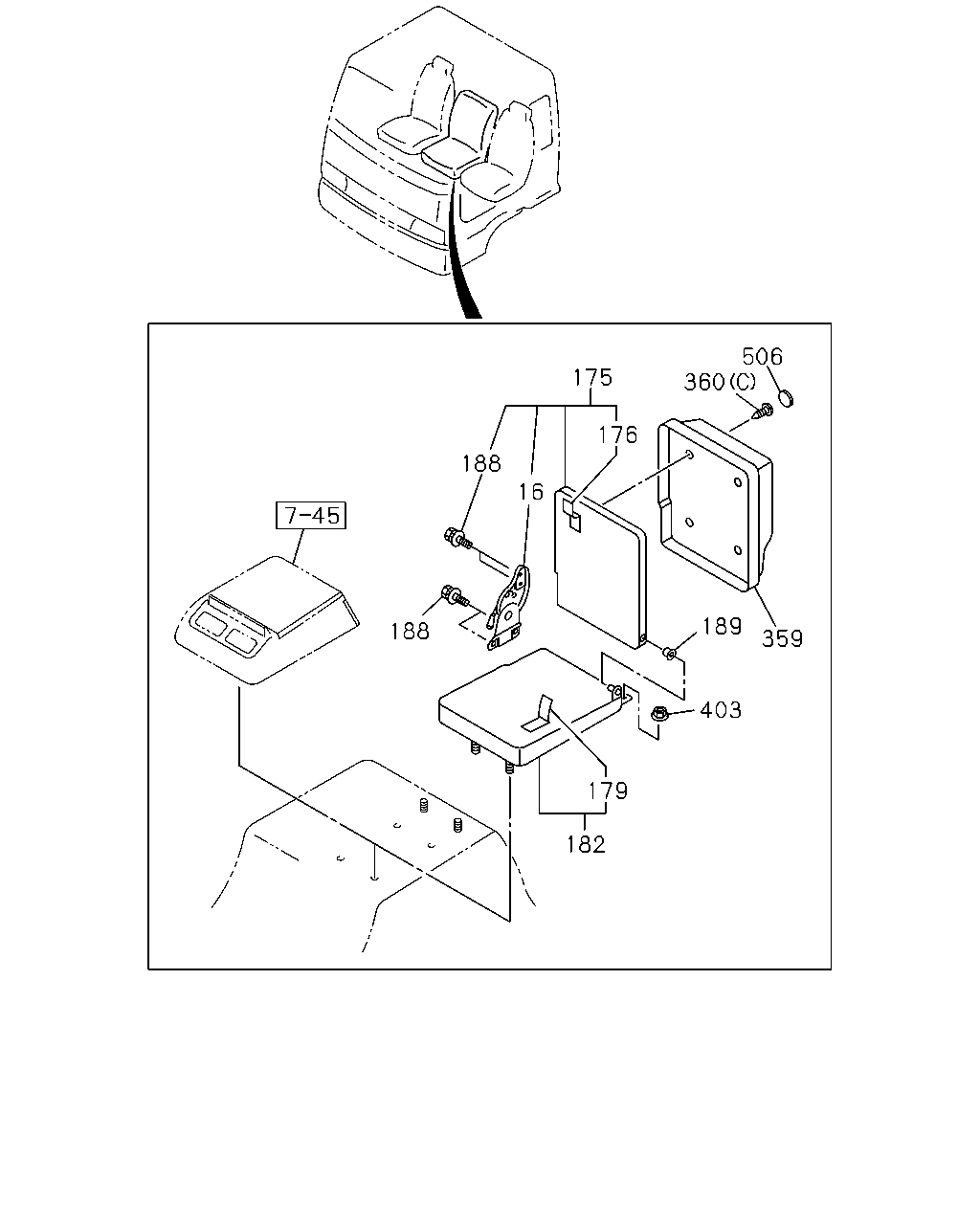

çizim 135069
175 360 506 176 16 188 188 189 359 403 179 182
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75418-062-1 01 1 0602-
175 BACK ASM; PASSENGER CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75207-253-3 01 1 0602-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-641-1 01 1 0602-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-626-1 01 1 0602-
182 CUSHION ASM; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-828-4 01 1 0602-
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M10X16 FLANGE 		1-75198-053-0 04 1 0602-
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE 2 CREWS<SP9> MAL 		8-97854-900-0 01 1 0602-
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-157-5 01 1 0602-1009
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-98145-115-0 01 1 1010-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0602-1009
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1010-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0602-0612
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1009
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 0602-0612
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70040-416-0 06 1 0701-1104
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 1105-
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		1-75538-207-0 04 1 0602-0703
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE MAL 		0-91180-108-0 04 1 0704-
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-164-2 04 1 0602-1009
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-164-3 02 1 1010-

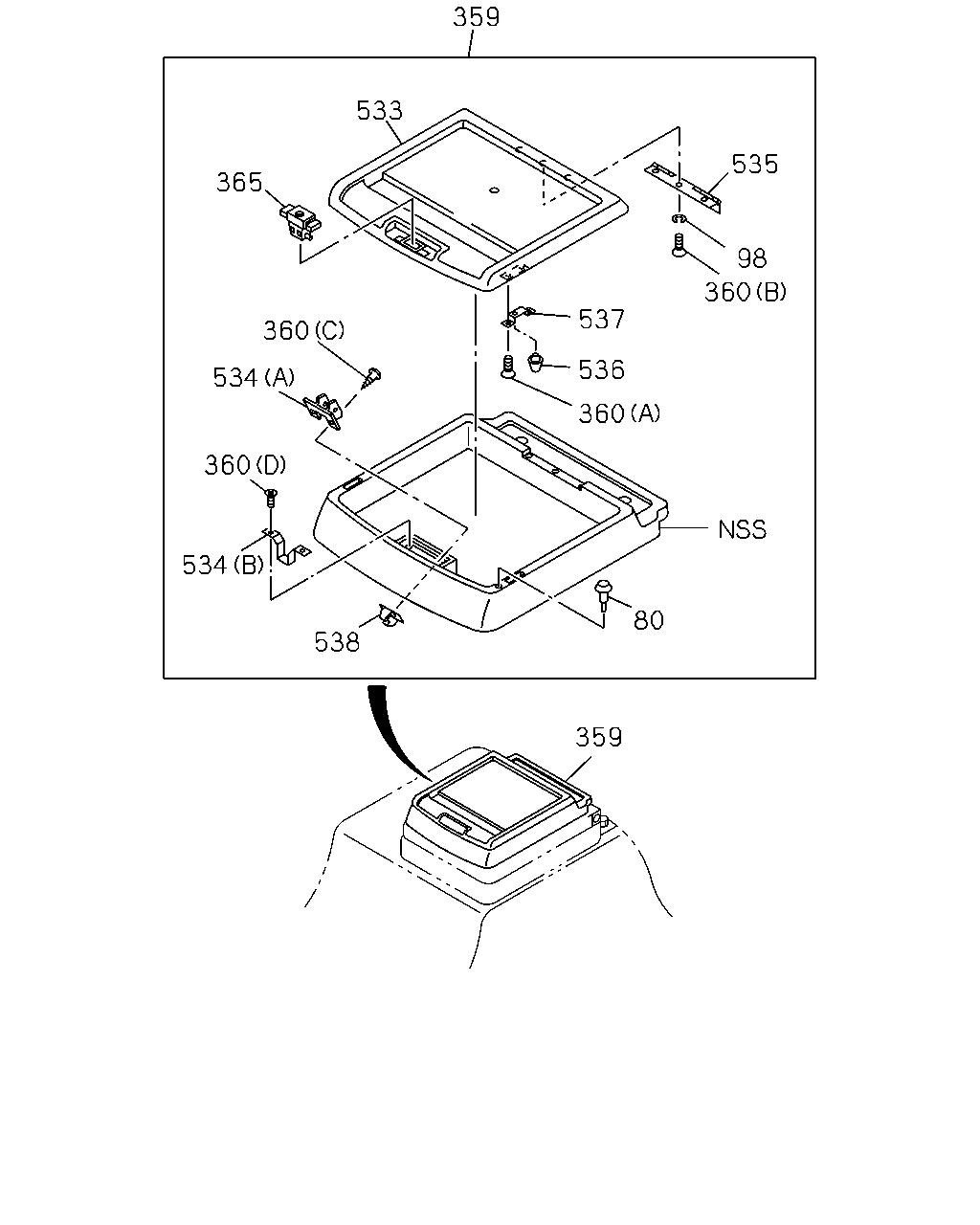

çizim 135156
359 533 535 365 98 360 537 360 536 534 360 360 534 80 538 359
BalonParca AdiParca NoAdetTipApplied Date
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-187-0 02 1 1010-
98 WASHER; HINGE
EXC. CENTER SEAT DELETE 2 CREWS<SP9> ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0602-
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-157-5 01 1 0602-1009
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-98145-115-0 01 1 1010-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0602-1009
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1010-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0602-0612
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1009
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 0602-0612
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70040-416-0 06 1 0701-1104
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 1105-
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-180-0 01 1 0602-
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-194-2 01 1 0602-1009
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-98145-119-0 01 1 1010-
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-72538-181-0 01 1 0602-1009
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) 		1-72538-190-0 01 1 1010-
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72447-391-1 01 1 0602-
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		5-09983-002-1 02 1 0602-1009
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72548-057-1 02 1 0602-1009
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-165-0 02 1 0602-1009

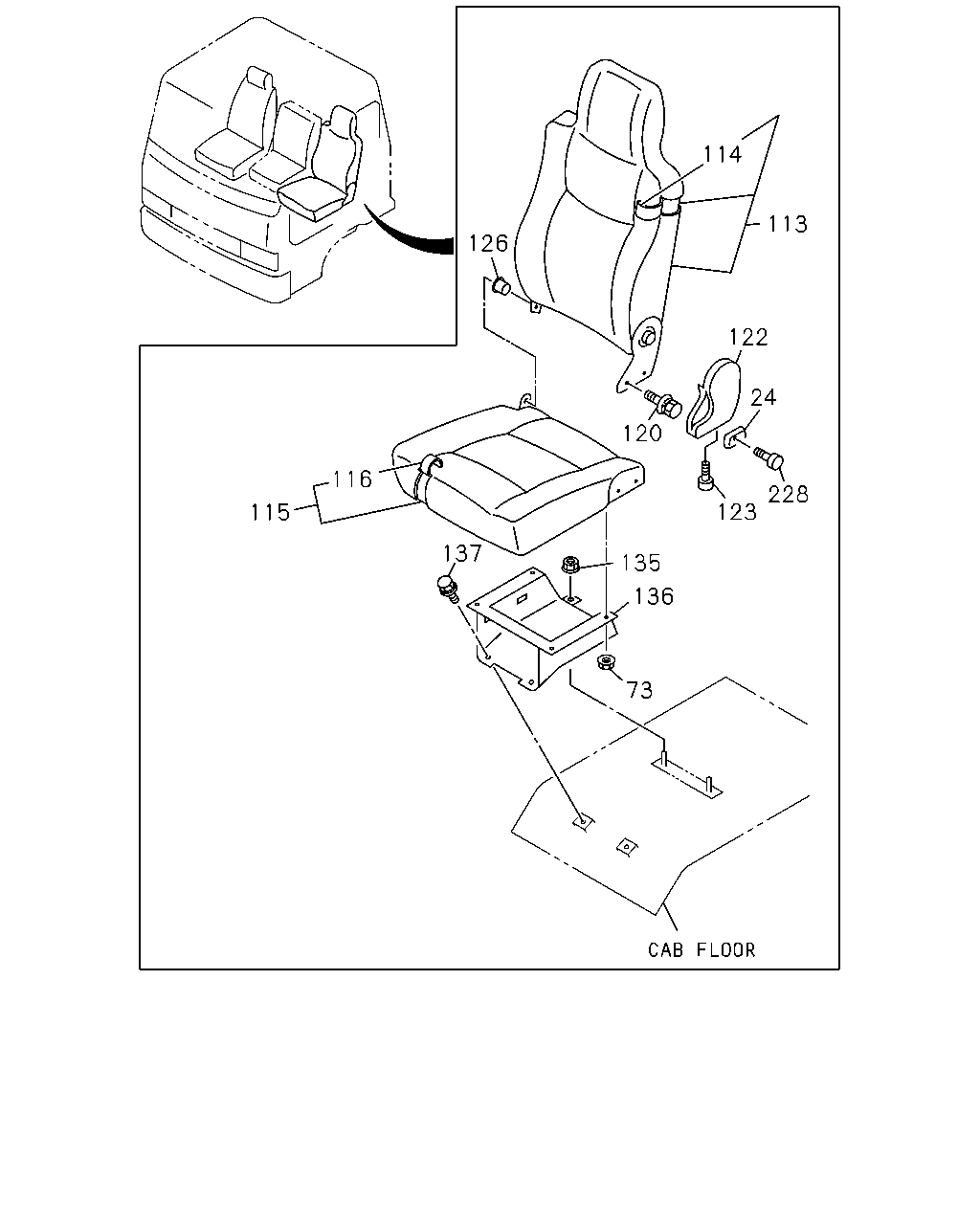

çizim 135187
114 113 126 122 24 120 116 228 123 115 137 135 136 73
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
PASSENGER 		1-75418-056-0 01 1 0602-
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-059-0 01 1 0602-0710
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-068-0 01 1 0711-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0602-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0602-
113 BACK ASM; SEAT 1-75208-059-3 01 1 0602-
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-599-1 01 1 0602-
115 CUSHION ASM; PASSENGER SEAT 1-75026-773-1 01 1 0602-
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-577-1 01 1 0602-
120 BOLT; RECLINING ADJ
M8X20 MAL 		8-97255-906-0 02 1 0602-
122 COVER; ADJ,RECLINING 1-75418-052-0 01 1 0602-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0602-
126 BUSHING; HINGE,RECLINING
MAL 		8-97854-087-0 01 1 0602-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0602-0703
135 NUT; SEAT STAND
M10 FLANGE MAL 		0-91180-110-0 02 1 0704-
136 STAND; PASSENGER SEAT 1-75558-547-6 01 1 0602-1305
136 STAND; PASSENGER SEAT 8-98242-291-0 01 1 1306-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0602-0703
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
228 SCREW; KNOB
M4X6 MAL 		8-97042-273-0 01 1 0602-0710
228 SCREW; KNOB
M4X6 MAL 		8-97042-273-0 01 1 0602-0710
228 SCREW; KNOB
PASSENGER M4X6 MAL 		8-97042-273-0 01 1 0711-
228 SCREW; KNOB
DRIVER M4 MAL 		8-98062-662-0 01 1 0711-
