Sayfa 1-55 - Isuzu EPC

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#723) — 122 parça

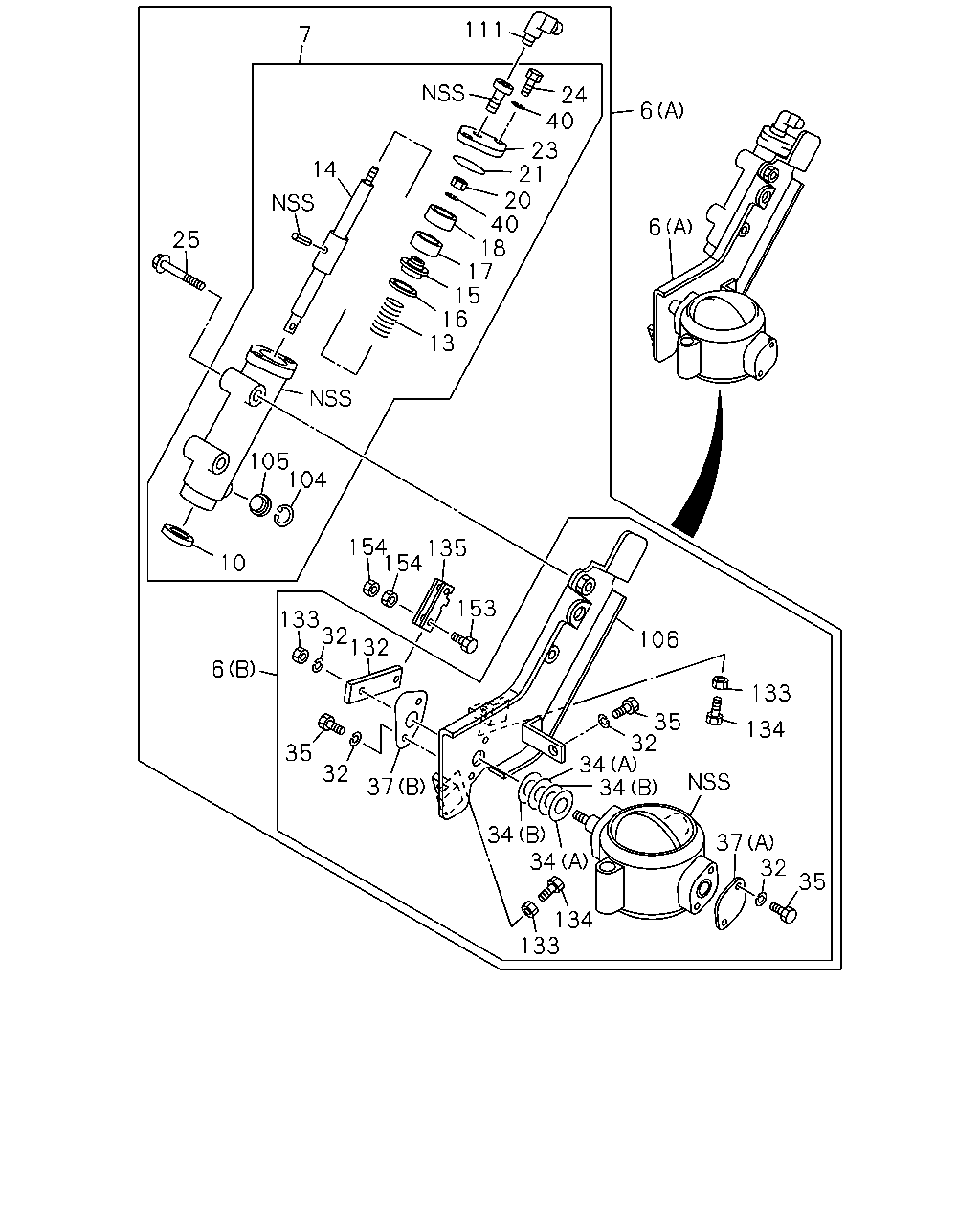

111 7 24 40 6 23 21 20 40 18 17 15 16 13 14 6 25 105 104 154 135 154 10 153 133 32 132 106 6 133 35 32 34 34 134 35 32 37 34 34 37 32 35 134 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	VALVE; EXH BRAKE	1-22180-255-1	01	1	9204-	●
6	VALVE; EXH BRAKE	1-22180-291-1	01	1	9204-		●
6	VALVE; EXH BRAKE (B)	8-94393-394-0	01	1	9505-			●
6	VALVE; EXH BRAKE (A)	8-94396-746-1	01	1	9505-			●
7	CYLINDER ASM; CONT	1-22190-464-0	01	1	9204-	●	●
7	CYLINDER ASM; CONT	8-94396-813-0	01	1	9505-			●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9204-	●	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9505-			●
13	SPRING; CONT CYL	9-88510-374-0	01	1	9204-	●	●
13	SPRING; CONT CYL	1-09580-465-0	01	1	9505-			●
14	SHAFT; CONT CYL	1-22199-051-0	01	1	9204-	●	●
14	SHAFT; CONT CYL	1-22196-302-0	01	1	9505-			●
15	PLATE; CONT CYL	1-22199-001-0	01	1	9204-	●	●	●
16	RING; WEAR,CONT CYL	1-22199-002-0	01	1	9204-	●	●
16	RING; WEAR,CONT CYL	1-22189-002-0	01	1	9505-			●
17	GASKET; CONT CYL	9-88510-373-0	01	1	9204-	●	●
17	GASKET; CONT CYL	1-22199-110-0	01	1	9505-			●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9204-	●	●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9204-	●	●	●
21	GASKET; COVER	9-88510-372-0	01	1	9204-	●	●
21	GASKET; COVER	1-22199-072-0	01	1	9505-			●
23	COVER; CONT CYL	9-88510-375-0	01	1	9204-	●	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9505-			●
24	BOLT; COVER M8X16	9-02050-816-0	02	1	9204-	●	●
24	BOLT; COVER M8X20	9-01000-820-0	02	1	9505-			●
25	BOLT; CONT CYL M10X55 FLANGE	8-94399-863-0	02	1	9505-			●
32	WASHER; LK (A) ID=10.2	9-09150-010-0	04	1	9204-	●	●
32	WASHER; LK (B) ID=8.2	9-09150-508-0	01	1	9204-	●	●
32	WASHER; LK ID=8.2	9-09150-508-0	06	1	9505-			●
34	RING; SEAL (A) ID=15	1-22189-025-0	02	1	9204-	●	●
34	RING; SEAL (B) ID=14	9-22189-104-0	01	1	9204-	●	●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	9505-			●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	9505-			●
35	BOLT; PLATE FIX M10X20	9-02051-020-0	04	1	9204-	●	●
35	BOLT; PLATE FIX M8X16	9-02050-816-0	05	1	9505-			●
37	COVER; BODY	1-22189-141-0	01	1	9204-	●	●
37	COVER; BODY (B)	1-22199-130-0	01	1	9505-			●
37	COVER; BODY (A)	9-22189-160-0	01	1	9505-			●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	03	1	9505-			●
104	RING; RET	9-88510-331-0	01	1	9505-			●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9505-			●
106	BRACKET; CONT CYL	8-94396-192-0	01	1	9505-			●
111	ELBOW; CONT CYL	8-94393-086-1	01	1	9505-			●
132	LEVER; BRK VLV	1-22196-221-0	01	1	9204-	●	●
132	LEVER; BRK VLV	8-94397-185-0	01	1	9505-			●
133	NUT; LK (A) M8	9-09111-408-0	01	1	9204-	●	●
133	NUT; LK (B)	9-88510-123-0	02	1	9204-	●	●
133	NUT; LK M8	9-09111-408-0	03	1	9505-			●
134	BOLT; STOPPER	1-22199-048-0	02	1	9204-	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9505-			●
135	CLEVIS; CONT CYL	1-22199-053-0	01	1	9505-			●
153	BOLT; CLEVIS,CONT CYL M6X30	1-09000-559-0	02	1	9505-			●
154	NUT; CLEVIS,CONT CYL M6	9-09110-406-0	02	1	9505-			●

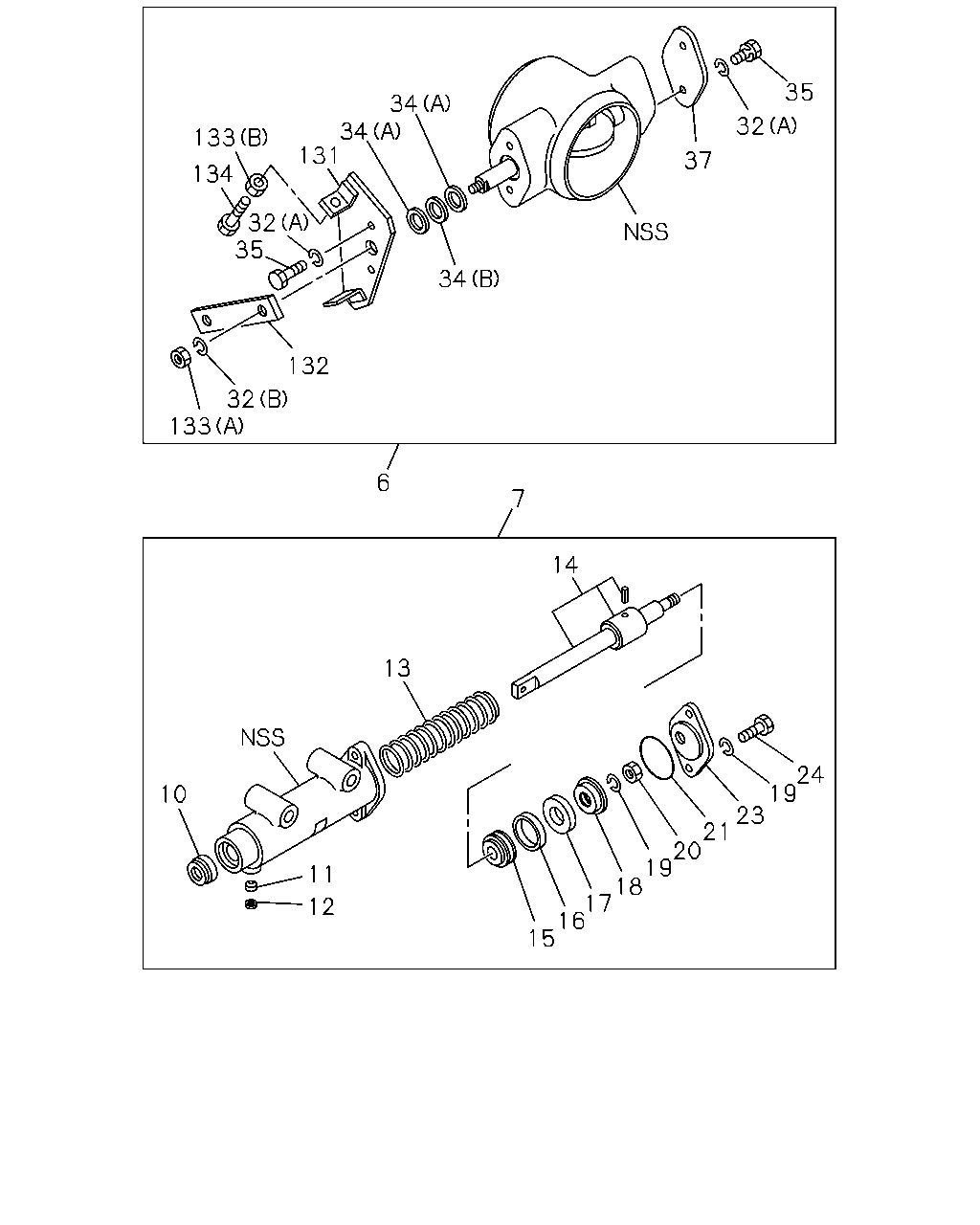

35 34 34 131 32 133 37 134 32 35 34 132 32 133 6 7 14 13 24 19 23 21 20 19 18 17 16 15 10 11 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	VALVE; EXH BRAKE	1-22180-255-1	01	1	9204-	●
6	VALVE; EXH BRAKE	1-22180-291-1	01	1	9204-		●
6	VALVE; EXH BRAKE (B)	8-94393-394-0	01	1	9505-			●
6	VALVE; EXH BRAKE (A)	8-94396-746-1	01	1	9505-			●
7	CYLINDER ASM; CONT	1-22190-464-0	01	1	9204-	●	●
7	CYLINDER ASM; CONT	8-94396-813-0	01	1	9505-			●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9204-	●	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9505-			●
11	FILTER; CYL	9-88510-330-0	01	1	9204-	●	●
12	RING; RET	9-88510-331-0	01	1	9204-	●	●
13	SPRING; CONT CYL	9-88510-374-0	01	1	9204-	●	●
13	SPRING; CONT CYL	1-09580-465-0	01	1	9505-			●
14	SHAFT; CONT CYL	1-22199-051-0	01	1	9204-	●	●
14	SHAFT; CONT CYL	1-22196-302-0	01	1	9505-			●
15	PLATE; CONT CYL	1-22199-001-0	01	1	9204-	●	●	●
16	RING; WEAR,CONT CYL	1-22199-002-0	01	1	9204-	●	●
16	RING; WEAR,CONT CYL	1-22189-002-0	01	1	9505-			●
17	GASKET; CONT CYL	9-88510-373-0	01	1	9204-	●	●
17	GASKET; CONT CYL	1-22199-110-0	01	1	9505-			●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9204-	●	●	●
19	WASHER; CONT,DUCT ID=8.2	9-09150-508-0	03	1	9204-	●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9204-	●	●	●
21	GASKET; COVER	9-88510-372-0	01	1	9204-	●	●
21	GASKET; COVER	1-22199-072-0	01	1	9505-			●
23	COVER; CONT CYL	9-88510-375-0	01	1	9204-	●	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9505-			●
24	BOLT; COVER M8X16	9-02050-816-0	02	1	9204-	●	●
24	BOLT; COVER M8X20	9-01000-820-0	02	1	9505-			●
32	WASHER; LK (A) ID=10.2	9-09150-010-0	04	1	9204-	●	●
32	WASHER; LK (B) ID=8.2	9-09150-508-0	01	1	9204-	●	●
32	WASHER; LK ID=8.2	9-09150-508-0	06	1	9505-			●
34	RING; SEAL (A) ID=15	1-22189-025-0	02	1	9204-	●	●
34	RING; SEAL (B) ID=14	9-22189-104-0	01	1	9204-	●	●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	9505-			●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	9505-			●
35	BOLT; PLATE FIX M10X20	9-02051-020-0	04	1	9204-	●	●
35	BOLT; PLATE FIX M8X16	9-02050-816-0	05	1	9505-			●
37	COVER; BODY	1-22189-141-0	01	1	9204-	●	●
37	COVER; BODY (B)	1-22199-130-0	01	1	9505-			●
37	COVER; BODY (A)	9-22189-160-0	01	1	9505-			●
131	PLATE; BODY	1-22196-223-0	01	1	9204-	●	●
132	LEVER; BRK VLV	1-22196-221-0	01	1	9204-	●	●
132	LEVER; BRK VLV	8-94397-185-0	01	1	9505-			●
133	NUT; LK (A) M8	9-09111-408-0	01	1	9204-	●	●
133	NUT; LK (B)	9-88510-123-0	02	1	9204-	●	●
133	NUT; LK M8	9-09111-408-0	03	1	9505-			●
134	BOLT; STOPPER	1-22199-048-0	02	1	9204-	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9505-			●

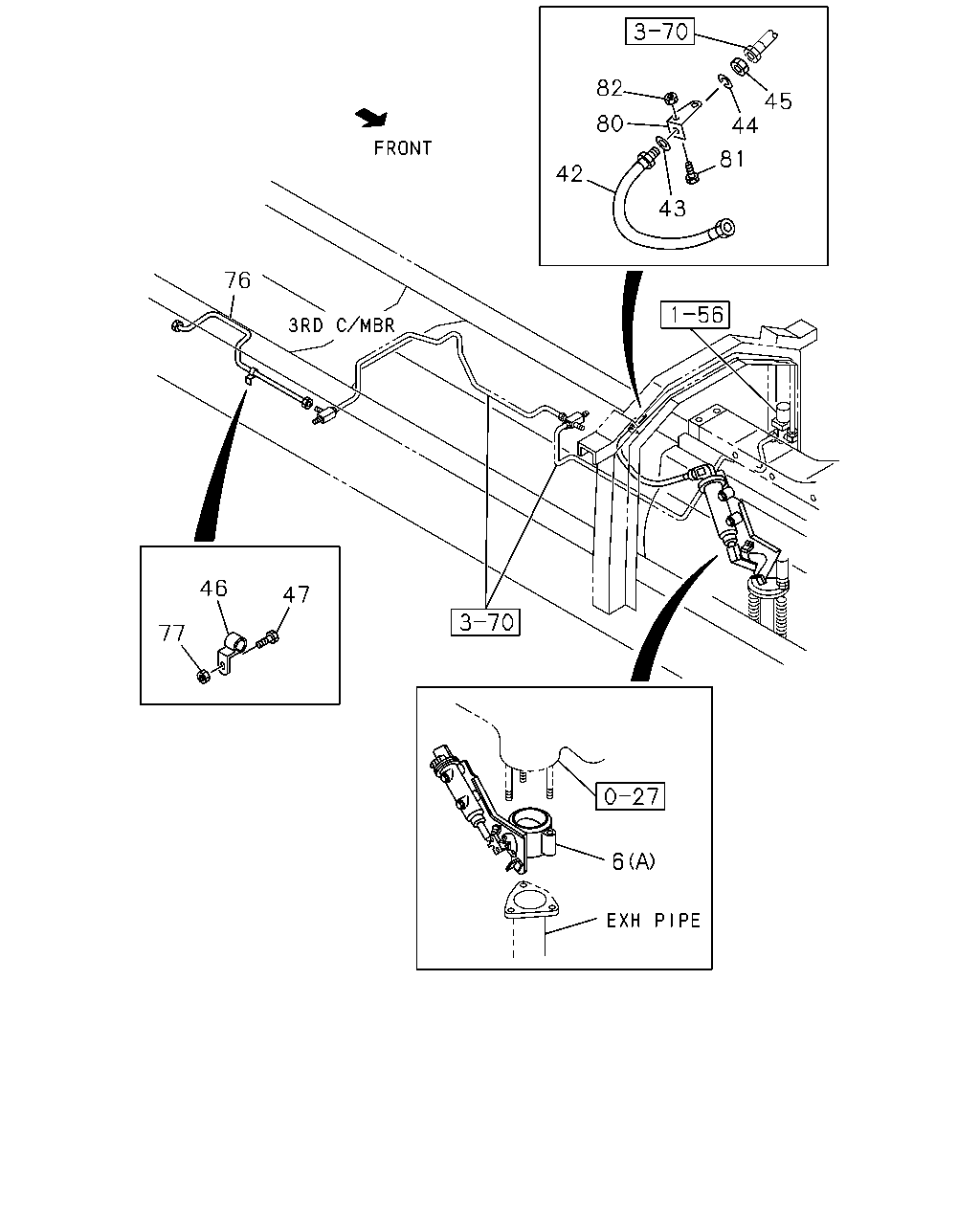

82 45 44 80 81 42 43 76 46 47 77 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	VALVE; EXH BRAKE	1-22180-255-1	01	1	9204-	●
6	VALVE; EXH BRAKE	1-22180-291-1	01	1	9204-		●
6	VALVE; EXH BRAKE (B)	8-94393-394-0	01	1	9505-			●
6	VALVE; EXH BRAKE (A)	8-94396-746-1	01	1	9505-			●
42	HOSE; FLEX,EXH BRK L=350	0-07120-350-0	01	1	9505-			●
43	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9505-			●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9505-			●
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	9505-			●
46	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	9505-			●
47	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9505-			●
76	PIPE ASM; AIR UNION TO UNION L=858 SERVICED BY L=900	1-47426-349-0	01	1	9505-			●
77	NUT; CLIP M8	9-09110-408-0	01	1	9505-			●
80	BRACKET; FLEX HOSE	1-47476-355-0	01	1	9505-			●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	02	1	9505-			●
82	NUT; HOSE BRKT M8	9-09110-408-0	02	1	9505-			●

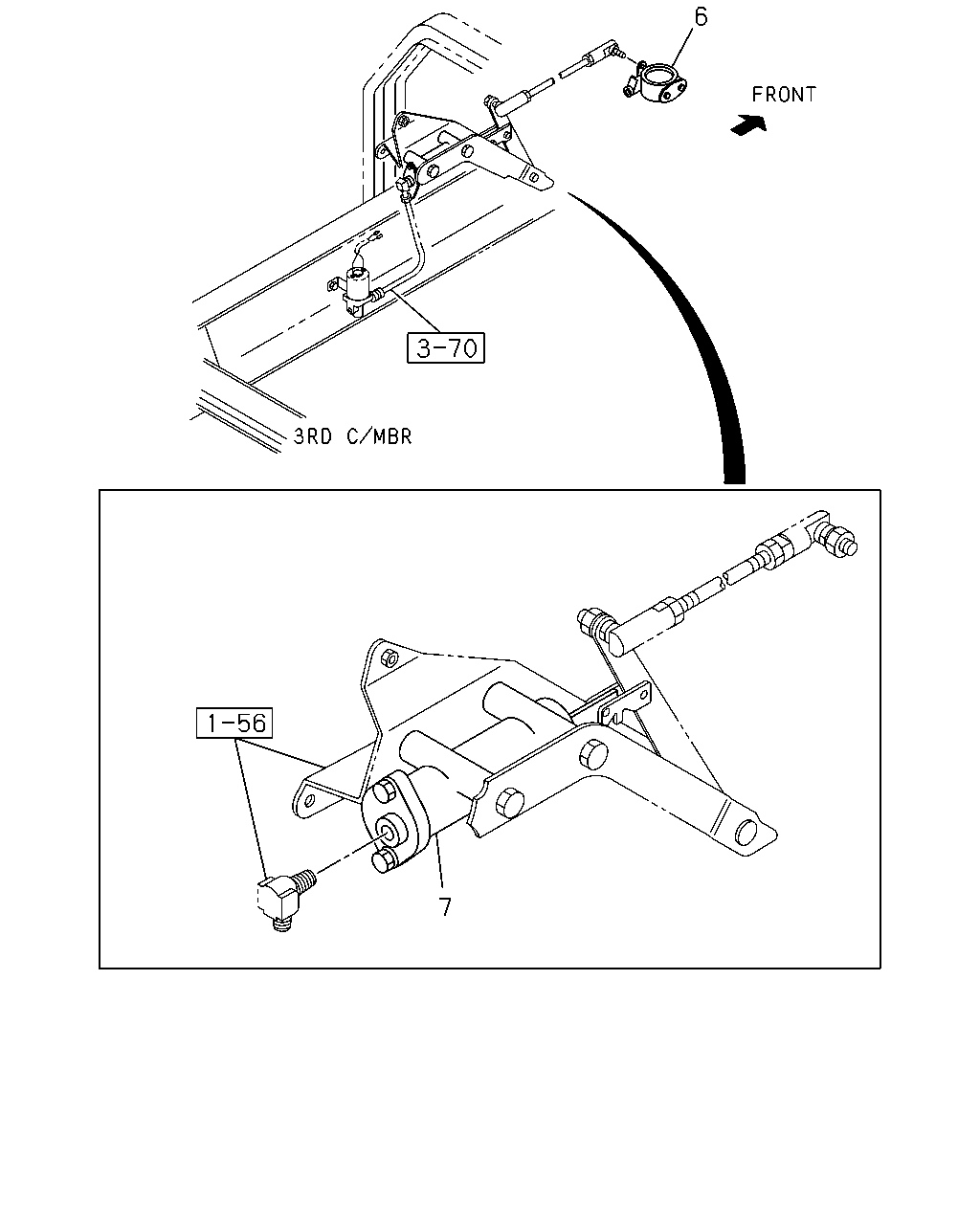

6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	VALVE; EXH BRAKE	1-22180-255-1	01	1	9204-	●
6	VALVE; EXH BRAKE	1-22180-291-1	01	1	9204-		●
6	VALVE; EXH BRAKE (B)	8-94393-394-0	01	1	9505-			●
6	VALVE; EXH BRAKE (A)	8-94396-746-1	01	1	9505-			●
7	CYLINDER ASM; CONT	1-22190-464-0	01	1	9204-	●	●
7	CYLINDER ASM; CONT	8-94396-813-0	01	1	9505-			●
