◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11365 - FSS(MALAYSIA)M/T ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#72285) — 21 parça

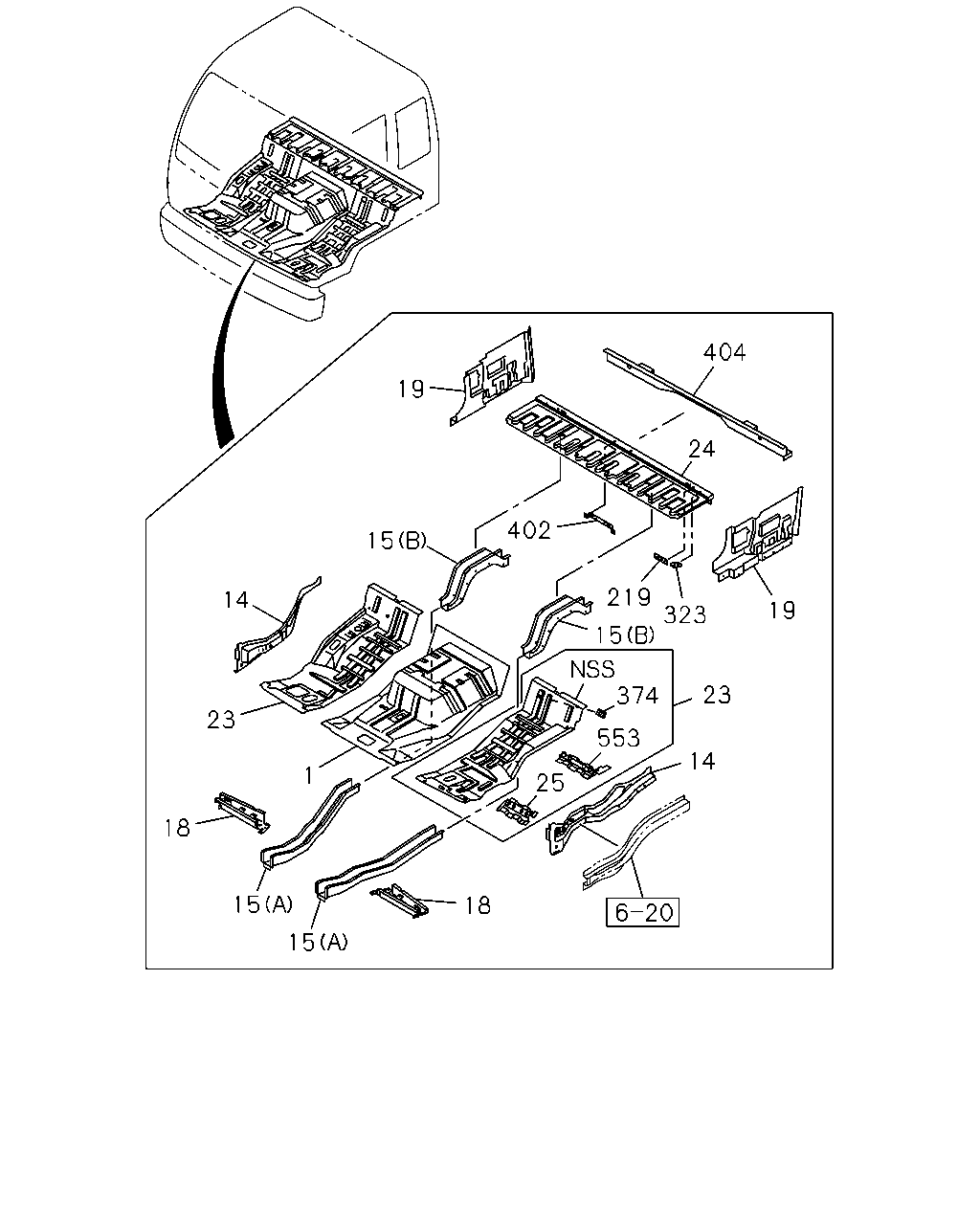

çizim 132215
404 19 24 402 15 219 14 19 323 15 374 23 23 553 14 1 25 18 15 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 1-62183-334-4 01 1 0602-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0602-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0602-
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 0602-
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 0602-
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0602-
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0602-
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-6 01 1 0602-
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-6 01 1 0602-
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 0602-
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 0602-
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 0602-
23 PANEL; FLOOR,SIDE 1-62183-271-4 01 1 0602-
24 PANEL; BED PAN 1-62182-940-9 01 1 0602-
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 0602-
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 0602-
323 PATCH; HAND LEVER 1-62182-961-0 01 1 0602-
374 NUT; FLOOR
M6 MAL 		1-09984-110-0 01 1 0602-
402 PATCH; CAB LOCK 1-62182-947-2 01 1 0602-
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 0602-
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 0602-
