2-37C — MANUAL TRANSMISSION CONT; MISSION SIDE (#7228) — 42 parça
çizim 5637
24 28 15 25 15 112 25 22 25 22 25 22 24 28 30 35 32 5 35 32 30 45 49 8 47 47 36 44 49 45 6 38 38 36 44
BalonParca AdiParca NoAdetTipApplied Date A B C
5 ROD; LINK,3RD SHIFT
L=1120 		1-33652-603-0 01 1 9906- ● ●
5 ROD; LINK,3RD SHIFT
L=1110 		1-33652-623-0 01 1 9906- ●
6 ROD; LINK,3RD SELECT
L=1613 		1-33652-729-0 01 1 9906- ●
6 ROD; LINK,3RD SELECT
L=1623 		1-33652-808-0 01 1 9906- ● ●
8 ROD; LINK,4TH SHIFT
L=480 		1-33652-730-0 01 1 9906- ● ● ●
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-0 01 1 9906- ● ●
15 ROD; LINK 1ST SHIFT
(C) L=423 		1-33652-804-1 01 1 9906- ● ●
15 ROD; LINK 1ST SHIFT
(B) L=490 		1-33652-780-0 01 1 9906- ●
15 ROD; LINK 1ST SHIFT
(C) L=428 		1-33652-781-1 01 1 9906- ●
15 ROD; LINK 1ST SHIFT
(D) L=435 		1-33652-696-0 01 1 9906- ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
(B) SELECT 		1-09760-109-0 02 1 9906- ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
(A) SHIFT 		1-09760-125-0 01 1 9906- ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9906- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		9-09111-410-0 02 1 9906- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 9906- ● ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9906- ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 9906- ● ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 9906- ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9906- ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-109-0 02 1 9906- ● ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9906-9912 ● ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0001- ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9906- ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 9906- ● ● ●
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 9906- ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9906- ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9906- ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9906- ● ● ●

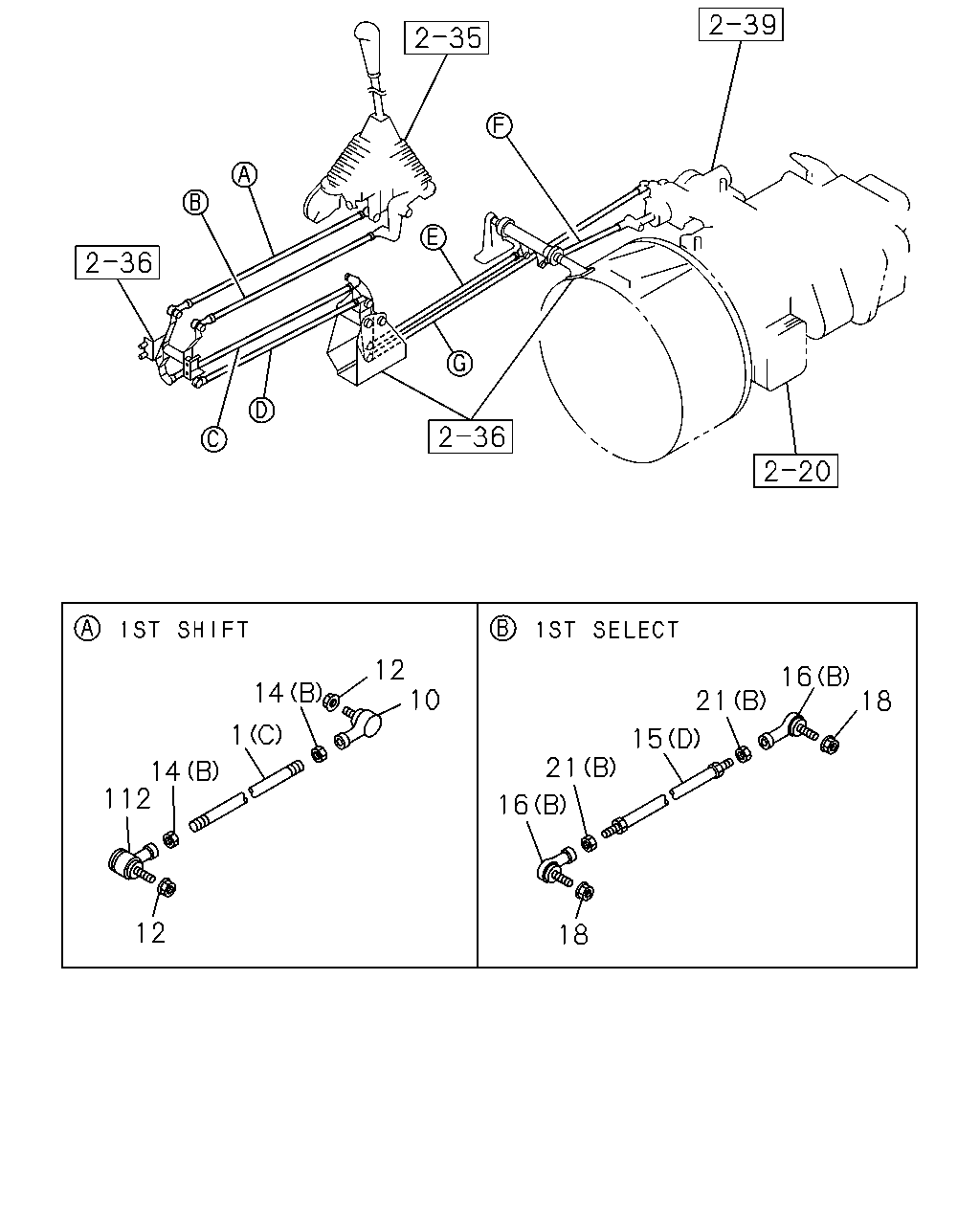

çizim 44551
12 10 16 14 21 18 1 15 21 14 112 16 12 18
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ROD; LINK,1ST SHIFT
(C) L=480 		9-08401-248-0 01 1 9906- ● ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9906- ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9906- ● ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
(B) M12 		9-99111-412-0 02 1 9906- ● ● ●
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-0 01 1 9906- ● ●
15 ROD; LINK 1ST SHIFT
(C) L=423 		1-33652-804-1 01 1 9906- ● ●
15 ROD; LINK 1ST SHIFT
(B) L=490 		1-33652-780-0 01 1 9906- ●
15 ROD; LINK 1ST SHIFT
(C) L=428 		1-33652-781-1 01 1 9906- ●
15 ROD; LINK 1ST SHIFT
(D) L=435 		1-33652-696-0 01 1 9906- ● ● ●
16 JOINT ASM; BALL,CONT ROD
(B) 		1-09760-108-0 02 1 9906- ● ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9906- ● ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
(B) M8 		9-09111-408-0 02 1 9906- ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9906- ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9906- ● ● ●
